Extreme Ultraviolet Source Based on Microwave Discharge Produced Plasma Using Cavity Resonator

Total Page：16

File Type：pdf, Size：1020Kb

Extreme Ultraviolet Source Based on Microwave Discharge Produced Plasma Using Cavity Resonator

D2-PMo-1 APPC12 The 12th Asia Pacific Physics Conference Extreme Ultraviolet Source based on microwave discharge produced plasma using cavity resonator S. Tashima, M. Ohnishi, H. Osawa, W. Hugrass a Department of Electrical and Electronic Engineering, Faculty of Engineering Science, Kansai University, 3-3-35 Yamate-cho, Suita, Osaka 564-8680, Japan aSchool of Computing and Information Systems, University of Tasmania, Locked Bag 1359, Launceston, Tasmania 7250, Australia [email protected] Extreme ultra violet (EUV) lithography is a leading technology for the production of the next-generation chips with small features. The 13.5-nm EUV radiation can be obtained using either discharge-produced plasma (DPP) or laser-produced plasma (LPP) sources. Because the EUV radiation is strongly absorbed by all known materials, the entire EUV scanner system must be in a vacuum environment. The debris and the tin vapor generated in some EUV sources may cause contamination of the EUV mirrors and the silicon wafers. The microwave discharge produced plasma (MDPP) source invented at Kansai University does not produce debris because it is electrode-less and the working gas is Xe.. Figure 1 shows the photo of MDPP. The microwave frequency is 2.45 GHz, the maximum power (Prf ) is 6 kW and the cavity mode is TM110. The Xe gas is fed in a glass tube with inner diameter 3 mm. The EUV radiation is measured using a calorie meter and EUV spectroscopy. The preliminary experiments show that the Figure 1 The system of microwave discharge produced plasma system MDPP produces pulsed EUV radiation of 10 W/4π str. for Prf = 300 W at a repetition frequency of 100 Hz. ― 590 ―.

Copy Link

Recommended publications

Extreme-Ultraviolet Frequency Combs for Precision Metrology and Attosecond Science
REVIEW ARTICLE https://doi.org/10.1038/s41566-020-00741-3 Extreme-ultraviolet frequency combs for precision metrology and attosecond science Ioachim Pupeza 1,2 ✉ , Chuankun Zhang3,4, Maximilian Högner 1 and Jun Ye 3,4 ✉ Femtosecond mode-locked lasers producing visible/infrared frequency combs have steadily advanced our understanding of fundamental processes in nature. For example, optical clocks employ frequency-comb techniques for the most precise measure- ments of time, permitting the search for minuscule drifts of natural constants. Furthermore, the generation of extreme-ultraviolet attosecond bursts synchronized to the electric field of visible/infrared femtosecond pulses affords real-time measurements of electron dynamics in matter. Cavity-enhanced high-order harmonic generation sources uniquely combine broadband vacuum- and extreme-ultraviolet spectral coverage with multimegahertz pulse repetition rates and coherence properties akin to those of frequency combs. Here we review the coming of age of this technology and its recent applications and prospects, including precision frequency-comb spectroscopy of electronic and potentially nuclear transitions, and low-space-charge attosecond-temporal-resolution photoelectron spectroscopy with nearly 100% temporal detection duty cycle. he control over broadband visible/near-infrared (VIS/NIR) ωN = ω0 +Nωr. Here ωr = 2π/Tr and ω0 are two frequencies in the electromagnetic waves, such as uniquely enabled by laser radiofrequency domain, corresponding to the inverse round-trip Tarchitectures employing mode-locked oscillators, lies at the time Tr of the optical pulse inside the mode-locked oscillator and heart of most advanced optical metrologies. The temporal inter- to an overall comb-offset frequency, respectively, and N is an play between gain, loss, dispersion and nonlinear propagation in integer.
[Show full text]
A Theoretical Investigation
Preprints (www.preprints.org) | NOT PEER-REVIEWED | Posted: 6 September 2019 doi:10.20944/preprints201909.0069.v1 ON THE EXTENSION OF COMPTON’S EXPERIMENT:A THEORETICAL INVESTIGATION Amal Pushp Fellow, The Royal Astro. Soc. Burlington House, Piccadilly London W1J 0BQ [email protected] September 6, 2019 ABSTRACT With new discoveries and insights in atomic and optical physics, the ﬁeld of spectroscopy is advancing to a new level with applications ranging from material science to astronomy. We here propose a theoretical description of a potential new phenomenon resulting from the extension of Compton’s experiment on the scattering of high energy photons through atomic electrons. How the proposed phenomenon can be tested experimentally is discussed in the paper as well.∗ ∗The Idea of the paper is to be presented as part of an International Conference talk (ICECMP-2019) © 2019 by the author(s). Distributed under a Creative Commons CC BY license. Preprints (www.preprints.org) | NOT PEER-REVIEWED | Posted: 6 September 2019 doi:10.20944/preprints201909.0069.v1 SEPTEMBER 6, 2019 1 Introduction Therefore, we get, In 1923, A.H. Compton made a discovery which showed h h h the remarkable transformation that X rays undergo when δλ = ; δλ = ; :::::; δλ = 1 m c 2 m c β m c they are scattered by atoms [1, 2]. Some 5 years later, Sir e e e CV Raman, an Indian physicist at the Indian Association or for the Cultivation of Science (IACS), discovered along δλ = δλ1 + δλ2 + ::: + δλβ (4) with his students, that this scattering involving the change in wavelength of the radiation is also possible for visible or light [3].
[Show full text]
Compensation of Extreme Ultraviolet Lithography Image Field Edge Effects Through Optical Proximity Correction
Rochester Institute of Technology RIT Scholar Works Theses 2-2014 Compensation of Extreme Ultraviolet Lithography Image Field Edge Effects Through Optical Proximity Correction Chris Maloney Follow this and additional works at: https://scholarworks.rit.edu/theses Recommended Citation Maloney, Chris, "Compensation of Extreme Ultraviolet Lithography Image Field Edge Effects Through Optical Proximity Correction" (2014). Thesis. Rochester Institute of Technology. Accessed from This Thesis is brought to you for free and open access by RIT Scholar Works. It has been accepted for inclusion in Theses by an authorized administrator of RIT Scholar Works. For more information, please contact [email protected]. COMPENSATION OF EXTREME ULTRAVIOLET LITHOGRAPHY IMAGE FIELD EDGE EFFECTS THROUGH OPTICAL PROXIMITY CORRECTION by CHRIS MALONEY A thesis submitted in partial fulfillment of the requirements For the degree of Master of Science in Microelectronic Engineering Kate Gleason College of Engineering Department of Electrical and Microelectronic Engineering Rochester Institute of Technology Rochester, NY February 2014 Author: _________________________________________________________________ Chris Maloney Approved by: ____________________________________________________________ Robert Pearson, Ph.D. Approved by: ____________________________________________________________ Bruce W. Smith, Ph.D. Approved by: ____________________________________________________________ Dale Ewbank, Ph.D. Approved by: ____________________________________________________________
[Show full text]
Radio Waves: Microwaves: Infrared: Visible: Ultraviolet: X-Rays: Gamma
The Electromagnetic (EM) Spectrum Hawaiian Comparisons to the Sizes of Wavelengths: Aloha Tower Aloha Stadium Hale Kamehameha Point of a Needle Plant Cell Bacteria Protein Water Molecule Atom (Hawaiian House) Butterfly 3 -2 -5 -6 -8 -10 -12 Longer 10 10 10 10 10 10 10 Shorter Wavelength (Meters): Radio Waves: Microwaves: Infrared: Visible: Ultraviolet: X-Rays: Gamma Rays: Radio waves have the longest wavelength in the EM Since microwaves can penetrate haze, light Infrared light has a range of wavelengths Visible light waves are the only waves in spec- Ultraviolet light is invisible to the human As the wavelengths of the spectrum de- Gamma rays have the smallest wavelength, spectrum. As implied, radio waves bring music to ra- rain, snow, clouds and smoke, these waves like visible light. “Near infrared” light is trum that humans can see. These waves are eyes, but some insects, like bumblebees, have crease, the energy increases, such as how but have the most energy out of all of the other dios, but they also provide signals to cell phones, tele- are ideal for viewing the Earth from space. closest in wavelength to visible light and seen in a range of colors with red having the proven to be able to see ultraviolet light. The x-rays tend to act more like a particle than waves in the spectrum. These waves are gener- visions, etc. Radio waves are received at an estimate The wavelength of micro waves in a mi- “far infrared” is closer to the microwave re- longest wavelength and violet (purple) having ultraviolet part of the spectrum is divided into a wave.
[Show full text]
Laser-Plasma Sources for Extreme-Ultraviolet Lithography
Laser-Plasma Sources for Extreme-Ultraviolet Lithography BJÖRN A. M. HANSSON Doctoral Thesis Stockholm, Sweden 2003 TRITA FYS 2003-56 ISSN 0280-316X KTH ISRN KTH/FYS/--03:56--SE SE-100 44 Stockholm ISBN 91-7283-658-X SWEDEN Akademisk avhandling som med tillstånd av Kungl Tekniska högskolan framlägges till offentlig granskning för avläggande av teknologie doktorsexamen fredagen den 19 december 2003 kl. 10.00 i Kollegiesalen, Administrationsbyggnaden, Kungl Tekniska högskolan, Valhallavägen 79, Stockholm. °c Björn A. M. Hansson, november 2003 Tryck: Universitetsservice US AB iii Abstract This thesis describes the development and characterization of a liquid- xenon-jet laser-plasma source for extreme-ultraviolet (EUV) radiation. It is shown how this source may be suitable for production-scale EUV lithography (EUVL). EUVL is one of the main candidates to succeed deep-ultraviolet (DUV) lithography for large-scale manufacturing of integrated circuits (IC). However, a major obstacle towards the realization of EUVL is the current unavailability of a source meeting the tough requirements on especially power and clean- liness for operation in an EUVL stepper. The liquid-xenon-jet laser-plasma concept has key advantages that may make it suitable for EUVL since, e.g., its plasma consists only of the inert noble gas xenon and since the liquid- jet target technology enables plasma operation at large distances from the source-hardware thereby reducing sputtering and to allowing for high-power operation. At the beginning of the work described in this thesis, a spatial insta- bility of the liquid-xenon-jet made stable operation of a plasma at practical distances from the nozzle orifice difficult.
[Show full text]
Spectral Purification and Infrared Light Recycling in Extreme Ultraviolet Lithography Sources
Spectral purification and infrared light recycling in extreme ultraviolet lithography sources Muharrem Bayraktar,1,* Fred A. van Goor,1 Klaus J. Boller,1 and Fred Bijkerk1,2,3 1Laser Physics and Nonlinear Optics Group, MESA + Research Institute for Nanotechnology, University of Twente, P.O. Box 217, 7500 AE, Enschede, The Netherlands 2Industrial Focus Group XUV Optics, MESA + Research Institute for Nanotechnology, University of Twente, P.O. Box 217, 7500 AE, Enschede, The Netherlands 3Dutch Institute for Fundamental Energy Research, P.O. Box 1207, 3430 BE, Nieuwegein, The Netherlands *[email protected] Abstract: We present the design of a novel collector mirror for laser produced plasma (LPP) light sources to be used in extreme ultraviolet (EUV) lithography. The design prevents undesired infrared (IR) drive laser light, reflected from the plasma, from reaching the exit of the light source. This results in a strong purification of the EUV light, while the reflected IR light becomes refocused into the plasma for enhancing the IR-to-EUV conversion. The dual advantage of EUV purification and conversion enhancement is achieved by incorporating an IR Fresnel zone plate pattern into the EUV reflective multilayer coating of the collector mirror. Calculations using Fresnel-Kirchhoff’s diffraction theory for a typical collector design show that the IR light at the EUV exit is suppressed by four orders of magnitude. Simultaneously, 37% of the reflected IR light is refocused back the plasma. ©2014 Optical Society of America OCIS codes: (050.1970) Diffractive optics; (220.3740) Lithography; (230.7408) Wavelength filtering devices; (260.3060) Infrared; (340.7480) X-rays, soft x-rays, extreme ultraviolet (EUV); (350.5400) Plasmas.
[Show full text]
X-Rays and Extreme Ultraviolet Radiation 2Nd Edition Frontmatter More Information

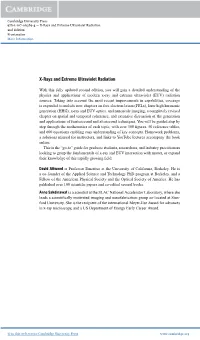

Cambridge University Press 978-1-107-06289-4 — X-Rays and Extreme Ultraviolet Radiation 2nd Edition Frontmatter More Information X-Rays and Extreme Ultraviolet Radiation With this fully updated second edition, you will gain a detailed understanding of the physics and applications of modern x-ray and extreme ultraviolet (EUV) radiation sources. Taking into account the most recent improvements in capabilities, coverage is expanded to include new chapters on free electron lasers (FELs), laser high harmonic generation (HHG), x-ray and EUV optics, and nanoscale imaging, a completely revised chapter on spatial and temporal coherence, and extensive discussion of the generation and applications of femtosecond and attosecond techniques. You will be guided step by step through the mathematics of each topic, with over 300 figures, 50 reference tables, and 600 equations enabling easy understanding of key concepts. Homework problems, a solutions manual for instructors, and links to YouTube lectures accompany the book online. This is the “go-to” guide for graduate students, researchers, and industry practitioners looking to grasp the fundamentals of x-ray and EUV interaction with matter, or expand their knowledge of this rapidly growing field. David Attwood is Professor Emeritus at the University of California, Berkeley. He is a co-founder of the Applied Science and Technology PhD program at Berkeley, and a Fellow of the American Physical Society and the Optical Society of America. He has published over 100 scientific papers and co-edited several books. Anne Sakdinawat is a scientist at the SLAC National Accelerator Laboratory, where she leads a scientifically motivated imaging and nanofabrication group co-located at Stan- ford University.
