ASIC = “Application Specific Integrated Circuit”

Total Page:16

File Type:pdf, Size:1020Kb

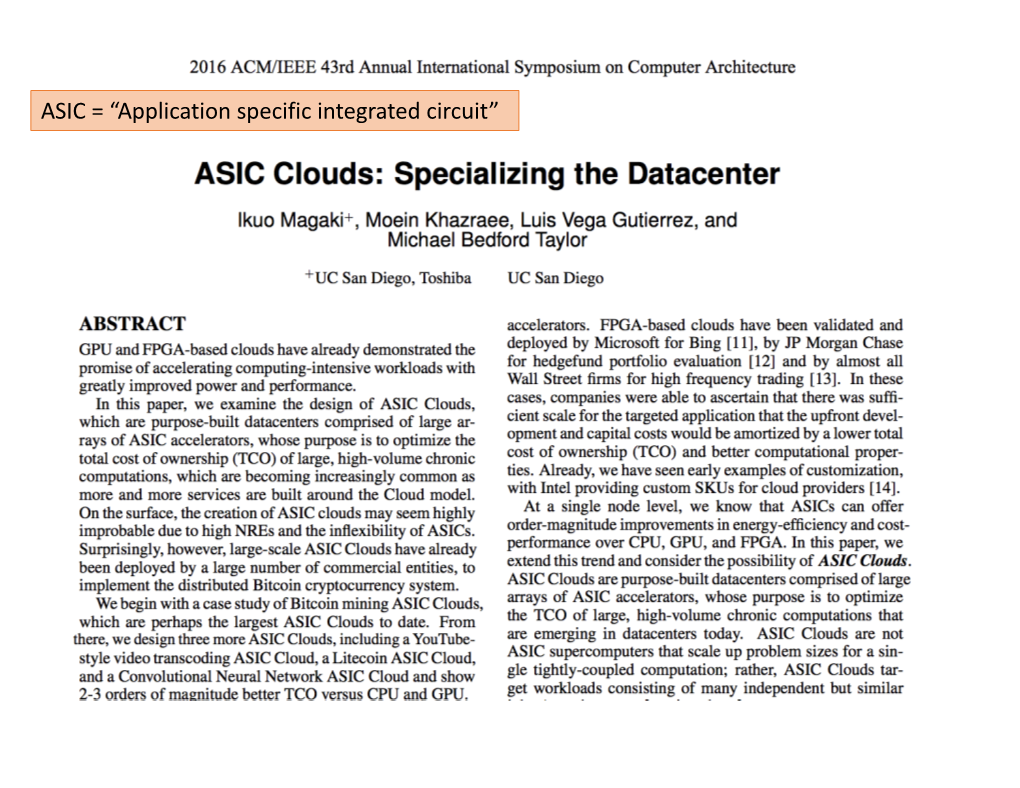

ASIC = “Application Specific Integrated Circuit” ASIC = “Application specific integrated circuit” CS 2630 Computer Organization Meeting 19: Building a MIPS processor Brandon Myers University of Iowa The goal: implement most of MIPS So far Implementing the addu instruction register file still need to: • support more than 1 Kind of arithmetic operation • feed the CPU with a program • support branches and load/store Next: we’ve discussed what is in this box, but we need to learn about the rest of what is needed for a MIPS processor Project 2-1: the stuff in this box Project 2-2: everything else Implementing the addu instruction register file How do we program the “addu machine”? Peer instruction Give the sequence of addu machine inputs to perform $t0 = $t1 + $t2 + $t3 a) 1st clock cycle: rd=8, rs=9, rt=10 2nd clock cycle: rd=8, rs=8, rt=11 b) 1st clock cycle: rd=0, rs=9, rt=10 2nd clock cycle: rd=8, rs=0, rt=0 3rd clock cycle: rd=0, rs=8, rt=11 4th clock cycle: rd=8, rs=0, rt=0 c) 1st clock cycle: rd=0, rs=10, rt=11 2nd clock cycle: rd=8, rs=0, rt=0 3rd clock cycle: rd=0, rs=8, rt=9 4th clock cycle: rd=8, rs=0, rt=0 d) 1st clock cycle: rd=9, rs=10, rt=11 2nd clock cycle: rd=8, rs=0, rt=0 How do we program the addu machine? • Example: 8 8 14 On each clocK cycle, we are allowed to change the inputs rd, rs, and rt to perform another addition. But, where do those inputs come from? mining difficulty year “the difficulty target is adjusted based on the networK's recent performance, with the aim of Keeping the average time between new blocKs at ten minutes. In this way the system automatically adapts to the total amount of mining power on the networK” wiKipedia.org/wiKi/Bitcoin citing Andreas M. Antonopoulos (April 2014). Mastering Bitcoin. Unlocking Digital Crypto-Currencies. O'Reilly Media. ISBN 978-1-4493-7404-4. https://en.wiKipedia.org/wiKi/Bitcoin http://cseweb.ucsd.edu/~mbtaylor/papers/bitcoin_taylor_cases_2013.pdf CS 2630 Computer Organization Meeting 20: Building a MIPS processor Brandon Myers University of Iowa But, where do those inputs come from? • the instruction memory recall the layout of bits in R-type instructions How do we Know which instruction we are on? How do we Know which instruction we are on? • Store the current address in a 32-bit register called the program counter (PC) • Add 4 each cycle to go to the next word (next instruction) The complete addu machine Architecture and microarchitecture Architecture Microarchitecture also Known as ISA, the programmer’s an implementation of the ISA interface we’ll examine at least two Kinds of it includes the things on the MIPS reference microarchitectures for MIPS sheet: 32 registers, PC, instructions and their • right now: a single-cycle design where an behavior (RTL) instruction executes in one clocK period • later: a pipelined design where an instruction taKes multiple clocK periods The complete addu machine But, how do we get data into the addu machine? All registers start with the value 0. Let’s modify the circuit to include addiu Peer instruction • Modify the processor so it also Knows how to execute both addiu and addu Assume you have a component called “control” that taKes a MIPS opcode as input and provides a 1-bit signal isAddiu as output. isAddiu = 0 if the opcode is 0x0 (the opcode for addu) isAddiu = 1 if the opcode is 0x9 (the opcode for addiu) opcode control isAddiu bonus: implement the inside of “control” Addu/addiu machine 1. LooK at RTL of addu and addiu. What are the differences? 2. Where do we get the immediate from? 3. Each difference in the RTL can be handled with a MUX Interesting points: there was a 2- cycle solution, too looKup “microcode” for more information about that Kind of design Project 2: MIPS processor • Project 2-1 is assigned • one submission per team • Project 2-1: ALU and register file and tests • Project 2-2: datapath and control path of pipelined MIPS processor, tests, and test programs ALU stands for Project 2-1: ALU arithmetic logic unit Notice that the output Equal is different from the Zero? signal from the textbooK and lecture examples Project 2-1: ALU Switch plays the same role as the signal ALU control in the textbooK. However, mind the differences! Do not bother building your own adder/shifter/comparator! You can use any built-in Logisim component. Project 2-1: testing the ALU You must use a Linux environment to run the tests. Many options for students using Windows computers: a) connect to instructional machines through ssh (using WinSCP) or through fastx.divms.uiowa.edu b) Use the lab machines directly c) Use a Virtual machine d) Use cygwin e) if Windows 10, then enable Ubuntu console For students using Linux or MacOSX computers: • use the terminal Ask for help early! There is no excuse to not run the tests. Project 2-1: The register file • An addressable memory with 2 read ports and 1 write port! • $0 must always hold 0 Inputs Read Register 1 5 The number of the register whose contents is read out to Read Data 1 Read Register 2 5 The number of the register whose contents is read out to Read Data 2 Write Register 5 The number for the register to be written at the rising edge of ClocK Write Data 32 The data to write to the register specified by Write Register Write Enable 1 If 1, then a register will be written at the rising edge of ClocK. If 0, no register will be written at the rising edge of ClocK. Clock 1 The clocK signal The “Debugging Outputs outputs” provide Name Bit width Description Read Data 1 32 The data read from the register specified by Read Register 1 access to some of Read Data 2 32 The data read from the register specified by Read Register 2 the internal state of $s0 Value 32 (Debugging output) the value stored in register $s0) $s1 Value 32 (Debugging output) the value stored in register $s1) the register file $s2 Value 32 (Debugging output) the value stored in register $s2) $ra Value 32 (Debugging output) the value stored in register $ra) $sp Value 32 (Debugging output) the value stored in register $sp) Project 2-1 If you cannot decide on a split of the worK, you can try • 1 person in charge of ALU • 1 person in charge of register file • 1 person in charge of creating tests This is just a way to organize the worK; every team member is responsible for ensuring the team completes the whole project. SO FAR NEXT Next steps • Add more instructions to our processor: • other R and I types (or, ori, subu) • load and store (lw, sw) • branches (beq/bne) • jumps (j, jr, jal) • How do we implement the control logic? Addu/addiu machine sign extend Using memory for data 32 DataIn DataOut 32 • Load word 32 ReadAddr Data memory • Store word 32 WriteAddr WrEnable 1. Draw the “Data Memory” on the right side of your processor 2. Using the RTL above, add circuitry that is sufficient for executing load word (lw). • Assume that you have a 1-bit control signal isLW (1 when instruction is a lw, 0 otherwise) 3. Using the RTL above, add circuitry that is sufficient for executing load word (sw). If you need a control signal, just picK a descriptive name. • Assume that you have a 1-bit control signal isSW (1 when instruction is a sw, 0 otherwise) Branch instructions PC behavior for non branch/jump instructions • beq PC <- PC + 4 1. Add new circuitry or identify existing circuitry used to implement the comparison R[$rs]=R[$rt] 2. Add circuitry to implement SignExt18b({imm,00}). 3. Notice the difference in what happens to the PC register. • Add circuitry to choose between what the next PC is. • Add a new control signal Branch=1 when instruction is a branch instruction, 0 otherwise. • Did you add a MUX? Add necessary logic to calculate its Select input. RTL from http://www-inst.eecs.berKeley.edu/~cs61c/resources/MIPS_help.html [31:26] Control [25:21] ALUOp WriteEnable Address [20:16] A A ALUResult WriteData ReadData1 result PC Instruction ALU ==Zero? ReadData2 Memory WriteAddress [15:10] zero B B Data ReadAddress1 ReadAddress2 + 4 [5:0] [15:0] How to control the ALU’s operation opcode switch (aKa, ALUControl) ALUOpSwitch ALUControl Unit funct A ALUResult ALU ==Zero? B Note that the textbooK has a slightly different design where the “main decoder” produces a signal, ALUOp, that tells the ALUDecoder some information based on only the Opcode DDCA, 2nd Ed When you just “don’t care” A “don’t care” is where you put an X in the truth table to indicate that it doesn’t matter if the bit is a 0 or a 1. X’s can drastically simplify the truth table and the resulting combinational logic circuit. Why? The person/tool simplifying the circuit can picK whether a 1 or 0 for the X maKes the circuit simpler. Example from your recent experience... “What should happen to the Soda Machine FSM when Dime and NicKel inputs are both 1 in the same clocK period?” • If our circuit’s behavior is unspecified for a certain input case then we can put X’s into the truth table. You can also put X’s in the output column • an X in the output means that you don’t care what the output is for a certain input case • if you use Logisim’s logic analyzer, be aware that it allows for X’s in the output bits but not the input bits Do not confuse “don’t cares” (X’s in the truth table) with Logisim’s RED wires (i.e., wires where the value has X’s in it).
