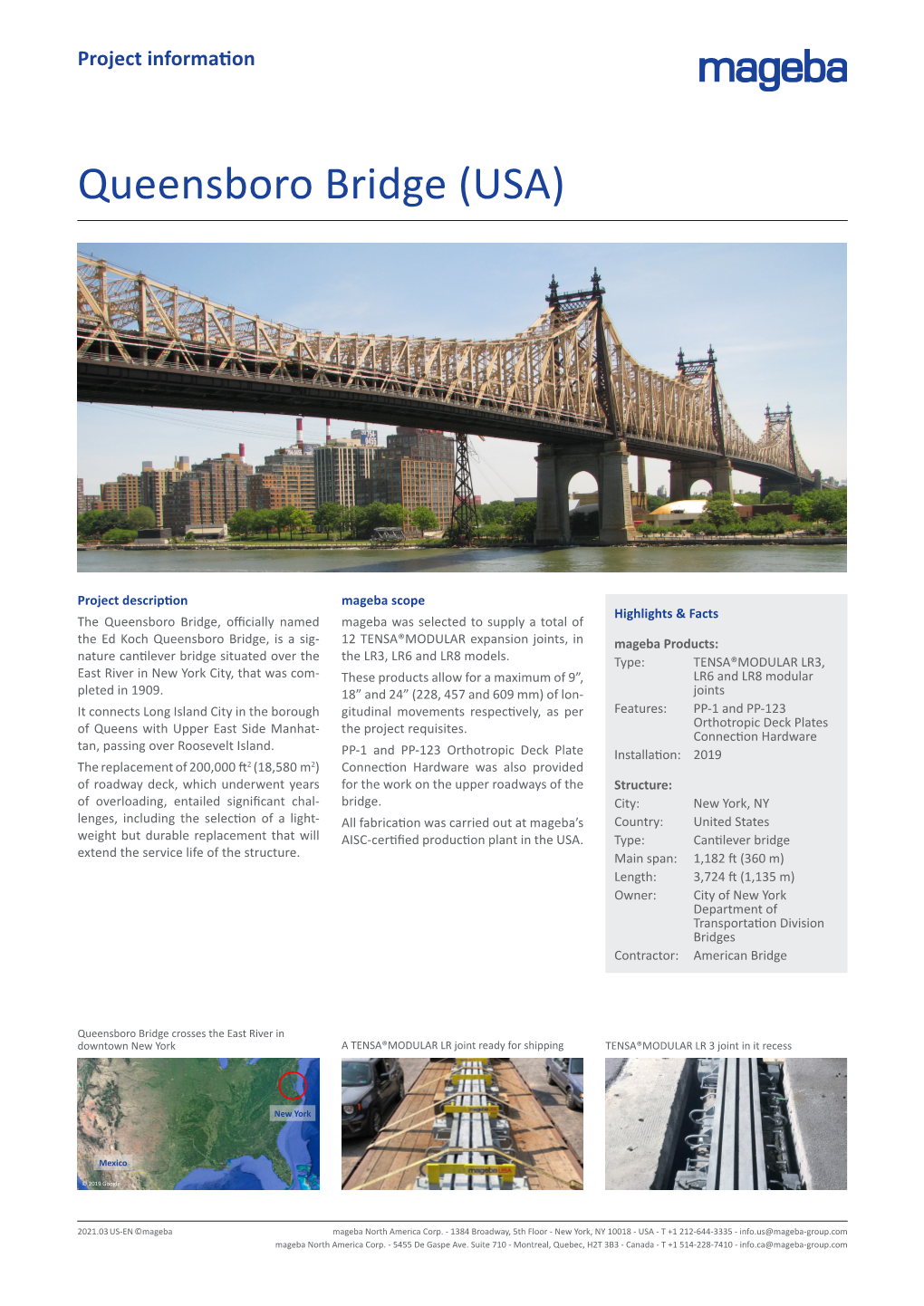

Queensboro Bridge (USA)

Project information

Project description mageba scope Highlights & Facts The Queensboro Bridge, officially named mageba was selected to supply a total of the Ed Koch Queensboro Bridge, is a sig- 12 TENSA®MODULAR expansion joints, in mageba Products: nature cantilever bridge situated over the the LR3, LR6 and LR8 models. Type: TENSA®MODULAR LR3, East River in New York City, that was com- These products allow for a maximum of 9”, LR6 and LR8 modular pleted in 1909. 18” and 24” (228, 457 and 609 mm) of lon- joints It connects Long Island City in the borough gitudinal movements respectively, as per Features: PP-1 and PP-123 of Queens with Upper East Side Manhat- the project requisites. Orthotropic Deck Plates Connection Hardware tan, passing over Roosevelt Island. PP-1 and PP-123 Orthotropic Deck Plate Installation: 2019 The replacement of 200,000 ft2 (18,580 m2) Connection Hardware was also provided of roadway deck, which underwent years for the work on the upper roadways of the Structure: of overloading, entailed significant chal- bridge. City: New York, NY lenges, including the selection of a light- All fabrication was carried out at mageba’s Country: United States weight but durable replacement that will AISC-certified production plant in the USA. Type: Cantilever bridge extend the service life of the structure. Main span: 1,182 ft (360 m) Length: 3,724 ft (1,135 m) Owner: City of New York Department of Transportation Division Bridges Contractor: American Bridge

Queensboro Bridge crosses the East River in downtown New York A TENSA®MODULAR LR joint ready for shipping TENSA®MODULAR LR 3 joint in it recess

New York

Mexico
