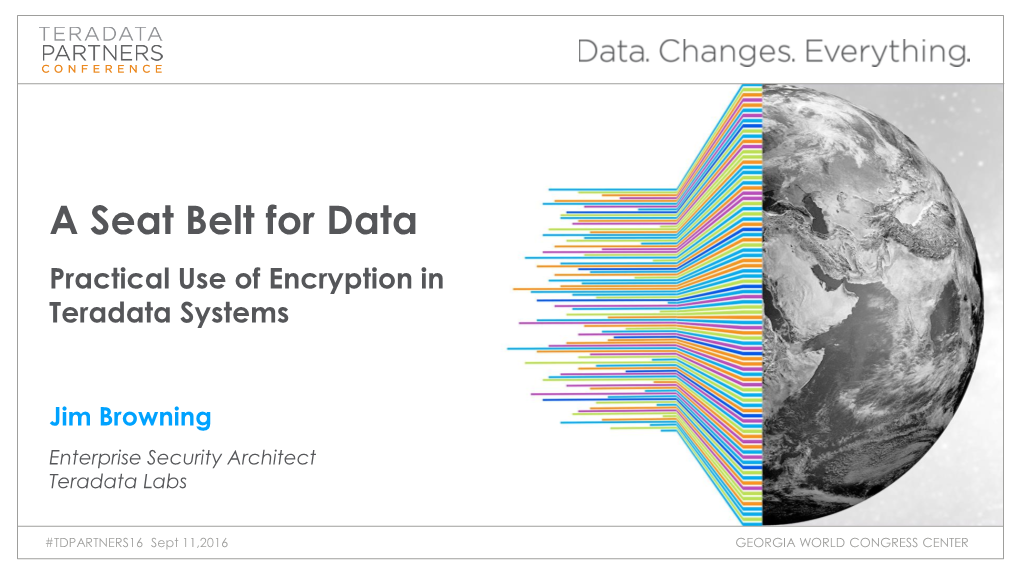

Teradata Tape Encryption

A Seat Belt for Data

Practical Use of Encryption in Teradata Systems

Jim Browning

Enterprise Security Architect Teradata Labs

#TDPARTNERS16 Sept 11,2016 GEORGIA WORLD CONGRESS CENTER “Encryption is the equivalent of a seat belt for data.” -- Andy Cordial, Managing Director, Origin Storage

2 Agenda

• Key Encryption Drivers

• Cryptographic Technology Primer

• Important Considerations

• Use of Encryption in Teradata Systems

Drivers for the Use of Encryption Types of Data Requiring Protection

Credit Card Information Protected Health Information > Credit Card Numbers (PAN) > Identifiable Patient Data > Service Codes > Medical Record Numbers > Expiration Dates Corporate Financial Data Personal Identifying Information > Non-public Information > Social Security Numbers > Tax Identifiers Human Resources Data > Driver’s License Numbers > Payroll Information > Date of Birth > Performance Ratings

Consumer Financial Data Customer and Prospect Data > Account Numbers Trade Secrets and Intellectual > PINs Property

Drivers for the Use of Encryption Standards and Regulations

• Payment Card Industry (PCI) Data Security Standard

• HIPAA Privacy Rule

• U.S. State Security Breach Notification Laws

• EU General Data Protection Regulation (GDPR)

5 Agenda

• Key Encryption Drivers

• Cryptographic Technology Primer

• Important Considerations

• Use of Encryption in Teradata Systems

6 “Any sufficiently advanced technology is indistinguishable from magic.” -- Sir Arthur C. Clarke

Symmetric Key Cryptography

• Symmetric Key Cryptography – Cryptography in which the same key is used for encryption and decryption • Single Key Cryptography • Secret Key Cryptography • Shared Key Cryptography

Hello World! B$s70x2G0&vC1lZA Hello World!

Symmetric Key Cryptography

• Symmetric Key Algorithms – Data Encryption Standard (DES) – Triple DES (3DES) – Blowfish – Advanced Encryption Standard (AES) – Twofish – International Data Encryption Standard (IDEA) – RC5

Symmetric Key Cryptography

• Advanced Encryption Standard (AES) – Standardized by FIPS in 2001 (FIPS Pub 197) – Uses 128-bit, 196-bit, or 256-bit keys – Operates on 16-byte data blocks

– De facto standard for commercial and government applications

Hello World! Js7%qaQ1b8$@nPl0 Hello World!

Asymmetric Key Cryptography

• Asymmetric Key Cryptography – Cryptography in which a pair of mathematically related keys are used for encryption and decryption • Public Key Cryptography

• Data encrypted using one key (e.g., public key) can only be decrypted using the other key (e.g., private key) in the pair - and vice versa

Hello World! 9vDf4$1j&Fqo*cR1 Hello World!

Asymmetric Key Cryptography

• Asymmetric Key Algorithms – RSA (Rivest Shamir Adleman) – Digital Signature Algorithm (DSA) – Elliptic Curve Cryptography (ECC)

– RSA and DSA are used to provide confidentiality for secure communications protocols such as Transport Layer Security (TLS) and Secure Shell (SSH)

Hash Cryptography

• Hash Cryptography – Cryptography in which a mathematical algorithm is applied to produce a condensed representation of data • No key is used • Hash output is a fixed length - regardless of the size of input data • It is computationally infeasible to find the data which corresponds to a given hash, or to find different data that produces the same hash • Hash is one-way; plain text cannot be recreated from the hash

Js7%qaQ1b8$@nPl0 Hello World! 9vDf4$1j&Fqo*cR1 B$s70x2G0&vC1lZA

Hash Cryptography

• Hash Cryptographic Algorithms – Message Digest Algorithm 5 (MD5) • Produces 128-bit hash – Secure Hash Algorithm (SHA) • SHA-1: Produces 160-bit hash • SHA-256: Produces 256-bit hash • SHA-512: Produces 512-bit hash

– Applications for hashing • Password storage • Message integrity • Digital signatures 14

Secret Key Negotiation

• Diffie-Hellman Key Negotiation Protocol – Allows client and server to agree on a secret key over an insecure communication channel – Protocol uses two public values • p is a prime number • g is an integer less than p with the property that for every number n between 1 and p-1 inclusive, there is a power k of g such that n = gk mod p

– Security is provided by the discrete logarithm problem • It is computationally infeasible to calculate the shared secret key when the prime p is sufficiently large

Secure Communications Protocols

• Transport Layer Security (TLS) – An industry standard protocol for transmitting data in a secure manner over a network • Supersedes older Secure Sockets Layer (SSL) protocol – Defines methods for authentication, data encryption, and message integrity – Underlies protocols such as https, ldaps, ftps, pop3s, etc.

• Secure Shell (SSH) – Establishes a cryptographic tunnel between two network hosts – Secures remote logons, file transfers and remote command executions SSH Client SSH Server

16 Agenda

• Key Encryption Drivers

• Cryptographic Technology Primer

• Important Considerations

• Use of Encryption in Teradata Systems

17 “The only truly secure system is one that is powered off, cast in a block of concrete and sealed in a lead-lined room with armed guards.” -- Dr. Eugene Spafford, Professor of Computer Science, Purdue University

18 Important Considerations

• Performance

• Table Size Expansion

• Encryption Key Security

• User/Application Transparency

Performance

• Cryptographic operations add performance overhead – Function of hardware generation and speed of processors • Cryptographic operations are CPU-intensive – Function of cryptographic algorithm and key strength – Function of size of data and/or number of columns encrypted – Function of the characteristics of queries • Encrypted indexes, range searches, joins on encrypted columns – Function of the frequency of access – Function of table skew (affects parallel execution of cryptographic functions)

Performance

Millions

Crypto Operations per Second

AES-128 AES-192 AES-256 Hundreds 3DES

Size of Data 21

Table Size Expansion

• Encrypted data (ciphertext) requires more storage space than plain text data – Function of the size of original columns • Padding required for the selected cryptographic algorithm (e.g., 8-byte block, 16- byte block)

Original Data Padding (2 bytes) (14 bytes) Original Data Padding (12 bytes) (4 bytes)

Ciphertext (16 bytes) – Function of the number of columns encrypted

22 – Loss of multi-value compression (MVC) benefits

Encryption Key Security

• Encryption keys must be securely managed – Strong keys should be securely and randomly generated – Keys must be protected wherever stored (disk or memory) – Keys should be distributed in a secure manner – Access to keys should be restricted – Keys should be periodically rotated – Keys should be archived with encrypted data

“Random numbers should not be generated with a method chosen at random.” -- Donald E. Knuth, The Art of Computer Programming, Volume 2: Seminumerical Algorithms

User/Application Transparency

• Use of encryption should be largely transparent to users and applications – No transparency issues with encryption of network traffic – Cryptographic operations on table data can be largely transparent through the use of views and triggers • Flexibility needed to directly invoke functions as required to optimize queries – Use of encrypted data types further improves transparency • Limits on type functionality often restrict use – e.g., no statistics collection, cannot be part of an index

24 Agenda

• Key Encryption Drivers

• Cryptographic Technology Primer

• Important Considerations

• Use of Encryption in Teradata Systems

25 “Security doesn't matter until all of a sudden it does - and then it *really* matters.” -- Ben Adida, Mozilla Architect

26 Use of Encryption within Teradata Systems

• Securing Remote Support Connectivity

• Securing Network Connections

• Securing Stored Passwords

• Securing Stored Data

• Securing Backups and Archives

Secure Remote Support Connectivity Teradata ServiceConnectTM

• No Virtual Private Network (VPN) or public IP address required • Firewall-friendly – all connections initiated from Service Workstation (SWS) on customer side • Connections secured using HTTPS and 128-bit TLS encryption

Customer Teradata

ServiceConnect™

ServiceConnect Enhanced Internet Policy Server

Enterprise Optional

Secure Remote Support Connectivity Teradata ServiceConnectTM

• Outbound Connections – TLS port 443 • Remote connectivity • Teradata Vital Infrastructure (TVI) alerts, events, and reports • Crashdump uploads

• ServiceConnectTM Enhanced – Axeda Policy Server • Enforce restrictions on remote support activities performed by Teradata – Logon access – File upload/download – Command execution • Audit remote support activities performed by Teradata

Network Traffic Encryption

• Network Traffic Encryption – Provides confidentiality for sensitive data when transmitted over untrusted networks – Protects against compromise by network sniffers

– Examples • HTTP over TLS to secure communications to web services • LDAP over TLS to secure communications to authentication services • Teradata Generic Security Services (TDGSS) to secure communications between Teradata Clients and Database

Network Traffic Encryption HTTP over TLS (https)

• Secures browser-based connections to web-based services – TDput – port 8443 • Use TDput AllowedCiphers file to manage encryption algorithms allowed for connections – Viewpoint – port 443 or 9443 • Use Certificates portlet to create and install TLS certificate – Create and install self-signed certificate – Create certificate signing request and install CA-signed certificate • Use General portlet to enable Require Access via HTTPS setting – Aster AppCenter – port 443 or 444 – Teradata REST Services Gateway – port 1443

Network Traffic Encryption LDAP over TLS (ldaps)

• Secures connections to LDAP authentication and authorization services • Required to ensure protection of enterprise users and passwords

– Viewpoint • Use the LDAP Servers portlet to add and delete ldaps configurations as required • Use the Certificates portlet to import the Certification Authority (CA) certificates of the LDAP servers into a custom keystore on the Teradata Viewpoint server – Teradata Gateway • Configure Teradata Generic Security Services (TDGSS) LDAP method to use one or more ldaps services • Import the Certification Authority (CA) certificates of the LDAP servers into a custom directory on the Teradata node • Re-build TDGSS globally distributed object (GDO)

Network Traffic Encryption Teradata Generic Security Services (TDGSS)

• Teradata Generic Security Services (TDGSS) – Encryption built into the Teradata client/server communications protocol – Strong symmetric encryption • AES configurable to use 128-bit (default), 192-bit, or 256-bit keys – Secure key negotiation algorithm • Diffie-Hellman key negotiation • Keys unique to each database session – Message integrity

– Logon String Encryption • Logon string (including password) is always encrypted • Functionality cannot be disabled 33

Teradata Tools and Utilities (TTU)

• Teradata Tools and Utilities client interfaces are encryption aware

– Configuration Controls • Allows for a client interface or tool to be configured to encrypt database sessions

– Programmatic Controls • Allows for dynamic enabling and disabling of encryption within a database session

Teradata Tools and Utilities (TTU) Configuration Options

ODBC Driver Options

CLIv2 System Parameter Block

Teradata Tools and Utilities (TTU) Programmatic Options TPT Load Operator

BTEQ

Network Traffic Encryption Enforcement Options

• Gateway Control – Set RequireConfidentiality to enforce network traffic encryption by host group for all sessions # gtwcontrol [-g HGID] –x yes

• Network Security Policy – Enforce network traffic encryption and quality of protection (QOP) levels by user, profile, or IP address

SQL Response without/with Encryption

SELECT * FROM Customer WHERE CCN = '4021884221972216';

Database Password Security

• Database Passwords – Passwords stored in two data dictionary tables • DBC.Dbase • DBC.OldPasswords – Stored passwords secured using a salted SHA-256 cryptographic hash • Salt is randomly generated data added to the password before it is hashed • Provides greater protection against pre-computed password attacks

– On logon, user-supplied password is salted, hashed and compared to password in DBC.Dbase table

Database Password Security Example

Teradata Wallet

• Teradata Wallet – Provides a mechanism to securely store and protect passwords (or other credential information) on client systems for use when connecting to the Teradata Database • Passwords encrypted using strong cryptography (AES-256) • Includes an API used by Teradata Client tools and utilities for retrieving logon information

• Enables compliance with security policies and best practices that prohibit storing of credential information in clear text – Use of imbedded passwords in BTEQ scripts, FastLoad, MultiLoad, TPump, FastExport scripts, etc. – Storage of passwords in TPT operator definitions – Storage of passwords in ODBC DSNs

Teradata Wallet

• Key Concepts – Wallet information is segregated by Client user operating system user • A given user can only access information from his or her own Wallet

– Wallet contains strings with name-value pairs • name (used to identify the string) – Names are arbitrary and are determined by the user – Names are not treated as sensitive/confidential • value (the secret information) – Values are treated as sensitive/confidential • Encrypted when passed to any system call • Encrypted when saved on disk

Teradata Wallet Usage Example

$ tdwallet add sdlc9000-jb132500 Enter desired value for the string named “sdlc9000-jb132500”: String named “sdlc9000-jb132500” added.

$ cat logontest.btq bteq <<$EOF .logon sdlc9000.labs.teradata.com/jb132500,$tdwallet(sdlc9000-jb132500) .logoff .quit

$ logontest.btq BTEQ 15.10.00.00 Mon Jun 20 15:55:38 2016 +------+------+------+------+------+------+------+---- .LOGON sdlc9000.labs.teradata.com/jb132500, *** Logon successfully completed. *** Teradata Database Release is 15.10.00.01 *** Teradata Database Version is 15.00.00.01 *** Transaction Semantics are BTET. *** Character Set Name is 'ASCII'.

43 *** Total elapsed time was 1 second.

Stored Data Encryption

• Full Disk Encryption (FDE)

• Column-level Encryption/Tokenization

• HDFS File/Volume Encryption

• HIVE Column-level Tokenization

Full Disk Encryption (FDE)

• Full Disk Encryption – Hardware-based encryption occurs on self-encrypting disk drives • Encryption performed using AES with 256-bit keys • No impact to performance of disk read/write operations

– Authentication key generated internally and managed on the disk array controller • Authentication key is supplied to the disk drive during device discovery and is used to “unlock” the encryption key • Encryption key is generated by the disk drive and is maintained on the drive – Protects data if disk drive is lost, stolen, or de- commissioned – Available for newer generations of Teradata data warehouse systems and appliances 45

Column-level Data Encryption/Tokenization

• Column-level Data Encryption/Tokenization – Supports multiple data protection options including strong encryption and tokenization – Includes external key management systems for secure key generation and protection of keys when stored – Supports multiple cryptographic algorithms and key strengths – Provides additional access controls to protect sensitive information (even DBC can't see unencrypted data unless specifically authorized) – Designed to fully exploit Teradata Database parallelism and scalability – Enterprise-wide solutions that work with most major databases and operating systems (not just Teradata)

46 • Protegrity Data Protector for Teradata – Provides additional separation of duties through a separate Security Manager interface for creation and maintenance of security policies – Includes a patented key management system for secure key generation and protection of keys when stored – Supports multiple protection options (strong cryptography, hashing, tokenization)

– Includes additional auditing separate from database audit logs (such as the Access Log) – File Protector support for Teradata Aster and Hadoop HDFS – Application Protector support for Hive tokenization

47 • HP Enterprise SecureData – Stateless Key Management • Encryption keys tied directly to identities that map to data in Identity Management Systems • Keys dynamically generated only after authentication – NIST-Standard FF1 AES Hyper Format Preserving Encryption • Enables encryption of data without loss of formatting • Allows encrypted data to be used as database indices • Preserves referential integrity – Hyper Secure Stateless Tokenization

– Teradata UDA Integration • Apply data protection during Teradata import processing (e.g., SQL, Sqoop, MapReduce) • Use de-identified data within Teradata • Use and export re-identified data from Teradata (SQL, Hive, MapReduce) • Export data and re-identify outside Teradata (ETL process) 48 • Use storage-level encryption within Hadoop • Vormetric Data Security Platform – Addresses industry compliance mandates and government regulations globally by securing data in physical, virtual and cloud infrastructures, through Data Encryption, Key Management, Access Policies, Privileged User Control, and Security Intelligence • Vormetric Protection for Teradata Database – Centrally manages encryption across Teradata environments - including the Teradata Database and Hortonworks big data nodes – Enforce granular controls to enable administrators to perform operational tasks, without accessing sensitive data in the clear – Standards-based application programming interfaces (APIs) and user-defined functions (UDFs) that can be used to perform cryptographic and key management operations – Hardened, FIPS-certified appliance for administration 49 and key storage

• Dataguise DgSECURE – Discovers and detects sensitive data in structured, semi-structured, and unstructured content (including Hadoop and Teradata) • Pre-defined templates for sensitive data types to quickly build security policies – Protects sensitive data at the element level • Encryption – AES and NIST-recognized format-preserving encryption options – Encrypt engines run as fully automated processes (agent) across standard Hadoop ingest methods (Flume, Sqoop, and FTP) as well as for data at-rest in certified MapReduce and HIVE agents for Cloudera and Hortonworks – Industry standard Key Management Interface Protocol (KMIP) client support for leading key management facilities • Masking – Obfuscation (one-way operation) – Retains statistical distribution of data – Continuous auditing and monitoring of all attempts to Source: Dataguise 50 access sensitive data

Teradata Tape Encryption

• Teradata Tape Encryption – Hardware-based encryption occurs on tape drives • Encryption performed using AES with 256-bit keys • No impact to performance of archive/restore operations – Encryption supported for backup-to-tape or copy- from-disk/tape – Encryption managed by two Scalar Key Manager appliances • Built to comply with the FIPS 140-2 Level 1 federal security standard – Supported for LTO-5/LTO-6 drives on Quantum Scalar i80, i500 and i6000 libraries

EMC Data Domain Encryption

• EMC Data Domain Encryption – Inline data encryption with compression • Encryption performed using AES with 128-bit or 256-bit keys • Implemented using FIPS 140-2 validated RSA BSafe cryptographic libraries • Moderate impact to performance of archive/restore operations – Single system encryption key for all data • System key encrypted via an access passphrase – Supported for EMC Data Domain DD4200 Deduplication Storage Systems

Summary

• Encryption is a powerful tool for protecting sensitive data that is transmitted over network or stored on disk or tape

• The use of encryption should be considered as part of a comprehensive defense-in-depth strategy for implementation of multiple layers of security controls to protect Teradata UDA assets

53 Questions?

54 Thank You

Questions/Comments Email: [email protected] Follow Me Twitter @

Rate This Session # 392 with the PARTNERS Mobile App Remember To Share Your Virtual Passes
