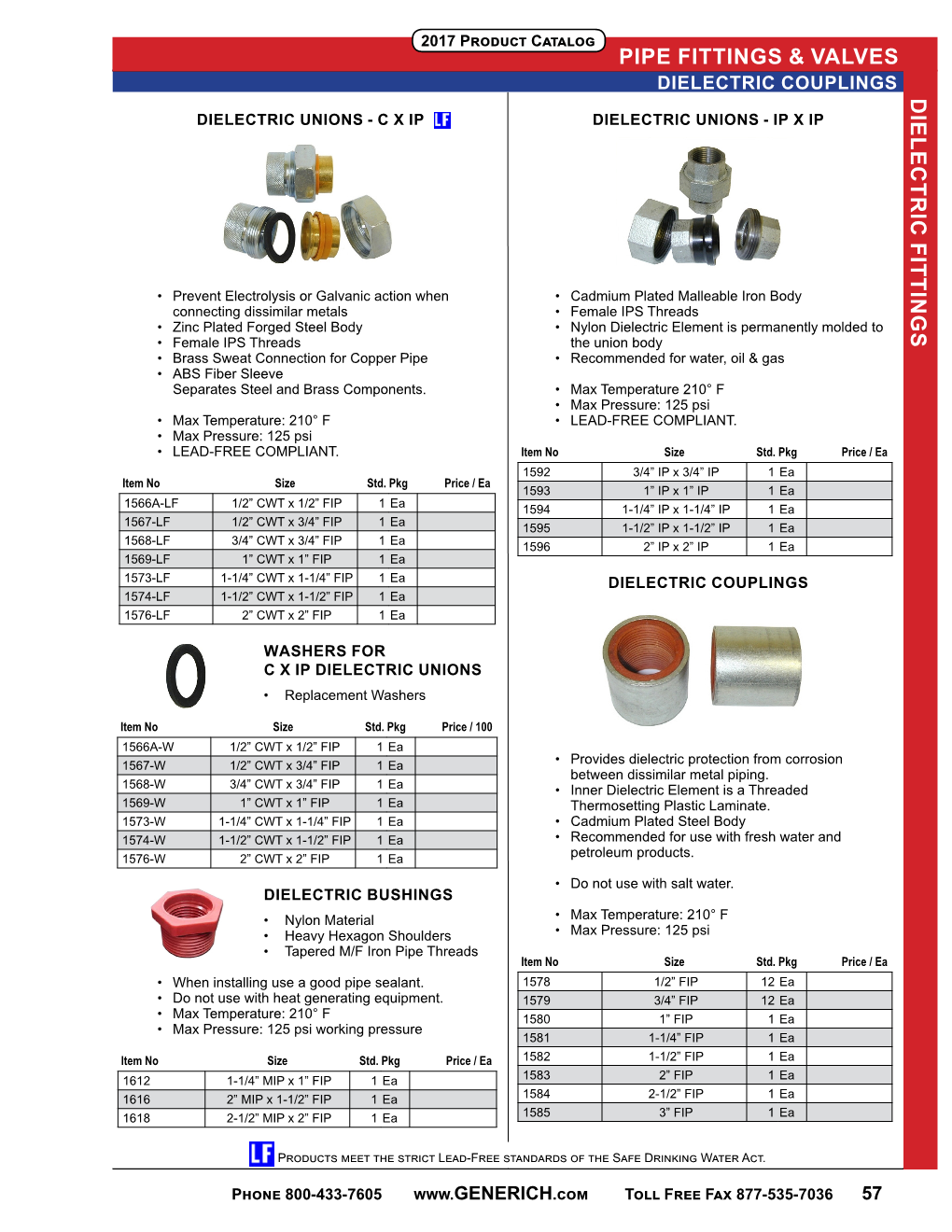

2017 Product Catalog PIPE FITTINGS & VALVES DIELECTRIC COUPLINGS DIELECTRIC FITTINGS

DIELECTRIC UNIONS - C X IP DIELECTRIC UNIONS - IP X IP

• Prevent Electrolysis or Galvanic action when • Cadmium Plated Malleable Iron Body connecting dissimilar metals • Female IPS Threads • Zinc Plated Forged Steel Body • Nylon Dielectric Element is permanently molded to • Female IPS Threads the union body • Brass Sweat Connection for Copper Pipe • Recommended for water, oil & gas • ABS Fiber Sleeve Separates Steel and Brass Components. • Max Temperature 210° F • Max Pressure: 125 psi • Max Temperature: 210° F • LEAD-FREE COMPLIANT. • Max Pressure: 125 psi • LEAD-FREE COMPLIANT. Item No Size Std. Pkg Price / Ea 1592 3/4” IP x 3/4” IP 1 Ea Item No Size Std. Pkg Price / Ea 1593 1” IP x 1” IP 1 Ea 1566A-LF 1/2” CWT x 1/2” FIP 1 Ea 1594 1-1/4” IP x 1-1/4” IP 1 Ea 1567-LF 1/2” CWT x 3/4” FIP 1 Ea 1595 1-1/2” IP x 1-1/2” IP 1 Ea 1568-LF 3/4” CWT x 3/4” FIP 1 Ea 1596 2” IP x 2” IP 1 Ea 1569-LF 1” CWT x 1” FIP 1 Ea 1573-LF 1-1/4” CWT x 1-1/4” FIP 1 Ea DIELECTRIC COUPLINGS 1574-LF 1-1/2” CWT x 1-1/2” FIP 1 Ea 1576-LF 2” CWT x 2” FIP 1 Ea

WASHERS FOR C X IP DIELECTRIC UNIONS • Replacement Washers

Item No Size Std. Pkg Price / 100 1566A-W 1/2” CWT x 1/2” FIP 1 Ea 1567-W 1/2” CWT x 3/4” FIP 1 Ea • Provides dielectric protection from corrosion between dissimilar metal piping. 1568-W 3/4” CWT x 3/4” FIP 1 Ea • Inner Dielectric Element is a Threaded 1569-W 1” CWT x 1” FIP 1 Ea Thermosetting Plastic Laminate. 1573-W 1-1/4” CWT x 1-1/4” FIP 1 Ea • Cadmium Plated Steel Body 1574-W 1-1/2” CWT x 1-1/2” FIP 1 Ea • Recommended for use with fresh water and 1576-W 2” CWT x 2” FIP 1 Ea petroleum products. • Do not use with salt water. DIELECTRIC BUSHINGS • Nylon Material • Max Temperature: 210° F • Heavy Hexagon Shoulders • Max Pressure: 125 psi • Tapered M/F Iron Pipe Threads Item No Size Std. Pkg Price / Ea • When installing use a good pipe sealant. 1578 1/2” FIP 12 Ea • Do not use with heat generating equipment. 1579 3/4” FIP 12 Ea • Max Temperature: 210° F 1580 1” FIP 1 Ea • Max Pressure: 125 psi working pressure 1581 1-1/4” FIP 1 Ea Item No Size Std. Pkg Price / Ea 1582 1-1/2” FIP 1 Ea 1612 1-1/4” MIP x 1” FIP 1 Ea 1583 2” FIP 1 Ea 1616 2” MIP x 1-1/2” FIP 1 Ea 1584 2-1/2” FIP 1 Ea 1618 2-1/2” MIP x 2” FIP 1 Ea 1585 3” FIP 1 Ea

Products meet the strict Lead-Free standards of the Safe Drinking Water Act.

Phone 800-433-7605 www.GENERICH.com Toll Free Fax 877-535-7036 57
