Lesson 6 M3 PRECALCULUS and ADVANCED TOPICS

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

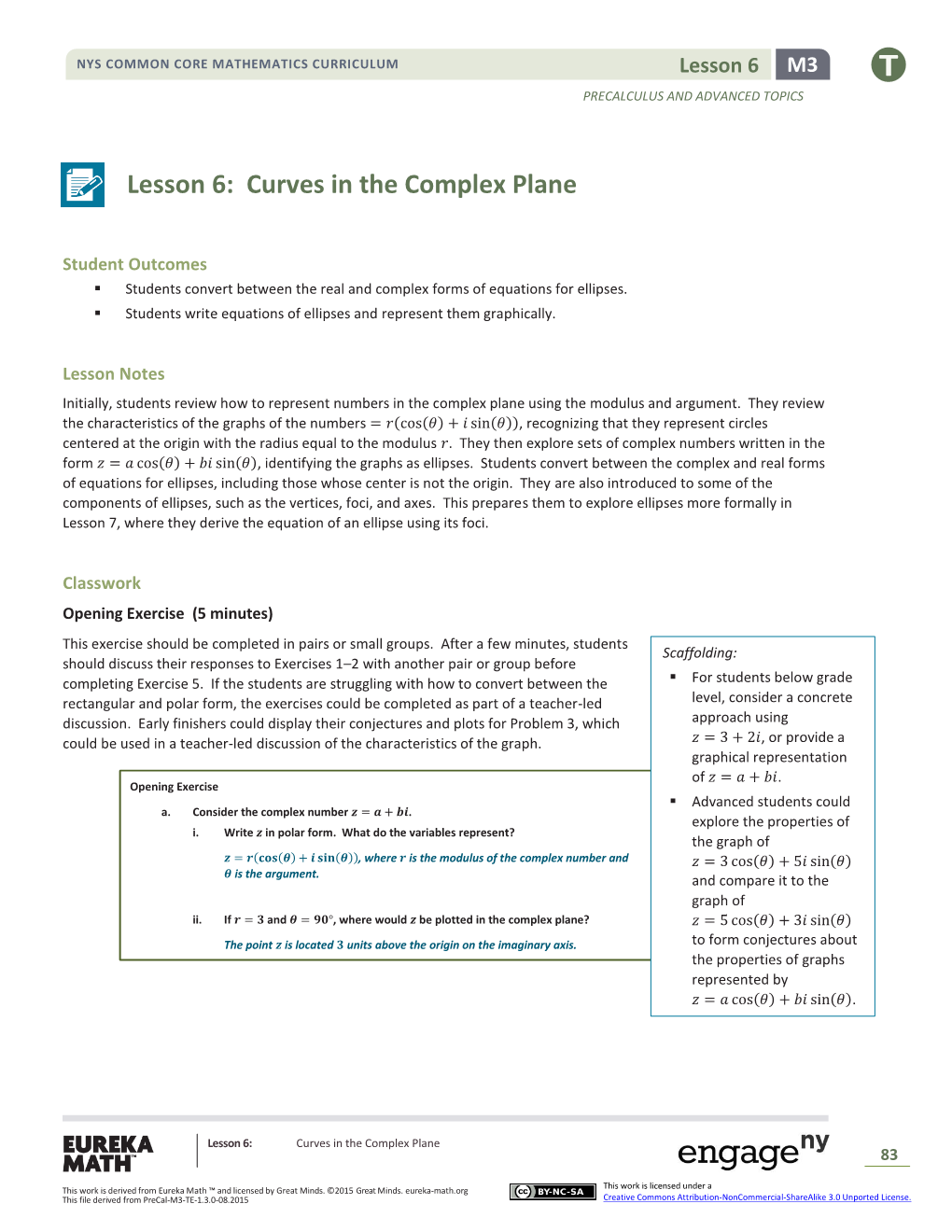

Lesson 6: Curves in the Complex Plane

Student Outcomes . Students convert between the real and complex forms of equations for ellipses. . Students write equations of ellipses and represent them graphically.

Lesson Notes Initially, students review how to represent numbers in the complex plane using the modulus and argument. They review the characteristics of the graphs of the numbers = 푟(cos(휃) + 𝑖 sin(휃)), recognizing that they represent circles centered at the origin with the radius equal to the modulus 푟. They then explore sets of complex numbers written in the form 푧 = 푎 cos(휃) + 푏𝑖 sin(휃), identifying the graphs as ellipses. Students convert between the complex and real forms of equations for ellipses, including those whose center is not the origin. They are also introduced to some of the components of ellipses, such as the vertices, foci, and axes. This prepares them to explore ellipses more formally in Lesson 7, where they derive the equation of an ellipse using its foci.

Classwork Opening Exercise (5 minutes) This exercise should be completed in pairs or small groups. After a few minutes, students Scaffolding: should discuss their responses to Exercises 1–2 with another pair or group before completing Exercise 5. If the students are struggling with how to convert between the . For students below grade rectangular and polar form, the exercises could be completed as part of a teacher-led level, consider a concrete discussion. Early finishers could display their conjectures and plots for Problem 3, which approach using could be used in a teacher-led discussion of the characteristics of the graph. 푧 = 3 + 2푖, or provide a graphical representation of 푧 = 푎 + 푏푖. Opening Exercise . Advanced students could a. Consider the complex number 풛 = 풂 + 풃풊. explore the properties of i. Write 풛 in polar form. What do the variables represent? the graph of 풛 = 풓(퐜퐨퐬(휽) + 풊 퐬퐢퐧(휽)), where 풓 is the modulus of the complex number and 푧 = 3 cos(휃) + 5푖 sin(휃) 휽 is the argument. and compare it to the graph of ii. If 풓 = ퟑ and 휽 = ퟗퟎ°, where would 풛 be plotted in the complex plane? 푧 = 5 cos(휃) + 3푖 sin(휃) The point 풛 is located ퟑ units above the origin on the imaginary axis. to form conjectures about the properties of graphs

represented by

푧 = 푎 cos(휃) + 푏푖 sin(휃).

Lesson 6: Curves in the Complex Plane 83

This work is licensed under a This work is derived from Eureka Math ™ and licensed by Great Minds. ©2015 Great Minds. eureka-math.org Creative Commons Attribution-NonCommercial-ShareAlike 3.0 Unported License. This file derived from PreCal-M3-TE-1.3.0 -08.2015

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

iii. Use the conditions in part (ii) to write 풛 in rectangular form. Explain how this representation corresponds to the location of 풛 that you found in part (ii).

풛 = 풂 + 풃풊, where 풂 = 풓 퐜퐨퐬(휽) and 풃 = 풓 퐬퐢퐧(휽)

풂 = ퟑ 퐜퐨퐬(ퟗퟎ°) = ퟎ; 풃 = ퟑ 퐬퐢퐧(ퟗퟎ°) = ퟑ

Then 풛 = ퟑ풊, which is located three units above the origin on the imaginary axis.

b. Recall the set of points defined by 풛 = ퟑ(퐜퐨퐬(휽) + 풊 퐬퐢퐧(휽)) for ퟎ° ≤ 휽 < ퟑퟔퟎ°, where 휽 is measured in degrees. i. What does 풛 represent graphically? Why?

It is the set of points that are ퟑ units from the origin in the complex plane. This is because the modulus is ퟑ, which indicates that for any given value of 휽, 풛 is located a distance of ퟑ units from the origin.

ii. What does 풛 represent geometrically?

A circle with radius ퟑ units centered at the origin

c. Consider the set of points defined by 풛 = ퟓ 퐜퐨퐬(휽) + ퟑ풊 퐬퐢퐧(휽). i. Plot 풛 for 휽 = ퟎ°, ퟗퟎ°, ퟏퟖퟎ°, ퟐퟕퟎ°, ퟑퟔퟎ°. Based on your plot, form a conjecture about the graph of the set of complex numbers.

ퟐ

ퟎ ퟎ −ퟐ ퟐ −ퟐ

For 휽 = ퟎ°, 풛 = ퟓ 퐜퐨퐬(ퟎ°) + ퟑ풊 퐬퐢퐧(ퟎ°) = ퟓ + ퟎ풊 ↔ (ퟓ, ퟎ).

For 휽 = ퟗퟎ°, 풛 = ퟓ 퐜퐨퐬(ퟗퟎ°) + ퟑ풊 퐬퐢퐧(ퟗퟎ°) = ퟑ풊 ↔ (ퟎ, ퟑ풊).

For 휽 = ퟏퟖퟎ°, 풛 = ퟓ 퐜퐨퐬(ퟏퟖퟎ°) + ퟑ풊 퐬퐢퐧(ퟏퟖퟎ°) = −ퟓ + ퟎ풊 ↔ (−ퟓ, ퟎ).

For 휽 = ퟐퟕퟎ°, 풛 = ퟓ 퐜퐨퐬(ퟐퟕퟎ°) + ퟑ풊 퐬퐢퐧(ퟐퟕퟎ°) = −ퟑ풊 ↔ (ퟎ, −ퟑ풊).

This set of points seems to form an oval shape centered at the origin.

ii. Compare this graph to the graph of 풛 = ퟑ(퐜퐨퐬(휽) + 풊 퐬퐢퐧(휽)). Form a conjecture about what accounts for the differences between the graphs.

The coefficients of 퐜퐨퐬(휽) and 풊 퐬퐢퐧(휽) are equal for 풛 = ퟑ(퐜퐨퐬(휽) + 풊 퐬퐢퐧(휽)), which results in a circle, which has a constant radius, while the coefficients are different for 풛 = ퟓ 퐜퐨퐬(휽) + ퟑ풊 퐬퐢퐧(휽), which seems to stretch the circle.

Lesson 6: Curves in the Complex Plane 84

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

Example 1 (5 minutes)

The students are led through an example to demonstrate how to convert the equation of a circle from its complex form to real form (i.e., an equation in 푥 and 푦). This prepares them to convert the equations of ellipses from complex form to real form. . We have seen that in the complex plane, the graph of the set of complex numbers defined by 푧 = 3(cos(휃) + 𝑖 sin(휃)) for 0° ≤ 휃 < 360° is a circle centered at the origin with radius 3 units. How could we represent each point on the circle using an ordered pair?  (3 cos(휃) , 3𝑖 sin(휃)) . Let’s say we wanted to represent 푧 in the real coordinate plane. We’d need to represent the points on the circle using an ordered pair (푥, 푦). How can we write any complex number 푧 in terms of 푥 and 푦?  푧 = 푥 + 𝑖푦 . So for 푧 = 3(cos(휃) + 𝑖 sin(휃)), which expressions represent 푥 and 푦?  푧 = 3 cos(휃) + 3𝑖 sin(휃), so 푥 = 3 cos(휃) and 푦 = 3 sin(휃) . What is the resulting ordered pair?  (3 cos(휃) , 3 sin(휃)) . Let’s graph some points and verify that this gives us a circle. Complete the table for the given values of 휃.

Example 1

Consider again the set of complex numbers represented by 풛 = ퟑ(퐜퐨퐬(휽) + 풊 퐬퐢퐧(휽)) for ퟎ° ≤ 휽 < ퟑퟔퟎ°.

휽 ퟑ 퐜퐨퐬(휽) ퟑ 퐬퐢퐧(휽) (ퟑ퐜퐨퐬(휽) , ퟑ풊 퐬퐢퐧(휽))

ퟎ ퟑ ퟎ (ퟑ, ퟎ)

흅 ퟑ√ퟐ ퟑ√ퟐ ퟑ√ퟐ ퟑ√ퟐ ( , ) ퟒ ퟐ ퟐ ퟐ ퟐ 흅 ퟎ ퟑ (ퟎ, ퟑ) ퟐ

ퟑ흅 ퟑ√ퟐ ퟑ√ퟐ ퟑ√ퟐ ퟑ√ퟐ − (− , ) ퟒ ퟐ ퟐ ퟐ ퟐ

흅 −ퟑ ퟎ (−ퟑ, ퟎ)

ퟓ흅 ퟑ√ퟐ ퟑ√ퟐ ퟑ√ퟐ ퟑ√ퟐ − − (− , − ) ퟒ ퟐ ퟐ ퟐ ퟐ ퟑ흅 ퟎ −ퟑ (ퟎ, −ퟑ) ퟐ

ퟕ흅 ퟑ√ퟐ ퟑ√ퟐ ퟑ√ퟐ ퟑ√ퟐ − ( , − ) ퟒ ퟐ ퟐ ퟐ ퟐ

ퟐ흅 ퟑ ퟎ (ퟑ, ퟎ)

Lesson 6: Curves in the Complex Plane 85

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

. Plot the points in the table, and determine the type of curve created.  The curve is a circle with center (0, 0) and radius 3. . If 푥 = 3 cos(휃) and 푦 = 3 sin(휃), write an equation that relates 푥2 and 푦2.  푥2 + 푦2 = (3 cos(휃))2 + (3 sin(휃))2 . Now, simplify the right side of that equation.  푥2 + 푦2 = 9 cos2(휃) + 9 sin2(휃)  푥2 + 푦2 = 9(cos2(휃) + sin2(휃)) . Do you know a trigonometric identity that relates sin2(휃) and cos2(휃)?  cos2(휃) + sin2(휃) = 1 . Substitute the identity into the previous equation.  푥2 + 푦2 = 9 . How does the graph of this equation compare with the graph of our equation in complex form?  Both graphs are circles centered at the origin with radius 3 units.

a. Use an ordered pair to write a representation for the points defined by 풛 as they would be represented in the coordinate plane.

(ퟑ 퐜퐨퐬(휽) , ퟑ 퐬퐢퐧(휽))

b. Write an equation that is true for all the points represented by the ordered pair you wrote in part (a).

Since 풙 = ퟑ 퐜퐨퐬(휽) and 풚 = ퟑ 퐬퐢퐧(휽):

풙ퟐ + 풚ퟐ = (ퟑ 퐜퐨퐬(휽))ퟐ + (ퟑ 퐬퐢퐧(휽))ퟐ 풙ퟐ + 풚ퟐ = ퟗ(퐜퐨퐬(휽))ퟐ + ퟗ(퐬퐢퐧(휽))ퟐ 풙ퟐ + 풚ퟐ = ퟗ((퐜퐨퐬(휽))ퟐ + (퐬퐢퐧(휽))ퟐ)

We know that (퐬퐢퐧(휽))ퟐ + (퐜퐨퐬(휽))ퟐ = ퟏ, so 풙ퟐ + 풚ퟐ = ퟗ.

Lesson 6: Curves in the Complex Plane 86

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

c. What does the graph of this equation look like in the coordinate plane?

The graph is a circle centered at the origin with radius ퟑ units.

Exercises 1–2 (6 minutes) Scaffolding: The students should complete the exercises independently. After a few minutes, they If students are struggling with could verify their responses with a partner. The solutions should be reviewed in a whole- converting the equations into class setting after students have had a sufficient amount of time to complete the real form, suggest that they exercises. square 푥 and 푦 and then isolate cos2(휃) or sin2(휃) in the equations. Alternatively, Exercises 1–2 Exercise 1 could be completed 1. Recall the set of points defined by 풛 = ퟓ 퐜퐨퐬(휽) + ퟑ풊 퐬퐢퐧(휽). as guided practice, and the a. Use an ordered pair to write a representation for the points defined by 풛 as they students could then complete would be represented in the coordinate plane. Exercise 2 independently. (ퟓ 퐜퐨퐬(휽) , ퟑ 퐬퐢퐧(휽))

b. Write an equation in the coordinate plane that is true for all the points represented by the ordered pair you wrote in part (a).

We have 풙 = ퟓ 퐜퐨퐬(휽) and 풚 = ퟑ 퐬퐢퐧(휽), so 풙ퟐ = ퟐퟓ(퐜퐨퐬ퟐ(휽)) and 풚ퟐ = ퟗ(퐬퐢퐧ퟐ(휽)). We know (퐜퐨퐬ퟐ(휽) + 퐬퐢퐧ퟐ(휽)) = ퟏ.

풙ퟐ 풚ퟐ 풙ퟐ = ퟐퟓ(퐜퐨퐬ퟐ(휽)) 퐜퐨퐬ퟐ(휽) = 풚ퟐ = ퟗ(퐬퐢퐧ퟐ(휽)) 퐬퐢퐧ퟐ(휽) = Since , then ퟐퟓ. Since , then ퟗ . By substitution, 풙ퟐ 풚ퟐ + = ퟏ. ퟐퟓ ퟗ

2. Find an algebraic equation for all the points in the coordinate plane traced by the complex numbers 풛 = √ퟐ 퐜퐨퐬(휽) + 풊 퐬퐢퐧(휽).

All the complex numbers represented by 풛 can be written using the ordered pair (√ퟐ 퐜퐨퐬(휽) , 퐬퐢퐧(휽)) in the coordinate plane.

We have 풙 = √ퟐ 퐜퐨퐬(휽) and 풚 = 퐬퐢퐧(휽), so 풙ퟐ = ퟐ 퐜퐨퐬ퟐ(휽) and 풚ퟐ = 퐬퐢퐧ퟐ(휽). We know 퐜퐨퐬ퟐ(휽) + 퐬퐢퐧ퟐ(휽) = ퟏ.

ퟐ 풙ퟐ 풙 Since 풙ퟐ = ퟐ 퐜퐨퐬ퟐ(휽), then 퐜퐨퐬ퟐ(휽) = . Then, by substitution, + 풚ퟐ = ퟏ. ퟐ ퟐ

Lesson 6: Curves in the Complex Plane 87

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

Discussion (5 minutes): Describing an Ellipse . At the outset of the lesson, we determined that the graph of the complex numbers defined by 푧 = 5 cos 휃 + 3𝑖 sin 휃 was an oval shape that was centered about the origin and intersected the axes at the points (5, 0), (−5, 0), (0, 3𝑖), and (0, −3𝑖). . Make a conjecture about the graph of the complex numbers defined by 푧 = √2 cos(휃) + 𝑖 sin(휃). Sketch a rough graph of the points to test your conjecture. Share and discuss your conjecture with a neighbor. (Pull the MP.3 class back together to debrief.)  The graph would be a closed curve centered at the origin that intersects the axes at the points (√2, 0), (−√2, 0), (0, 1), and (0, −1).

. What patterns do you notice between the graphs we have sketched and the structure of their equations in real form? 푥2 푦2  The equations are written in the form of + = 1, where |푎| is the distance from the origin to the 푎2 푏2 푥-intercepts and |푏| is the distance from the 푦-intercepts. . And what patterns do you notice between the graphs we have sketched and the structure of their equations in MP.7 complex form?  푎 is the coefficient of cos(휃), and 푏 is the coefficient of 𝑖 sin(휃). . Let’s formalize these observations. The shape that arises from the curve given Scaffolding: 푥2 푦2 by an equation in the form 2 + 2 = 1 is called an ellipse centered at the Have students complete a 푎 푏 Frayer diagram for an ellipse. origin. An ellipse can be stretched horizontally or vertically, as shown in the An example can be found in figure on the following page. Module 1 Lesson 5.

Lesson 6: Curves in the Complex Plane 88

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

The vertices of the ellipse are the four points on the ellipse that are the closest to and farthest from the center. The axes of the ellipse are the segments connecting opposite vertices. The major axis is the longer of the two axes, and the minor axis is the shorter of the two axes. In the ellipse shown to the left above, the major axis is horizontal; in the ellipse shown to the right, the major axis is vertical. The semi-major axis is defined as a segment between the center of the ellipse and a vertex along the major axis, and the semi-minor axis is a segment between the center of the ellipse and a vertex along the minor axis.

. If the ellipse is centered at the origin, then the vertices of the ellipse are the intercepts (−푎, 0), (푎, 0), (0, −푏), and (0, 푏). In this case, what is the length of the semi-major axis?  Either |푎| or |푏|, whichever is larger . Good. For an ellipse centered at the origin, what is the length of the semi-minor axis?  Either |푎| or |푏|, whichever is smaller . And what happens when 푎 = 푏? Explain how you know.  We get a circle because the distances from the center to 푎 and 푏 are the same.

Lesson 6: Curves in the Complex Plane 89

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

Example 2 (5 minutes)

This example prepares students to sketch the graphs of ellipses from their equations written in real form. It also demonstrates how to convert equations of ellipses from real to complex form. . How can we tell that an algebraic equation represents an ellipse without being told? 푥2 푦2  It can be written in the form + = 1. 푎2 푏2 . And how can we use what we know about 푎 and 푏 to plot the ellipse?  |푎| represents the distance from the center of the ellipse to the points to the right and left of its center, so the graph of our equation intersects the 푥-axis at (4, 0) and (−4, 0). The number |푏| represents the distance from the center of the ellipse to the points above and below its center, so the graph intersects the 푦-axis at (0, 2) and (0, −2). 푥2 푦2 . Now, let’s write the equation + = 1 in complex form. What is the structure of a general equation for an 16 4 ellipse in complex form?  푧 = 푎 cos(휃) + 푏𝑖 sin(휃) . What do we need to find, then, to write the equation in complex form?  Values of 푎 and 푏 . How could we find values of 푎 and 푏? 푥2 푦2  Since + = 1, we have 16 = 푎2 and 4 = 푏2, which means 푎 = 4 and 푏 = 2. 푎2 푏2 푥2 푦2 . What is the complex form of the equation of the ellipse given by + = 1? 16 4  푧 = 4 cos(휃) + 2𝑖 sin(휃)

Example 2

풙ퟐ 풚ퟐ The equation of an ellipse is given by + = ퟏ. ퟏퟔ ퟒ a. Sketch the graph of the ellipse.

Lesson 6: Curves in the Complex Plane 90

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

b. Rewrite the equation in complex form. 풙ퟐ 풚ퟐ + = ퟏ ퟏퟔ ퟒ 풙ퟐ 풚ퟐ Since + = ퟏ, we have 풂 = ퟒ and 풃 = ퟐ. 풂ퟐ 풃ퟐ The complex form of the ellipse is 풛 = 풂 퐜퐨퐬(휽) + 풃풊 퐬퐢퐧(휽) = ퟒ 퐜퐨퐬(휽) + ퟐ풊 퐬퐢퐧(휽).

Exercise 3 (4 minutes) Students should complete the exercise in pairs. They should solve the problem independently and, after a few minutes, verify their solutions with a partner. At an appropriate time, pairs of selected students should share their sketches or the complex form for the equation. Make sure the students recognize the change in the orientation of the ellipse (i.e., that it is elongated vertically because 푏 > 푎).

Exercise 3

풙ퟐ 풚ퟐ 3. The equation of an ellipse is given by + = ퟏ. ퟗ ퟐퟔ a. Sketch the graph of the ellipse.

b. Rewrite the equation of the ellipse in complex form.

풙ퟐ 풚ퟐ + = ퟏ ퟗ ퟐퟔ |풂| = ퟑ |풃| = √ퟐퟔ

The complex form of the ellipse is 풛 = 풂 퐜퐨퐬(휽) + 풃풊 퐬퐢퐧(휽) = ퟑ 퐜퐨퐬(휽) + √ퟐퟔ풊 퐬퐢퐧(휽).

Lesson 6: Curves in the Complex Plane 91

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

Example 3 (5 minutes)

This example introduces students to ellipses that are not centered at the origin and prepares them to convert translated ellipses from complex to real form and to sketch their graphs. . How does this equation look different from others we have seen in this lesson?  There are constants included that were not in the other equations. . How can we represent the complex numbers 푧 in rectangular form?  푧 = 푥 + 𝑖푦 . And what are the values of 푥 and 푦 for this equation?  푥 = 2 + 7 cos(휃) and 푦 = 1 + sin(휃) . What is our procedure for converting equations of ellipses from complex to real form?  Isolate cos(휃) and sin(휃), and then substitute the equivalent expressions into the equation cos2(휃) + sin2(휃) = 1 . . What is the resulting equation? (푥−2)2  + (푦 − 1)2 = 1 49 . How do we know this equation represents an ellipse? 푥2 푦2  It is written in the form + = 1. 푎2 푏2 . What are the values of 푎 and 푏?  푎 = 7 and 푏 = 1 . How do the constants subtracted from 푥 and 푦 affect the graph of the ellipse?  They represent a translation of the center from the origin 2 units to the right and 1 unit up. . Describe the graph of the ellipse.  The ellipse is centered at (2, 1) and is elongated horizontally, so the semi-major axis has length 7 units, and the semi-minor axis has length 1 unit.

Example 3

A set of points in the complex plane can be represented in the complex plane as 풛 = ퟐ + 풊 + ퟕ 퐜퐨퐬(휽) + 풊 퐬퐢퐧(휽) as 휽 varies.

a. Find an algebraic equation for the points described.

풛 = ퟐ + 풊 + ퟕ 퐜퐨퐬(휽) + 풊 퐬퐢퐧(휽) = (ퟐ + ퟕ 퐜퐨퐬(휽)) + 풊(ퟏ + 퐬퐢퐧(휽)) Since 풛 = 풙 + 풊풚, then 풙 = ퟐ + ퟕ 퐜퐨퐬(휽) and 풚 = ퟏ + 퐬퐢퐧(휽). 풙−ퟐ 퐜퐨퐬(휽) = 퐬퐢퐧(휽) = (풚 − ퟏ) So ퟕ and . 풙−ퟐ ퟐ 퐜퐨퐬ퟐ(휽) + 퐬퐢퐧ퟐ(휽) = ퟏ ( ) + (풚 − ퟏ)ퟐ = ퟏ Since , we have ퟕ , which is equivalent to (풙−ퟐ)ퟐ + (풚 − ퟏ)ퟐ = ퟏ. ퟒퟗ

Lesson 6: Curves in the Complex Plane 92

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

b. Sketch the graph of the ellipse.

Closing (5 minutes) Have the students summarize the information on ellipses. As a class, a list of the key features of an ellipse can be compiled and displayed. A list of key features should address: . An ellipse is a curve that represents the set of complex numbers that satisfy the equation 푧 = 푎 cos(휃) + 푏𝑖 sin(휃) for 0° ≤ 휃 < 360°. . If 푎 = 푏, the curve is a circle with radius 푟, and the equation can be simplified to 푧 = 푟(cos(휃) + 𝑖 sin(휃)). 푥2 푦2 . In the coordinate plane, ellipses centered at the origin can be represented by the equation + = 1, 푎2 푏2 where |푎| is the half of the length of the horizontal axis and |푏| is the half of the length of the vertical axis. . The sketch of a general ellipse is

. An ellipse is elongated horizontally if 푎 > 푏 and elongated vertically when 푏 > 푎. . The points on an ellipse can be written in polar form as (푎 cos(휃) , 푏 sin(휃)). (푥−ℎ)2 (푦−푘)2 . An ellipse with center (ℎ, 푘) can be represented by the equation + = 1. 푎2 푏2

Exit Ticket (5 minutes)

Lesson 6: Curves in the Complex Plane 93

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

Name Date

Lesson 6: Curves in the Complex Plane

Exit Ticket

1. Write the real form of the complex equation 푧 = cos(휃) + 3𝑖 sin(휃). Sketch the graph of the equation.

푥2 푦2 2. Write the complex form of the equation + = 1. Sketch the graph of the equation. 25 4

Lesson 6: Curves in the Complex Plane 94

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

Exit Ticket Sample Solutions

1. Write the real form of the complex equation 풛 = 퐜퐨퐬(휽) + ퟑ풊 퐬퐢퐧(휽). Sketch the graph of the equation.

풚ퟐ 풙ퟐ + = ퟏ ퟗ

풙ퟐ 풚ퟐ 2. Write the complex form of the equation + = ퟏ. Sketch the graph of the equation. ퟐퟓ ퟒ 풛 = ퟓ 퐜퐨퐬(휽) + ퟐ풊 퐬퐢퐧(휽)

Problem Set Sample Solutions Problem 6 is an extension that requires students to convert an algebraic equation for an ellipse to standard form. The problem could be presented using the standard form of the equation (the answer for part (a)) to provide students with additional practice converting the equations of ellipses between complex and real forms.

1. Write the real form of each complex equation. a. 풛 = ퟒ 퐜퐨퐬(휽) + ퟗ풊 퐬퐢퐧(휽) 풙ퟐ 풚ퟐ + = ퟏ ퟏퟔ ퟖퟏ

Lesson 6: Curves in the Complex Plane 95

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

b. 풛 = ퟔ 퐜퐨퐬(휽) + 풊 퐬퐢퐧(휽) 풙ퟐ + 풚ퟐ = ퟏ ퟑퟔ

c. 풛 = √ퟓ 퐜퐨퐬(휽) + √ퟏퟎ풊 퐬퐢퐧(휽) 풙ퟐ 풚ퟐ + = ퟏ ퟓ ퟏퟎ

d. 풛 = ퟓ − ퟐ풊 + ퟒ 퐜퐨퐬(휽) + ퟕ풊 퐬퐢퐧(휽) (풙 − ퟓ)ퟐ (풚 + ퟐ)ퟐ + = ퟏ ퟏퟔ ퟒퟗ

2. Sketch the graphs of each equation. a. 풛 = ퟑ 퐜퐨퐬(휽) + 풊 퐬퐢퐧(휽)

b. 풛 = −ퟐ + ퟑ풊 + ퟒ 퐜퐨퐬(휽) + 풊 퐬퐢퐧(휽)

Lesson 6: Curves in the Complex Plane 96

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

(풙−ퟏ)ퟐ 풚ퟐ c. + = ퟏ ퟗ ퟐퟓ

(풙−ퟐ)ퟐ 풚ퟐ d. + = ퟏ ퟑ ퟏퟓ

3. Write the complex form of each equation. 풙ퟐ 풚ퟐ a. + = ퟏ ퟏퟔ ퟑퟔ 풛 = ퟒ 퐜퐨퐬(휽) + ퟔ풊 퐬퐢퐧(휽)

풙ퟐ 풚ퟐ b. + = ퟏ ퟒퟎퟎ ퟏퟔퟗ 풛 = ퟐퟎ 퐜퐨퐬(휽) + ퟏퟑ풊 퐬퐢퐧(휽)

풙ퟐ 풚ퟐ c. + = ퟏ ퟏퟗ ퟐ 풛 = √ퟏퟗ 퐜퐨퐬(휽) + √ퟐ풊 퐬퐢퐧(휽)

(풙−ퟑ)ퟐ (풚+ퟓ)ퟐ d. + = ퟏ ퟏퟎퟎ ퟏퟔ 풛 = ퟑ − ퟓ풊 + ퟏퟎ 퐜퐨퐬(휽) + ퟒ풊 퐬퐢퐧(휽)

Lesson 6: Curves in the Complex Plane 97

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

풙ퟐ 풚ퟐ 4. Carrie converted the equation 풛 = ퟕ 퐜퐨퐬(휽) + ퟒ풊 퐬퐢퐧(휽) to the real form + = ퟏ. Her partner Ginger said that ퟕ ퟒ the ellipse must pass through the point (ퟕ 퐜퐨퐬(ퟎ) , ퟒ 퐬퐢퐧(ퟎ)) = (ퟕ, ퟎ) and this point does not satisfy Carrie’s equation, so the equation must be wrong. Who made the mistake, and what was the error? Explain how you know.

Ginger is correct. Carrie set 풂 = ퟕ and 풃 = ퟒ, which is correct, but then she made an error in converting to the real form of the equation by dividing by 풂 and 풃 instead of 풂ퟐ and 풃ퟐ.

5. Cody says that the center of the ellipse with complex equation 풛 = ퟒ − ퟓ풊 + ퟐ 퐜퐨퐬(휽) + ퟑ풊 퐬퐢퐧(휽) is (ퟒ, −ퟓ), while his partner, Jarrett, says that the center of this ellipse is (−ퟒ, ퟓ). Which student is correct? Explain how you know.

Cody is correct. This ellipse is the translation of the ellipse with equation 풛 = ퟐ 퐜퐨퐬(휽) + ퟑ풊 퐬퐢퐧(휽) by the vector 〈ퟒ, −ퟓ〉, which moves the center of the ellipse from the origin to the point (ퟒ, −ퟓ).

Extension:

6. Any equation of the form 풂풙ퟐ + 풃풙 + 풄풚ퟐ + 풅풚 + 풆 = ퟎ with 풂 > ퟎ and 풄 > ퟎ might represent an ellipse. The equation ퟒ풙ퟐ + ퟖ풙 + ퟑ풚ퟐ + ퟏퟐ풚 + ퟒ = ퟎ is such an equation of an ellipse. (풙−풉)ퟐ (풚−풌)ퟐ a. Rewrite the equation + = ퟏ in standard form to locate the center of the ellipse (풉, 풌). 풂ퟐ 풃ퟐ ퟒ(풙ퟐ + ퟐ풙) + ퟑ(풚ퟐ + ퟒ풚) + ퟒ = ퟎ ퟒ(풙ퟐ + ퟐ풙 + ퟏ) + ퟑ(풚ퟐ + ퟒ풚 + ퟒ) = −ퟒ + ퟒ(ퟏ) + ퟑ(ퟒ) ퟒ(풙 + ퟏ)ퟐ + ퟑ(풚 + ퟐ)ퟐ = ퟏퟐ ퟒ(풙 + ퟏ)ퟐ ퟑ(풚 + ퟐ)ퟐ + = ퟏ ퟏퟐ ퟏퟐ (풙 + ퟏ)ퟐ (풚 + ퟐ)ퟐ + = ퟏ ퟑ ퟒ

The center of the ellipse is the point (−ퟏ, −ퟐ).

b. Describe the graph of the ellipse, and then sketch the graph.

The graph of the ellipse is centered at (−ퟏ, −ퟐ). It is elongated vertically

with a semi-major axis of length ퟐ units and a semi-minor axis of length √ퟑ units.

Lesson 6: Curves in the Complex Plane 98

NYS COMMON CORE MATHEMATICS CURRICULUM Lesson 6 M3 PRECALCULUS AND ADVANCED TOPICS

c. Write the complex form of the equation for this ellipse. (풙 + ퟏ)ퟐ (풚 + ퟐ)ퟐ + = ퟏ ퟑ ퟒ ퟐ ퟐ (풙+ퟏ) (풚+ퟐ) 퐜퐨퐬ퟐ(휽) + 퐬퐢퐧ퟐ(휽) = ퟏ 퐜퐨퐬ퟐ(휽) = 퐬퐢퐧ퟐ(휽) = , so ퟑ and ퟒ ퟑ 퐜퐨퐬ퟐ(휽) = (풙 + ퟏ)ퟐ, so 풙 = √ퟑ 퐜퐨퐬(휽) − ퟏ

ퟒ 퐬퐢퐧ퟐ(휽) = (풚 + ퟐ)ퟐ, so 풚 = ퟐ 퐬퐢퐧(휽) − ퟐ 풛 = 풙 + 풊풚 = √ퟑ 퐜퐨퐬(휽) − ퟏ + 풊(ퟐ 퐬퐢퐧(휽) − ퟐ) = −ퟏ − ퟐ풊 + √ퟑ 퐜퐨퐬(휽) + ퟐ풊 퐬퐢퐧(휽)

Lesson 6: Curves in the Complex Plane 99
