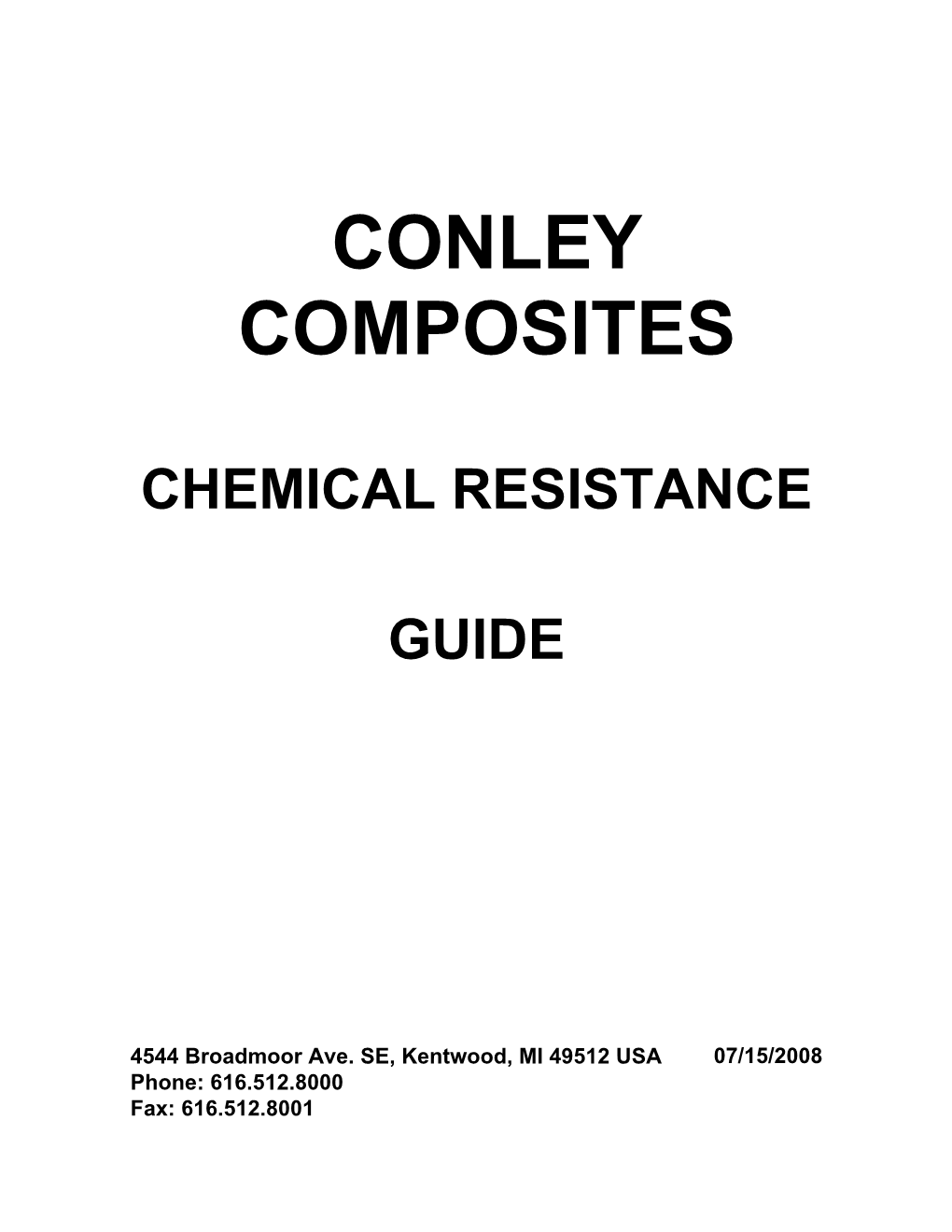

CONLEY COMPOSITES

CHEMICAL RESISTANCE

GUIDE

4544 Broadmoor Ave. SE, Kentwood, MI 49512 USA 07/15/2008 Phone: 616.512.8000 Fax: 616.512.8001 CHEMICAL RESISTANCE OF CONLEY PIPING SYSTEMS

The information contained in this literature is based upon case histories, field experience, cooperative testing, and the evaluation of the Conley Technical Committee. Conley Piping Systems have performed satisfactorily in corrosive chemical environments for nearly half a century. The success of any installation requires, however, proper system design, fabrication and application of our products.

The information in the following tables is for recommendation only and not a warranty for which Conley assumes responsibility. Conley Composites offers a limited warranty of its products, which is in the Terms and Conditions of Sale. The information contained in the literature and catalogs furnished by Conley Composites cannot ensure, of itself, a successful installation and is offered to customers subject to these limitations and explanations.

As an integral part of our ongoing quality policy and our Commitment to Excellence, Conley Composites will strive to improve our products continually. The company therefore reserves the right, without notice, to change specifications and/or design at any time without incurring an obligation for equipment previously sold. Descriptions contained in our literature are for the purpose of identification and neither limits nor extends the standard product limited warranty set forth in the Terms and Conditions of Sale and Trade Customs.

As it is readily discerned by the chemical resistance tables, there is broad overlap in resin system performance. Many customers use our products in combinations of chemical service that may magnify the corrosive nature of the media. Generally therefore, recommendations are based upon the system that provides optimum performance in a particular environment or has a long history of successful service in that industry. Multiple uses would be a reason to consider the versatility of the resin system. In addition, there are many media not listed or not recommended for which our products may be suitable due to very low concentrations or brief periods of exposure.

Further, organic chemical environments are so varied as to be nearly infinite due to the possible combinations of chemicals. Furan resin piping is specifically designed to perform in organic media such as aggressive solvents including chlorinated materials, as well as acids and bases. These applications are such as those commonly found in the pharmaceutical industry. Generally acceptable media for Furan laminates include:

Acids (Strong & Weak) Bases (Strong & Weak) Ketones Chlorinated Solvents Ethers Acrylates Acetates Styrene Benzene Toluene Xylene Carbon Disulfide Furfural Furfural Alcohol Tetrahydrofuran

It is standard procedure at Conley Composites to interface with end users and design groups to assist in the selection of the corrosion barrier resin and piping schedule that will provide optimum performance in a given chemical environment. We welcome customers to discuss their applications with our Technical Committee by phone @ 918-299-5051, fax @ 918-299-5907, or e-mail [email protected]. CHEMICAL RESISTANCE OF CONLEY PIPING SYSTEMS MAXIMUM RECOMMENDED SERVICE TEMPERATURE, DEG. F CONLEY CONLEY CONLEY CONLEY CHEMICAL ENVIRONMENT CONC. EPOXY VINYL NOVOLAC FURAN ESTER VINYL

ACETALDEHYDE ALL N NR N 200 ACETIC ACID 0-25 150 210 210 230 ACETIC ACID 25-50 125 180 180 230 ACETIC ACID 50-75 100 150 150 230 ACETIC ANHYDRIDE ALL 100 NR 100 150 ACETONE 5 150 180 180 BP 133 ACETONE 10 120 180 180 BP 133 ACETONE 100 125 NR NR BP 133 ACETYL CHLORIDE 100 N N N 180 ACETYLENE DICHLORIDE 100 N N N 230 ACETYLSALICYLIC ACID 100 N N N 230 ACRYLIC ACID 25 N 100 100 100% AMB ACRYLONITRILE 100 100 80 80 100% AMB ADIPIC ACID SOL SAT 250 180 210 N ALCOHOL, AMYL 200 180 210 230 ALCOHOL, BUTYL 200 120 120 230 ALCOHOL, ETHYL 10 180 150 150 BP173 ALCOHOL, ETHYL 100 180 80 80 BP 173 ALCOHOL, ISOBUTYL 100 180 80 100 230 ALCOHOL, ISOPROPYL ALL 180 120 150 230 ALCOHOL, METHYL 10 150 120 120 BP150 ALCOHOL, METHYL 100 150 NR 100 BP 150 ALCOHOL, n-BUTYL 150 120 120 230 ALCOHOL, SECONDARY BUTYL 10 150 150 150 230 ALIPHATIC HYDROCARBONS N N N 230 ALUM ALL 280 250 250 N ALUMINUM BROMIDE ALL N N N 230 ALUMINUM CHLORHYDRATE ALL 210 210 210 230 ALUMINUM CHLORIDE ALL 280 250 250 230 ALUMINUM FLUORIDE ALL 150 80 80 150 ALUMINUM HYDROXIDE ALL 200 180 200 150 ALUMINUM NITRATE ALL 250 180 180 230 ALUMINUM SULFATE ALL 280 250 250 230 AMMONIA, GAS 150 100 100 N AMMONIA, LIQUID 125 NR NR N AMMONIUM BROMIDE 43 N 160 160 150 AMMONIUM CARBONATE ALL 200 150 150 230 AMMONIUM CHLORIDE ALL 270 210 210 220 AMMONIUM FLUORIDE >25 100 150 150 230 AMMONIUM FLUORIDE 25 150 150 150 230 AMMONIUM HYDROXIDE 0-5 200 180 180 120 AMMONIUM HYDROXIDE 20 200 150 150 N AMMONIUM HYDROXIDE 29 200 100 100 N AMMONIUM NITRATE ALL 255 250 250 220 AMMONIUM PERSULFATE ALL 255 180 180 180 AMMONIUM PHOSPHATE 65 200 210 210 190 AMMONIUM PHOSPHATE SAT 200 210 210 N AMMONIUM SULFATE ALL 280 250 250 220 AMMONIUM SULFIDE SAT 100 120 120 230 AMMONIUM THIOCYANATE 20 155 210 210 N AMMONIUM THIOGLYCOLATE 8 100 100 100 N AMMONIUM THIOSULFATE 60 150 100 100 N AMYL ACETATE 100 100 70 120 200

*CM = CONTACT MANUFACTURER 800-331-5502 N = NOT TESTED / NR = NOT RECOMMENDED This information is for recommendation only, NOT A GUARANTEE REVISED JULY 15, 2008 CHEMICAL RESISTANCE OF CONLEY PIPING SYSTEMS MAXIMUM RECOMMENDED SERVICE TEMPERATURE, DEG. F CONLEY CONLEY CONLEY CONLEY CHEMICAL ENVIRONMENT CONC. EPOXY VINYL NOVOLAC FURAN ESTER VINYL

ANILINE 100 75 NR 70 150 ANILINE HYDROCHLORIDE 100 N 180 180 N ANTIMONY TRICHLORIDE SAT 225 200 200 N ARSENIC ACID ALL 180 100 100 N BARIUM CARBONATE ALL 255 250 250 N BARIUM CHLORIDE SAT 250 210 210 N BARIUM HYDROXIDE SAT 200 150 N N BARIUM HYDROXIDE 1-10 200 150 150 N BARIUM SULFATE ALL 255 250 250 N BARIUM SULFIDE ALL 255 180 180 150 BEER 200 120 120 N BENZALDEHYDE 100 100 NR 70 150 BENZENE 100 125 NR 100 150 BENZENE IN KEROSENE 5 200 200 210 200 BENZENE SULFONIC ACID 50 225 150 150 200 BENZOIC ACID ALL 225 210 210 200 BENZOTRICHLORIDE 100 N N N 150 BENZOYL CHLORIDE 100 N NR 80 150 BENZYL ALCOHOL 100 N 80 100 200 BENZYL CHLORIDE 100 N NR 70 150 BLACK LIQUOR PULP MILL 200 180 180 N BORAX 255 210 210 150 BORIC ACID SAT 65 200 210 210 200 BORIC ACID 225 210 210 N BROMINE, LIQUID 100 N NR NR N BROMINE, WATER SAT 100 100 100 N BROMINE, WATER <5 150 100 100 N BUTADIENE 150 NN N BUTANE 150 N N N BUTYL ACETATE 100 150 80 80 150 BUTYL CELLOSOLVE 100 150 100 100 113 BUTYL ETHER 100 N N N BP BUTYRIC ACID 0-25 200 210 210 120 BUTYRIC ACID 50 150 210 210 N BUTYRIC ACID 100 N 120 120 N CALCIUM BISULFITE ALL 200 180 180 N CALCIUM CARBONATE ALL 280 180 180 N CALCIUM CHLORATE ALL 205 250 250 N CALCIUM CHLORIDE ALL 280 250 250 N CALCIUM HYDROXIDE 0-25 200 180 180 N CALCIUM HYDROXIDE 100 200 250 250 N CALCIUM HYPOCHLORITE ALL 150 180 150 N CALCIUM NITRATE ALL 255 210 210 N CALCIUM SULFATE ALL 255 250 250 N CALGON SAT N 120 N N CARBITON 100 N NN N CARBON DIOXIDE 255 300 300 230 CARBON DISULFIDE 100 75 NR NR 115 CARBON TETRACHLORIDE 100 150 180 180 170 CARBONIC ACID 180 180 180 200 CASTOR OIL 200 160 160 N CATECHOL 100 N N N 230 CAUSTIC SODA & POTASH SAT 205 180 180 N

CHLORAL SAT N NN N CHLORINE DIOXIDE 15 80 200 180 N CHLORINE DIOXIDE, WET GAS 100 N 200 210 LS 150 CHLORINE WATER SAT N 200 210 N CHLORINE, GAS DRY 100 125 250 250 N CHLOROACETIC ACID 25 100 120 120 N CHLOROACETIC ACID 50 200 100 100 N CHLOROACETIC ACID CONC N 80 100 N CHLOROBENZENE 100 100 80 100 230 CHLOROFORM LIQ 100 NR NR 80 CHLOROFORM VAPOR N N N 230 CHLORONAPTHALENE 100 N N N 150 CHLOROPHENOL 100 N N N 100% AMB CHLOROSULFONIC ACID SAT N NR NR N CHROMIC ACID 5 125 150 150 N CHROMIC ACID 10 100 150 150 N CHROMIC ACID 20 80 150 150 N CHROMIUM SULFATE SAT 125 180 180 N CITRIC ACID SAT 250 210 210 190 COPPER ACETATE SAT 180 160 160 N COPPER CHLORIDE SAT 255 250 250 N COPPER FLUORIDE ALL 255 210 210 N COPPER NITRATE SAT 255 210 210 N COPPER SULFATE SAT 255 250 250 N CUMENE 100 N 120 120 N CYCLOHEXANE 100 150 150 150 150 DIBUTYL PHTHALATE 100 N 180 210 230 DICHLOROBENZENE 100 120 100 120 120 DIESEL FUEL 250 210 210 150 DIETHANOLAMINE NR 120 120 150 DIETHYL KETONE 100 NR NR 80 BP DIETHYLAMINE 100 NR N N 100% AMB DIETHYLENE GLYCOL 100 200 150 150 230 DIETHYLENE GLYCOL MONOETHYL 100 N N N 230 DIMETHYL ANILINE 100 N N N N DIMETHYL FORMAMIDE **CM NR NR NR NR **CM DIMETHYL PHTHALATE 100 100 180 180 230 DIOXANE 100 N NN N DMA4 WEED KILLER 2,4,D N 150 150 N DMA6 WEED KILLER N 150 150 N ETHYL ACETATE SAT 150 NR 70 171 BP ETHYL ALCOHOL 100 150 80 100 173 BP ETHYL ALCOHOL 50 180 100 150 173 BP ETHYL AMINE 100 N NR 80 AMB ETHYL BROMIDE SAT N NR NR 150 ETHYL CELLUSOLVE 150 N N N ETHYL CHLORIDE 100 80 80 80 230 ETHYL ETHER 100 100 NR NR BP ETHYL SULFATE SAT N 100 100 230 ETHYL SULFURIC ACID SAT N N N N ETHYLENE CHLORIDE 100 N NR NR 150 ETHYLENE DISULFONIC ACID SAT N N N 230 ETHYLENE GLYCOL 100 200 210 210 230

ETHYLENE OXIDE 100 N N N N FATTY ACIDS SAT 225 250 250 230 FERRIC CHLORIDE SAT 280 210 210 N FERRIC NITRATE SAT 250 210 210 N FERRIC SULFATE SAT 200 210 210 N FERRIC, FERROUS CHLORIDE 255 230 230 N FERROUS CHLORIDE 100 255 210 210 N FERROUS SULFATE 100 200 210 210 N FLUE GAS N 350 400 N FLUE GAS WET N 210 210 N FLUOBORIC ACID SAT N 210 210 150 FLUORINE GAS 100 N 80 80 N FLUOSILICIC ACID 10 200 180 180 150 FLUOSILICIC ACID 25 150 100 100 N FLUOSILICIC ACID 35 125 100 100 N FLUOSILICIC ACID FUMES SAT N 180 180 200 FORMALDEHYDE 37 150 150 150 150 FORMALDEHYDE 52 N 150 150 150 FORMIC ACID 100 100 NR 100 100 FORMIC ACID 10 10 140 180 180 150 FREON 150 100 100 230 FURFURAL 100 NR NR NR 100% AMB FURFURAL ALCOHOL 100 N NR 80 100% AMB GALLIC ACID SAT N N 100 230 GAS, NATURAL 200 NR 100 230 GASOHOL 10%ALCOHOL 125 100 120 AMB GASOLINE AVIATION 180 180 180 AMB GASOLINE LEADED 100 225 180 180 AMB GASOLINE UNLEADED 225 225 150 150 AMB GASOLINE, SOUR 100 250 180 180 194 GLUCOSE 250 250 250 N GLYCERINE 280 210 210 230 GLYCOLIC ACID (HYDROXYACETIC 70%) N 100 100 230 HEPTANE 100 200 210 210 230 HEXANE 150 160 160 200 HEXYLENE GLYCOL 150 150 150 230 HYDRAULIC FLUID 250 180 180 N HYDRAZINE SULFATE SAT NR N N 230 HYDRIODIC ACID 40 N 150 150 N HYDROBROMIC ACID 0-25 150 180 180 N HYDROBROMIC ACID 48 150 150 150 AMB HYDROBROMIC ACID 62 100 100 100 N HYDROCHLORIC ACID 20 205 230 230 150 HYDROCHLORIC ACID 37 205 180 180 N HYDROCHLORIC ACID+FREE CL2 200 230 230 N HYDROCHLORIC ACID+ORGANICS N NR 150 N HYDROCYANIC ACID SAT N 210 210 N HYDROFLUORIC ACID 10 N 150 150 N HYDROFLUORIC ACID 20 N 100 100 N HYDROGEN BROMIDE WET GAS 100 180 180 N HYDROGEN CHLORIDE WET GAS N 300+ 300+ N HYDROGEN CHOLORIDE DRY GAS 150 300+ 300+ N HYDROGEN FLUORIDE VAPOR N 180 180 N

HYDROGEN PEROXIDE 0-30 80 150 150 N HYDROGEN PEROXIDE 35 80 N N N HYDROGEN SULFIDE 100 255 300+ 300+ 230 HYPOCHLOROUS ACID 10 150 180 180 N HYPOPHOSPHORUS ACID 50 N 120 120 200 JET FUEL JP4 255 180 180 230 KEROSENE 255 180 180 N LACTIC ACID SAT 225 210 210 N LAURIC ACID SAT 225 200 200 N LAURYL CHLORIDE 100 225 210 210 N LEAD ACETATE ALL 250 230 230 N LEVULINIC ACID ALL 250 230 230 N LITHIUM BROMIDE SAT 225 210 250 N LITHIUM CARBONATE SAT 140 180 180 N LITHIUM CHLORIDE SAT 225 210 210 230 LITHIUM HYDROXIDE SAT 200 180 150 N MAGNESIUM NITRATE 100 280 210 210 N MAGNESIUM SULFATE SAT 225 250 250 N MALEIC ACID SAT N 250 250 N MANGANESE CHLORIDE SAT 225 210 210 N MANGANESE OXIDE SAT N N N N MANGANESE SULFATE SAT 250 210 210 N MERCURIC CHLORIDE SAT 225 210 210 N MERCURY 100 280 250 250 N METAPHOSPHORIC ACID 100 N N N N METHACRYLIC ACID NR NR NR N METHYL CYCLOHEXANOL 100 80 N N 200 METHYL ETHYL KETONE MEK 100 100 NR 70 175 METHYL ISOBUTYL CARBITOL N N N N METHYL TERT-BUTYL ETHER MTBE ALL N N N 97% AMB METHYLACETATE 100 N N N 150 MONOCHLOROBENZENE N 80 120 230 MYRISTIC ACID 100 N 250 250 N NAPHTHA 100 250 210 210 150 NAPHTHALENE 200 210 210 150 NAPTHOL SULFONIC ACID 100 N N N 230 NICKEL NITRATE SAT 250 210 210 N NICKEL SULFATE SAT 250 210 210 N NITRIC ACID * CM 20 N 120 150 NR NITRIC ACID 10 120 150 150 5% 150 NITROBENZENE 100 N 80 100 150 NITROPHENOL 100 NN N N OIL, ANIMAL 255 210 210 230 OIL, MINERAL 280 250 250 230 OIL, SOUR CRUDE 225 250 250 N OIL, SWEET CRUDE 225 250 250 N OIL, VEGETABLE 250 210 210 230 OLEIC ACID 100 220 210 200 N OXALIC ACID ALL 250 120 120 215 OZONE * CM 5 N 140 140 NR PENTACHLOROETHANE 100 N 120 120 230 PERCHLORIC ACID * CM 30 75 100 100 NR PERCHLORIC ACID * CM 10 75 150 150 NR

PHENOL (CARBOLIC ACID) 5 100 N 120 150 PHENOL SULFONIC ACID 65 N NR 80 150 PHENYL ETHER 100 N N N N PHOSPHORIC ACID ALL 100 210 210 150 PHOSPHOROUS TRICHLORIDE 100 N NR NR 150 PHOSPHORUS ACID SAT N 100 100 150 PHOSPHORUS PENTOXIDE FUME 0-54 200 230 230 N PHTHALIC ACID ALL N 210 210 225 PICRIC ACID SAT 100 NR 100 165 POLYPHOSPHORIC ACID 115 N 210 210 150 POTASSIUM BROMIDE SAT 220 100 120 150 POTASSIUM CARBONATE SAT 255 180 180 150 POTASSIUM CHLORATE SAT 280 N N N POTASSIUM CHLORIDE SAT 280 210 210 150 POTASSIUM DICHROMATE ALL 250 210 210 N POTASSIUM FERRICYANIDE ALL 250 210 210 150 POTASSIUM FERROCYANIDE SAT 250 210 210 150 POTASSIUM HYDROXIDE 45 200 180 180 150 POTASSIUM HYDROXIDE 0-25 200 150 150 150 POTASSIUM NITRATE SAT 280 210 210 N POTASSIUM OXALATE SAT 250 150 N N POTASSIUM PERMANGANATE SAT 200 210 210 N POTASSIUM PERSULFATE SAT 250 210 210 N POTASSIUM SULFATE SAT 200 210 210 N PROPIONIC ACID 50 100 180 180 N PROPYLENE GLYCOL ALL N 210 210 150 PULP MILL LIQUOR BLACK 200 180 180 150 PULP MILL LIQUOR GREEN 180 180 180 150 PULP MILL LIQUOR RED N 180 180 150 PULP MILL LIQUOR WHITE 200 180 180 150 QUATERNARY AMINE SALTS N 150 150 N RESORCINOL 100 NN N N SALICYLIC ACID ALL 250 140 N N SALT BRINE 30 280 250 250 N SILICIC ACID 250 210 210 N SILICON TETRACHLORIDE 100 N N N 140 SILVER NITRATE ALL 250 210 210 N SODIUM ACETATE 100 250 210 210 225 SODIUM ACID PHOSPHATE SAT N N N 190 SODIUM BICARBONATE 100 275 180 180 225 SODIUM BISULFATE SAT 255 210 210 225 SODIUM BISULFATE 255 210 210 N SODIUM BISULFITE SAT 250 210 210 225 SODIUM BROMATE 5 180 150 150 150 SODIUM CARBONATE SAT 255 180 180 150 SODIUM CHLORATE SAT 255 210 210 N SODIUM CHLORIDE ALL 280 250 250 225 SODIUM CHROMATE 50 155 210 210 150 SODIUM CYANIDE SAT 255 210 210 225 SODIUM DICHROMATE ALL 255 210 210 N SODIUM FERROCYANIDE ALL 255 210 210 N SODIUM FLUORIDE ALL 200 180 180 N SODIUM HYDROXIDE 0-10 200 180 150 150

SODIUM HYDROXIDE 25 200 180 180 150 SODIUM HYDROXIDE 50 200 210 180 150 SODIUM HYPOCHLORITE ** CM 0-10 80 120 120 AMB SODIUM METHOXIDE 40 150 N N 200 SODIUM NITRATE SAT 255 210 210 N SODIUM OXALATE SAT 210 210 210 N SODIUM PHOSPHATE 200 210 210 150 SODIUM SILICATE ALL 150 210 210 160 SODIUM SULFATE SAT 280 210 210 N SODIUM SULFIDE SAT 200 210 210 N SODIUM SULFITE ALL 200 210 210 N SODIUM THIOSULFATE SAT 150 180 180 N STANNIC CHLORIDE SAT 200 210 210 N STEARIC ACID SAT 200 210 210 230 STYRENE 100 100 100 120 100% AMB STYRENE ACRYLIC EMULSION N 120 120 100 STYRENE BUTADIENE LATEX N 130 N N SUGAR BEET LIQUOR 200 180 180 N SUGAR CANE LIQUOR ALL 200 180 180 N SUGAR, SUCROSE ALL 255 210 210 N SULFAMIC ACID 10 125 210 210 N SULFAMIC ACID 25 125 150 150 N SULFITE/SULFATE LIQUOR (PULP MILL) N 200 200 N SULFUR (MOLTEN) 100 N 250 300 230 SULFUR CHLORIDE FUMES 100 N 200 200 200 SULFUR CHLORIDE MONO 100 N N N N SULFUR DIOXIDE (WET OR DRY) 100 150/200 210 250 N SULFURIC ACID 25 200 210 210 150 SULFURIC ACID 50 150 180 180 100 SULFURIC ACID 70 N 180 180 NR SULFUROUS ACID 10 200 120 120 N SUPERPHOSPHORIC 76%P2O5 105 N 210 210 N TANNIC ACID SAT 200 210 210 N TARTARIC ACID SAT 250 210 210 N TETRACHLOROETHANE 100 N 80 120 225 TETRAHYDROFURAN N NR N 100% AMB TETRAHYDROFURFURYL ALCOHOL 100 N N N 150 TETRAPOTASSIUM PYROPHOSPHATE 60 N 150 150 150 THIONYL CHLORIDE N NR NR 100% AMB TIN CHLORIDES SAT N N N N TIN SULFATES SAT N N N N TITANIUM CHLORIDE 80 180 210 N TITANIUM DIOXIDE 210 180 210 N TITANIUM SULFATE SAT N N N N TOLUENE (TULOUL) 100 150 100 120 230 TOLUENE SULFONIC ACID 100 N 210 210 180 TOMATO SAUCE 250 210 N 220 TRICHLOROACETIC ACID (TCA) 50 N 210 210 AMB TRICHLOROBENZENE 100 N N N 230 TRICHLOROETHANE 100 N 100 120 100% AMB TRICHLOROETHYLENE 100 150 NR NR 189 BP TRIETHANOLAMINE 150 120 120 150 TRIETHYLAMINE 100 120 120 150

TRISODIUM PHOSPHATE SAT N 250 250 150 TRISODIUM PHOSPHATE 25 200 250 250 150 TURPENTINE 150 210 210 N UREA 50 150 150 150 160 URIC ACID CONC N N N N VINEGAR 200 210 210 230 WATER TAP 255 200 200 212 WATER, DEMINERALIZED 255 180 180 212 WATER, DISTILLED 255 180 180 212 WATER, FRESH 255 200 200 212 WATER, SALT 280 180 180 212 WATER, SALT BRINE 280 180 180 212 WATER, SEA 280 180 180 212 WATER, STEAM CONDENSATE 255 180 180 N WHITE LIQUOR (PULP MILL) 100 200 180 150 XYLENE (XYLOL) 100 150 100 120 230 ZINC CHLORIDE SAT 250 250 250 N ZINC NITRATE SAT 200 250 250 N ZINC SULFATE SAT 250 250 250 N

*CM = CONTACT MANUFACTURER 918-299-5051 N = NOT TESTED / NR = NOT RECOMMENDED This information is for recommendation only, NOT A GUARANTEE REVISED JULY 15, 2008
