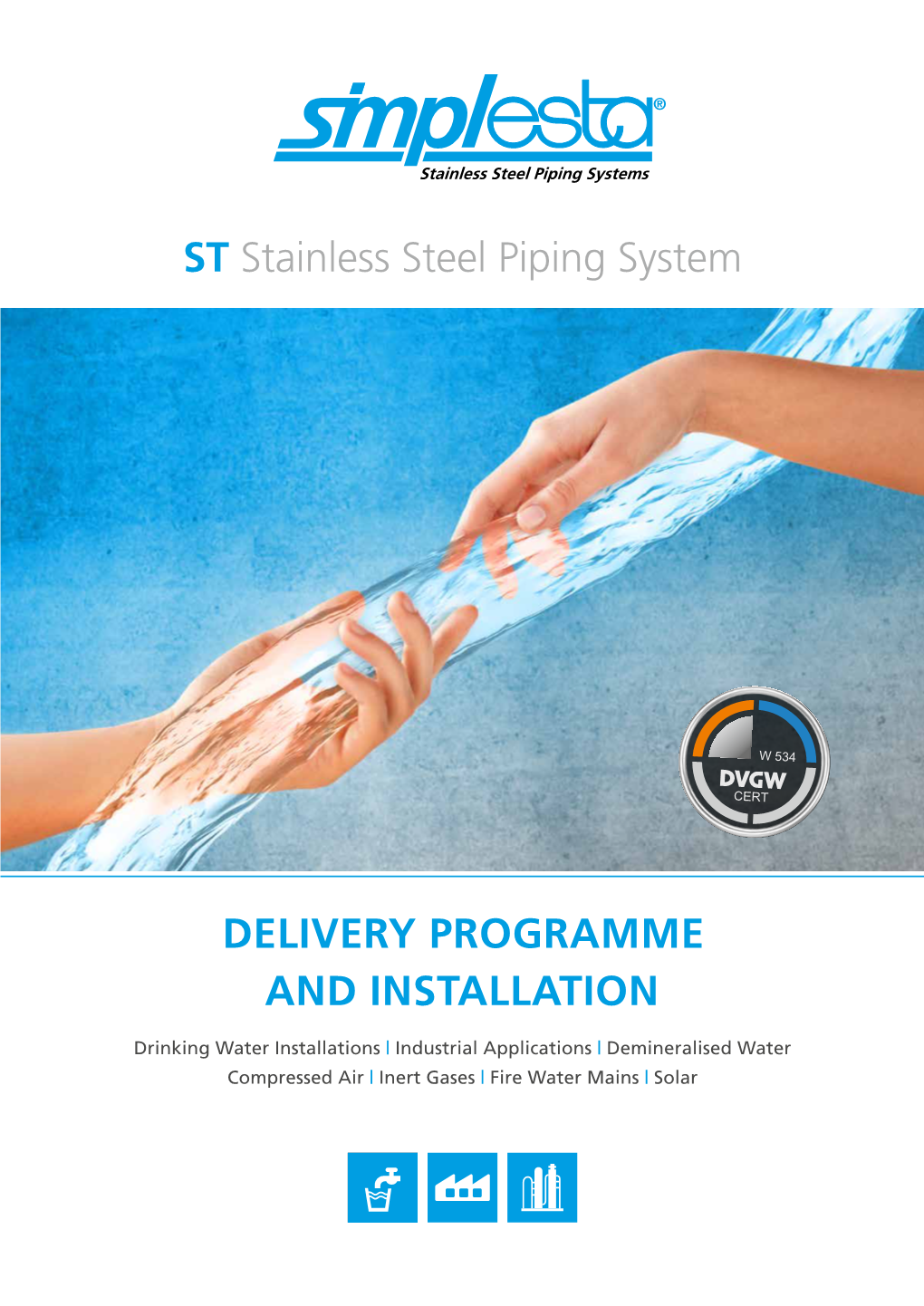

ST Stainless Steel Piping System DELIVERY PROGRAMME AND

Stainless Steel Piping Systems

W 534

CERT

DELIVERY PROGRAMME AND INSTALLATION

SIMPLESTA® ST STAINLESS STEEL PIPING SYSTEM

Esta Rohr 4

Stainless steel has a future 5

Perfectly compatible coupling technology 6

A multitude of applications 7

The simplesta® ST stainless steel piping system at a glance 8

Working on the safe side – simplesta® ST system pipes 9

simplesta® ST system pipe specifications 10-11

The best pipe deserves the best coupling – simplesta® ST system press fittings 12

MOULDED PARTS DELIVERY PROGRAMME

simplesta® ST system press fittings at a glance 13-39

Preform combinations 40-48

PRESSING TOOLS

simplesta® system pressing tools 49-55

Space requirements for crimping 56-57

Subject to technical amendments. We are unable to guarantee that the information provided is up to date or complete. We are unable to accept liability for any direct or indirect losses, including loss of profit, arising from the use of this information. We reserve the right to make alterations or amendments to the content at any time.

Information as of 08/2020

2 MONTAGE

Cutting and deburring 60

Marking the insertion depth, verification 61

Slipping on the fittings, post-verification 62

Crimping 15 to 54 mm 63

Crimping 76.1 to 108 mm 64-65

APPLICATION TECHNOLOGY

Thermal expansion 66

Linear expansion of the materials 1.4401 and 1.4521 67

Expansion bend lengths 68-69

Bend radius 69

Pipe attachment and installation 70-73

Soundproofing 74

Fire protection 74

Heat emission and insulation 75

Applications 76

Other media 77

Notes on corrosion resistance 78-79

Pressure loss 80

Maximum theoretical flow velocity 80

Pressure loss tables 81-84

GENERAL INFORMATION

A positive step for all involved 85

Leakage test 88 Flushing 88 Trace heating 88 Potential equalisation 88

3 First-class and proven: Our products build on 40 years of experience.

Our company – Esta Rohr GmbH – has been producing stainless steel pipes in our factories for 40 years on behalf of exacting customers with an array of different requirements. As a German pipe manufacturer, we are committed to offering products of the highest quality.

Such sectors as the automotive industry, process engineering, forming technology and design engineering have been using Esta Rohr pipes successfully for years. All the machining and finishing processes essential for our stainless steel pipes are incorporated into the production flow. This includes laser welding, post-weld dressing (inside and out) and solution annealing. In-production quality controls that go far beyond the standards required complete our 'Made in Germany' production profile.

Our expertise in installation technology was demonstrated from the very first moment our proven simplesta® ST stainless steel piping system for drinking water lines and numerous other applications was used.

Pipe dimensions from 15 to 108 mm and the practice-driven fitting programme are processed using the latest pressing technology (M-profile).

4 ST STAINLESS STEEL PIPING SYSTEMS

Stainless steel has a future: First-class and proven: Our products build on 1.4401 / 1.4521 40 years of experience.

'Stainless steel' has become a generic term for the large 1.4401 and 1.4521 are materials that enable the user to group of corrosion-resistant steels. VA, inox or rust-proof draw on more than 40 years of experience in a multitude steel are other colloquial names or trademarks. Improving of different applications. or adapting the properties to meet new requirements by mixing (alloying) iron with other metals or materials has These materials deliver good value for money and the gre- been a continuous goal since the Iron Age (eighth to the atest degree of safety in sanitation installations. Esta Rohr fifth century BC). pipes made using 1.4521 ferritic stainless steel are also a cost-efficient and stable foundation for combating price The research laboratories of Friedrich Krupp discovered fluctuations on the commodity exchanges. the solution in 1912. Alloys with a chromium content of more than 12% or combined with nickel and carefully The materials are optimised for the simplesta® ST stainless balanced heat treatment delivered the foundation for steel piping system during the normal analysis. The molybde- technical application. num values at Esta Rohr are above the minimum values and special solution annealing increases the corrosion resistance The process was submitted for patenting on 17 October of of the pipes. The high degree of corrosion resistance is the same year. To this day, these steels do not need to be achieved through an extremely dense and stable chromium painted, coated, galvanised or undergo any other corrosion oxide layer of only a few atoms in depth, preventing the protection measures when treated properly. oxidation of the underlying base material.

The simplesta® ST stainless steel piping system capitalises on We deliver the laser-welded pipes in the sizes 15 x 1 mm to system piping made using stainless steel with the material 108 x 2 mm. Esta Rohr has the experience and production number 1.4401 and ferritic stainless steel with the material techniques needed to process the material properly. number 1.4521. The defining main alloying elements are chromium and nickel in the case of 1.4401 and chromium and molybdenum in the case of 1.4521. In particular, molybdenum improves the pitting resistance of 1.4401 and 1.4521 by 2.0 to 2.5%.

5 Perfectly compatible coupling technology

The simplesta® ST stainless steel piping system consists of the Application is perfectly safe and permanently corrosion resi- 1.4401 or 1.4521 stainless steel pipe and the accompanying stant if the guidelines and recommendations are observed. 1.4401, 1.4404 and 1.4408 stainless steel press fittings. The blue press indicator at the end of the fittings makes your The M-profile crimped joint has been a technical and installation even safer. It is a simple means of visual control economic step forward compared to conventional joining for the installation engineer. The press indicator will only techniques, such as soldering, welding and screwing, for drop off if the pipe‘s crimped joint is secure. more than 50 years. The wording of the warranty statement and indemnification Application is perfectly safe and hygienic, as well as satis- agreements with the ZVSHK (German sanitation, heating fyingly durable if the guidelines and recommendations are and air conditioning association) confirm the safety of the observed. All the components needed for proper connection simplesta® ST stainless steel piping system. are part of an integrated system, are designed for compatibility as per the DVGW‘s (German technical and scientific Sound advice and practice-driven service by the manuf- association for gas and water) W 534 worksheet and are acturer (Esta Rohr GmbH) not only round off the system, certified in accordance with the DVGW‘s DW-8501CM0584 but also the requirement for certainty in all technical and system approval. Safe, simple and quick to process, the commercial questions. system offers durable stainless steel quality and all the com- monly known benefits of pressing technology.

6 ST STAINLESS STEEL PIPING SYSTEMS

A multitude of applications

The simplesta® ST stainless steel piping system is designed for use in drinking water and other supply lines within residential, office and industrial buildings. The system is also suitable for fuel oil lines, compressed air lines, inert gases and solar installations in accordance with the special applications described.

One special feature is the unlimited and risk-free use for any type of water according to Germany‘s Regulation on water for human consumption (Trinkwasserverordnung - TrinkwV 2001), as amended.

For other specific cases not mentioned here, please ask our application technology department – we look forward to assisting you.

7 The simplesta® ST stainless steel piping system at a glance

The components of the system include the following groups:

• ST system pipes 15 to 108 mm OD • ST system press fittings 15 to 108 mm • system pressing tools for all dimensions

Features Description

Coupling • permanently tight and continuously sealed pipe coupling as per the DVGW‘s (German technical and scientific association for gas and water) W 534 worksheet • positively and longitudinally locked, meaning also suitable for surface and flush fitting

ST system pipes • austenitic material 1.4401 (DV7301BTO666) for gas and drinking water installations • ferritic material 1.4521 (DW7301AT2017) for drinking water installations • rust and acid-resistant steel • in-house FPC system • laser-welded pipes as per the DVGW‘s GW 541 worksheet, DIN EN 10893-2, DIN EN 10893-1, DIN EN 10217-7, DIN EN 10088, DIN EN 10312, DIN EN 10296-2 • solution annealed • intergranular corrosion resistance • deburr cut at an HL of approximately 6000 mm • each end closed with a blue (1.4401) or green (1.4521) plug • Mo content ≥ 2.3% in pipes made using 1.4401. PRE ≥ 24.10 • Mo content ≥ 2.0% in pipes made using 1.4521. PRE ≥ 24.10

ST system press fittings • stainless steel press fittings made using 1.4404/1.4401 • certain components (e.g. threaded pieces) made using the material 1.4408 • design as per DVGW W 534 • in-house FPC system • blue press indicator

Seal rings • black EPDM (ethylene propylene diene monomer) seal ring LBP (leak before press) as standard • EPDM: -30°C to +110°C, up to +120°C for short periods (1h a week) • green FPM (fluoropolymer) seal ring • FPM: -20°C to +180°C, up to +200°C for short periods (1h a week)

Operating pressure • up to 16 bar

Dimensions • end-to-end programme from 15 to 108 mm • leak before press

System pressing tools • simplesta® pressing tools and Novopress pressing tools with M-profile 15-108 mm 8 System approval • DVGW DW-8511BU0154 DIN EN 10217-7 DIN EN 10296-2 DIN EN 10312

DIN EN 10246-3

DIN EN 10088 DIN EN 10246-2

ST STAINLESS STEEL PIPING SYSTEMS

Working on the safe side – simplesta® ST system pipes

simplesta® ST system pipes are manufactured and tested with DVGW approval marks DV7301BT0666 or DW-7301AT2017 certified longitudinally welded thin-walled pipes made of high-alloy austenitic stainless chromium nickel molybdenum steel with the material number 1.4401 and ferritic stainless chromium molybdenum steel with the material number 1.4521 as per the DVGW‘s GW 541 worksheet and also the following standards and guidelines:

DIN EN 10296-2 DIN EN 10246-2 Welded circular steel tubes for mechanical and general Non-destructive testing of steel tubes –Part 2: Automated engineering purposes eddy-current testing of seamless and welded (except submerged arc-welded) steel tubes for the verification of DIN EN 10217-7 leaktightness Welded steel tubes for pressure purposes DVGW GW 541 DIN EN 10312 Stainless steel pipes for gas and drinking water installati- Welded stainless steel tubes for the conveyance of water on; requirements and testing and other aqueous liquids – Technical delivery conditions DIN EN ISO 3651-2 DIN EN 10246-3 Determination of resistance to intergranular corrosion Non-destructive testing of steel tubes – of stainless steels – Part 2: Ferritic, austenitic and ferritic- Part 3: Automated eddy-current testing of seamless and austenitic (duplex) stainless steels – Corrosion test in media welded (except submerged arc-welded) steel tubes for containing sulfuric acid the detection of imperfections FPC system DIN EN 10088 Factory production control Stainless steels – List of stainless steels

9 Specifications simplesta® ST system pipes 1.4521 / 1.4401

These requirements are supplemented internally by our The pipes are bare base metal internally and externally, production standards (FPC), meaning the weld seam, di- have no corrosive or unhygienic substances and exhibit mensional stability, bending properties, heat treatment, and no heat tinting. They are tested for leakage directly in the corrosion resistance have to satisfy additional requirements. welding line.

Each pipe end is closed with a plug.(1.4401: blue, 1.4521: green.)

simplesta® ST 1.4521 system pipe

Nominal diameter Nominal dimension Water content Weight DN Ø x wall thickness mm l/m kg/m 12 15.0 x 1.0 0.133 0.351 15 18.0 x 1.0 0.201 0.426 20 22.0 x 1.2 0.302 0.625 25 28.0 x 1.2 0.515 0.805 32 35.0 x 1.5 0.804 1.258 40 42.0 x 1.5 1.195 1.521 50 54.0 x 1.5 2.043 1.972

10 Mechanical values and analysis according to standard:

Material Proof stress Tensile strength Tensile strain 2 2 Rp0,2% N/mm Rm N/mm A5 %

1.4521 ≥ 280 ≥ 400 > 20

1.4521 C Si Mn P S Cr Mo N C+N Ti Nb max. max. max. max. max. min. min. max. max. Ti: min: 4x % 0.025 1.00 1.00 0.040 0.015 17.50 – 1.80 – 0.030 0.030 (C+N) + 0.15% 20.00 2.50 max. 0.80%

simplesta® ST 1.4401 system pipe

Mechanical values and analysis according to standard:

Material Proof stress Proof stress Tensile strength Tensile strain 2 2 2 Rp0,2% N/mm Rp1,0% N/mm Rm N/mm A5 %

1.4401 min. 205 min. 240 510 – 710 min. 40

1.4401 C Si Mn P S Cr Ni Mo N max. max. max. max. max. max. % 0.07 1.0 2.0 0.045 0.015 16.50 – 10.00 – 2.00 – 0.11 18.50 13.00 2.50

Both types of pipe are resistant to intergranular corrosion This more than exceeds temperatures that typically occur as delivered and can be permanently exposed to an applica- in sanitation installations. tion temperature of 300°C without suffering intergranular corrosion.

11 The best pipe deserves the best coupling – simplesta® ST system press fittings

The simplesta® ST system press fittings are produced and the purposes of Section 17(3) of Germany‘s Regulation on tested according to DIN 2459:2017-11. Pipes and fittings water for human consumption (Trinkwasserverordnung - have the simplesta® system approval number (as per DVGW) TrinkwV 2001). DW-8501CM0584. Every simplesta® ST system press fitting is shipped with The main material is 1.4404/1.4401. Certain components (e.g. blue press indicators in resealable packaging with labelling threaded connectors) are made using 1.4408. showing the main or mandatory details. In accordance with the requirements of the UBA, the standard black EPDM The simplesta® ST system press fittings have successfully (ethylene propylene diene monomer rubber) seal ring (leak completed the testing and assessment of hygienic suitability before press) satisfies the guideline for hygienic assessment in contact with drinking water according to the positive of organic materials in contact with drinking water (KTW list of Germany‘s Federal Environmental Agency (UBA) for Guideline) and therefore meets the hygiene requirements.

Material Operating Short-term Max. Colour temperature max. temperature operating pressure

EPDM -30 / +110°C +120°C (1h a week) 16 bar Black

Applications: • Any water according to the TrinkwV.* • Solar installations up to +110 °C • Open and closed water circuits -30 °C to +110 °C • Vacuum up to 200 mbar negative pressure • Open and closed refrigerating and cooling circuits • Demineralised water • Compressed-air systems class 1-5 • Condensate lines up to +110 °C • Inert gases (non-toxic/non-explosive) • District heating in domestic connection lines • Extinguishing water lines (wet, wet/dry, dry) • Spring water

Material Operating Short-term Max. Colour temperature max. temperature operating pressure

FPM -20 / +180°C +200°C (1h a week) 16 bar Green Applications: • Compressed-air systems class 6-10 • Concrete core cooling • Mineral oil, vegetable oil, light fuel oil • General fuels** • Solar installations up to +180 °C 12 *German regulation on water for human consumption **after consulting with the application technology department simplesta® ST system press fittings at a glance Where to find your fitting:

Page 14 Page 15 Page 16 Page 17

ST adaptor ST adaptor union ST coupling ST slip coupling with union nut with female thread D: 15 - 108 D: 15 - 108 D x T: 15 x 3/4 - 54 x 2 3/8 D x Rp: 15x1/2 - 54x2

Page 18 Page 19 Page 20 Page 21

ST adaptor union ST bend 90° with male thread ST union ST bend 90° with plain end D x R: 15 x 1/2 - 54 x 2 D: 15 - 54 D: 15 - 108 D: 15 - 108

Page 22 Page 23 Page 24 Page 25

ST bend 45° ST bend 90° with ST bend 45° with plain end ST pipe bridge plain ends D: 15 - 108 D: 15 - 108 D: 15 - 28 D: 15 - 54

Page 26 Page 27 Page 28 Page 28

ST corner elbow ST adaptor ST adaptor with 90°, offset with male thread female thread ST elbow tap connector 90° D x Rp: D: x R: 15 x 1/2 - 88.9 x 3 D x Rp: 15 x 1/2 - 54 x 2 D x Rp: 15 x 1/2 - 22 x 3/4 15 x 1/2

Page 29 Page 30 Page 31 Page 32

ST elbow adaptor 90° ST elbow adaptor 90° with female thread with male thread ST T-piece ST T-piece, reduced D x Rp: 15 x 1/2 - 35 x 1 1/4 D x R: 15 x 1/2 - 54 x 2 D: 15 - 108 D x d: 18-15-18 - 108-88.9-108 Page 34 Page 35 Page 36 Page 37

ST T-piece with female thread ST reducer ST flange, with pressing socket ST cap D x Rp: 15 x 1/2 - 108 x 2 D1 x D2 18-15 - 108-88.9 D: 15 - 108 D: 15 - 108

SeitePage 3838 SeitePage 3938

ST EPDM seal ring ST FPM seal ring

13 ST coupling

D D

Qty/Pk D Item No. L Z 10 15.0 4001500 48.0 8.0 10 18.0 4001501 48.0 8.0 10 22.0 4001502 50.0 8.0 10 28.0 4001503 54.0 8.0 10 35.0 4001504 62.0 10.0 4 42.0 4001505 71.0 11.0 4 54.0 4001506 83.0 13.0 1 76.1 4001507 141.0 35.0 1 88.9 4001508 162.0 42.0 1 108.0 4001509 194.0 44.0

14 ST slip coupling

E E

D D

MOULDED PARTS DELIVERY PROGRAMME

Qty/Pk D Item No. L E 10 15.0 4001520 67.0 25.0 10 18.0 4001521 68.0 25.0 10 22.0 4001522 73.0 25.0 10 28.0 4001523 83.0 30.0 10 35.0 4001524 98.0 30.0 4 42.0 4001525 115.0 40.0 4 54.0 4001526 138.0 40.0 1 76.1 4001527 229.0 60.0 1 88.9 4001528 263.0 70.0 1 108.0 4001529 313.0 80.0

15 ST adaptor with union nut

L Z

DIN ISO 228-1 pipe thread and seal

Qty/Pk D x G Item No. L Z 10 15.0 x 1/2 4002010 50.0 18.0 10 15.0 x 3/4 4002011 50.0 18.0 10 18.0 x 1/2 4002012 49.0 18.0 10 18.0 x 3/4 4002013 52.0 20.0 10 22.0 x 1 4002014 54.0 21.0 10 28.0 x 1 4002015 59.0 24.0 10 28.0 x 1 1/4 4002016 61.0 26.0 4 35.0 x 1 1/2 4002017 63.0 25.0 4 42.0 x 1 3/4 4002018 68.0 25.0 4 54.0 x 2 3/8 4002019 75.0 24.0

16 ST adaptor union with female thread AL Z Z

D Rp

MOULDED PARTS DELIVERY PROGRAMME DIN ISO 228-1 pipe thread and EPDM seal

Qty/Pk D x Rp Item No. L Z 4 15.0 x 1/2 4002160 74.0 54.0 4 15.0 x 3/4 4002161 76.0 56.0 4 18.0 x 1/2 4002162 74.0 54.0 4 18.0 x 3/4 4002163 76.0 56.0 4 22.0 x 3/4 4002164 81.0 60.0 4 22.0 x 1 4002165 83.0 62.0 4 28.0 x 1 4002166 88.0 65.0 4 35.0 x 11/4 4002167 95.0 68.0 4 42.0 x 11/2 4002168 101.0 71.0 4 54.0 x 2 4002169 109.0 74.0

17 DST adaptor union with male thread L H

D R

DIN ISO 228-1 pipe thread and seal

Qty/Pk D x R Item No. L Z 4 15.0 x 1/2 4002130 73.0 73.0 4 15.0 x 3/4 4002131 76.0 56.0 4 18.0 x 1/2 4002132 76.0 56.0 4 18.0 x 3/4 4002133 76.0 56.0 4 22.0 x 1/2 4002134 78.0 57.0 4 22.0 x 3/4 4002135 82.0 62.0 4 22.0 x 1 4002136 86.0 65.0 4 28.0 x 1 4002137 93.0 70.0 4 35.0 x 11/4 4002138 102.0 76.0 4 42.0 x 11/2 4002139 107.0 77.0 4 54.0 x 2 4002140 118.0 83.0

18 ST union

MOULDED PARTS DELIVERY PROGRAMME DIN ISO 228-1 pipe thread and EPDM seal

Qty/Pk D Item No. L Z 4 15.0 4002180 89.0 49.0 4 18.0 4002181 92.0 52.0 4 22.0 4002182 99.0 57.0 4 28.0 4002183 112.0 66.0 4 35.0 4002184 119.0 67.0 4 42.0 4002185 129.0 68.0 4 54.0 4002186 141.0 71.0

19 ST bend 90°

D Z L

Qty/Pk D Item No. L Z 10 15.0 4001580 43.0 23.0 10 18.0 4001581 46.0 26.0 10 22.0 4001582 53.0 32.0 10 28.0 4001583 64.0 41.0 10 35.0 4001584 78.0 52.0 4 42.0 4001585 90.0 60.0 4 54.0 4001586 110.0 75.0 1 76.1 4001587 157.0 104.0 1 88.9 4001588 178.0 118.0 1 108.0 4001589 215.0 140.0

20 ST bend 90° with plain end Z

D H

D L

MOULDED PARTS DELIVERY PROGRAMME

Qty/Pk D Item No. L H Z 10 15.0 4001600 43.0 49.0 21.0 10 18.0 4001601 46.0 52.0 26.0 10 22.0 4001602 53.0 57.0 32.0 10 28.0 4001603 64.0 65.0 41.0 10 35.0 4001604 78.0 90.0 52.0 4 42.0 4001605 90.0 102.0 60.0 4 54.0 4001606 110.0 122.0 75.0 1 76.1 4001607 157.0 173.0 104.0 1 88.9 4001608 178.0 199.0 118.0 1 108.0 4001609 215.0 235.0 140.0

21 ST bend 45° L Z

L Z D

Qty/Pk D Item No. L Z 10 15.0 4001640 34.0 12.0 10 18.0 4001641 36.0 14.0 10 22.0 4001642 37.0 18.0 10 28.0 4001643 42.0 22.0 10 35.0 4001644 52.0 28.0 4 42.0 4001645 60.0 30.0 4 54.0 4001646 72.0 37.0 1 76.1 4001647 100.0 49.0 1 88.9 4001648 114.0 55.0 1 108.0 4001649 140.0 67.0

22 ST bend 45° with plain end L Z

H D

MOULDED PARTS DELIVERY PROGRAMME

Qty/Pk D Item No. L H Z 10 15.0 4001660 34.0 39.0 12.0 10 18.0 4001661 36.0 41.0 14.0 10 22.0 4001662 37.0 46.0 18.0 10 28.0 4001663 42.0 50.0 22.0 10 35.0 4001664 52.0 62.0 28.0 4 42.0 4001665 60.0 72.0 30.0 4 54.0 4001666 72.0 84.0 37.0 1 76.1 4001667 100.0 120.0 49.0 1 88.9 4001668 114.0 134.0 50.0 1 108.0 4001669 140.0 163.0 67.0

23 ST pipe bridge

L 2 L 3 D D

Qty/Pk D Item No. L L2 L3 10 15.0 4001700 57.0 158.0 37.0 10 18.0 4001701 60.0 165.0 40.0 10 22.0 4001702 65.0 178.0 44.0 10 28.0 4001703 74.0 210.0 50.0

24 ST bend 90° with plain ends

D B

MOULDED PARTS DELIVERY PROGRAMME

Qty/Pk D Item No. A A1 B 10 15.0 4001620 120.0 56.0 70.0 10 18.0 4001621 120.0 62.0 70.0 10 22.0 4001622 120.0 68.0 70.0 10 28.0 4001623 120.0 80.0 80.0 10 35.0 4001624 200.0 83.0 120.0 4 42.0 4001625 250.0 97.0 150.0 4 54.0 4001626 300.0 116.0 200.0

25 ST adaptor with male thread

R D

DIN EN 10226-1: 2004

Qty/Pk D x R Item No. L Z 10 15.0 x 1/2 4002030 54.0 34.0 10 15.0 x 3/4 4002031 58.0 38.0 10 18.0 x 1/2 4002032 54.0 34.0 10 18.0 x 3/4 4002033 58.0 38.0 10 22.0 x 1/2 4002034 56.0 35.0 10 22.0 x 3/4 4002035 60.0 39.0 10 22.0 x 1 4002036 63.0 42.0 10 28.0 x 3/4 4002037 66.0 43.0 10 28.0 x 1 4002038 68.0 45.0 10 28.0 x 1 1/4 4002039 70.0 47.0 10 35.0 x 1 4002040 69.0 43.0 10 35.0 x 1 1/4 4002041 71.0 45.0 10 35.0 x 1 1/2 4002042 71.0 45.0 4 42.0 x 1 1/4 4002043 76.0 46.0 4 42.0 x 1 1/2 4002044 76.0 46.0 4 54.0 x 1 1/2 4002045 84.0 49.0 4 54.0 x 2 4002046 90.0 55.0 1 76.1 x 2 1/2 4002047 120.0 67.0 1 88.9 x 3 4002048 132.0 72.0 1 108.0 x 4 4002049 157.0 82.0

26 ST adaptor with female thread L Z

Rp D

MOULDED PARTS DELIVERY PROGRAMME DIN EN 10226-1 : 2004

Qty/Pk D x Rp Item No. L Z 10 15.0 x 1/2 4002070 55.0 20.0 10 15.0 x 3/4 4002071 59.0 21.0 10 18.0 x 1/2 4002072 57.0 24.0 10 18.0 x 3/4 4002073 59.0 26.0 10 22.0 x 1/2 4002074 58.0 24.0 10 22.0 x 3/4 4002075 61.0 25.0 10 22.0 x 1 4002076 66.0 26.0 10 28.0 x 3/4 4002077 65.0 26.0 10 28.0 x 1 4002078 70.0 28.0 10 28.0 x 1 1/4 4002089 71.0 26.0 10 35.0 x 1 4002080 66.0 20.0 10 35.0 x 1 1/4 4002081 72.0 25.0 10 35.0 x 1 1/2 4002082 72.0 25.0 4 42.0 x 1 1/4 4002083 71.0 17.0 4 42.0 x 1 1/2 4002084 77.0 23.0 4 54.0 x 1 1/2 4002085 77.0 21.0 4 54.0 x 2 4002086 94.0 34.0 1 76.1 x 2 1/2 4002087 117.0 38.0

27 ST elbow tap connector 90°

D L1 Z (a)

G Z (b) A C

DIN EN 10226-1 : 2004

Qty/Pk D x Rp Item No. A Z (a) L1 C G Z (b) 10 15.0 x 1/2 4001950 34.0 30.0 50.0 43.0 5.0 20.0 10 18.0 x 1/2 4001951 34.0 30.0 50.0 44.0 6.0 20.0 10 22.0 x 3/4 4001952 40.0 34.0 55.0 51.0 6.0 24.0

ST corner elbow 90°, offset

L1 Z(a) G

A l l1 C

DIN EN 10226-1 : 2004

Qty/Pk D X Rp Item No. A Z (a) L1 C G I I1 10 15.0 x 1/2 4001990 39.0 35.0 56.0 44.0 5.0 15.0 12.0

28 ST elbow adaptor 90° with female thread L1 D

MOULDED PARTS DELIVERY PROGRAMME DIN EN 10226-1 : 2004

Qty/Pk D x Rp Item No. L L1 Z 10 15.0 x 1/2 4001910 55.0 37.0 20.0 10 18.0 x 1/2 4001911 57.0 39.0 20.0 10 22.0 x 3/4 4001912 61.0 46.0 21.0 10 28.0 x 1 4001913 68.0 54.0 23.0 10 35.0 x 1 1/4 4001914 76.0 63.0 26.0

29 ST elbow adaptor 90° with male thread L1 D

L Z

DIN EN 10226-1 : 2004

Qty/Pk D x R Item No. L L1 Z 10 15.0 x 1/2 4001890 55.0 37.0 35.0 10 18.0 x 1/2 4001891 57.0 39.0 37.0 10 22.0 x 3/4 4001892 61.0 46.0 39.0 10 28.0 x 1 4001893 68.0 54.0 45.0 10 35.0 x 1 1/4 4001894 76.0 63.0 50.0 4 42.0 x 1 1/2 4001895 84.0 67.0 54.0 4 54.0 x 2 4001896 94.0 78.0 59.0

30 ST T-piece D 2 L Z2 D

Z1 Z1 L 1 L 1 L

MOULDED PARTS DELIVERY PROGRAMME

Qty/Pk D Item No. L L1 L2 Z1 Z2 10 15.0 4001720 66.0 33.0 39.0 13.0 19.0 10 18.0 4001721 68.0 34.0 40.0 14.0 20.0 10 22.0 4001722 74.0 37.0 44.0 16.0 23.0 10 28.0 4001723 84.0 42.0 52.0 19.0 29.0 10 35.0 4001724 100.0 50.0 57.0 27.0 31.0 4 42.0 4001725 114.0 57.0 66.0 27.0 36.0 4 54.0 4001726 138.0 69.0 77.0 34.0 42.0 1 76.1 4001727 230.0 115.0 111.0 62.0 58.0 1 88.9 4001728 260.0 130.0 128.0 70.0 68.0 1 108.0 4001729 310.0 155.0 156.0 75.0 81.0

31 ST T-piece, reduced D1 2 L Z2 D D

Z1 Z1 L 1 L 1 L

Qty/Pk D-D1-D Item No. L L1 L2 Z1 Z2 10 18-15-18 4001740 68.0 34.0 40.0 14.0 20.0 10 22-15-22 4001741 74.0 37.0 42.0 16.0 22.0 10 22-18-22 4001742 74.0 37.0 42.0 16.0 22.0 10 28-15-28 4001744 84.0 42.0 45.0 19.0 25.0 10 28-18-28 4001745 84.0 42.0 45.0 19.0 25.0 10 28-22-28 4001746 84.0 42.0 47.0 19.0 26.0 10 35-15-35 4001161 100.0 50.0 49.0 24.0 29.0 10 35-18-35 4001162 100.0 50.0 49.0 24.0 29.0 10 35-22-35 4001163 100.0 50.0 51.0 24.0 30.0 10 35-28-35 4001747 100.0 50.0 56.0 24.0 33.0 4 42-15-42 4001748 114.0 57.0 53.0 27.0 33.0 4 42-18-42 4001749 114.0 57.0 53.0 27.0 33.0 4 42-22-42 4001750 114.0 57.0 55.0 27.0 34.0 4 42-28-42 4001752 114.0 57.0 60.0 27.0 37.0 4 42-35-42 4001753 114.0 57.0 61.0 27.0 35.0 4 54-15-54 4001754 138.0 69.0 59.0 34.0 39.0 4 54-18-54 4001755 138.0 69.0 59.0 34.0 39.0 4 54-22-54 4001756 138.0 69.0 61.0 34.0 40.0 4 54-28-54 4001758 138.0 69.0 66.0 34.0 43.0 4 54-35-54 4001759 138.0 69.0 67.0 34.0 41.0 4 54-42-54 4001760 138.0 69.0 72.0 34.0 42.0

32 Continued: ST T-piece, reduced D1 2 L Z2 D D

Z1 Z1 L 1 L 1 L

MOULDED PARTS DELIVERY PROGRAMME

Qty/Pk D-D1-D Item No. L L1 L2 Z1 Z2 1 76.1-22.0-76.1 4001761 230.0 115.0 71.0 62.0 50.0 1 76.1-28.0-76.1 4001762 230.0 115.0 76.0 62.0 53.0 1 76.1-35.0-76.1 4001763 230.0 115.0 77.0 62.0 51.0 1 76.1-42.0-76.1 4001764 230.0 115.0 82.0 62.0 52.0 1 76.1-54.0-76.1 4001765 230.0 115.0 87.0 62.0 52.0 1 88.9-22.0-88.9 4001766 260.0 130.0 78.0 70.0 57.0 1 88.9-28.0-88.9 4001767 260.0 130.0 83.0 70.0 60.0 1 88.9-35.0-88.9 4001768 260.0 130.0 84.0 70.0 58.0 1 88.9-42.0-88.9 4001769 260.0 130.0 89.0 70.0 59.0 1 88.9-54.0-88.9 4001770 260.0 130.0 94.0 70.0 59.0 1 88.9-76.1-88.9 4001771 260.0 130.0 118.0 70.0 65.0 1 108-22-108 4001772 310.0 155.0 90.0 77.0 69.0 1 108-28-108 4001773 310.0 155.0 95.0 80.0 72.0 1 108-35-108 4001774 310.0 155.0 96.0 80.0 70.0 1 108-42-108 4001775 310.0 155.0 101.0 80.0 71.0 1 108-54-108 4001776 310.0 155.0 106.0 80.0 71.0 1 108-76.1-108 4001777 310.0 155.0 130.0 80.0 77.0 1 108-88.9-108 4001778 310.0 155.0 140.0 80.0 80.0

33 ST T-piece with female thread Rp

L 1

D D

I I L

DIN EN 10226-1 : 2004

Qty/Pk D x Rp Item No. L I L1 10 15.0 x 1/2 4001850 66.0 33.0 38.0 10 18.0 x 1/2 4001851 68.0 34.0 41.0 10 18.0 x 3/4 4001852 68.0 34.0 43.0 10 22.0 x 1/2 4001853 74.0 37.0 42.0 10 22.0 x 3/4 4001854 74.0 37.0 45.0 10 28.0 x 1/2 4001855 84.0 42.0 45.0 10 28.0 x 3/4 4001856 84.0 42.0 47.0 10 28.0 x 1 4001857 84.0 42.0 52.0 10 35.0 x 1/2 4001858 100.0 50.0 49.0 10 35.0 x 3/4 4001859 100.0 50.0 51.0 10 35.0 x 1 1/4 4001860 100.0 50.0 57.0 4 42.0 x 1/2 4001861 114.0 57.0 53.0 4 42.0 x 3/4 4001862 114.0 57.0 54.0 4 42.0 x 1 1/2 4001863 114.0 57.0 60.0 4 54.0 x 1/2 4001864 138.0 69.0 58.0 4 54.0 x 3/4 4001865 138.0 69.0 60.0 4 54.0 x 2 4001866 138.0 69.0 78.0 1 76.1 x 3/4 4001867 230.0 115.0 70.0 1 76.1 x 2 4001868 230.0 115.0 88.0 1 88.9 x 3/4 4001869 260.0 130.0 78.0 1 88.9 x 2 4001870 260.0 130.0 96.0 1 108.0 x 3/4 4001871 310.0 155.0 86.0 1 108.0 x 2 4001872 310.0 155.0 104.0

34 ST reducer

D D1

H L

MOULDED PARTS DELIVERY PROGRAMME

Qty/Pk D x D1 Item No. D1 L H 10 18.0 x 15.0 4001540 15.0 62.0 42.0 10 22.0 x 15.0 4001541 15.0 62.0 42.0 10 22.0 x 18.0 4001542 18.0 60.0 40.0 10 28.0 x 15.0 4001543 15.0 63.0 43.0 10 28.0 x 18.0 4001544 18.0 67.0 47.0 10 28.0 x 22.0 4001545 22.0 66.0 45.0 10 35.0 x 18.0 4001547 18.0 77.0 57.0 10 35.0 x 22.0 4001548 22.0 68.0 47.0 10 35.0 x 28.0 4001549 28.0 76.0 53.0 4 42.0 x 18.0 4001551 18.0 80.0 60.0 4 42.0 x 22.0 4001552 22.0 84.0 63.0 4 42.0 x 28.0 4001553 28.0 82.0 59.0 4 42.0 x 35.0 4001554 35.0 80.0 54.0 4 54.0 x 18.0 4001556 18.0 92.0 72.0 4 54.0 x 22.0 4001557 22.0 96.0 75.0 4 54.0 x 28.0 4001558 28.0 101.0 78.0 4 54.0 x 35.0 4001559 35.0 96.0 70.0 4 54.0 x 42.0 4001560 42.0 102.0 72.0 1 76.1 x 54.0 4001561 54.0 146.0 110.0 1 88.9 x 54.0 4001562 54.0 147.0 112.0 1 88.9 x 76.1 4001563 76.1 161.0 108.0 1 108.0 x 54.0 4001564 54.0 162.0 127.0 1 108.0 x 76.1 4001565 76.1 186.0 133.0 1 108.0 x 88.9 4001566 88.9 203.0 143.0

35 ST flange, with pressing socket H

m k Z D1 L

Qty/Pk D Item No. D1 K H L Z m Holes PN 1 15.0 4001930 95.0 65.0 11.0 43.0 23.0 14.0 4 10 1 18.0 4001931 95.0 65.0 11.0 43.0 23.0 14.0 4 10 1 22.0 4001932 105.0 75.0 12.0 47.0 26.0 14.0 4 10 1 28.0 4001933 115.0 85.0 14.0 54.0 31.0 14.0 4 10 1 35.0 4001934 140.0 100.0 15.0 62.0 36.0 18.0 4 10 1 42.0 4001935 150.0 110.0 16.0 70.0 40.0 18.0 4 10 1 54.0 4001936 165.0 125.0 18.0 84.0 49.0 18.0 4 10 1 76.1 4001937 185.0 145.0 18.0 129.0 76.0 18.0 4 10 1 88.9 4001938 200.0 160.0 20.0 148.0 88.0 18.0 8 16 1 108.0 4001939 220.0 180.0 20.0 173.0 98.0 18.0 8 16

36 ST cap L Z

MOULDED PARTS DELIVERY PROGRAMME

Qty/Pk D Item No. L Z 10 15.0 4002110 34.0 14.0 10 18.0 4002111 35.0 15.0 10 22.0 4002112 39.0 18.0 10 28.0 4002113 48.0 25.0 10 35.0 4002114 51.0 25.0 4 42.0 4002115 59.0 29.0 4 54.0 4002116 67.0 32.0 1 76.1 4002117 94.0 41.0 1 88.9 4002118 103.0 43.0 1 108.0 4002119 124.0 49.0

37 ST EPDM seal ring

C E

Qty/Pk D Item No E C 20 15.0 4002300 15.0 2.6 20 18.0 4002301 18.0 2.6 20 22.0 4002302 22.0 3.2 20 28.0 4002303 28.0 3.1 20 35.0 4002304 35.0 3.1 20 42.0 4002305 42.0 4.1 20 54.0 4002306 54.0 4.1 5 76.1 4002307 76.8 8.0 5 88.9 4002308 88.3 8.2 5 108.0 4002309 108.6 11.0

38 ST FPM seal ring

C E

MOULDED PARTS DELIVERY PROGRAMME

Qty/Pk D Item No E C 20 15.0 4002310 15.0 2.6 20 18.0 4002311 18.0 2.6 20 22.0 4002312 22.0 3.2 20 28.0 4002313 28.0 3.1 20 35.0 4002314 35.0 3.1 20 42.0 4002315 42.0 4.1 20 54.0 4002316 54.0 4.1 5 76.1 4002317 76.8 8.0 5 88.9 4002318 88.3 8.2 5 108.0 4002319 108.6 11.0

39 Preform combinations with dimensions

Minimum spacing between press fitting connection

DN d L-min A-min e L-min 15.0 23.0 50.0 10.0 20.0 (A-min) 18.0 26.0 50.0 10.0 20.0 22.0 32.0 52.0 10.0 21.0

d 28.0 37.0 56.0 10.0 23.0 35.0 44.0 62.0 10.0 26.0

e 42.0 53.0 80.0 20.0 30.0 54.0 65.0 90.0 20.0 35.0 76.1 95.0 126.0 20.0 53.0 88.9 110.0 140.0 20.0 60.0 108.0 133.0 170.0 20.0 75.0

Minimum spacing between two tees with the same outlet H X-min Z L-min DN H L-min X-min Z 15.0 107.0 50.0 84.0 17.0 18.0 112.0 50.0 86.0 18.0 22.0 130.0 52.0 98.0 23.0 28.0 151.0 56.0 114.0 29.0 35.0 168.0 62.0 124.0 31.0 42.0 205.0 80.0 152.0 36.0 54.0 239.0 90.0 174.0 42.0 76.1 337.0 126.0 242.0 58.0 88.9 386.0 140.0 276.0 68.0 108.0 465.0 170.0 332.0 81.0

40 MOULDED PARTS DELIVERY PROGRAMME

Minimum spacing between two tees with the same or a reduced outlet

H X-min DN H L-min X-min Z1 Z1 L-min Z1 15.0 142.0 50.0 76.0 13.0 18.0 144.0 50.0 76.0 14.0 22.0 172.0 52.0 98.0 16.0 28.0 198.0 56.0 114.0 19.0 35.0 224.0 62.0 124.0 27.0 42.0 266.0 80.0 152.0 27.0 54.0 296.0 90.0 158.0 34.0 76.1 480.0 126.0 250.0 62.0 88.9 540.0 140.0 280.0 70.0 108.0 640.0 170.0 320.0 75.0

45° Floor with 45° F/F elbow with 45° F/M elbow

DN A Z Z1 Z2 B

Z1 15.0 45.0 80.0 12.0 12.0 45.0 18.0 46.0 81.0 14.0 14.0 46.0 22.0 51.0 93.0 18.0 18.0 51.0 Z B 28.0 59.0 113.0 22.0 22.0 59.0 35.0 66.0 126.0 28.0 28.0 66.0 42.0 75.0 143.0 30.0 30.0 75.0 Z2 54.0 88.0 168.0 37.0 37.0 88.0 76.1 108.0 201.0 49.0 49.0 108.0 88.9 124.0 232.0 55.0 55.0 124.0 45° A 108.0 153.0 272.0 67.0 67.0 153.0

41 45° Floor with two 45° bends (F/F) with pipe

DN L-min A-min Z-min Z Z 15.0 50.0 59.0 93.0 12.0

L-min 18.0 50.0 59.0 93.0 14.0 22.0 52.0 67.0 109.0 18.0 28.0 56.0 78.0 132.0 22.0 Z-min 35.0 62.0 86.0 146.0 28.0 42.0 80.0 105.0 173.0 30.0 54.0 90.0 120.0 200.0 37.0 Z 76.1 126.0 155.0 247.0 49.0 88.9 140.0 172.0 278.0 55.0 A-min 45° 108.0 170.0 206.0 326.0 67.0

Floor with 90° F/F elbow with 90° F/M elbow A DN A H Z Z1 15.0 70.0 47.0 46.0 23.0 18.0 76.0 50.0 52.0 26.0 22.0 89.0 57.0 64.0 32.0 H Z1 28.0 106.0 65.0 82.0 41.0 35.0 142.0 90.0 104.0 52.0 Z 42.0 162.0 102.0 120.0 60.0 54.0 197.0 122.0 150.0 75.0 76.1 275.0 171.0 208.0 104.0 88.9 313.0 195.0 236.0 118.0 108.0 372.0 232.0 280.0 140.0

42 MOULDED PARTS DELIVERY PROGRAMME

A-min Minimum spacing between two crimped fittings

DN A-min L-min Z Z1 15.0 98.0 50.0 46.0 23.0 18.0 102.0 50.0 52.0 26.0 Z1 L-min 22.0 116.0 52.0 64.0 32.0 28.0 138.0 56.0 82.0 41.0

Z 35.0 166.0 62.0 104.0 52.0 42.0 200.0 80.0 120.0 60.0 54.0 240.0 90.0 150.0 75.0 76.1 334.0 126.0 208.0 104.0 88.9 376.0 140.0 236.0 118.0 108.0 450.0 170.0 280.0 140.0

A-min Floor with 90° F/F elbow and 90° elbow with plain Z1 ends (long side)

DN A-min Z1 Z H h 15.0 145.0 23.0 97.0 70.0 48.0 18.0 152.0 26.0 104.0 70.0 53.0 22.0 158.0 32.0 108.0 70.0 61.0 28.0 174.0 41.0 146.0 97.0 90.0

Z 35.0 251.0 52.0 171.0 120.0 90.0

h 42.0 310.0 60.0 210.0 150.0 106.0 H 54.0 374.0 75.0 274.0 200.0 135.0 76.1 338.0 104.0 340.0 250.0 188.0 88.9 399.0 118.0 403.0 291.0 201.0 108.0 500.0 140.0 503.0 364.0 319.0

43 Floor with 90° F/F elbow and elbow with plain ends (short side)

DN A-min Z1 Z H h 15.0 95.0 23.0 147.0 120.0 48.0 18.0 102.0 26.0 154.0 120.0 53.0 22.0 108.0 32.0 158.0 120.0 61.0 A-min 28.0 146.0 41.0 174.0 125.0 78.0

Z1 35.0 171.0 52.0 251.0 200.0 90.0 42.0 210.0 60.0 310.0 250.0 106.0 h 54.0 274.0 75.0 374.0 300.0 135.0 H 76.1 338.0 104.0 340.0 250.0 188.0 Z 88.9 399.0 118.0 403.0 291.0 201.0 108.0 500.0 140.0 503.0 364.0 319.0

45° F/M elbow with lateral tee

45° DN Z A D Z1 Z2 15.0 28.0 11.0 43.0 12.0 17.0 18.0 30.0 13.0 47.0 14.0 18.0 Z2 22.0 34.0 13.0 49.0 18.0 23.0 D 28.0 44.0 17.0 57.0 22.0 29.0 tee 35.0 50.0 20.0 64.0 28.0 31.0 42.0 55.0 21.0 72.0 30.0 36.0 54.0 65.0 25.0 85.0 37.0 42.0 Z1 A 76.1 92.0 46.0 124.0 49.0 58.0 Z 88.9 100.0 47.0 138.0 55.0 68.0 108.0 114.0 54.0 167.0 67.0 81.0

44 MOULDED PARTS DELIVERY PROGRAMME

45° F/M elbow with lateral tee and pipe 45° DN A B L-min Z1 Z2 15.0 58.0 59.0 50.0 12.0 17.0

L-min 18.0 60.0 62.0 50.0 14.0 18.0 22.0 66.0 66.0 52.0 18.0 23.0 28.0 76.0 76.0 56.0 22.0 29.0 B Z2 35.0 85.0 85.0 62.0 28.0 31.0 42.0 102.0 102.0 80.0 30.0 36.0 tee 54.0 117.0 117.0 90.0 37.0 42.0 76.1 168.0 173.0 126.0 49.0 58.0 88.9 184.0 186.0 140.0 55.0 68.0 Z1 A 108.0 218.0 220.0 170.0 67.0 81.0

45° F/M elbow and 90° F/F lateral elbow

45° DN Z A B Z1 Z2 15.0 70.0 50.0 52.0 23.0 12.0 18.0 76.0 56.0 58.0 26.0 14.0 Z1 22.0 85.0 61.0 63.0 32.0 18.0

B 28.0 102.0 72.0 75.0 41.0 22.0

curva 90° 35.0 111.0 81.0 81.0 52.0 28.0 42.0 127.0 93.0 93.0 60.0 30.0 54.0 152.0 112.0 112.0 75.0 37.0 Z2 A 76.1 191.0 144.0 141.0 104.0 49.0 Z 88.9 222.0 172.0 170.0 118.0 55.0 108.0 271.0 211.0 211.0 140.0 67.0

45 90° F/M elbow with lateral tee

Z1 DN M h Z1 Z2 15.0 66.0 49.0 21.0 17.0 18.0 70.0 52.0 26.0 18.0 22.0 80.0 57.0 32.0 23.0 h

M 28.0 94.0 65.0 41.0 29.0 35.0 121.0 90.0 52.0 31.0 tee

Z2 42.0 138.0 102.0 60.0 36.0 54.0 164.0 122.0 75.0 42.0 76.1 231.0 173.0 104.0 58.0 88.9 267.0 199.0 118.0 68.0 108.0 316.0 235.0 140.0 81.0

90° F/F elbow with lateral tee and pipe

M-min DN M-min L-min Z1 Z2 15.0 90.0 50.0 23.0 17.0 18.0 94.0 50.0 26.0 18.0 22.0 107.0 52.0 32.0 23.0

Z2 L-min Z1 28.0 126.0 56.0 41.0 29.0 35.0 145.0 62.0 52.0 31.0 42.0 176.0 80.0 60.0 36.0 54.0 207.0 90.0 75.0 42.0 tee 76.1 288.0 126.0 104.0 58.0 88.9 326.0 140.0 118.0 68.0 108.0 391.0 170.0 140.0 81.0

46 MOULDED PARTS DELIVERY PROGRAMME

90° lateral F/F elbow and pipe 45° DN A-min B-min L-min Z1 Z2 15.0 60.0 67.0 50.0 23.0 12.0

L-min 18.0 63.0 71.0 50.0 26.0 14.0 22.0 78.0 80.0 52.0 32.0 18.0 28.0 90.0 93.0 56.0 41.0 22.0

B-min Z1 35.0 101.0 101.0 62.0 52.0 28.0 42.0 123.0 123.0 80.0 60.0 30.0 curva 90° 54.0 144.0 144.0 90.0 75.0 37.0 76.1 191.0 188.0 126.0 104.0 49.0 88.9 219.0 217.0 140.0 118.0 55.0 Z2 A-min 108.0 262.0 264.0 170.0 140.0 67.0

47 Tee with reducer

DN L2 L1 Z Z1 18.0 - 15.0 56.0 34.0 42.0 14.0

Z 22.0 - 15.0 58.0 37.0 42.0 16.0 22.0 - 18.0 56.0 37.0 40.0 16.0 28.0 - 15.0 62.0 42.0 43.0 19.0 28.0 - 18.0 66.0 42.0 47.0 19.0

Z1 28.0 - 22.0 64.0 42.0 45.0 19.0 L1 35.0 - 15.0 80.0 53.0 53.0 27.0 L2 35.0 - 18.0 84.0 53.0 57.0 27.0 35.0 - 22.0 74.0 53.0 47.0 27.0 35.0 - 28.0 80.0 53.0 53.0 27.0 42.0 - 15.0 91.0 57.0 64.0 27.0 42.0 - 18.0 87.0 57.0 60.0 27.0 42.0 - 22.0 90.0 57.0 63.0 27.0 42.0 - 28.0 86.0 57.0 59.0 27.0 42.0 - 35.0 81.0 57.0 54.0 27.0 54.0 - 15.0 110.0 69.0 76.0 34.0 54.0 - 18.0 106.0 69.0 72.0 34.0 54.0 - 22.0 109.0 69.0 75.0 34.0 54.0 - 28.0 112.0 69.0 78.0 34.0 54.0 - 35.0 104.0 69.0 70.0 34.0 54.0 - 42.0 106.0 69.0 72.0 34.0 76.1 - 54.0 172.0 115.0 110.0 62.0 88.9 - 54.0 182.0 130.0 112.0 70.0 88.9 - 76.1 178.0 130.0 108.0 70.0 108.0 - 54.0 202.0 150.0 127.0 75.0 108.0 - 76.1 208.0 150.0 133.0 75.0 108.0 - 88.9 218.0 150.0 143.0 75.0

48 PRESSING TOOLS

Working on the safe side – simplesta® system pressing tools

Pressing tools are a combination of pressing device Novopress (power unit) with pressing jaws and/or pressing collars Pressen und Presswerkzeuge GmbH & Co. KG and adaptor jaws. Scharnhorststraße 1 D-41460 Neuss The system pressing tools designed for the simplesta® ST Phone + 49 (0) 2131 / 288-0 stainless steel piping system are made by Novopress and Fax + 49 (0) 2131 / 288-55 can be purchased through the Esta Rohr GmbH. Press fit- Email: [email protected] tings, pipes, and pressing tools have been specially designed for compatibility to ensure the reliability of the entire sys- Alternatively, we will be pleased to send you a list of tem. service centres in your area on request.

In addition to directing any questions on how to operate With that in mind, we recommend the use of Novopress the pressing devices to the Esta Rohr GmbH, you pressing tools to prevent possible complications arising may also use the Novopress hotline: from the use of tools not belonging to the system. The pressing jaws and pressing collars must have the M- Phone: +49 (0) 2131/28 8-0 profile.

The pressing tools must be serviced regularly to ensure their safe operation. See the operating instructions of the pressing tool for more information on the above, as well as for general handling and safety notes. We strongly recommend that you read the operating instructions and follow the information provided before using for the first time. Servicing is carried out by Novopress directly (with service log and labels).

49 Comfort-Line ACO 203 BT pressing device

The Comfort-Line ACO 203 BT pressing device is used for crimping dimensions of 15 to 54 mm, 15 to 35 mm with pressing jaws and 42 to 54 mm using the new generation snap-on pressing collar with ZB 203 adaptor jaw.

The ACO 203 BT is an especially ergonomic electromechanical The device‘s reduced weight, slim-line design, and faster pressing device equipped with a self-monitoring diagnostics pressing speed allow you to work for hours even in the feature. The device has an electronic retaining pin and tightest installation sites without tiring. The device swit- the visual error indicator provides additional safety when ches to return motion automatically when the maximum at work.The logbook enables fast and accurate analysis pressing force has been reached. when errors occur.

ACO 203 BT specifications

Item No. 5000030 Description ACO 203 BT with PB 2 pressing jaws from 15 to 35 mm (M-profile) in case Weight 2.8 kg Dimensions L/W/H Approx. 387/75/111 mm Suitable for the dimensions 15 to 54 mm Maximum thrust force 32 kN Rechargeable battery 18 V/1.5 Ah Li-Ion (standard) or 18 V 3.0 Ah Li-Ion Battery capacity 80-160 press cycles (depending on dimension) Charging time Approx. 30-60 minutes Compatible pressing jaws/collars PB 2 15 to 35 mm pressing jaws (M-profile) and adaptor jaws without jaw closing sensor, ZB 203 adaptor jaw for 42/54 mm snap-on pressing collar (M-profile)

50 PRESSING TOOLS

Comfort-Line Pressgeräte ECO 203 ECO 203 specifications

Item No. 5000032 The Comfort-Line ECO 203 pressing device is used for crim- Description ECO 203 pressing device ping dimensions of 15 to 54 mm (M-profile), 15 to 35 mm with with PB 2 pressing jaws pressing jaws and 42 to 54 mm using the new generation from 15 to 35 mm snap-on pressing collar with ZB 203 adaptor jaw (M-profile). (M-profile) in case Nominal diameter 15 to 54 mm (M-profile) The ECO 203 comes with an electronic retaining pin and Weight 3.2 kg integrated logbook in addition to its other tried and Length 397 mm tested features, making your work even faster and safer Width 75 mm Height 113 mm The device‘s reduced weight, slim-line design, and faster Power 450 W pressing speed allow you to work for hours even in the Piston force 32 kN tightest installation sites without tiring. Piston stroke 40 mm The device switches to return motion automatically when the maximum pressing force has been reached.

51 Comfort-Line ACO 203 XL BT pressing device

The Comfort-Line ACO 203 XL BT pressing device is used for crimping dimensions of 12 to 108 mm, 15 to 35 mm with pressing jaws and 42 to 108 mm using the new generation snap-on pressing collar with ZB 221 and ZB 222 adaptor jaw.

The ACO 203 XL BT sets new standards when it comes to compatible crimping. Compared to its predecessor, it is easier to use and at only 3.9 kg weighs even less. The XL pressing device from the 203 model range allows faster crimping and thanks to its increased efficiency achieves up to 40% more crimping cycles per battery charge*.The ACO 203 XL BT‘s rotating head facilitates work even in tight installation sites. On top of that, safety at work is ensured by the finger guard, manual retaining pin, and visual error indicator. ACO 203 XL BT specifications

Any commercially available pressing jaw with Item No. 5000069 the necessary approval can be used. Description ACO 203 XL BT pressing device with PB 2 pressing jaws from 15 to 35 mm (M-profile) in case Nominal diameter 15 to 54 mm (M-profile) Weight 3.9 kg Length 460 mm Width 83 mm Height 113 mm Power 450 W Piston force 32 kN Piston stroke 80 mm

The ACO 203 XL BT is also available without jaws (Item No. 5000070).

*Compared to its predecessor ACO 202 XL

52 PRESSING TOOLS

Something you can build on

The following power units from other manufacturers are also suitable for use with the simplesta® PB 2 pressing jaws/pressing collars (M-profile) and ZB 203 adaptor jaws in the dimensions 15 to 54 mm.

Vendor/Manufacturer Pressing device/Type Model year Mapress/Novopress EFP 2 1996 onwards Mapress/Novopress MFP 2 1996 onwards Mapress/Novopress ECO 1/ACO 1/ACO 201 1996 onwards Geberit PWH 75 (blue handguard) Until 2002 Klauke UAP2/UNP 2 1999 onwards Viega/Nussbaum Type 2 1996 onwards Viega/Nussbaum PT3AH 2003 onwards Viega/Nussbaum Akku Presshandy 2000 onwards Rothenberger ROMAX 3000 (15-54) 2013 onwards Please seek advice from Esta Rohr Rothenberger ROMAX 3000 AC (15-54) 2014 onwards GmbH before using a power unit REMS Power Press ACC Basic Pack (15-54) 2013 onwards not listed here. REMS Mini Press ACC Basic Pack (15-35) 2013 onwards

Item No. Pressing jaw Quantity 5000037 PB2 15 mm pressing jaw (M-profile) 1 5000038 PB2 18 mm pressing jaw (M-profile) 1 5000039 PB2 22 mm pressing jaw (M-profile) 1 5000040 PB2 28 mm pressing jaw (M-profile) 1 5000041 PB2 35 mm pressing jaw (M-profile) 1

53 simplesta® pressing collar dimensions

Dimensions Description Diameter mm Width mm Weight kg 42.0 M-Profil Snap On 120.0 50.0 1.9 54.0 M-Profil Snap On 130.0 50.0 2.2 76.1 M-Profil 175.0 70.0 3.7 88.9 M-Profil 200.0 70.0 4.9 108.0 M-Profil 225.0 70.0 5.2

Diameter Width

simplesta® adaptor jaw dimensions

Dimensions Description Length mm Height mm Width mm Weight kg 42/54 ZB 203 145.0 140.0 60.0 2.5 42/54*) ZB 303 145.0 140.0 60.0 2.5 76.1/88.9*) ZB 221 200.0 140.0 77.0 4.3 Length 108 (Stage 1) 108*) ZB 222 200.0 140.0 77.0 4.3 (Stage 2) Height Width

*) ECO with jaw closing sensor and dimension chip, non-compatible pressing jaw for use with the Novopress ECO 301 power unit 54 Space requirements for crimping the simplesta® ST stainless steel piping system

PRESSING TOOLS

Crimping in front of smooth walls B

Minimum space requirement in mm Pressing jaw size A B 15.0 20.0 56.0 18.0 20.0 60.0 22.0 25.0 65.0 28.0 25.0 75.0 35.0 30.0 75.0

Minimum space requirement in mm Abmessung Pressschlingen A B 42.0 75.0 115.0 54.0 85.0 120.0 76.1 110.0 140.0 88.9 120.0 150.0 108.0 140.0 170.0

55 Minimum space requirement in mm Crimping in corners Pressing jaw size A B C 15.0 20.0 28.0 75.0 18.0 25.0 28.0 75.0 22.0 31.0 35.0 80.0 28.0 31.0 35.0 80.0 35.0 31.0 44.0 80.0

Minimum space requirement in mm C Pressing collar size A B C 42.0 75.0 75.0 115.0 54.0 85.0 85.0 120.0 B 76.1 110.0 110.0 140.0 88.9 120.0 120.0 150.0 108.0 140.0 140.0 170.0 A

Pipe with 90° elbow out of floor breakthrough Minimum space requirement in mm Size A B C 15.0 35.0 55.0 85.0 A 18.0 35.0 55.0 89.0 22.0 35.0 56.0 96.0 28.0 35.0 58.0 107.0 35.0 35.0 61.0 121.0 42.0 35.0 65.0 147.0 B 54.0 35.0 70.0 173.0 76.1 75.0 130.0 217.0 88.9 75.0 139.0 235.0 C 108.0 75.0 153.0 272.0

Depths for pipe outlets from floors and walls

56 PRESSING TOOLS

Crimping in a recess with jaw

Minimum space requirement in mm B C Size A B C 15.0 28.0 131.0 75.0 18.0 28.0 131.0 75.0 22.0 35.0 150.0 80.0 28.0 35.0 150.0 80.0 35.0 44.0 170.0 80.0

Crimping in a recess with collar

Minimum space requirement in mm Pressing collar size A B C 42.0 75.0 265.0 115.0 54.0 85.0 290.0 120.0 76.1 110.0 350.0 140.0 88.9 120.0 390.0 150.0 108.0 170.0 450.0 170.0

57 58 Installation Cutting and deburring for all dimensions from 15 to 108 mm

Cutting The pipes can be cut using the following tools: The following generally applies: • pipe cutter • separation cuts must always be made completely. • fine-toothed hand saw Partly cut pipes may not be snapped off, as the • metal cold circular saw partially high degree of strain hardening in the area of the break reduces corrosion resistance Unsuitable: • there must be no heat tinting on the surface of the • plasma arc cutting/burning material. Heat tinting is surface discolouration • cutting with an angle grinder (this includes caused by the oxidation of atmospheric oxygen on discs classified as suitable for stainless steel) heated areas. The colouring consists of light shades • saws with oil cooling/cooling lubricants of yellow to begin with then turns blue followed by brown • As a simple yardstick for the work site, the surface must have a bare and typically steel-grey appearance Deburring for full corrosion resistance. • the tools must be suitable and approved by the The piping must be carefully deburred internally and respective manufacturer for stainless steel externally after cutting. To do this, use: • the tools should not be used for working with other • hand deburrer (available in various versions) materials. In particular, they should not come into • electric pipe deburrer contact with normal, non-alloy steel (carbon steel). Corrosion may occur if normal steel particles transfer External deburring is of particular importance so that to the stainless steel surface the seal ring on the fitting to be slipped on is not • a plastic bottle brush may be used to remove any damaged. Finally, any swarf must be removed from the swarf from inside the pipe. Steel brushes may not pipe‘s inner surface (so that no swarf becomes caught be used between seal ring and pipe) and outer surface (so that as few particles as possible enter the pipe system during installation).

60 INSTALLATION

Marking the insertion depth

The appropriate insertion depth must be marked on the pipe or male end of the fitting using a felt-tip marker. The correct insertion depth is shown on the table below. Only correctly mounted fittings guarantee full pull-out force, as the crimp produces the strength behind the seal ring‘s bead. Minimum spacing (also shown on the table below) must be maintained when fittings are placed one directly after another.

ADimensions in mm Insertion depth in mm Spacing between fittings in mm 15.0 20.0 10.0 18.0 20.0 10.0 22.0 21.0 10.0 28.0 23.0 10.0 35.0 26.0 10.0 42.0 30.0 20.0 54.0 35.0 20.0 76.1 53.0 20.0 88.9 60.0 20.0 108.0 75.0 20.0

Verification

Verify the seal ring is present before slipping on the fittings. Furthermore, any foreign particles in the vicinity of the crimping site or on the seal ring must be removed.

61 Slipping on the fittings

The fittings are slipped on by means of gentle rotation and Post-verification pressure toward the pipe axis until the marked insertion depth. In the case of sliding sleeves, the marked insertion After crimping, it is necessary to verify whether the marked depth must be reached at minimum. The fitting must be kept insertion depth is still given. The coupling must be renewed straight when slipped on. The seal ring may be damaged if in the event of any deviation from the specifications. the fitting or pipe is tilted.

Due to the matched tolerances, simplesta® system pipes are always the correct size for the fitting. Suds or water can be used as a lubricant to improve the antifriction properties. Oil or grease may not be used as a lubricant (we recommend: Bechen Berulub Sihaf 2). Pipes or prefabricated structu- ral elements should be aligned before crimping. Piping components may be moved (e.g. raised) after crimping. If straightening is necessary, no load must be placed on the press fitting‘s coupling (also applies to couplings that have already been crimped). Threaded and flanged couplings should be sealed and positioned prior to crimping. This prevents inadmissible loads on the crimp sites.

62 INSTALLATION

Crimping 15 to 54 mm

Please note: Detailed information on operation is available in the operating instructions supplied with each device. We strongly recommend that you read the specific instructions, including those of the pressing jaws and pressing collars with adaptor jaws, carefully before using for the first time.

Dimensions 15 to 35 mm Pressing jaws are used for these dimensions. The pressing jaw that fits the dimensions to be crimped is mounted on the device and secured with the retaining pin.

The pressing jaw is placed around the press fitting bead. The pressing device’s start button is then pressed and the pressing jaw closed completely. Since the pressing device has a built-in forced return, the pressing operation cannot be interrupted before the final force is reached.

Dimensions 42 and 54 mm Pressing collars are used for these dimensions. A ZB 203 adaptor jaw is used for the two pressing collars and inserted into the power unit then secured with the retaining pin.

The pressing collar with the right dimensions for the fitting is then placed over the press fitting bead and closed.

The ZB 203 adaptor collar is now opened using manual pressure and hooked into the pressing collar. Pressure is then applied until the press fitting tool switches off.

63 Crimping 76.1 to 108 mm

Dimensions 76.1 and 88.9 mm Pressing collars are used for these dimensions. A ZB 221 adaptor jaw is used for the two pressing collars and inserted into the power unit then secured with the retaining pin.

The pressing collar with the right dimensions for the fitting is then placed over the press fitting bead and closed.

The ZB 221 adaptor collar is now opened using manual pressure and hooked into the pressing collar. Pressure is then applied until the power unit switches off.

Dimension 108 mm An appropriate pressing collar and adaptor jaw are also used for these dimensions. However, this involves two processes and two adaptor jaws. To begin with, the ZB 221 adaptor jaw (also used for 76.1 and 88.9 mm) is inserted into the press fitting tool and secured using the locking pin.

64 INSTALLATION

The pressing collar with the right dimensions for the fitting is then placed over the press fitting bead and closed.

The ZB 221 adaptor collar is now opened using manual pressure and hooked into the pressing collar. Pressure is then applied until the power unit switches off.

The adaptor jaw is unhooked and removed from the power unit. The 108 pressing collar remains firmly on the fitting and cannot be removed. The ZB 222 adaptor jaw is then inserted into the power unit and secured with the retaining pin.

The ZB 222 adaptor jaw is now hooked into the pressing collar and pressure applied again until the power unit switches off. The adaptor jaw is then unhooked. The pressing collar can now also be removed without much effort.

65 Thermal expansion

Expansion The following notes are for general guidance only and Example: It = Io x (1 + α ·∆t) not necessarily exhaustive. The relevant standards and guidelines must be observed. All metallic materials expand Io = 15000 mm when heated and contract when cooled. The thermal It = required coefficient of linear expansion(α ) for stainless steel with ∆t = 35 K (initial temperature 20°C to the material number 1.4401 in the temperature range final temperature 55°C) 200°C and below is 0.0000165 m/mK. α = 0.0000165 It = 15000 mm x (1 + 0.0000165 x 35°C) Accordingly, the linear expansion is calculated It = 15000 mm x (1 + 0.0005775) as follows: It = 15000 mm x 1.0005775 Io = length before heating It = 15008.663 mm It = length after heating ∆t = temperature difference between initial and final temperature (K) α = coefficient of linear expansion

Linear expansion of different materials

Type of pipe (Material) α*) α x 10-6*) ∆l at a pipe length mmmm of 10 m and ∆T 50 K Stainless steel ( m( x m K x) K ) (K-1) (mm) pipe 1.4521 0.0108 10.8 5.40 Carbon steel (galvanised) 0.0120 12.0 6.00 Copper pipe 0.0166 16.6 8.30 Compound pipe (PE-X/ALU/PE) 0.0260 26.0 13.00 Plastic pipe (PVC-C) 0.0800 80.0 40.00 Plastic pipe (PP-R) 0.1200 120.0 60.00 Plastic pipe (PB) 0.1300 130.0 65.00 Plastic pipe (PE-Xc) 0.1800 180.0 90.00

* Coefficient of linear expansion α applies for the temperature range 20°C to 200°C 66 APPLICATION TECHNOLOGY

Linear expansion of ∆t = Temperature differences in K and the materials ∆l = length variation in mm We have compiled the linear expansion for 1.4401 and 1.4521 differences in temperature from 10 to 100 K at piping lengths from 1 to 11 m in the table below. Pipe length material 1.4401 mm 10 K 20 K 30 K 40 K 50 K 60 K 70 K 80 K 90 K 100 K 1000 0.165 0.330 0.495 0.660 0.825 0.990 1.155 1.320 1.485 1.650 2000 0.330 0.660 0.990 1.320 1.650 1.980 2.310 2.640 2.970 3.300 3000 0.495 0.990 1.485 1.980 2.475 2.970 3.465 3.960 4.455 4.950 4000 0.660 1.320 1.980 2.640 3.300 3.960 4.620 5.280 5.940 6.600 5000 0.825 1.650 2.475 3.300 4.125 4.950 5.775 6.600 7.425 8.250 6000 0.990 1.980 2.970 3.960 4.950 5.940 6.930 7.920 8.910 9.900 7000 1.155 2.310 3.465 4.620 5.775 6.930 8.085 9.240 10.395 11.550 8000 1.320 2.640 3.960 5.280 6.600 7.920 9.240 10.560 11.880 13.200 9000 1.485 2.970 4.455 5.940 7.425 8.910 10.395 11.880 13.365 14.850 10000 1.650 3.300 4.950 6.600 8.250 9.900 11.550 13.200 14.850 16.500 11000 1.815 3.630 5.445 7.260 9.075 10.890 12.705 14.520 16.335 18.150

Pipe length material 1.4521 mm 10 K 20 K 30 K 40 K 50 K 60 K 70 K 80 K 90 K 100 K 1000 0.108 0.216 0.324 0.432 0.540 0.648 0.756 0.864 0.972 1.080 2000 0.216 0.432 0.648 0.864 1.080 1.296 1.512 1.728 1.944 2.160 3000 0.324 0.648 0.972 1.296 1.620 1.944 2.268 2.592 2.916 3.240 4000 0.432 0.864 1.296 1.728 2.160 2.592 3.024 3.456 3.888 4.320 5000 0.540 1.080 1.620 2.160 2.700 3.240 3.780 4.320 4.860 5.400 6000 0.648 1.296 1.944 2.592 3.240 3.888 4.536 5.184 5.832 6.480 7000 0.756 1.512 2.268 3.024 3.780 4.536 5.292 6.048 6.804 7.560 8000 0.864 1.728 2.592 3.456 4.320 5.184 6.048 6.912 7.776 8.640 9000 0.972 1.944 2.916 3.888 4.860 5.832 6.804 7.776 8.748 9.720 10000 1.080 2.160 3.240 4.320 5.400 6.480 7.560 8.640 9.720 10.800 11000 1.188 2.376 3.564 4.752 5.940 7.128 8.316 9.504 10.692 11.880 67 ∆ I Sliding guide

LB B L

Fixed point ∆ I ∆ I Sliding guide

Expansion bend The formula for calculating the expansion lengths bend length independently is as follows:

LB = 0,045 x √d x ∆I Information on the expansion bend length for pipe arm expansion compensator and d = pipe diameter in mm branches ∆I = length variation in mm

LB = expansion bend length in m

The left column shows the length variation that needs The bending lengths required to compensate for length to be absorbed ∆l in millimetres, the upper column the variations are shown in the following tables. Interme- pipe dimensions in millimetres (outer diameter), and diate values can be determined using this by means of in the other fields the required expansion bend length interpolation. (LB) in metres.

Expansion ∆l D 15 D 18 D 22 D 28 D 35 D 42 D 54 D 76,1 D 88,9 D 108 10 0.55 0.60 0.67 0.75 0.84 0.92 1.05 1.24 1.34 1.48 20 0.78 0.85 0.94 1.06 1.19 1.30 1.48 1.76 1.90 2.09 30 0.95 1.05 1.16 1.30 1.46 1.60 1.81 2.15 2.32 2.56 40 1.10 1.21 1.33 1.51 1.68 1.84 2.09 2.48 2.68 2.96 50 1.23 1.35 1.49 1.68 1.88 2.06 2.34 2.78 3.00 3.31 60 1.35 1.48 1.63 1.84 2.06 2.26 2.56 3.04 3.29 3.62 70 1.46 1.60 1.77 1.99 2.23 2.44 2.77 3.28 3.55 3.91 80 1.56 1.71 1.89 2.13 2.38 2.61 2.96 3.51 3.79 4.18

68 ∆ 30 d ∆ 2 2 ∆ ∆ 2 2 L 2 L

U 2 L U L

a b

APPLICATION TECHNOLOGY

The formula for calculating the expansion bend length independently is as follows:

LB = 0,025 x √d x ∆I Information on the expansion bend length for U-bend expansion compensator d = pipe diameter in mm ∆I = length variation in mm

LB = expansion bend length in m

The left column shows the length variation that needs to be absorbed ∆I in millimetres, the upper column the pipe dimensions in millimetres (outer diameter), and in the other fields the required expansion bend length (L) in metres. Intermediate values can be determined using this by means of interpolation.

Expansion ∆l D 15 D 18 D 22 D 28 D 35 D 42 D 54 D 76,1 D 88,9 D 108 10 0.31 0.34 0.37 0.42 0.47 0.51 0.58 0.69 0.75 0.82 20 0.43 0.47 0.52 0.59 0.66 0.72 0.82 0.98 1.05 1.16 30 0.53 0.58 0.64 0.72 0.81 0.89 1.01 1.19 1.29 1.42 40 0.61 0.67 0.74 0.84 0.93 1.02 1.16 1.38 1.49 1.64 50 0.68 0.75 0.83 0.94 1.04 1.15 1.30 1.54 1.67 1.84 60 0.75 0.82 0.91 1.02 1.14 1.25 1.42 1.69 1.83 2.01 70 0.81 0.89 0.98 1.11 1.24 1.36 1.54 1.82 1.97 2.17 80 0.87 0.95 1.05 1.18 1.32 1.45 1.64 1.95 2.11 2.32

Bend radius

Photo: JUTEC simplesta® stainless steel system pipes can be bent cold using standard bending tools up to a pipe diameter (outer) of 28 mm* with a bend radius of min. 3.5 x d.

* For larger dimensions seek advice from the manufacturer

69 Pipe attachment and installation

Length variations during operation must be considered If the piping is concealed, then it is essential to place it when the piping is installed. This means the establish- inside an elastic padding, such as mineral wool or in a ment of expansion chambers and possibly expansion closed-cell insulation tube. compensators. Fixed and floating points must be set correctly. With regard to piping installed in the impact sound insulation beneath screed, it is important to pay atten- It is possible to balance out small length variations tion to outlets/wall breakthroughs and the screed itself. through the existing expansion chamber and elasticity This must be padded as appropriate with insulating of the pipework. If this is not possible in larger pipework material. This generally applies to other wall or floor systems or for any other reasons, then expansion com- breakthroughs, too. pensators must be used. Examples here are pipe arm or U-bend expansion compensators. One anomaly is the enclosure of piping beneath mastic asphalt screed, where the exposure to heat may damage If the piping is installed in front of a wall or in installation the seal ring. For this reason, the piping has to be cooled shafts, the expansion is usually large enough for the down with cold running water. In addition, the entire implementation of compensatory measures. piping must be protected with suitable insulation.

Elastic padding Floating screed Elastic collar Cover

Solid floor Insulating layer

Concealed piping Piping beneath floating screed

70 APPLICATION TECHNOLOGY

Pipe attachments that support pipework and for the deflec- tion of temperature-induced length variations are implemented as fixed points (pipe and fitting are permanently connected) and floating points (pipe and fitting are both able to move axially). It is essential to ensure that the pipe attachments are suitable for use with stainless steel. Elastic Floor padding No mounting hardware may be attached to the press fittings.

Piping in floor breakthroughs

71 Floating points Correct Incorrect

Fixed points

Floating point

Note* Fixed points

Always position anchor points on the piping, never on the fittings.

Incorrect Fixed point

Floating points

*Connecting pipes must be long enough to absorb Floating point any possible linear expansion in the piping system.. Correct

With regard to long pipe sections, we recommend the placement of only one fixed point in the middle of the section for linear expansion in both directions. This only subjects the branches to about half the load as opposed to a fixed point at the end of the piping.

This use case is typical when riser pipes cover several floors. Fixed point Floating points

The below drawings illustrate how to set Incorrectly placed sliding guide – horizontal piping is the fixed and floating points correctly: unable to expand. Fixing continuous piping with only one fixed point (no interruptions due to changes in direction or expansion compensators). 72 APPLICATION TECHNOLOGY

The support spacing for piping according to DIN 1988-2 and our recommendation are shown in Table 1 below. The support spacing for extinguishing water lines according to DIN 14462 is shown in Table 2 below.

Table 1 – Support spacing for piping according to DIN EN 806-4 (nominal dimension d x s [mm])

Material Material Material support spacing recommendation support spacing recommendation DN 1.4401 1.4521 1.4520 DIN EN 806-4 simplesta® [m] DIN EN 806-4 simplesta® [m] horizontal [m] vertical [m] Always position anchor points on the piping, 12 15 x 1.0 15 x 1.0 15 x 1.0 1.20 1.50 1.80 2.50 never on the fittings. 15 18 x 1.0 18 x 1.0 18 x 1.0 1.20 1.50 2.40 3.00 20 22 x 1.2 22 x 1.2 22 x 1.2 1.80 2.50 2.40 3.00 25 28 x 1.2 28 x 1.2 28 x 1.2 1.80 2.50 3.00 3.50 32 35 x 1.5 35 x 1.5 35 x 1.5 2.40 3.00 3.00 3.50 40 42 x 1.5 42 x 1.5 42 x 1.5 2.40 3.00 3.60 4.00 50 54 x 1.5 54 x 1.5 54 x 1.5 2.70 3.00 3.60 4.00 65 76.1 x 2.0 76.1 x 1.5 3.00 4.50 3.60 5.00 80 88.9 x 2.0 88.9 x 1.5 3.00 4.50 3.60 5.00 100 108 x 2.0 108 x 1.5 3.60 4.50 4.20 5.00

Table 2 – Support spacing for piping according to DIN 14462 (nominal dimension d x s [mm]; extinguishing water line)

Material Material Material support spacing recommendation support spacing recommendation ® ® DN 1.4401 1.4521 1.4520 DIN EN 806-4 simplesta [m] DIN EN 806-4 simplesta [m] horizontal [m] vertical [m] 20 22 x 1.2 22 x 1.2 22 x 1.2 2.00 2.00 2.00 2.00 25 28 x 1.2 28 x 1.2 28 x 1.2 2.00 2.00 2.00 2.00 32 35 x 1.5 35 x 1.5 35 x 1.5 2.00 2.00 2.00 2.00 40 42 x 1.5 42 x 1.5 42 x 1.5 2.00 2.00 2.00 2.00 50 54 x 1.5 54 x 1.5 54 x 1.5 2.00 2.00 2.00 2.00 65 76.1 x 2.0 76.1 x 1.5 2.00 2.00 2.00 2.00 80 88.9 x 2.0 88.9 x 1.5 2.00 2.00 2.00 2.00 100 108 x 2.0 108 x 1.5 2.00 2.00 2.00 2.00

73 Soundproofing

Piping does not represent an additional source of noise. insulation 24 dB(A). Compliance with these requirements However, it carries noise caused by appliances and other in all parts of an installation can only be guaranteed fittings and therefore has to be soundproofed when in- with extensive knowledge. It is advisable to consult an stalled. When installed as per the norm, the sound pres- acoustical engineer during the planning phase. sure level in drinking water installations must not exceed 30 dB(A). The increased sound insulation in residential construction requires 27 dB(A) and the comfort sound Fire protection

The pipes and fittings in the simplesta® ST stainless steel An annular space of up to 15 mm may be closed with fo- piping system are non-flammable. However, the relevant aming material. An annular space of up to 50 mm may be provisions must be observed for installation in the vari- closed using mineral wool with a melting point and ous building types. The requirements for pipe systems in density of at least 1000°C and 120 kg/m3 respectively. buildings are laid down in Germany‘s prototype building regulation, federal state building regulations, and spe- Single non-flammable piping without insulation in cial building regulations. Depending on federal state, shared breakthroughs: The pipes are installed side by the design details are laid down in implementing regu- side at a distance of at least the diameter of the largest lations, administrative provisions or technical building pipe and concealed in mortar. regulations. Special requirements for technical building service pipe systems are laid down in Germany‘s guide- Single piping with insulation in shared breakthroughs line on pipe systems (MLAR/LAR/RbALei3), as amended. or its own hole: Mineral wool (see above) may be used The MLAR/LAR/RbALei3 has been implemented in all for insulating the duct. If non-flammable lagging (A1 or the federal states within the framework of the technical A2) is also used, then the spacing between piping can be building regulations. reduced to 0 mm.

Wall and ceiling ducts

Single non-flammable piping without insulation inside its own breakthrough/hole: The piping may be concealed in mortar. The spacing to the next piping must corres- pond to the diameter of the largest pipe.

74 See page 154 of the 'Rockwool Planungs- und Montagehelfer' (Rockwool planning and installation aid – publ. in German) APPLICATION TECHNOLOGY

Heat emission and insulation

In addition to conveying fluids, piping also emits heat Please note that the concentration of chloride ions in when the ambient temperature is different to that of any material used for thermal insulation should be as the fluid – it practically acts as a heating device. The same low as possible. DIN 1988 states a value of no more than applies vice versa. When the ambient temperature is hig- 0.05% for water soluble chloride ions. We recommend AS her, the piping absorbs heat and cools the surrounding grade insulants as defined by DIN EN 13468 and AGI-Q environment. This can be used for underfloor heating, 132, which are significantly less than this value. The use electric blankets, heating panels, and concrete core of felt is not allowed, as this insulant absorbs moisture cooling. Unintended heat transfer has to be minimised quickly. We recommend the use of closed-cell insulation by suitable insulation, however. This is provided for by tubes that do not absorb moisture. applicable standards and regulations: DIN 1988, DIN 4108, DIN EN 14303 and Germany‘s regulation on energy saving. The diagram below shows the linear heat emission of the simplesta® ST stainless steel piping system for uninsulated Low-temperature piping also needs to be insulated piping without cladding at the corresponding tempera- to prevent condensation and it being heated by high- ture differences in watts per metre. temperature piping (see Hygiene).

Linear heat emission

Heat emission [H/m]

See page 154 of the 'Rockwool Planungs- und Montagehelfer' 75 (Rockwool planning and installation aid – publ. in German) Applications

The simplesta® ST stainless steel piping system with the EPDM seal ring is suitable for the following types of water:

any water according to the TrinkwV.* in cold and hot water installations up to +85 °C (according to DIN 1988) open and closed water circuits -30 °C to +110 °C open and closed refrigerating and cooling circuits compressed-air systems class 1-5 inert gases (non-toxic/non-explosive) extinguishing water lines (wet, wet/dry, dry) solar installations up to +110 °C vacuum up to 200 mbar negative pressure demineralised water condensate lines up to +110 °C district heating in domestic connection lines spring water *German regulation on water for human consumption Continuous chlorination/disinfection Disinfecting the piping/ of drinking water basic disinfection

The simplesta® ST stainless steel piping system is suitable Different chemical substances can be used if piping for temporary continuous disinfection pursuant to systems need to undergo basic disinfection for various Article 11 of Germany‘s regulation on drinking water, reasons. The piping system may not be used for the as amended. 1.2 mg/l of chlorine may be added to the supply of drinking water while such work is ongoing. disinfectant as free chlorine pursuant to Germany‘s If chlorine is used for disinfection, the concentration regulation on drinking water. The tolerance limit in of free chlorine for 16 hours may not exceed 100 mg/l. treated drinking water is 0.3 mg/l of free chlorine. For 24 hours, no more than 50 mg/l is permissible. These concentrations and periods must be strictly complied Up to 6 mg/l of chlorine may be used in the disinfectant with. Pitting corrosion may occur if the material is over- as free chlorine in exceptional cases. The maximum to- loaded, which may result in the need to overhaul the lerance limit in treated drinking water is 0.6 mg/l. The entire installation. simplesta® ST stainless steel piping system can be used without any complications if these tolerance limits are complied with.

76 APPLICATION TECHNOLOGY

Other media

Therefore, and in the interest of environmental pro- The green FPM seal ring is used in the simplesta® ST tection and handling safety, we recommend the use of stainless steel piping system for the media listed hydrogen peroxide, in particular, or otherwise potassium below: permanganate. Compressed-air systems class 6-10 The disinfecting action of potassium permanganate in Mineral oil, vegetable oil, light fuel oil alkaline media is low where the action of hydrogen Solar installations up to +180 °C peroxide is relatively unaffected by the concentration Concrete core cooling of hydrogen ions up to pH values of eight. Such media General fuels* are approved only for system disinfection, not for adding *after consulting with the application technology department to drinking water continuously. The operating temperatures are between -20°C and For procedure, concentrations and periods, we recom- +180°C (+200°C for short periods) and the maximum mend the DVGW‘s W 291 and W 557(A) worksheets. operating pressure is 16 bar.

Not only the process-based measures outlined in brief These seal rings are purchased separately. The installing combat the contamination of an installation, planning engineer then exchanges them with the black EPDM and operational measures can also significantly reduce seal rings locally. the bacterial count in drinking water systems. See the 'Hygiene' section for more information on the above.

Applications where the simplesta® ST stainless steel piping system may NOT be used:

Gas installations as per TRGI Sprinkler systems as per VdS

77 Notes on corrosion resistance

Internal corrosion

The austenitic and ferritic steel made using the material In particular, this must be considered after pressure testing 1.4401, 1.4404, 1.4521 or 1.4571 (press fitting parts, e.g. or if the water pipe has to be fully or partly emptied. We threaded pieces), which is used for the simplesta® ST stain- recommend a pressure test with air for reasons of hygiene less steel piping system, is suitable for any type of water alone (see Hygiene) if the piping is emptied again after pursuant to Germany‘s regulation on drinking water, as pressure testing or there is a possibility that water will amended, without any restrictions, i.e. hygienically safe evaporate from openings in the installation. and corrosion resistant. Furthermore, it is non-active in drinking water and there are no problems with heavy-metal External corrosion contamination. Needless to say, the materials are suitable for softened and desalinated water. External corrosion may occur if stainless steel piping is exposed to building materials or insulants that are moist There must be no formation of increased halogen concen- and contain halogens or if moisture forms on the piping trations, e.g. due to seals that release chloride into water permanently and evaporates there. High-temperature pi- or lead to a local concentration of chlorides. Chloride-free ping is particularly affected. A concentration of halogens hemp or plastic sealing tape that does not release halogens could form there, causing pitting. Moreover, the piping should be used for sealing threaded transitions. EPDM tape must not be exposed to chlorine gases, salt water or other (Teflon tape) must not be used. Furthermore, there must be waters containing high levels of chloride. no external or internal heat transfers for the same reason. Deposits could form on the inside, causing a localised The pipes should be given a coating that is resistant to increase in chloride concentration and pitting corrosion. heat, non-ageing and, most importantly, permanently waterproof if stresses of this nature are unavoidable. The use of trace heating is limited to 60°C maximum. Plastic binders as per DIN 30672 or closed-cell insulation Non-recurring heating to 70°C for no longer than one tubes with seams that are permanently sealed and hour is permitted at 24-hour intervals for thermal disinfec- waterproof can also be used. The insulant itself must not tion, however. release any chloride ions, either. DIN EN 13468 and AGI-Q 132 AS grade insulants are suitable. If the conditions in The piping must be kept full at all times to prevent the the building materials in which the pipes and components three-phase boundary of water/material/air. This instruction are installed are such that moisture and the inclusion of corresponds with DIN 50930 and applies for all metallic pipes halogens cannot be ruled out over an extended period to prevent corrosion damage. of time, then a surface- mounted installation should be considered.

78 APPLICATION TECHNOLOGY

Additional notes on corrosion resistance

The simplesta® ST stainless steel piping system is suitable The pipes must not be cut by means of grinder, burning for all mixed installations without limitation. Different or plasma torch (see 'Cutting and deburring'). The pipes materials can be connected to the stainless steel in any and fittings must be stored and machined such that no order (no flow rule). foreign materials, e.g. normal steel particles, sparks from grinders or building materials containing chloride There is no risk of contact or bimetallic corrosion when (setting accelerator), are able to settle on or inside them. stainless steel and non-ferrous metals (brass, copper, red Stainless steel pipes may not be soldered or brazed, as brass) are assembled with one another directly. they may be prone to knife-line attack when the corresponding temperatures are too high. Knife-line attack In mixed installations comprising stainless steel and hot- has also been observed even in the case of soldering or dip galvanised ferrous materials, contact corrosion can brazing techniques regarded as suitable. occur on the latter material.

The installation of a component or shut-off valve made Stainless steel pipes may not be welded on site because of non-ferrous metal ≥50 mm between the stainless steel all the necessary conditions for reliable welded joints, and hot-dip galvanised steel prevents the spread of any such as making the weld site and heat-affected zone contact or bimetallic corrosion. completely inert, are generally not given.

Hot bending techniques may not be used on stainless steel pipes, as heat tinting forms and the structure sensitises critically after prolonged heat exposure, each of which reduces corrosion resistance and may result in leakage.

79 Pressure loss

The flow of any fluid within pipework is affected by For any questions regarding methods of calculation friction and various single resistances. Friction in this and associated formulas, we recommend the relevant case refers primarily to internal friction (particles within standards and such technical literature as 'Sanitärtechnik the fluid rubbing together) and the friction of the fluid Band 1 und 2' (sanitation installations volumes 1 & 2 – on the wall of the pipe. publ. in German, Krammer Verlag Düsseldorf publishing house) by Hugo Feurich. Single resistances consist mainly of the preforms within the pipework, such as bends, tees, and reducers. The The pipework analysis for the simplesta® ST stainless loss of pressure in water meters, filters and other such steel piping system can be made using the following appliances is not recorded as a single resistance but se- information and pressure loss tables. parately depending on peak flow. Pressure loss is then determined according to set values or pressure loss curves from the manufacturer.

Maximum theoretical flow velocities

Circuit section Max. theoretical flow velocity when flowing for up to 15 minutes [m/s] more than 15 minutes [m/s] Connecting pipe 2.0 2.0 Sections with low pressure loss 5.0 2.0 through-fittings* Sections with through-fittings and 2.5 2.0 higher loss coefficient** * e.g. y-valve, sleeve valve, ball valve ** e.g. globe valve

80 simplesta® ST stainless steel piping system pressure loss table Pressure loss due to single resistances

Pipe friction induced pressure differences (R) and theoretical flow velocity (V) as a function of flow (Q) at a temperature of 10°C. The values refer to simplesta® ST stainless steel system pipes as per the DVGW‘s GW 541 worksheet.

15 x 1.0 mm 18 x 1.0 mm 22 x 1.2 mm 28 x 1.2 mm

Peak flow

Qs [ L/s ] V [ m/s ] R [ mbar/m ] V [ m/s ] R [ mbar/m ] V [ m/s ] R [ mbar/m ] V [ m/s ] R [ mbar/m ] 0.05 2.2 0.4 0.8 0.2 0.3 0.2 0.1 0.1 0.10 7.3 0.8 2.7 0.5 1.0 0.3 0.3 0.2 0.15 14.8 1.1 5.5 0.7 1.9 0.5 0.7 0.3 0.20 24.5 1.5 9.1 1.0 3.3 0.6 1.1 0.4 0.25 36.2 1.9 13.5 1.2 4.8 0.8 1.6 0.5 0.30 49.9 2.3 18.5 1.6 6.5 1.0 2.1 0.6 0.35 65.8 2.8 24.3 1.7 8.6 1.1 2.8 0.7 0.40 83.1 3.0 30.8 2.0 10.8 1.3 3.5 0.8 0.45 102.4 3.4 37.9 2.2 13.4 1.4 4.4 0.9 0.50 123.8 3.8 45.7 2.5 16.0 1.5 5.3 1.0 0.55 146.5 4.1 54.1 2.7 19.0 1.8 6.2 1.1 0.60 171.1 4.5 63.2 3.0 22.2 1.9 7.3 1.2 0.65 197.5 4.9 72.9 3.2 25.5 2.1 8.3 1.3 0.70 225.5 5.3 83.2 3.5 29.1 2.2 9.5 1.4 0.75 94.1 3.7 33.0 2.4 10.8 1.5 0.80 105.6 4.0 37.0 2.5 12.0 1.6 0.85 117.6 4.2 41.2 2.7 13.5 1.7 0.90 130.3 4.5 45.6 2.9 14.8 1.8 0.95 143.6 4.7 50.3 3.0 15.4 1.9 1.00 157.4 5.0 55.1 3.2 17.9 2.0 1.05 60.1 3.3 19.6 2.1 1.10 65.3 3.5 21.2 2.2 1.15 70.7 3.7 23.0 2.3 1.20 76.3 3.8 24.8 2.4 1.25 82.1 4.0 26.7 2.5 1.30 86.1 4.1 28.6 2.6 1.35 94.2 4.3 30.7 2.8 1.40 100.8 4.5 32.7 2.9 1.45 107.1 4.6 34.8 3.0 1.50 113.9 4.8 37.0 3.1 1.55 120.8 4.9 39.2 3.2 1.60 127.9 5.1 41.5 3.3 1.65 43.8 3.4 1.70 46.3 3.5 1.75 48.7 3.6 1.80 51.2 3.7 1.85 53.8 3.8 1.90 56.5 3.9 1.95 59.3 4.0 2.00 62.0 4.1 2.05 64.8 4.2 2.10 67.6 4.3 2.15 70.5 4.4 2.20 73.5 4.5 2.25 76.5 4.6 2.30 79.6 4.7 2.35 82.8 4.8 2.40 86.0 4.9 2.45 89.2 5.0 2.50 92.5 5.1

81 simplesta® ST stainless steel piping system pressure loss table Pressure loss due to single resistances

35 x 1.5 mm 42 x 1.5 mm 54 x 1.5 mm

Peak flow

Qs [ L/s ] R [ mbar/m ] V [ m/s ] R [ mbar/m ] V [ m/s ] R [ mbar/m ] V [ m/s ] 0.2 0.3 0.2 0.1 0.2 0.0 0.1 0.4 1.1 0.5 0.4 0.3 0.1 0.2 0.6 2.3 0.7 0.9 0.5 0.3 0.3 0.8 3.8 1.0 1.5 0.7 0.5 0.4 1.0 5.7 1.2 2.2 0.8 0.7 0.5 1.2 7.8 1.5 3.1 1.0 0.9 0.6 1.4 10.3 1.7 4.0 1.2 1.2 0.7 1.6 13.1 2.0 5.1 1.3 1.6 0.8 1.8 16.2 2.2 6.3 1.5 1.9 0.9 2.0 19.5 2.5 7.6 1.7 2.3 1.0 2.2 3.1 2.7 9.0 1.8 2.6 1.1 2.4 27.0 3.0 10.5 2.0 3.1 1.2 2.6 31.2 3.2 12.1 2.2 3.6 1.3 2.8 35.7 3.5 13.8 2.3 4.1 1.4 3.0 40.4 3.7 15.6 2.5 4.6 1.5 3.2 45.3 4.0 17.5 2.7 5.2 1.6 3.4 50.6 4.2 19.5 2.8 5.8 1.7 3.6 56.1 4.5 21.6 3.0 6.5 1.8 3.8 1.8 4.7 23.8 3.2 7.1 1.9 4.0 67.8 5.0 26.2 3.3 7.7 2.0 4.2 74.1 5.2 28.6 3.5 8.4 2.1 4.4 31.0 3.7 9.2 2.2 4.6 33.6 3.9 10.0 2.3 4.8 36.3 4.0 10.8 2.4 5.0 39.1 4.2 11.6 2.5 5.2 42.0 4.4 12.5 2.6 5.4 44.9 4.5 13.3 2.8 5.6 48.0 4.7 14.2 2.9 5.8 51.1 4.9 15.0 3.0 6.0 54.4 5.0 16.1 3.1 6.2 17.1 3.2 6.4 18.0 3.3 6.6 19.1 3.4 6.8 20.2 3.5 7.0 21.3 3.6 7.2 22.3 3.7 7.4 23.5 3.8 7.6 24.7 3.9 7.8 25.9 4.0 8.0 27.0 4.1 8.2 28.3 4.2 8.4 29.6 4.3 8.6 30.9 4.4 8.8 32.2 4.5 9.0 33.5 4.6 9.2 34.9 4.7 9.4 36.3 4.8 9.6 37.6 4.9 9.8 39.2 5.0 10.0 40.6 5.1

82 simplesta® ST stainless steel piping system pressure loss table Pressure loss due to single resistances

76.1 x 2.0 mm 88.9 x 2.0 mm 108.0 x 2.0 mm

Peak flow

Qs [ L/s ] R [ mbar/m ] V [ m/s ] R [ mbar/m ] V [ m/s ] R [ mbar/m ] V [ m/s ] 1 0.1 0.2 0.1 0.2 0.0 0.1 2 0.4 0.5 0.2 0.4 0.1 0.2 3 0.8 0.7 0.4 0.5 0.1 0.4 4 1.4 1.0 0.6 0.7 0.2 0.5 5 2.0 1.2 0.9 0.9 0.4 0.6 6 2.8 1.5 1.3 1.1 0.5 0.7 7 3.7 1.7 1.7 1.2 0.6 0.8 8 4.7 2.0 2.2 1.4 0.8 0.9 9 5.9 2.2 2.7 1.6 1.0 1.1 10 7.1 2.5 3.2 1.8 1.2 1.2 11 8.4 2.7 3.8 1.9 1.4 1.3 12 9.9 2.9 4.5 2.1 1.7 1.4 13 11.4 3.2 5.2 2.3 2.0 1.5 14 13.0 3.4 5.9 2.5 2.2 1.7 15 14.8 3.7 6.7 2.7 2.5 1.8 16 16.6 3.9 7.5 2.8 2.8 1.9 17 18.5 4.2 8.4 3.0 3.2 2.0 18 20.6 4.4 9.3 3.2 3.5 2.1 19 22.7 4.7 10.3 3.4 3.9 2.2 20 24.9 4.9 11.3 3.5 4.3 2.4 21 27.2 5.1 12.4 3.7 4.6 2.5 22 13.4 3.9 5.1 2.6 23 14.6 4.1 5.5 2.7 24 15.7 4.2 5.9 2.8 25 17.0 4.4 6.4 3.0 26 18.2 4.6 6.8 3.1 27 19.6 4.8 7.3 3.2 28 20.9 5.0 7.8 3.3 29 22.2 5.1 8.4 3.4 30 8.9 3.5 31 9.5 3.7 32 10.0 3.8 33 10.6 3.9 34 11.1 4.0 35 12.3 4.2 36 12.9 4.3 37 13.6 4.4 38 14.3 4.6 39 15.0 4.7 40 15.7 4.8 41 16.4 4.9 42 17.1 5.0 43 17.9 5.2 44 45 46 47 48 49 50

83 simplesta® ST stainless steel piping system pressure loss table Pressure loss due to single resistances as per DVGW W 575

Nr. 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Single Tee Tee Tee Tee Tee Tee Bend/ Bend/ Reducer Wall Double Double Distributo Coupling/ resistance (branch) (through) (counter- (branch) (through) (counter- elbow elbow plate wall wall sleeve to sepa- to separate flow) to merge to merge flow) 90° 45° plate plate rate to separate to merge flow flow flow (through) (branch) flow flow flow Code as per TA TD TG TVA TVD TVG W90 W45 RED WS WSD WSA STV K DVGW W 575

Graphic symbol for simplified illustration DN d 10.0 12.0 12.0 15.0 1.2 0.2 1.1 1.5 3.0 4.0 0.5 0.3 0.1 1.1 2.0 - - 0.1 15.0 18.0 1.2 0.2 1.1 1.5 2.9 3.3 0.4 0.3 0.1 1.2 - - - 0.1 20.0 22.0 1.2 0.2 1.1 1.4 2.8 3.1 0.4 0.3 0.1 1.1 - - - 0.1 25.0 28.0 1.2 0.1 1.1 1.4 2.7 3.0 0.3 0.3 0.1 - - - - 0.1 32.0 35.0 1.2 0.1 1.1 1.4 2.7 2.9 0.3 0.2 0.1 - - - - 0.1 40.0 42.0 1.2 0.1 1.1 1.4 2.6 2.9 0.3 0.2 0.1 - - - - 0.1 50.0 54.0 1.2 0.1 1.2 1.4 2.6 2.9 0.3 0.2 0.1 - - - - 0.1 65.0 76.1 1.4 0.1 1.3 1.4 2.4 2.8 0.3 0.2 0.1 - - - - 0.1 80.0 88.9 1.4 0.1 1.4 1.4 2.4 2.8 0.3 0.2 0.1 - - - - 0.1 100.0 108.0 1.4 0.1 1.4 1.4 2.4 2.8 0.3 0.2 0.1 - - - - 0.1 v) The v symbol marks the reference section. The arrow indicates the flow-conducting cross sections during measurement.

84 GENERAL INFORMATION

A positive step for all involved

The following remarks concerning installation and Production of components mode of operation are not required to guarantee the simplesta® ST stainless steel piping system‘s perfor- Particular attention is paid to hygiene in the production mance and wear resistance. Rather, they should be of every component in the simplesta® ST stainless steel seen as brief remarks to ensure the hygienically safe piping system. Any operating or auxiliary materials that distribution of water pursuant to Germany‘s regulation come into contact with the products are monitored and on drinking water, as amended, without compromising tested for safety. The pipes are annealed at 1050°C im- the quality provided by the drinking water supplier. mediately before completion. This improves resistance Moreover, we do not guarantee that every aspect is to bending and corrosion but also has hygienic benefits covered exhaustively. This would not be possible here arising from the elimination of any existing organisms. in any case because of the complexity of the topic. The inner surface of the pipes is not machined after annealing. The following remarks concerning temperatures and mode of operation are based on the presumption that Fittings are packed in plastic bags and the ends of each temperatures above 55°C protect against the growth pipe are closed with plastic plugs. The material itself is of Legionella in accordance with current knowledge. non-active in use. Both quality of drinking water and Legionella may cause pneumonia, which is lethal in hygienic properties remain unaffected. No heavy metals 5-15% of cases. Legionella may also cause the non- are transferred to water pursuant to Germany‘s regulati- lethal Pontiac fever. on on drinking water, as amended. Since the admissible tolerance limit for nickel migration is significantly higher, Legionella are present in any fresh water. The extre- there is no risk in the event of a nickel allergy, either. mely low concentrations there do not lead to disease, however. Their proliferation optimum is only in the temperature range 25-45°C. The pathogenic properties emerge if concentrations are high enough. It is beyond doubt that there are fatalities every year in Germany due to heated drinking water. With that in mind, it is advisable to plan, assemble, and operate domestic drinking water installations appropriately.

85 Planners Installing engineers

In addition to observing all other rules and regulations, Besides the proper installation of the drinking water sys- special emphasis should be placed on addressing the tem from a technical standpoint, the installing engineer following aspects when planning drinking water ins- is also responsible for preventing possible damage or tallations: deficiencies during operation. Special attention must be paid to the following aspects: • do not oversize the piping diameter but calculate • the pipes and fittings must be stored and transpor- appropriately based on the pressure loss tables with ted only with plugs and/or in the original plastic as little water as possible in the piping bags. Do not remove any parts or plugs until imme- • the temperature should not drop below 55°C in diately before installation. Under no circumstances high-temperature piping. It must be possible to hyd should open pipes be carried on a roof rack or open raulically equalise circulation systems (e.g. regu- HGV. Similar to windscreens, insects and other partic- lating valves) so that a temperature of more than les naturally converge on the inner surface of pipes 55°C is continuously maintained in all sections and settle there during operation of the circulation pump. This is • as far as the work site permits, it should be ensured based on a hot water outlet temperature of 60°C. that tools and working conditions are clean Please observe the DVGW‘s W 551 worksheet • do not leave any swarf or other particles/contamina- • the space and/or insulation between high-tempera- tion inside pipes ture and low-temperature piping must be planned • Where practicable, we recommend that leakage tes- so that the low-temperature piping is not heated ting be carried out using oil-free, clean compressed by the high-temperature piping if stagnation peri- air or inert gases and that the installation be kept ods occur dry until shortly before commissioning. A test with • consumers that do not have long stagnation peri- drinking water is only permissible if commissioning ods and guarantee significant water exchange in follows immediately. Partial fillings and residual wa- the piping should be at the end of the piping ter retention must be avoided but this is not possible in modern installations. Therefore, an installation should not be emptied once filled. The system must not be flushed with filtered drinking water until immediately before commissioning.

86 GENERAL INFORMATION

Users

• The handover is based on an operating and briefing The benefits of a drinking water installation with the log with a system certificate, inspection instructions simplesta® ST stainless steel piping system are also and maintenance instructions enclosed (with proof dependent on a qualified briefing on the operating of perfect water quality if necessary). situation. The key aspects: • If used, hoses must be stringently tested for con- dition and previous use. Do not use any hose that • the circulation pump should be in continuous was filled with old residual water and stored for an operationfor reasons of hygiene. Circulation may extended period or if its origin is unclear. be switched off for a maximum of eight hours if the • When appliances are connected (e.g. a washing ma- hygienic conditions are faultless chine), it must be ensured that no water flows back • the circulation system must be operated at 55°C into the distribution network. Backflow preventers minimum. No more than 5 K may be lost within the should therefore be considered for critical appliances. system. The requirement of 55°C is met at a storage • When the installation is handed over to the ope- outlet temperature of 60°C. Temperatures of less rator, a warning must be given with regard to the than 55°C are permissible for one hour maximum prevailing risk of Legionella if storage water heaters • the connection of appliances may pose a risk to are operated at less than 60 °C. Under no circum- drinking water. Consequently, such connections stances should it be set to less than 55 °C. Conse- should be made by a specialist quently, the installing engineer should set it to 60 • the vents on any protective fittings, such as back- °C and log this value. With regard to large instal- flow preventers or pipe aerators, may not be closed lations, the hot water‘s outlet temperature must • drinking water pipes may not be connected directly always be at least 60 °C. For pre-heating stages, with non-drinking water or sewage pipes the entire water content should be heated to more • anti-backflow measures are necessary when atta- than 60 °C at least once a day. ching to screwed hose connections • this applies to the use of garden hoses or the heating system‘s refill tubes. Under no circumstances should the heating system‘s refill tubes be permanently connected with the supply of drinking water • the water content in installation parts that are used only rarely should be exchanged regularly, at least once a month. This may apply to spare bedrooms, basement connections, etc.

87 Leakage test Trace heating

A leakage test must be carried out using oil-free, clean If trace heating is used, closed off sections of piping compressed air before the finished piping is insulated must not be heated to prevent an inadmissible increase or lagged and thus covered. The appropriate testing in pressure, as water expands when heated and causes procedure can be chosen based on the manufacturer‘s pressure to increase. pressure test log or one of the standards referred to: DIN EN 14336, BTGA [German industrial association for building services], pressure test log, simplesta® ST stain- Potential equalisation less steel piping system, ZVSHK fact sheet (on leakage testing in drinking water installations) issued in 2011 The VDE standards state that potential equalisation must or VDI 6023. The use of inert gases may be required be carried out for any piping that conducts electricity. The in buildings with increased hygiene requirements to pipes and fittings from the simplesta® ST stainless steel prevent condensation from humidity in the piping. A piping system are also subject to this provision. leakage test must be carried out with air if it is reaso- nable to expect a lengthy period of downtime between The installer of the electrical system is responsible and leakage test and commissioning. Also if the piping can- accountable for potential equalisation. Any clamps that not remain completely filled due to a period of frost come into contact with the stainless steel pipes or fittings and the corrosion resistance of a material in partially should be made of stainless steel. empty piping is at risk.

Flushing

Piping is flushed prior to commissioning according to DIN 1988 and DIN EN 806. The ZVSHK has summarised the only possible methods of flushing and thermal disinfection in its fact sheet 'Spülen, Desinfektion und Inbetriebnahme von Trinkwasser-Installationen' (washing, disinfection and commissioning of drinking water installations – publ. in German) issued in 2014. This fact sheet also contains templates for flushing log, disinfection log, commissioning and briefing log for drinking water installations.

Stainless Steel Piping Systems
