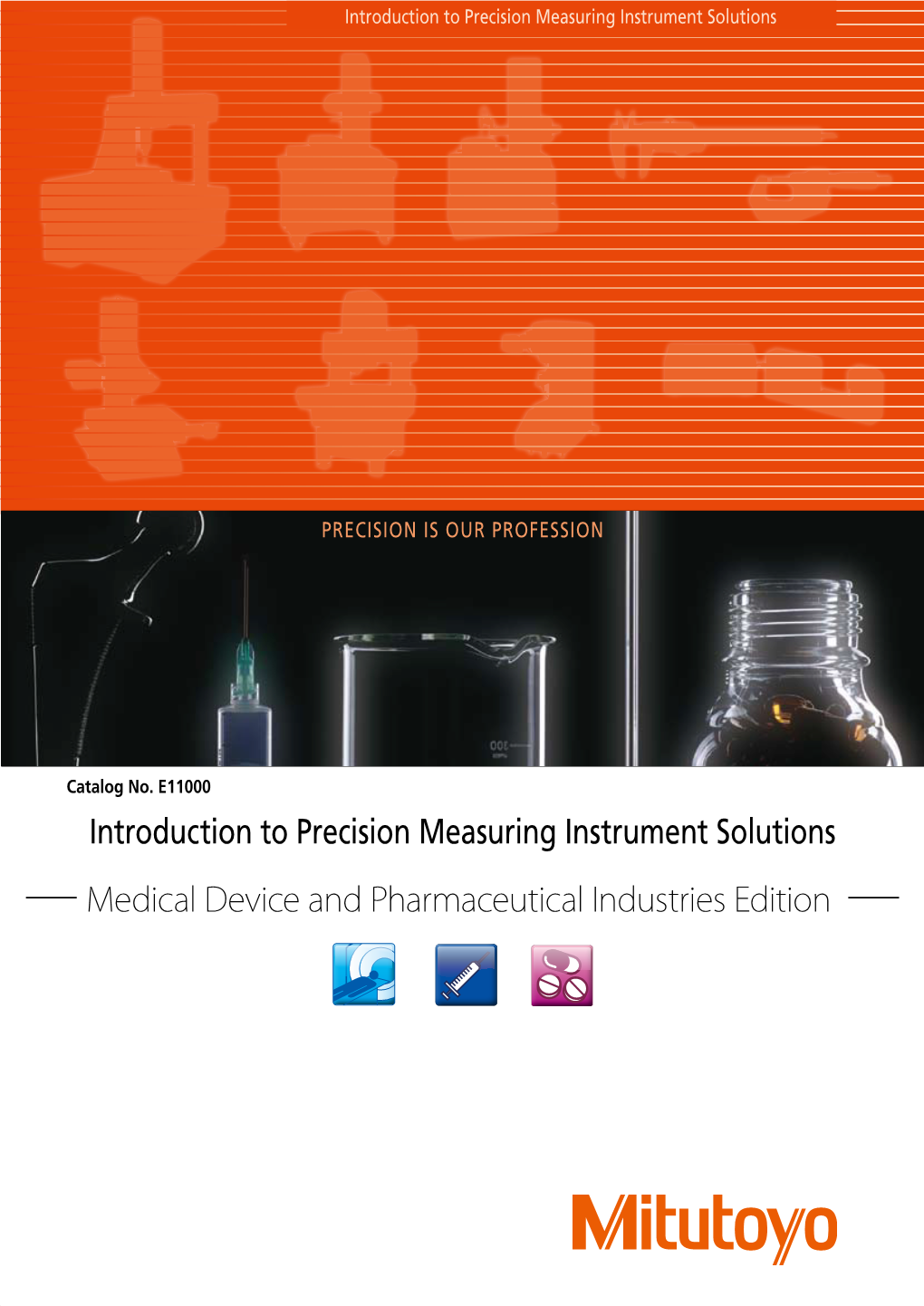

Introduction to Precision Measuring Instrument Solutions

PRECISION IS OUR PROFESSION

診断機器治療器具医薬品

Catalog No. E11000

Introduction to Precision診断機器 Measuring治療器具医薬品 Instrument Solutions

— Medical Device組立て and部品 Pharmaceutical Industries Edition — 診断機器治療器具医薬品

航空宇宙開発

組立て部品

航空宇宙開発

航空宇宙開発 Mitutoyo's precision measuring instruments ̶ Support for the development and

診断機器治療器具医薬品 production sites of medical devices and Pharmaceutical goods For the Diagnostic Device Field

X-ray computed tomography scanners Large axle bearing High-accuracy Roundness Measuring Machines and Coordinate Measuring Machines can be employed for roundness measurement Detection of bed displacement of large axle bearings used 組立て部品 in X-ray computed Bed displacement can be accurately measured by tomography scanner mounting a Linear Scale to a bed used for an gantries. X-ray computed tomography scanner or an MRI device.

航空宇宙開発

Measurement of bed frames Portable-type Coordinate Measuring systems are effective for measuring the large frames of beds and couches: workpieces do not have to be moved to measuring instruments.

Endoscopes

Tip Vision and Optical Measuring Objective lens Instruments are most appropriate Using CNC Form Measuring Instruments, high- for measuring the size and the accuracy proﬁle and surface evaluation, and position of small holes such as lens surface roughness measurement of aspheric mounts and clamps. lenses used in endoscopes and lenses for various medical optical devises is possible.

Mitutoyo's precision measuring instruments ̶ Support for the development and production組立て部品 sites of medical devices and Pharmaceutical goods For the Therapeutic device Field

航空宇宙開発 Artificial joints Head/ Liner Coordinate Measuring Machines can measure 3D shapes with high speed and accuracy providing the efficient measurement of heads and liners necessary to improve the fit and functionality of artificial joints. Head Liner

Material management The bearing surface in an important factor determining the durable years of artificial joints. Stem Hardness Testing Instruments are helpful to control High-accuracy Coordinate the abrasion resistance of the component parts. Measuring Machines provide efficient measurement of curved Injector/ Catheter workpieces such as stems. Dental implants Cannula tip Catheter Abutment Vision Measuring Instruments are effective for measuring microscopic areas such as cannula tips, where fine Fixture sharpness and light puncture Diameter measurement force is critical. Laser Scan Micrometers, provide Fixture/ Abutment non-contact, high-speed and accuracy measurement, and are Optical and Surface Roughness effective for outside diameter Instruments are employed for inspection of of sliders and tubes. dimensional- and surface-roughness control of abutments and fixtures, critical components affecting implant wear.

Syringe The internal shape of a syringe can inﬂuence ﬂuid leakage and plunger operation. Roundness Measuring Machines can measure the roundness, cylindricity and surface roughness with high accuracy.

For various ﬁelds including the research, development and production of medical devises and pharmaceutical goods Small Tools (calipers, micrometers, dial indicators, etc.) and Linear Gauges are helpful for dimension and form measurement of various workpieces such as materials, component parts and ﬁnished products. 診断機器治療器具医薬品 Mitutoyo's precision measuring instruments ̶ Support for the development and production sites of medical devices and Pharmaceutical goods For the Pharmaceutical Goods Field

Tablets and capsules 組立て部品 Capsules Vision and Optical Measuring Instruments, provide non- Molds for tables contact, high-speed and Surface Measuring accuracy measurement, Instruments, that measure effective for capsule dimension dimension, surface- and inner diameter roughness and form/contour inspection and simultaneously, are effective deformity control. 航空宇宙開発 for the form control of tablet press molds used in tablet production. Tablets Hardness Testing Instruments can be used to inspect tablet hardness, an Tablet press molds important texture attribute of medicinal chemicals, and can also evaluate the hardness of the plating layers of tablet press molds.

Poultice, plaster, emergency adhesive plaster, etc. Soft material object The Litematic is very appropriate for measuring deformable workpieces. Measurement of thickness is accomplished with low measuring force, and minute Emergency adhesive plaster Plaster impact on the base.

Container Mouths of containers/ bottles Optical and Form Measuring Instruments are effective for the measurement of screws thread form, bottle diameters and container openings, where control of air-tight seals is critical. Surface Roughness instruments can be used to inspect openings where surface roughness can affect the sealed state. Precision Measuring Instruments Supporting Medical Devices and Pharmaceutical Industries The followings are application examples for Mitutoyo's precision measuring instruments. Mitutoyo's Precision Measuring Instruments Coordinate Optical Vision Measuring Form Measuring Testing Measuring Measuring Sensor Systems Scales Small Tools Instruments Instruments Instruments Instruments Instruments

Field of Application Application

Measurement of gantries's large bearings ◯ ◯ ◯ X-ray computed Measurement of bed frame tomography ◯ ◯ scanner dimensions Bed positioning control ◯

Ultrasonic medical Dimensional measurement diagnosis system of component parts ◯ ◯ ◯ ◯ ◯ ◯ Diagnostic devices X-Ray diagnostic Dimensional measurement equipment of component parts ◯ ◯ ◯ ◯ ◯ ◯ Proton beam Form and dimensional measurement medical treatment ◯ ◯ equipment of boluses and collimaters Form measurement of syringes ◯ ◯ Form measurement of plunger parts ◯ ◯ ◯ ◯ Injection syringes Dimensional and angle measurement of injection needle tips ◯ ◯ ◯ ◯ ◯ ◯ Hardness measure ment of cannulas ◯

Suture needles Dimensional and angle measurement of needle tips ◯ ◯ ◯ ◯ ◯ Artificial hip and Dimensional and form measurement knee joints of heads and liners ◯ ◯ ◯ ◯ ◯

Artificial bones Dimensional and form measurement of fixation and connection plate parts for heads and liners ◯ ◯ ◯ ◯ ◯

Dental implants Measurement of fixtures and abutments ◯ ◯ ◯ ◯ ◯ Outside diameter measurement ◯ ◯ Catheters Elasticity measure ment ◯

Stents Dimensional and hardness measurement of parts ◯ ◯ ◯ ◯

Contact lenses Form and thickness measurement ◯ ◯ ◯

Medical Treatment Devices Medical Treatment Measurement of dental unit frames ◯ ◯ Dimensional measurement of hand pieces ◯ ◯ ◯ ◯ ◯ Dental instruments Dimensional measurement of drills ◯ ◯ ◯ ◯ Hardness measurement of metallic materials ◯ Electric and Dimensional measurement magnetic therapy ◯ ◯ ◯ apparatuses of component parts

Hearing aids Dimensional measurement of component parts ◯ ◯ ◯

Pacemakers Dimensional measurement of component parts ◯ ◯ ◯

Steel equipments Dimensional and hardness measurement of parts ◯ ◯ ◯ ◯ ◯ ◯ Blood drawing, fluid Dimensional and form and blood transfusion ◯ ◯ ◯ ◯ instruments measurement of joints Dimensional measurement ◯ ◯ ◯ Tablets Hardness measurement of tablets ◯

Capsules Dimensional measurement ◯ ◯ ◯ Antiphlogistic analgetic for Thickness and surface

Pharmaceutical ◯ ◯ ext ernal use roughness measurement Containers and ampules Dimensional measurement ◯ ◯ ◯ ◯ ◯

Metal molds for Dimensional, form and tablet press hardness measurement ◯ ◯ ◯ ◯ ◯ ◯ ◯ Molds for various plastic Dimensional, form and Metal molds products hardness measurement ◯ ◯ ◯ ◯ ◯ ◯ ◯ Remarks:

Names of the pecision measuring instruments presented in this leaflet are classified into the products mentioned above.

Coordinate Measuring Instruments: Coordinate Measuring Machines, Portable Coordinate Measuring System Form Measuring Instruments: Surface Roughness Measuring Instruments: CNC Form Measuring Instruments, Form Measuring Instruments, Roundness Measuring Machines Optical Measuring Instruments: Optical Measuring Instruments, Profile Projecters, Measuring Microscopes, Surface Measuring Instruments Sensor Systems: Laser Scan Micrometers, Litematic Testing Instruments: Hardness Testing Instruments Scales: Linear Scales Export permission by the Japanese government may be required for exporting our products according to the Foreign Exchange and Foreign Trade Law. Please consult our sales ofﬁce near you before you export our products or you offer technical information to a nonresident. 29 1009 1 C(PA)HS, Printed in Japan 29 1009 1 C(PA)HS,
