HXR Easyshift HUB

Total Page：16

File Type：pdf, Size：1020Kb

Download full-text PDF Read full-text

Load more

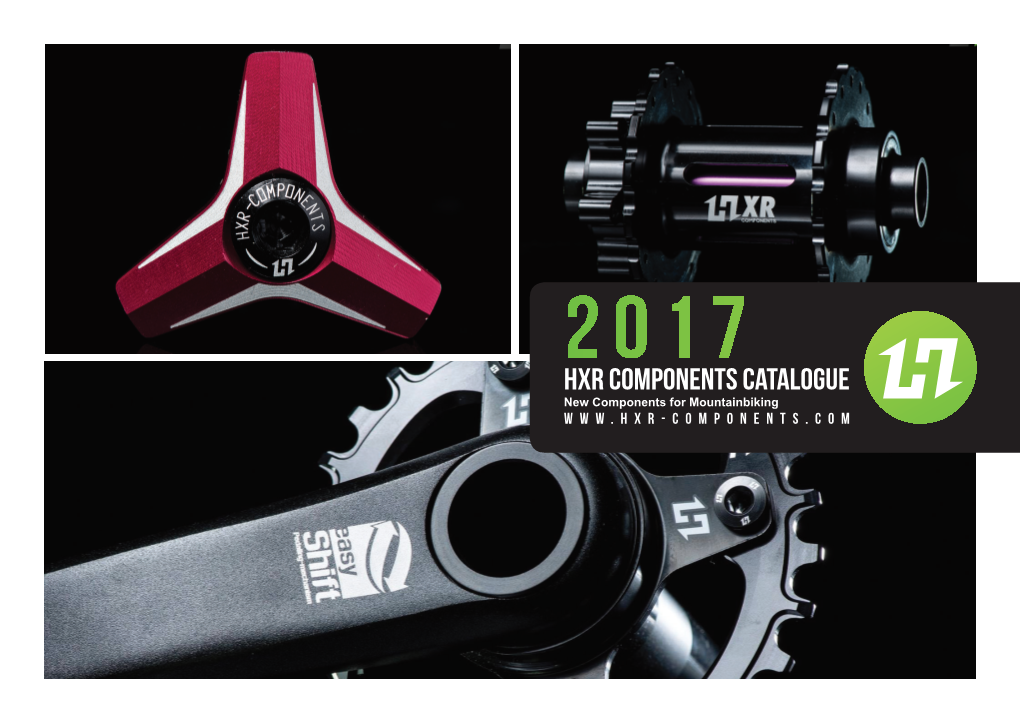

2017 HXR Components Catalogue New Components for Mountainbiking WWW.HXR-COMPONENTS.COM CONTENTS // CONTENTS All HXR Components products are thought, developed and tested in France. In order to offer high quality products the production is based in the best factory in Europe and Asia. Each component goes through conformity test at all development stages. Introduction Page 2 EasyShift Crankset Page 3 HXRComponents Chainring Page 5 Chainring Bolts Page 6 ChainGuide Page 7 Hub Page 9 Sprocket Page 11 Lone 780 Handlebar Page 15 TopCap Page 17 HXR-Components catalog 2017 Introduction // Introduction HXR Components is a young innovative French brand. After more than 15 years in mountain bike environment, as pilot, tester, workshop manager and boss of an on-line shop, here i am with my own range of innovative accessories. Quality, performance and longevity are our priority. “Winner of 2015 Annecy innovative award” All HXR Components products are thought, drawn, conceived and tested in France. To test in real conditions of all our products, we are associated with MDE Bikes, an Italian handmade frames company, near Turin. That is why you fnd the MDE Bikes products for sale on our website. www.hxr-components.com. See you soon on your favorite singletrack. Romain Olmos. (CEO HXR Components) HXR-Components catalog 2017 CRANKSET Ref : ES01 Crankset EasyShift The change is now ! Don’t anticipate your gearshift, each second is precious. With EasyShift, made it to the last moment, without pedaling and without stress, you decide, not when the terrain commends it. EASYSHIFT system opens the door to a new way to ride. 03 HXR-Components catalog 2017 CRANKSET Ref : ESKit01 Kit EasyShift Technical information : Chainring 28 teeth minimum. EASY SHIFT system is sold in 1 complete kit Enduro or Downhill : Compatible only with a fxed rear hub*. The Easyshift Crankset must be installed with Narrowide chainring. 1 Enduro EASY SHIFT crankset 170 or 175 mm. A high chainguide* with bash is mandatory. 1 Downhill EASY SHIFT crankset 165 or 170 mm EasyShift crankset is made with a 30 mm axle, it is compatible with BSA bottom bracket 1 Freewheel standard 94 mm center distance. (supplied), BB92 and pressft 30. 1 Bottom Bracket BSA 30 mm 73 or 83 mm. Weight : 773 grams COMPLETE KIT. 1 Set of spacers for BB92 and Pressft 30. (* Avalaible on www.hxr-components.com). 1 Bottom bracket tool. Ref : ESKit01 (Complete kit) 1 Crank protection kit “ClearProtect” HXRComponents. 1 Lubrifant Squirt. Retail Price €449,00TTC 04 HXR-Components catalog 2017 CHAINRING Chainring HXRComponents New Generation Toothing new generation. Aluminium 7075 T6. Black anodized and laser engraved. 94 mm center distance. Avalaible in 30 and 32 teeth. Weight : 30 T : 40 grams 32 T : 55 grams Ref : HP30 Chainring 30 T Ref : HP32 Chainring 32 T Retail Price €69,00 05 HXR-Components catalog 2017 CHAINRINg EASYSHIFT FREEWHEEL Chainring bolts Freewheel for EasyShift crankset Chainring bolts kit : 94 mm center distance. Compatible with all market chainring. 4 Chainring Bolts Weight : 185 grams 4x 12mm spacer. 12x 0,5mm spacer*. Ref : RL94 *Centering spacer to adjust and improve your chain line. Weight : 5 grams only Retail Price €139,00 Ref : VC4 Retail Price €24,99 06 HXR-Components catalog 2017 CHAINGUIDE HXR PROTECT CHAINGUIDE Guide chaine Aluminium YOUR 7075 T6 Protect your chain. RIDE The HXR chainguide keep your chain in the line you have imposed. Preserve your ride and win precious seconds without worrying about mechanics. Ref : HCG05 07 HXR-Components catalog 2017 CHAINGUIDE HXR CHAINGUIDE PROTECT Aluminium chainguide 7075 T6. YOUR Black anodized and laser engraved. ISCG 05 standard. Diameter mini/maxi : 28/34 tooth. RIDE Protective Bash. Hardware included. Weight : 120 grams (Screws and spacers included) Ref : HCG05 Retail Price €99,00 08 HXR-Components catalog 2017 HUB HXR EasyShift HUB The frst “2 in 1” hub. Transform your transmission as you want !! HXR-Components catalog 2017 HUB Ref : MESH142/12 Ref : MESH15 HXR EasyShift HUB HXR EasyShift Hub is the frst “2 in 1” hub, which allow you to switch from a fxed gear transmission to a conventional transmission with an integrated freewheel.. This hub allows you to have an evolutionary system on your bike without having to change hardware if you think one day equip your bike with a full EasyShift system. Avalaible in 4 colors : RAW/ BLUE/ RED/ BLACK REAR HUB 12MM FRONT HUB 15mm CONVERSION KIT Specifc hub for EasyShift System Front hub for 15mm axle. Conversion kit included with rear hubs*. Aluminium 7075 T6 Aluminium 7075 T6. Transform the HXR EasyShift hub in a 32 Holes 32 Holes. classic hub with freewheel. Available in 3 versions. 15mm x 100mm. *Supplied exclusively with the HXR 135x9/135x12 and 142x12mm 167 grams. EasyShift hubs. 295 grams SHIMANO version. Ref : MESH15 Ref : KTMESH 280 grams XD SRAM version. RetailA partir Price de €149,00TTC Ref : MESH142/12 Shimano €149,00TTC N.C Ref : MESH135/12 Retail Price €269,00TTC Ref : MESH135/09 SRAM Retail Price €279,00TTC 10 HXR-Components catalog 2017 SPROCKET 42T The only 42 teeth sprocket compatible SHIMANO and SRAM. Aluminium 7075 T6. 3 Colors avalaible. 92g complete with hardware. 11 HXR-Components catalog 2017 SPROCKET RED PACK BLACK PACK RAW PACK 42T Pack : The pack includes an aluminum sprocket 42 teeth (hard anodized) A 16 tooth steel sprocket in place of 15 and 17 teeth of your classic cassette 10 speeds (11/36 or 12/36 teeth). 3 Specifc spacers SRAM or Shimano and M4x25 mm screw to best ft your derailleur. You will be able to ride in mono 32T and your tape will provide a gear reduction 11-42 or 12-42 teeth. 10 speeds (11/36 or 12/36 teeth). Parts available at HXRComponents. Ref : P42RB Red Pack Ref : P42BB Black Pack Ref : P42BR RawPack Retail Price €89,00 12 HXR-Components catalog 2017 SPROCKET DH 7Speed For downhill, reliability and simplicity are two keys that allow to run fast without asking any questions. There is no need to have eleven gears and 32 or 42 teeth to blow the clock. Just ask Aaron Gwin ! Winning a world cup without chain, it will remain an historic moment ! 13 HXR-Components catalog 2017 SPROCKET “Serene DH ride, also interesting for slopestyle and bike-parks” DH 7Speed : Downhill adaptator 6/7 speed. Aluminium 6061 T6. Laser engraved. 2 Wedge spacers provided. 25 teeth sprocket maximum. Available in 2 colors : Raw et Black Weight : 45 grams Ref : DH7B Black Pack Ref : DH7R Raw Pack Retail Price €46,00 14 HXR-Components catalog 2017 Handlebar Lone 780 Comfort and precision control for your MountainBike. 15 HXR-Components catalog 2017 handlebar Lone 780 : Aluminium 7075 T6 Double Butted Handlebar 780 mm width Backsweep 8 degrees , Upsweep 5 degrees Rise 1” 31,8 mm diameter 2 fnished ! Grit blasted : Blasted Black anodized Glossy : Glossy Black Ref : Lone780GL Glossy GLOSSY BLACK Ref : Lone780GB Matt GRID BLASTED BLACK Glossy Black Retail Price €75,00 Grid Blasted Black Retail Price €69,00 16 HXR-Components catalog 2017 TOPCAP TopCap A jeweller’s craft piece specially design for your mountainbike. 17 HXR-Components catalog 2017 TOPCAP TopCap : The TopCap is simply a work of art. This will become the single jewelry key to your cockpit. A piece of an amazing detail. Aluminium 7075 T6. Digital high precision machining Anodizing and laser engraving Ultralight one piece. Available in 4 colors : Black, red, purple,blue. Weight : 5 grams Ref : TCBP Black Pack Ref : TCRP Red Pack Ref : TCPP Purple Pack Ref : TCCP Blue Pack BLACK PACK RED PACK PURPLE PACK BLUE PACK Retail Price €20,00 18 HXR-Components catalog 2017 FOLLOW US O N FOLLOW US O N INSTAGRA M INSTAGRA M WWW.HXR-COMPONENTS.COM 17 RUE DU BEL AIR - 74000 ANNECY - Telephone : +33(6) 32 57 93 95 - Email : [email protected] - Siret 81292899200013 -.
