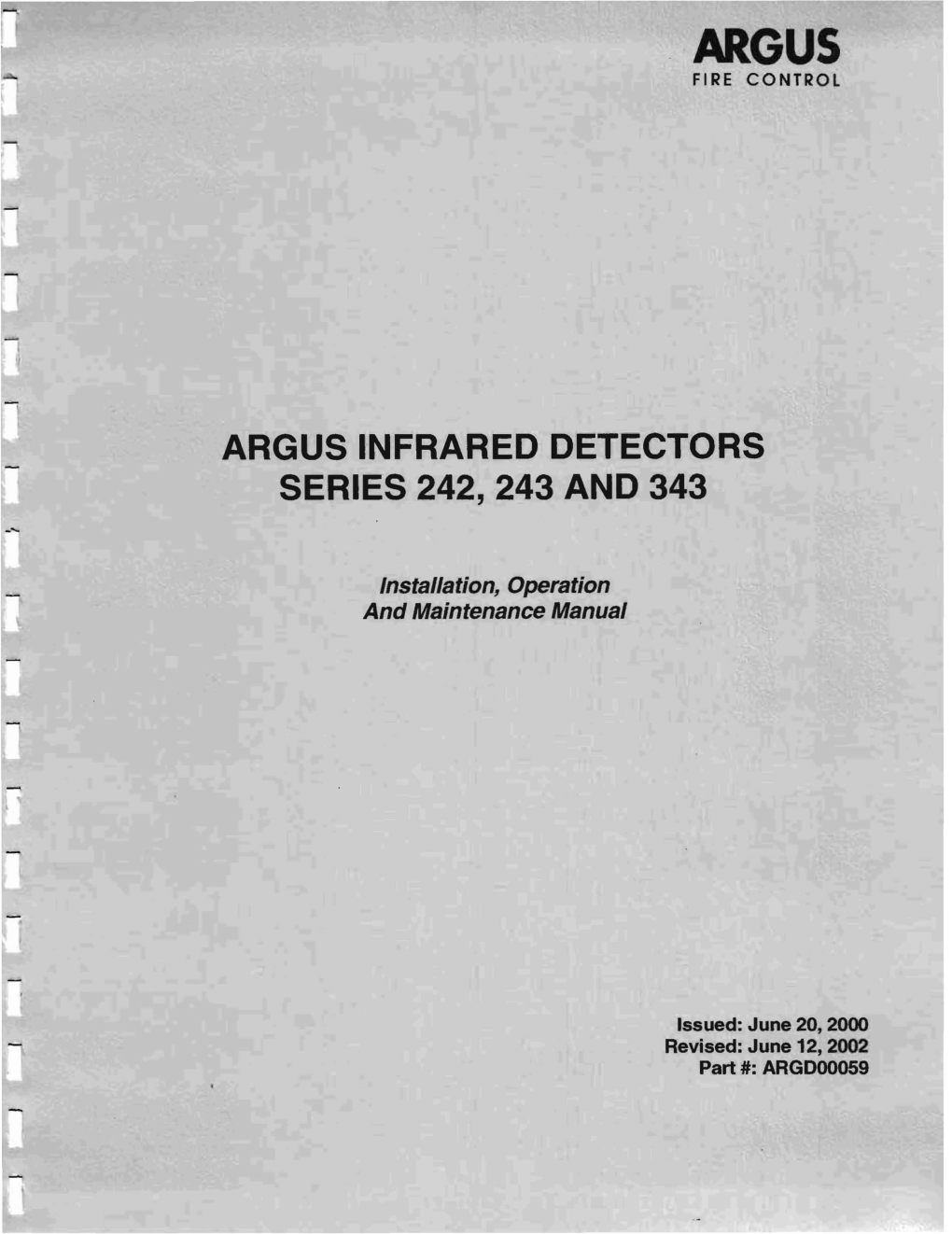

ARGUS INFRARED DETECTORS SERIES 242, 243 AND 343 ......

Installation, Operation And Maintenance Manual

Issued: June 20, 2000 Revised: June 12, 2002 Part #: ARGDOO059 .

ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

CONTENTS

Section Description Page 1.0 GENERAL 1 2.0 SPECIFICATIONS 3 3.0 INSTALLATION 5 3.1 Mounting 5 3.2 Spacing Requirements 8 3.3 Wiring 14 4.0 MAINTENANCE 17

List of Figures

Figure Description Rev Page 3.1 Argus Infrared Spark Detector Duct Mounting 5 3.2 Argus Infrared Spark Detector Bolt Hole Pattern, 6 3.2.A Argus Infrared Test Light Mounting Hole Pattern 7 3.3 Detector Placement For Round Stock Transfer Ducts 8 3.4 Detector Placement For Round Waste Air Ducts 9 3.5 Detector Placement For Square Or Rectangular Waste 11 Air Ducts Up To 40" (1000mm) Wide 3.6 Detector Placement For Square Or Rectangular Waste 12 Air Ducts 40" (1000mm) To 60" (1500mm) Wide ..... 3.7 Detector Placement For Conveyor Belts Up To 48" 13 (1200mm) Wide 3.8 Detector Wiring 14 3.9 242 OR 243 Detector Wiring (except Odyssey System) 15 3.10 Argus 343 Infrared Detector Wiring 16 ...... 3.11 Argus 242 and 243 Infrared Detector Wiring 16 4.1 Argus Detector Test Light (PIN: ARGD00018) 18

2301 Distribution Street Part #: ARGD00059 Charlotte, NC 28203 USA Issued: June 20, 2000 Phone 704-372-1228 Revised: June 12, 2002 Fax 704-377-6131 Page iii e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

This page is intentionally blank.

Part #: ARGD00059 2301 Distribution Street Issued: June 20, 2000 Charlotte, NC 28203 USA Revised: June 12, 2002 Phone 704-372-1228 Pageiv Fax 704-377-6131 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

1.0 General

The Argus Infrared Detectors (Series 242, 243 and 343) are highly sensitive, fast-acting detection units designed to detect an ember or fire in its incipient stage. Incorporated in an Argus fire control system the Argus infrared detector will detect, react and extinguish the threat, before it can cause extensive damage to the machinery or process in which it is installed. Taking advantage of the latest in high-speed detector sensor technology allows the Argus infrared detector to perform these tasks.

The detector cell is capable of detecting an ember, spark or fire in less than one-half microsecond. This speed allows several advantages to be realized in the overall detector unit design, not the least of which is discrimination, or the ability to determine whether or not the ember or spark fits a velocity profile that would be produced by the material flow in a duct or chute. The design incorporates this capability and continually monitors the duct for embers, sparks or fire, that meet the qualifications of a particular velocity/intensity pro'file. This feature considerably reduces the risk of false alarm due to electrical noise present in all industrial environments.

In addition to velocity/intensity profile monitoring, the detector incorporates an ambient light filter to reduce the sensitivity of the system to ambient or background lighting in the visible region of the spectrum, while allowing radiation in the infrared region to be detected essentially un-attenuated.

The detectors are designed to "latch" or lock into alarm when an ember, spark or fire is visible to the detector cell. Once the detector is in alarm, it can only be reset by the control panel or by removing power from it.

NOTE: The Argus 243 PULSE series of detectors DO NOT latch into alarm.

The recommended application is for detection in dark or semi-dark areas with less than 10 foot candles (108 lux) ambient illumination. If properly located at the sides, or top of a duct, the detector design effectively eliminates the buildup of dust on the lens. Normally, the detector is mounted flush with the duct wall, so the air traveling through the ducts tend to clean the lens surface.

CAUTION: Direct or indirect exposure to ambient light could cause the detector to go into alarm, causing the system to discharge the extinguishing agent.

CAUTION: If tint, dye, or other materials are added to the process, and they coat the interior of the duct, the detector lens would require periodic cleaning (refer to maintenance section for details).

...... 2301 Distribution Street Part #: ARGD00059 Charlotte, NC 28203 USA Issued: June 20, 2000 Phone 704-372-1228 Revised: June 12, 2002 Fax 704-377-6131 Page 1 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

The silicon photo-voltaic cell and printed circuit board of the detectors are mounted in a steel housing 4-3/8 inch x 4-3/8 inch x 2-1/4 inch (110 X 110 X 60mm) with a cover, and holes for mounting. Three holes are required in the wall of the duct to accommodate the mounting hardware and the detector lens.

The region of detector sensitivity is between the limits of 750 nanometers and 1250 nanometers, with peak sensitivity at 950 nanometers. The visible portion of the spectrum lies between the limits of 450 and 750 nanometers. Thus, the detector is -. basically less sensitive to light in the visible portion of the spectrum.

The internal circuitry in the Argus detector is 100% solid-state and is designed to accept signals from the sensor which meet a fairly wide velocity/intensity profile such as would allow detection of any signal which might appear in the material flow which could cause combustion.

The Argus 343 infrared spark detector adds to this detection technology by adding a Peripheral Interface Controller (PIC) to the detector's circuitry. This enables the Argus Odyssey 'fire control system to assign each detector a specific idenhfication designation and allows the Argus Odyssey fire control system to determine which detector is either in trouble or alarm. The PIC integrated in the 343 detector, permits the Argus Odyssey fire control system to automatically test all the detectors connected to the Odyssey Panel. During this testing any failures or troubles will be reported back to the Odyssey monitor panel.

The 242 and 243 infrared detectors can also be up-graded so that they may be used in the Odyssey fire control system. Installing a PIC Adapter (P/N ARG-ODP1) device to the detector does this.

NOTE: When using any detector with the Odyssey fire control system a test light assembly (P/N ARGD001 01 *) must be installed with each group of detectors to perform self-testing functions.

Part #: ARGD00059 2301 Distribution Street Issued: June 20, 2000 Charlotte, NC 28203 USA Revised: June 12, 2002 Phone 704-372-1228 Page 2 Fax 704·377-6131 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

2.0 Specifications: Table 2.1 Detector Specifications

Detector Series: 242 243 343 Test Light Detector Part Number: ARGDOO242* ARGDOO243* ARGDOO343* ARGDOO10l*

Operating Voltage. volts DC: 18 to 26.4 Standby Current, mA: Less than 10 Less than 10 15 N/A Alarm Current (Excited), mA: 40 40 45 Current Alarm (After Latching 15 15 20 N/A into Alarm), mA:

Output Rating, mA: 60 @ 24 Volts DC Alarm Indicator: Red LED N/A Spectral Range, nanometers: 750 to 1,250 880 [7,500 to 12,500 angstroms] (8,800 angstroms) Spectral Sensitivity (at 0.5 17 microamps N/A 2 milliwatts per cm ): Peak Response, nanometers: 950 N/A [9500 angstroms] Response Time Output. 4 5 5 N/A milliseconds: Ember Size: 3mm (1/8") at 46 cm (18"); N/A 6mm (1/4") at 1 meter (39") Sensitivity Derating: 70% Effective at 45 degrees from Head On. 80 oCone Operating Temperature, °C To +50 o -40 To +85 (-40 To +185) (OF) (+32 To +122)

Typically the Argus Infrared Detector will detect embers or glowing particles under the following conditions: SpeedNelocity: Stationary flame flicker or embers from 150 N/A cm (6 in.) per second to 60 meters (200 ft.) per second at a distance of 1 meter (39 in.). Temperature (Ember): Typically 600°C to greater than 1000 °C for N/A particles 3.2 mm (1/8 in.) in diameter or qreater. Wavelength Limits: 750 nanometers to 1250 nanometers. N/A

2301 Distribution Street Part #: ARGD00059 Charlotte, NC 28203 USA Issued: June 20, 2000 Phone 704-372-1228 Revised: June 12, 2002 Fax 704-377-6131 Page 3 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

This page is intentionally blank.

Part #: ARGD00059 2301 Distribution Street Issued: June 20, 2000 Charlotte, NC 28203 USA Revised: June 12, 2002 Phone 704-372-1228 Page 4 Fax 704-377-6131 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

3.0 INSTALLATION:

3.1 Mounting

CAUTION: Care must be taken when drilling or ~utting into duct so as to make sure no metal shavings or pieces fall intolthe ductwork. These could cause extensive damage to the protected rpachinery. I

WARNING: Follow all appropriate safety guideli~es and wear proper safety equipment (especially eye protection) when drilling or cutting ductwork. Failure to do so may result in personnel injury.

NOTE: It may be necessary to provide an inspection or access panel near the detector to allow for installation and inspection of the detector. Consult with duct or machinery manufacturet before cutting any panel or openings in the ductwork. - , Determine the number and best location of the dE1lectors as determined by the size of the duct and the type of machinery being protect9d. Using a template as a guide, (see Figure 3.2, drawing no. M0010-D00059) position ~he detectors in accordance with the required spacing. The detectors should be positiqned so that the bolt and lens holes are parallel to the direction of the duct. The detedtors shall not be placed on the bottom of the duct where material could settle on the detJctor lens. The detector's LED indicator light should be pointing where it is easily visible, and the cover of the detector can be removed.

BOTTOM VIEW

<..._~

Argus Infrared Spark Detector Duct Mounting Figure 3.1 1

2301 Distribution Street Part #: ARGD00059 Charlotte, HC 28203 USA Issued: June 20, 2000 Phone 704-372-1228 Revised: June 12,2002 Fax 704-377-6131 Page 5 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

The same procedure and precautions are to be used when mounting a test light to the duct. Refer to Figure 3-2-A for bolt hole size and pattern.

~-----4,75 -----~ ~...-+-- 0,6

.25" r 6 mm 1.0 I_L

.25" 1.125" 6 mm 28.5mm 4,25 1.75" .:. 1.75 " 44.45mm 44.45rn

3.50" .1 88.90mm

DETECTOR HOLE PATTERN

Argus Infrared Spark Detector Bolt Hole Pattern, Drawing No. M0010-D00059 Figure 3.2

Part #: ARGD00059 2301 Distribution Street Issued: June 20, 2000 Charlotte, NC 28203 USA Revised: June 12, 2002 Phone 704-372-1228 Page 6 Fax 704-377-6131 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

I~"'-----4,6 2 ------;-~~~=+- 0, 9

.25" 6 mm

: 1.425 ! I I~ ...... 1__ . ~ 2,85 I

.25" 6 mm

~ 1.1:J"-~ 1125" 28.7mm 28.5mm ... 2.25" 57.15mm

TEST LIGHT HOLE PATTERN

Argus Infrared Test Light Bolt Hole Pattern, Figure 3.2.A

2301 Distribution Street Part #: ARGD00059 Charlotte, NC 28203 USA Issued: June 20, 2000 Phone 704-372·1228 Revised: June 12, 2002 Fax 704-377-6131 Page 7 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

For each detector (and test light), three (3) holes will need to be cut into the wall of the duct, a 1-1/8 inch (28.6 mm) diameter hole and two (2) 0.25 inch (6mm). The smaller holes are for the mounting hardware and the larger hole will accommodate the lens of the detector.

CAUTION: After drilling or cutting holes in duct make sure all sharp edges are removed and sanded smooth. Be sure to remove all metal from ductwork.

From the inside of the duct, push two (2) 14"-20 X SA" long button head bolts through the two 14" holes (see Figure 3.1). On the outside of the duct secure each bolt with a 14-20 KEP (or locking type) nut to the ductwork. Place the detector on the two bolts with the gasket towards the duck work and the lens aligned with the center 1-1/8" hole centered between the bolts. Make sure LED indicator is facing the correct direction. Use two additional 14-20 KEP nuts to secure the detector to the, mounting bolts.

3.2 Spacing Requirements

3.2.1 Recommended Spacing On Round Stock Transfer Ducts (Figure 3.3):

For ducts up to 12" (300mm) diameter place two (2) detectors opposite each other. For Ducts 12" to 14" (300mm to 350mm) in diameter use three (3) detectors placed at 120 degree spacing, with one of these detectors located on the top of the duct.

TEST LIGHT (IF USED) TEST LIGHT (IF USED)

UP TO 12" 12.03" TO 14"

(300mm) DIA. (305-350mm) DIA.

Detector Placement For Round Stock Transfer Ducts Figure 3.3

Part #: ARGD00059 2301 Distribution Street Issued: June 20, 2000 Charlotte, NC 28203 USA Revised: June 12, 2002 Phone 704-372-1228 Page 8 Fax 704-377-6131 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

3.2.2 Recommended Spacing On Round Waste Air Ducts:

Refer to Table 3.1 and Figure 3.4 for the recommended spacing of detectors (and test lights) for the appropriate size duct.

The distance that the test light shall be mounted from the horizontal axis of the duct varies with the size of the duct. Refer to Table 3.1.A for the proper distance measured from the horizontal centerline of the duct to the center line of the test light bolt holes. The test light bolt holes are aligned parallel with the duct.

NOTE: Never mount detectors on the bottom of the duct.

t----; DISTANCE BElWEEN CENTER UNES NOT TO EXCEED fl.OCl" (2OOmm)

72' 72'

'.' TEST LIGHT (IF USED) 37" TO 48' (94Qmm '1200rnm) DIA.

49" TO 60' (124Smm -lS00rnm) DIA.

Detector Placement For Round Waste Air Ducts Figure 3.4

Table 3.1 Detector Spacing For Round Waste Air Ducts

Duct Diameter Size Number Of Spacing Notes Detector oto 16" (400mm) 2 1800 Opposite each other 17" to 36" (432mm to 900mm) 3 1200 One detector on top of duct. 37" to 48" (940mm to 1200mm) 4 900 No detectors at the bottom of the duct. 49" to 60" (1245mm to 1500mm) 5 720 No detectors at the bottom of the duct.

2301 Distribution Street Part #: ARGD00059 Charlotte, NC 28203 USA Issued: June 20, 2000 Phone 704-372-1228 Revised: June 12, 2002 Fax 704-377-6131 Page 9 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

Table 3.1.A Test Light Spacing For Round Waste Air Ducts

Duct Diameter Size Number Of Test Light Distance"A" from the Horizontal Centerline 16" (400mm) 1 Centered on the top of the duct. 18" (460mm) 2 2.83" (70mm) 24" (600mm) 2 3.77" (90mm) 30" (760mm) 2 4.71" (120mm) 36" (900mm) 2 5.65" (140mm) 42" (1070mm) 2 6.60" (170mm) 48" (1200mm) 2 7.54" (190mm) 54" (1370mm) 2 8.48" (220mm) 60" (1500mm) 2 9.42" (240mm)

Table 3.2 Detector Spacing For Square or Rectangular Waste Air Ducts

Duct Size Number Spacing Notes Inches (mm) Of Inches (mm) Inches (mm) Detector Height Width oto 18 (450) oto 40 (1000) 2 Center of side Opposite each other 18.03 to 34 oto 40 4 8 (200) from top and bottom Two per side. Center to (451 to 865) (1000) center shall not exceed 18 (450) 34.03 to 52 oto 40 6 8 (200) from top and bottom. Three per side. Center to (866 to 1320) (1000) Third detector centered center shall not exceed 18 (450) 52.03 to 70 Oto 40 8 8 (200) from top and bottom. Four per side. Center to (1321 to 1780) (1000) Third & fourth detector equally center shall not exceed centered on each side 18 (450) oto 18 (450) 40.03 to 60 5 Center of each side; 8 (200) Maximum allowable width (1001 to 1500) from each side and one top is 60 (1500). center. 18.03 to 34 40.03 to 60 7 8 (200) from top and bottom; Two per side, center to (451 to 865) (1001 to 1500) 8 (200) from each side and center shall not exceed one top center. 18 (450); maximum allowable width is 60 (1500). 34.03 to 40 40.03 to 60 9 8 (200) from top and bottom Three per side, center to (866 to 1000) (1001 to 1500) with third detector centered; 8 center shall not exceed (200) from each side and one 18 (450); maximum top center. allowable width is 60 (1500).

Part #: ARGD00059 2301 Distribution Street Issued: June 20, 2000 Charlotte, NC 28203 USA Revised: June 12, 2002 Phone 704-372-1228 Page 10 Fax 704-377-6131 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

3.2.3 Recommended Spacing On Square or Rectangular Waste Air Ducts:

Refer to Table 3.2 and Figure 3.5 and 3.6 for the recommended spacing of detectors for the appropriate size duct.

NOTE: Never mount detectors on the bottom of the duct.

TEST LIGHT 10 BE SIDE VIE'w' GREATER THAN CENTERED 8ETW([N 18' DETECTORS AS SHOWN. (450rm) 18,03' UP TO 34' TtST LIGHT CAN BE MAX r (4510101-8650101) LOCATED OW TO 6· OFT OF VERnCAl CENTERLINE. UP TO IS' I""1-__ ~ (4500101) TALL TALL LI1J i----i 11-. 1 CENTERED OISlANCE BETWeEN CEf>fTER UNES SHALL LESS THEN LESS THEN NOT Exceeo 6.00· 40' (10000101) (l5Omm) 40' (10000101)

8' (2000101)

SIDE VIE'w'

GREATER THAN GREATER THAN 3403' UP TO 52" 5203' UP TO 70' (8660101-13200101) <13211"11"1-17801"11"1) TALL TALL

rrsr liGHT TC BE CENTERED BETWEEN DETECTORS AS SHOWN. rEST UCHT CAN 8[ LOCATED o· TO 6· OFF OF VERnCAl C(NTE"RlIN[.

~ DISTANCE BETWEEN ceNTER LINES SHALL LESS THEN LESS THEN NOT ExceeD 6.00· (lSOfrm) 40' (\000011"1) 40' <10001"11"1)

Detector Placement For Square Or Rectangular Waste Air Ducts Up To 40" (1 OOOmm) Wide Figure 3.5

2301 Distribution Street Part #: ARGD00059 Charlotte, NC 28203 USA Issued: June 20, 2000 Phone 704-372-1228 Revised: June 12, 2002 Fax 704-377-6131 Page 11 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

SIDE VIEw

DETECTOR

UP TO 18 H (450MM) TALL

CENTERED DISTANCE BETWEEN CENTER LINES SHALL NOT EXCEED 6.00· (l5Omm) I· 4003" 0001MM) UP TO 60" 0500MM) MAXIMUM

GREATER THAN 18.03" UP TO

TEST LIGHT TO BE 34" (451MM-865MM) TALL CENTERED BETWEEN 18" 18" DETECTORS AS SHOWN. TEST LIGHT CAN BE (450MM) (450MM) LOCATED 0" TO 6" OFF TEST MAX MAX OF VERTICAL CENTERLINE. LIGHT

1---__ 1 4003" 0001MM) UP TO I 60" 0500MM) MAXIMUM

8" (200MM) SIDE VIEw I----t

GREATER THAN 8" (200MM) 34.03" UP TO 40" 18" (866MM-1320MM) (450MM) 40" mI i TALL MAX OOOOMM) i 18" MAX i i (450MM) I MAX I i 8" (200MM) i r-----; DISTANCE BETWEEN CENTER LINES I- ,I SHALL NOT EXCEED 6.00· (l5Omm) 40.03" 0001MM) UP TO 60" 0500MM) MAXIMUM

Detector Placement For Square Or Rectangular Waste Air Ducts 40.03" (1001mm) To 60" (1500mm) Wide Figure 3.6

Part #: ARGD00059 2301 Distribution Street Issued: June 20, 2000 Charlotte, NC 28203 USA Revised: June 12, 2002 Phone 704-372-1228 Page 12 Fax 704-377-6131 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

3.2.4 Recommended Spacing On Material Transfer Conveyors:

Refer to Figure 3.7 for a diagram of the recommended spacing of detectors for protecting a conveyor belt. For a conveyor less than 48" (1200mm) wide, two detectors shall be placed 18" (450mm) to 36" (900rnm) above the surface of the conveyor. The detectors shall not be more then 24" (600mm) apart from each other and spaced so that detectors cone of vision (90 degrees) overlaps the material being transported on the conveyor.

NOTE: It may be necessary to construct a hood or cover over the conveyor to keep the light level below the allowable limit of the detectors (10 foot candles), otherwise the system may experience unwanted alarms.

For conveyors wider than 48" (1200mm) additional detectors must be used to protect the material being transported by the conveyor.

UPTO r-- 24" (600mm) 1 -.-----Q Q / / / " / " / 90'/" 18" - 36" / " / / " OVERLAP POINT (450-900mm) / / / / " " 'SEE NOTE " " / / /" " / / M)TERIAL BEING TRANSpo'R-~,m" " "" / / / / " "" " / ---'--__---L-----C/X "" UPTO I 48· (1200mm) -----l

Detector Placement For Conveyor Belts Up To 48" (1200mm) Wide Figure 3.7

2301 Distribution Street Part #: ARGD00059 Charlotte, NC 28203 USA Issued: June 20, 2000 Phone 704-372-1228 Revised: June 12, 2002 Fax 704-377-6131 Page 13 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

3.3 WIRING

All wiring from control panel to the Argus Infrared detectors shall be 16 AWG (1.4mm) and shall be run in it's own steel (flexible or rigid) conduit. Recommended wire colors can be found in Table 3.3.

Table 3.3 Recommended Wire Colors

TERMINAL FUNCTION WIRE COLOR 1 Negative (Return) Black 2 Signal White 3 Positive Red 4 Annunciator Orange

GND Ground Green

NOTE: The annunciator wire is only required when the detector is being connected to either the Odyssey Fire Control system or an annunciator panel.

Each zone of detectors (refer to specific control panel manual for allowable number of detectors per zone) is connected in series to the control panel. With the control panel and detectors properly located and all power removed, pull the required wires through the appropriate sized conduit and terminate the wire at the proper detector. Leave extra wire at both ends to allow for connecting the wires to the device.

CAUTION: Do not twist together leads or use continuous wire to connect detectors in series. Wires must terminate and begin from each detector's terminal strip. Failure do so could result in system malfunction or unreported trouble signals. Refer to Figure 3.8

ARGUS nR£ CONTROL 230' DlsmlBUTlQN 5T CHARLonE. N.C. USA

Detector Wiring Figure 3.8

Part #: ARGD00059 2301 Distribution Street Issued: June 20, 2000 Charlotte, NC 28203 USA Revised: June 12, 2002 Phone 704-372-1228 Page 14 Fax 704-377-6131 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

3.3.1 Annunciator Wiring For 242 and 243 Detectors:

The annunciator of the Argus 242 or 243 detectors provides a 24-volt DC signal back to an annunciator panel to indicate which detector has gone into alarm. In this application each detector will have it's own dedicated annunciator lead. (Refer to Figure 3.9). Therefore, when sizing conduit the number of wires will increase with each detector going back to the panel. Each annunciator lead should be marked as to what detector it is connected to. If an annunciator panel is not being utilized then the annunciator terminal will not be used.

CAUTION: When the Argus 242 or 243 detectors are used in the Odyssey Fire Control System, a PIC adaptor must be installed on each detector and the annunciator wire is to be wired in series as described in section 3.3.2. Failure to do so will damage to the Odyssey Fire Control system.

2~VDCONLY -- 24VDCONLY -- BLACK- WHITE-· ~ Iz~ ~IIN<:CI ~ 1~lll~1 IF I I RED -1- I I ri""lri'lri""'ri n I I I I (]) @11~JI(§)11 I I (]) (§) r'-----1 I TO NEXT - BLACK I u L':t===--=~rttT~m~ m DETECTOR OR - WHITE ===:t:==-_U::J UUU I I I "LA' ;:: z CONTROL PANEL - RED -r----t------' 86 - ORANGE -J--+--=A=RG=US::-:2=42=DE=TE="CTOR ARGUS 243 DETECTOR I 1 WHI E ~ ~ 1==t===~~~~==l=t===t=±------t=------.J -ORANGE m zm REEN l' ARGUS FIRE CONTROL 1 ARGUS FIRE CONTROL RED'-r---_---' 2301 DiSTRIBUTION ST 2301 DISTRIBUTION ST I CHARLOTTE N.C. USA CHARLOTTE N.C. USA

LAST DETECTOR OF DETECTOR STRING Argus 242 and 243 Infrared Detector Wiring (except Odyssey System) Figure 3.9

3.3.2 Detector Annunciator Wiring For Odyssey Fire Control Systems:

When connecting the detectors to the Odyssey Fire Control System the function of annunciator lead is different than non-Odyssey systems, in that the return voltage is not a 24 volt DC signal, but a voltage that identifies the detector to the control panel.

Each detector of a zone is wired in series (daisy chain fashion) to that zone's panel connection, therefore there will only be one (1) annunciator wire per zone.

2301 Distribution Street Part #: ARGD00059 Charlotte, NC 28203 USA Issued: June 20, 2000 Phone 704-372-1228 Revised: June 12, 2002 Fax 704-377-6131 Page 15 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation .ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

Argus 343 detectors do not require any additional adapters except for the end-of-line module on the last detector of that zone string (See Figure 3.10). Argus 242 and 243 detectors, in addition to the End-of-Line Module, require a PIC Adapter (PIN ARG ODP1) with each 242 or 243 detector. Refer to Figure 3.11 for wiring details.

-'I ,''"OCO'" BLACK -+-, If,-, WHITE-f- --':ll RED -I- ORANGE ~=I~ ~=~ I~ 1~111~1 I I I - +1 II (J)®®®I~I~ I (J) VIIII-/IIII®IIII@ II~II ,--L------, I TO NEXT - BLACK --+ U-'I U I U I U II m DETECTOR OR - WHITE '-j----' I lj I BLA ;K ;:;Z CONTROL PANEL RED --+---t------1 0 9 WHITE 0 0 - ORANGE ARGUS 343 DETECTOR ARGUS 343 DETECTOR U ,....,....c7' m Z ---GREEN m -+------t-r1.------+--+-----+---t'lARGUS FIRE CONTROL ARGUS FIRE CONTROL RED 2301 DISTRIBUTION ST 2301 DISTRIBUTiON ST CHARLOnE N.C. USA CHARLOnE N.C. USA

LAST DETECTOR OF DETECTOR STRING

Argus 343 Infrared Detector Wiring Figure 3.10

.~-- --

©® ~® PIC ADAPTER PIC ADAPTER 24VDC ONLY 24VDCONLY ORANGE BLACK WHITE] --t=;'YELLOW U BLACK ~ BLACK r ~. ~OW r WHITE-I WHITE RED - ~ I I ~ I~ ~II ~I I I I I~TEI11~ 0Vl I I 0Vl I

I (J) ® ® ~ I I (J) II@ ® ~ --ORANGE ® ® TO NEXT - BLACK BLA ;K m DETECTOR OR - WHITE I ;:;Z CONTROL PANEL - RED Ilj 0 9 0 WHII~ 0 ARGUS 242 DETECTOR ARGUS 243 DETECTOR 1 c7',....,.... m ---GREEN mz ARGUS FIRE CONTROL ARGUS FIRE CONTROL RED 2301 DISTRIBUTION ST 2301 DISTRIBUTION ST 11 CHARLOnE N.C. USA 1 CHARLonE N.C. USA

LAST DETECTOR OF DETECTOR STRING Argus 242 and 243 Infrared Detector and PIC Adapter Wiring Figure 3.11

Part #: ARGD00059 2301 Distribution Street Issued: June 20, 2000 Charlotte, NC 28203 USA Revised: June 12, 2002 Phone 704-372-1228 Page 16 Fax 704-377-6131 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL

4.0 MAINTENANCE:

CAUTION: DIRECT OR INDIRECT EXPOSURE TO AMBIENT LIGHT WILL CAUSE THE DETECTOR TO GO INTO ALARM. ALL HOLES (FOR TESTING) AND CRACKS MUST BE SEALED WITH THICK BLACK TAPE, OR OTHER SUITABLE MEANS SO AS TO NOT LET LIGHT INTO THE DUCT.

WARNING: PLACING THE DETECTORS INTO ALARM WILL CAUSE THE CONTROL PANEL TO GO INTO ALARM, DISCHARGE THE EXTINGUISHING AGENT AND SHUT DOWN THE PROCESS BEING PROTECTED. CONSULT WITH THE CONTROL PANEL MANUAL OR YOUR ARGUS REPRESENTATIVE AS TO THE BEST WAY TO DISABLE THE EXTINGUISHER AND SHUTDOWN CIRCUITS BEFORE TESTING DETECTORS.

The Argus Infrared Detector sensitivity is preset at the factory. Simple testing with an infrared test light and cleaning of the detector lens is all that should be required after installation. Argus strongly recommends that each detector be tested at a regular interval, such as, during monthly visual inspections. At no time should each detector go more than six (6) months without being ''test fired". Lenses should be checked and wiped cleaned periodically with a soft non-abrasive cloth. In applications where tints or dyes are used the lens should be inspected more frequently and cleaned as required.

The method for test firing each detector should be by placing each detector into alarm, thereby putting the control panel into alarm (See Warning). The recommended method of putting a detector into alarm is by placing a small hole (3mm or 14 inch) in the duct near each detector so that the Argus infrared test light (Part Number: ARGD00018) can be shined into the duct at each detector (See Caution). Once the detector is placed into alarm it should light the red LED on the detector and place the control panel into alarm, sounding a bell and lighting a strobe. If the red LED or control panel does not indicate an alarm status, further troubleshooting should be performed to determine the source of the problem. Consult with your Argus manuals andlor Argus representative if a solution is not readily obtainable. If the panel does not indicate alarm when signaled, then the fire protection system is not operating within specifications and the protected process must be shutdown.

The Argus Odyssey Fire Control System uses for each group of detectors a mounted 880-nanometer infrared test light (PIN - ARGD001 01 *) to automatically test the detectors. The testing can be programmed to occur at different intervals ranging from daily to weekly testing. If authorized or configured, the Odyssey system will allow manual testing of all detectors in the system by pushing a single switch. If any detector fails this system wide test it will be noted in the monitor panel and indicate to the user the location of the failed detector(s). Any detectors that are shown to have failed the test must be inspected for possible lens obstruction, wiring fault, or other malfunction. If the detector failure cannot be found or repaired the detector must be replaced.

NOTE: Consult with the Odyssey Fire Control System instruction manual or Argus Fire Control for additional details.

After a fire or alarm the detector lens must be inspected for damage. If the lens or the detector shows any signs of scorching or other damage the detector should be replaced. Note, since damage to detector may not be visible, Argus Fire Control highly recommends that a test of the detector be conducted. Also,

2301 Distribution Street Part #: ARGD00059 Charlotte, NC 28203 USA Issued: June 20, 2000 Phone 704-372-1228 Revised: June 12, 2002 Fax 704-377-6131 Page 17 e-mail: [email protected] ARGUS INFRARED DETECTOR Installation, Operation ARGUS SERIES 242, 243 & 343 and Maintenance Manual FIRE CONTROL before resetting detector(s) an investigation of the cause should be conducted in effort to eliminate future occurrences.

No internal maintenance is required unless the unit does not respond to the test light, in which case the unit should be replaced and returned to Argus Fire Control.

ON/OFF POTENTIOMETER SWITCH

FlASHING RED INDICATOR LIGHT

880 nM INFRARED LED

Argus Detector Test Light (PIN: ARGD00018) Figure 4.1
