Dynamic Buckling of Columns Due to Slamming Loads D. Karagiozova*, N

Total Page：16

File Type：pdf, Size：1020Kb

Download full-text PDF Read full-text

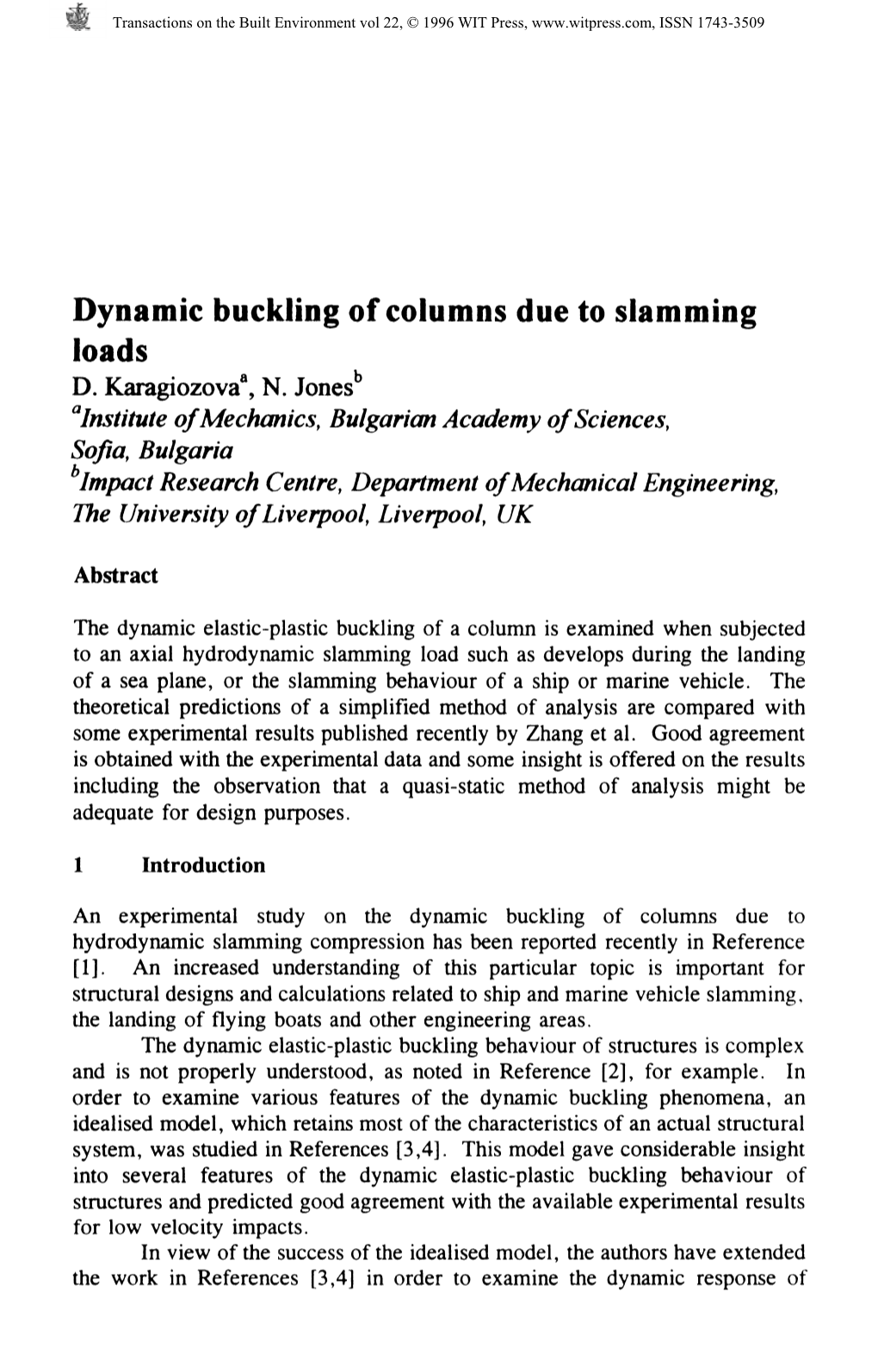

Dynamic Buckling of Columns Due to Slamming Loads D. Karagiozova*, N Transactions on the Built Environment vol 22, © 1996 WIT Press, www.witpress.com, ISSN 1743-3509 Dynamic buckling of columns due to slamming loads D. Karagiozova*, N. Jones* ^Institute of Mechanics, Bulgarian Academy of Sciences, Sofia, Bulgaria ^Impact Research Centre, Department of Mechanical Engineering, The University of Liverpool, Liverpool, UK Abstract The dynamic elastic-plastic buckling of a column is examined when subjected to an axial hydrodynamic slamming load such as develops during the landing of a sea plane, or the slamming behaviour of a ship or marine vehicle. The theoretical predictions of a simplified method of analysis are compared with some experimental results published recently by Zhang et al. Good agreement is obtained with the experimental data and some insight is offered on the results including the observation that a quasi-static method of analysis might be adequate for design purposes. 1 Introduction An experimental study on the dynamic buckling of columns due to hydrodynamic slamming compression has been reported recently in Reference [1]. An increased understanding of this particular topic is important for structural designs and calculations related to ship and marine vehicle slamming, the landing of flying boats and other engineering areas. The dynamic elastic-plastic buckling behaviour of structures is complex and is not properly understood, as noted in Reference [2], for example. In order to examine various features of the dynamic buckling phenomena, an idealised model, which retains most of the characteristics of an actual structural system, was studied in References [3,4]. This model gave considerable insight into several features of the dynamic elastic-plastic buckling behaviour of structures and predicted good agreement with the available experimental results for low velocity impacts. In view of the success of the idealised model, the authors have extended the work in References [3,4] in order to examine the dynamic response of Transactions on the Built Environment vol 22, © 1996 WIT Press, www.witpress.com, ISSN 1743-3509 312 Structures Under Shock And Impact systems having higher degrees of freedom for high velocity impacts [5]. Again, good agreement has been obtained between the theoretical predictions and the corresponding experimental results. The theoretical studies reported in References [3-5] and elsewhere have focused on the dynamic elastic-plastic buckling response due to dynamic pressure pulses or dropped weight loadings. Thus, the experimental data reported in Reference [1] on the hydrodynamic slamming behaviour of a column provides an opportunity to examine the accuracy of the idealised model response for another type of loading and boundary condition. It is the objective of this article to compare the predictions of the model in Figure 1 with the experimental results reported in Reference [1] and, in so doing, clarify some aspects of the experimental observations. 2 Loading conditions and specimen characteristics The experimental data reported in Reference [1] are used to determine the hydrodynamic slamming force acting on the column in Figure 1 as well as to estimate the ability of the model to predict the dynamic response of such structural elements. The column in Reference [1] is loaded by heavy mass G attached to the upper end and with a splash plate at the lower end, thus providing clamped boundary conditions at both ends. The unit is dropped onto a water surface from a series of increasing heights. It is assumed here that upon initial contact with the water, the column and the attached mass have an initial velocity v<, = (2gH)\ where H is the drop height and that at t = 0 the slamming force, P(t), commences to subject the column to a compression load. It is observed experimentally [1], that the axial compression force is essentially a semi-sine wave within the elastic range of deformation, so that the following expression for the slamming force is assumed [6] , (1) where 2T is the wave period, t is time and p^ is determined by /'map x =t**/o ' (2) The empirical coefficient k in equation (2) is obtained using the experimental results reported in [1] when considering the wholly elastic response due to a slamming load of two specimens having equal cross-sections but different total lengths of £ = 600 mm and £ = 400 mm. It is observed in [1] that the shorter column responds with a shorter pulse and a larger magnitude, while the response of the longer column is characterised by a longer pulse with a smaller magnitude. Using this observation, it is assumed that the pulses acting on columns having different slenderness ratios should be equal for equal drop heights, so that Transactions on the Built Environment vol 22, © 1996 WIT Press, www.witpress.com, ISSN 1743-3509 Structures Under Shock And Impact 313 W, JSI w. w. P(t) Initial Deformed (a) cr Loading Unloading L_ Reloading (b) Figure l:(a) Discrete model: w,-axial displacements, w^-lateral displacements, vv. - initial imperfections; (b) Material characteristics Transactions on the Built Environment vol 22, © 1996 WIT Press, www.witpress.com, ISSN 1743-3509 314 Structures Under Shock And Impact = f In the present study, an elastic-plastic column having f = 400 mm and a rectangular cross-section with dimensions h = 7.7 mm and b = 14.6 mm is considered. The maximum initial imperfection measured in the narrow direction of the cross-section is w^ = 0.25 mm (specimen S31 from [1]). The material characteristics are assumed to be elastic-plastic with linear strain hardening as shown in Figure l(b) and with an elastic modulus E = 206 GPa, yield stress o^ = 263 MPa, elastic wave speed c = 5190 m/sec and a ratio between the hardening modulus and the elastic modulus of E^/E = 0.006. For these particular parameters, the peak value of the slamming force is P^ = 12700v* (TV) , (4) when T = 15 msec [1] and v<, is expressed in m/sec. The idealised model in Figure l(a) consists of N rigid weightless links each of length L connected by springs simulating the material properties. The breadth of the model is Lj = h/2, where h is the thickness of the column. The model has stress-free initial imperfections Wj (i = 0, ..., N) and a total mass, mj, which is distributed as discrete masses m = m/2N at each end of a rigid link. It is assumed that all of the springs have identical characteristics and simulate an elastic-plastic material with linear strain hardening and the Bauschinger effect (Figure l(b)). Strain rate effects are not taken into account. The equations of motion are developed assuming moderate changes in the geometry of the model, so that [(Wj + w,) - (Wj.j + WJ_I)]/L = sin0j « fy, where w^ + Wj are the total displacements at location i (i — 0, ..., N). 3 Response of the model and discussion The idealised model in Figure 1 was used to predict the exhaustion of the load carrying capacity of an elastic-plastic column when it is subjected to a slamming load. It is assumed that the model consists of N = 12 rigid links as higher dynamic buckling models are unlikely for the column in Reference [1]. The boundary conditions are assumed clamped at both ends with respect to the lateral displacements w^ but displacements in the axial direction are allowed at both ends. The numerical calculations reveal that the model in Figure 1 responds initially with an axial compression followed by an overall bending in the fundamental mode. The axial strains are distributed uniformly along the column during the compression phase until they reach their maximum values. A comparison between the model predictions for the axial strain history near the impacted end (at 33.4 mm from the lower end), and the experimentally measured axial strains at 50 mm from the lower end, is shown in Figure 2. Transactions on the Built Environment vol 22, © 1996 WIT Press, www.witpress.com, ISSN 1743-3509 H = 60mm -000087 H = 70mm 40 60 t (msec) (b) Cc ~ H = 85mm ^ -0.00087 H = 90mm 7 A\ -0.00087 #- 0 0 0 \J^ 40~" 60 0 PV> ...- \, 0 ^^"~*"40 60 X t (msec) t (msec) /«\ ^L (d) 1 Figure 2 Axial strain histories near the impacted end for different drop heights model predictions, experimental results [ 1 ] Transactions on the Built Environment vol 22, © 1996 WIT Press, www.witpress.com, ISSN 1743-3509 316 Structures Under Shock And Impact The sequence of the drop heights follows the experiments [1], namely H = 40 mm, 50 mm, 60 mm, 70 mm, 85 mm and 90 mm. For drop heights less than 70 mm, buckling does not occur and only elastic vibrations are observed as shown in Figure 3(a). Strains beyond the elastic limit occur at the middle of the column for H = 70 mm and they are present in the spring which models the inside of the cross-section (spring 1) (Figure 3(b)). However, these strains do not lead to a change of the initial shape of the column, so that, the next drop from H = 85 mm is performed again on an undeformed column. In this case, the slamming load causes significant plastic bending deformations at the middle of the column (springs 1 and 2) and produces the deformed shape of the column shown in Figure 4(a). The associated maximum transverse displacement at the middle is w = 1.34 mm. Buckling of the model having the particular parameters considered occurs plastically according to the buckling criterion developed in [5] when v^ = 1.27 m/s, which corresponds to a drop height H ~ 78 mm. However, this does not lead to a collapse of the column, but only to a stable deformed shape. It was shown in [5], that for a column with a particular attached mass, G, there is a range of impact velocities beyond the velocity at which buckling is initiated when the elastic-plastic column does not collapse, but responds in a new stable deformed position.
Load more

Recommended publications
  • 10-1 CHAPTER 10 DEFORMATION 10.1 Stress-Strain Diagrams And
    EN380 Naval Materials Science and Engineering Course Notes, U.S. Naval Academy CHAPTER 10 DEFORMATION 10.1 Stress-Strain Diagrams and Material Behavior 10.2 Material Characteristics 10.3 Elastic-Plastic Response of Metals 10.4 True stress and strain measures 10.5 Yielding of a Ductile Metal under a General Stress State - Mises Yield Condition. 10.6 Maximum shear stress condition 10.7 Creep Consider the bar in figure 1 subjected to a simple tension loading F. Figure 1: Bar in Tension Engineering Stress () is the quotient of load (F) and area (A). The units of stress are normally pounds per square inch (psi). = F A where: is the stress (psi) F is the force that is loading the object (lb) A is the cross sectional area of the object (in2) When stress is applied to a material, the material will deform. Elongation is defined as the difference between loaded and unloaded length ∆푙 = L - Lo where: ∆푙 is the elongation (ft) L is the loaded length of the cable (ft) Lo is the unloaded (original) length of the cable (ft) 10-1 EN380 Naval Materials Science and Engineering Course Notes, U.S. Naval Academy Strain is the concept used to compare the elongation of a material to its original, undeformed length. Strain () is the quotient of elongation (e) and original length (L0). Engineering Strain has no units but is often given the units of in/in or ft/ft. ∆푙 휀 = 퐿 where: is the strain in the cable (ft/ft) ∆푙 is the elongation (ft) Lo is the unloaded (original) length of the cable (ft) Example Find the strain in a 75 foot cable experiencing an elongation of one inch.
    [Show full text]
  • Impact of Flow Velocity on Surface Particulate Fouling - Theoretical Approach
    Journal of American Science 2012;8(9) http://www.jofamericanscience.org Impact of Flow velocity on Surface Particulate Fouling - Theoretical Approach Mostafa M. Awad Mech. Power Eng. Dept., Faculty of Engineering, Mansoura University, Egypt [email protected] Abstract: The objective of this research is to study the effect of flow velocity on surface fouling. A new theoretical approach showing the effect of flow velocity on the particulate fouling has been developed. This approach is based on the basic fouling deposition and removal processes. The present results show that, the flow velocity has a strong effect on both the fouling rate and the asymptotic fouling factor; where the flow velocity affects both the deposition and removal processes. Increasing flow velocity results in decreasing both of the fouling rate and asymptotic values. Comparing the obtained theoretical results with available experimental ones showed good agreement between them. The developed model can be used as a very useful tool in the design and operation of the heat transfer equipment by controlling the parameters affecting fouling processes. [Mostafa M. Awad. Impact of Flow velocity on Surface Particulate Fouling - Theoretical Approach. J Am Sci 2012;8(9):442-449]. (ISSN: 1545-1003). http://www.jofamericanscience.org. 62 Keywords: Surface fouling, flow velocity, particle sticking, mass transfer. 1. Introduction increasing the flow velocity. They also found that the Fouling of heat transfer surface is defined as the asymptotic fouling factor is very sensitive to the flow accumulation of unwanted material on the heat transfer velocity especially at low flow velocities where this surface. This accumulation deteriorates the ability of sensitivity decreases with increasing flow velocity.
    [Show full text]
  • Ductile Brittle Transition
    XIX. EVALUATION OF DUCTILE/BRITTLE FAILURE THEORY, DERIVATION OF THE DUCTILE/BRITTLE TRANSITION TEMPERATURE Introduction The ductile/brittle transition for failure with all of its implications and ramifications is one of the most widely observed and universally acknowledged physical effects in existence. Paradoxically though it also is one of the least understood of all the physical properties and physical effects that are encountered in the world of materials applications. Critical judgments are made on the basis of experience only, purely heuristic and intuitive. The resolution of the ductile/brittle transition into a physically meaningful and useful mathematical form has always been problematic and elusive. It often has been suggested that such a development is highly unlikely. The rigorous answer to this question remains and continues as one of the great scientific uncertainties, challenges. The long time operational status of ductile/brittle behavior has reduced to a statement of the strain at failure in uniaxial tension. If the strain at failure is large, the material is said to be ductile. If the strain at failure is small, it is brittle. Loose and uncertain though this is, it could be general, even complete, if the world were one-dimensional. But the physical world is three-dimensional and in stress space it is six or nine dimensional. Even more complicating, some of the stress components are algebraic. So the problem is large and difficult, perhaps immensely large and immensely difficult. To even begin to grapple with the ductile/brittle transition one must first have a firm grasp on a general and basic theory of failure.
    [Show full text]
  • Little Book of Dynamic Buckling
    . Little Book of Dynamic Buckling Herbert E. Lindberg September 2003 LCE Science/Software 1 Preface A graduate program in mechanics (often part of aero/astronautical, civil or mechanical engineering) generally includes a short series on elastic stability of structures. Within the confines of available time, focus is on stability under static loading, with dynamic loading from earthquakes, aerodynamics, impact and so on touched on only briefly except for students with thesis topics in these areas. This short book is intended as a brief introduction to dynamic buckling that can be covered in the limited time available in a broad graduate program. It is small and inexpensive enough that the student can own his or her own copy, rather than simply taking notes during lectures extracted by the teacher from the several full-size texts available on this topic, including one by the present author. The book introduces concepts of dynamic buckling in the simplest possible context for each phenomenon. The phenomena treated all fall under the definition of dynamic stability of structures under time-varying parametric loading. The goal is met by treating simple bars under axial loads, rings under lateral pulse loads, and cylindrical shells under radial and axial loads. The present document includes only a general introduction and then comprehensive presentation of theory and experimental data for bars under static and impact loads. Sections on rings and shells will be made available as orders are received. In all cases motion is precipitated by inevitable imperfections in structural shape. Sometimes these appear as a simple parameter, as in the eccentricity of impact.
    [Show full text]
  • On Impact Testing of Subsize Charpy V-Notch Type Specimens*
    DISCLAIMER This report was prepared as an account of work sponsored by an agency of the United States Government. Neither the United States Government nor any agency thereof, nor any of their employees, makes any warranty, express or implied, or assumes any legal liability or responsi• bility for the accuracy, completeness, or usefulness of any information, apparatus, product, or process disclosed, or represents that its use would not infringe privately owned rights. Refer• ence herein to any specific commercial product, process, or service by trade name, trademark, manufacturer, or otherwise does not necessarily constitute or imply its endorsement, recom• mendation, or favoring by the United States Government or any agency thereof. The views and opinions of authors expressed herein do not necessarily state or reflect those of the United States Government or any agency thereof. ON IMPACT TESTING OF SUBSIZE CHARPY V-NOTCH TYPE SPECIMENS* Mikhail A. Sokolov and Randy K. Nanstad Metals and Ceramics Division OAK RIDGE NATIONAL LABORATORY P.O. Box 2008 Oak Ridge, TN 37831-6151 •Research sponsored by the Office of Nuclear Regulatory Research, U.S. Nuclear Regulatory Commission, under Interagency Agreement DOE 1886-8109-8L with the U.S. Department of Energy under contract DE-AC05-84OR21400 with Lockheed Martin Energy Systems. The submitted manuscript has been authored by a contractor of the U.S. Government under contract No. DE-AC05-84OR21400. Accordingly, the U.S. Government retains a nonexclusive, royalty-free license to publish or reproduce the published form of this contribution, or allow others to do so, for U.S. Government purposes. Mikhail A.
    [Show full text]
  • RAM Guard Column Protector
    by Ridg-U-Rak Steel Reinforced Rubber Guard Superior Column Protection RAMGuard™ provides superior rack column protection with its patented Rubber Armored Metal design. Molded of energy absorbing rubber with a “U-shaped” steel insert and force distributing rubber voids, RAMGuard absorbs significantly more energy during impact than most column protection devices offered today. RAMGuard Advantages The 12” high RAMGuard snaps onto • Protects rack structures from frontal, angled and side impacts rolled or structural steel columns • Significantly lowers impact damage to pallet rack columns 3” wide and up to 3” deep. • Requires no hardware or straps to retain the guard on column • Endures many impacts with no loss of performance • Significantly outperforms most plastic guards commonly used today Ph: 814.347.1174 • Email: [email protected] • Website: TheRAMGuard.com RG-2 RAMGuard Design Maximum Impact Resistance by Design Molded of Energy There is a wide range of products designed to Absorbing Rubber help protect pallet rack columns from the everyday abuses that commonly occur in busy warehouse U-Shaped environments. These products include steel Steel Insert reinforced columns, slant-back or offset frames, floor-mounted steel guards, bumpers, barriers and after market attachable guards. Each of these serves a purpose for different applications. Aftermarket attachable guards have a variety of applications ranging from small plants with high traffic areas to large facilities where it is critical to reduce the time and cost of replacing damaged uprights… and everything in between. There are many types, kinds and sizes of guards on the market today, but none like the RAMGuard. After nearly two years of development, testing and proto-type designs, the new patented RAMGuard delivers the greatest impact resistance available in aftermarket snap-on or strap-on column guards.
    [Show full text]
  • Addressing Stress Corrosion Cracking in Turbomachinery Industry.Indd
    Addressing Stress Corrosion Cracking in the Turbomachinery Industry Stress Corrosion Cracking is a common problem affecting turbomachinery components such as rotor discs, steam turbine blades and compressor impellers, and is a major factor driving component repair. This type of cracking may lead to catastrophic failures which result in unplanned down time and expensive repairs. A comprehensive root cause failure analysis is always needed to determine and confirm the root causes. Based on the findings of the analysis, different methods can be used to alleviate the cause of stress corrosion cracking. The design of the component, operating environment and other factors should be considered when selecting a method to mitigate stress corrosion cracking. Introduction Stress corrosion cracking (SCC) is a failure that occurs in a Figure 1 shows an SEM image of a fracture surface exhibiting part when the following conditions are met: intergranular mode of propagation on an integral disk of a steam turbine rotor. 1. An alloy is susceptible to stress corrosion cracking 2. Corrosive environment Care should be exercised when attributing an intergranular 3. Sufficient level of stress mode of propagation to SCC since there are other failure mechanisms (such as creep) that lead to an intergranular At Sulzer we have analyzed multiple cases of stress corrosion mode of failure. cracking on turbomachinery parts such as steam turbine rotors, steam turbine blades, shroud bands and compressor Branching of a crack is another common characteristic of impellers. SCC and optical metallography through a fracture/crack will help identify this feature. Both modes of propagation Sometimes we work with equipment where failures have can exhibit crack branching.
    [Show full text]
  • Evaluation of Ductile/Brittle Failure Theory and Derivation of the Ductile/Brittle Richard M
    Evaluation of Ductile/Brittle Failure Theory and Derivation of the Ductile/Brittle Richard M. Christensen Professor Research Emeritus Transition Temperature Aeronautics and Astronautics Department, Stanford University, A recently developed ductile/brittle theory of materials failure is evaluated. The failure Stanford, CA 94305 theory applies to all homogeneous and isotropic materials. The determination of the duc- e-mail: [email protected] tile/brittle transition is an integral and essential part of the failure theory. The evaluation process emphasizes and examines all aspects of the ductile versus the brittle nature of failure, including the ductile limit and the brittle limit of materials’ types. The failure theory is proved to be extraordinarily versatile and comprehensive. It even allows deriva- tion of the associated ductile/brittle transition temperature. This too applies to all homo- geneous and isotropic materials and not just some subclass of materials’ types. This evaluation program completes the development of the failure theory. [DOI: 10.1115/1.4032014] Keywords: ductile, brittle, ductile/brittle transition, ductile/brittle transition temperature, materials failure, failure theory Introduction There is one exception to this quite dire state of affairs and it is the case of what are commonly called very ductile metals. The The ductile/brittle transition for failure with all of its implica- flow of dislocations embodies the essence of ductility and it has tions and ramifications is one of the most widely observed and been a very active area of study for a great many years. The many universally acknowledged physical effects in existence. Paradoxi- related papers on the ductile/brittle transition in ductile metals cally, it is also one of the least understood of all the physical prop- generally examine the emission of dislocations at crack tips to see erties and physical effects that are encountered in the world of how local conditions can influence this.
    [Show full text]
