SH. SUNIL KUMAR KALWANI DRAFT EIA REPORT EIA/EMP REPORT FOR MANGANESE ORE MINING AT ARJUNI VILLAGE, TEHSIL KATANGI, BALAGHAT DISTRICT OF MADHYA PRADESH EXECUTIVE SUMMARY

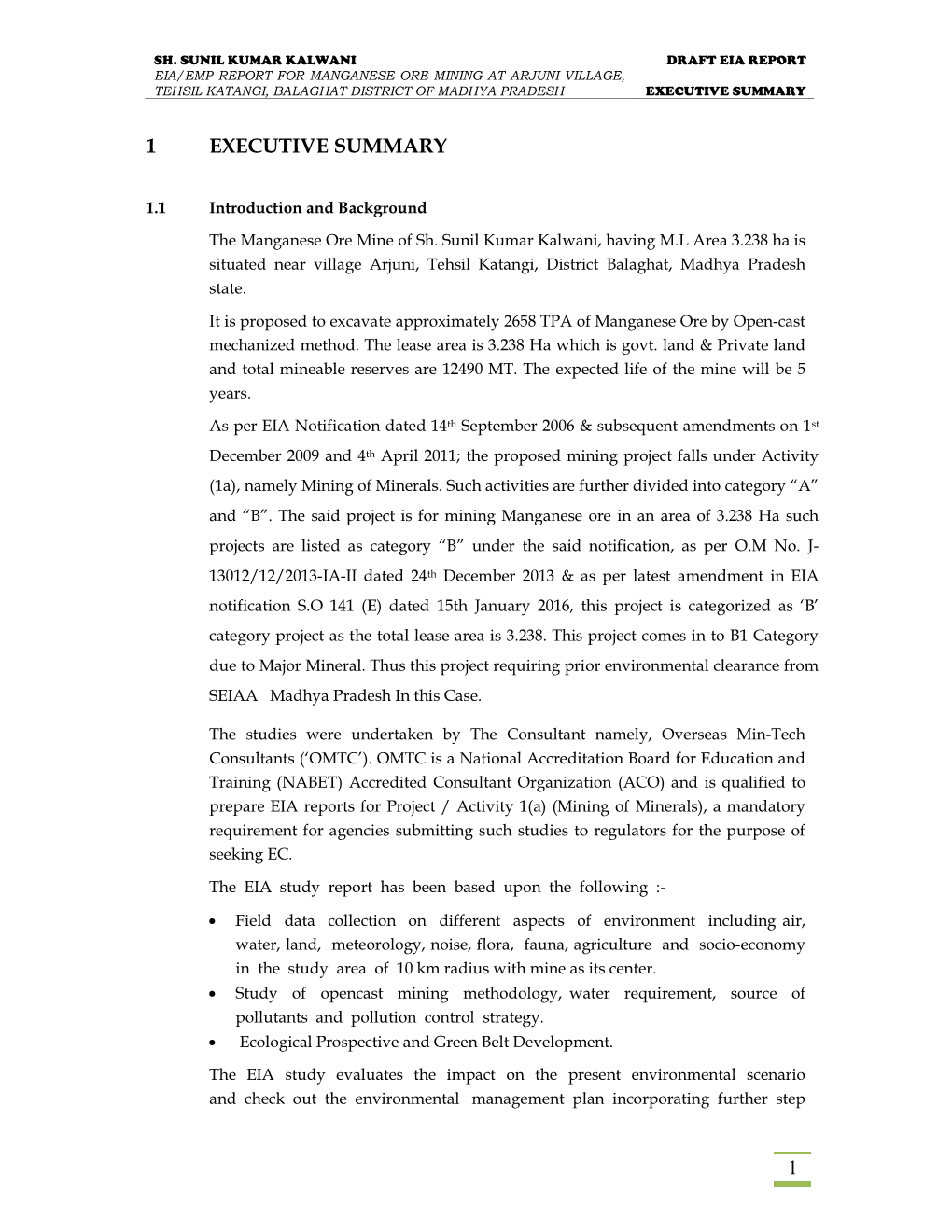

1 EXECUTIVE SUMMARY
1.1 Introduction and Background
The Manganese Ore Mine of Sh. Sunil Kumar Kalwani, having M.L Area 3.238 ha is situated near village Arjuni, Tehsil Katangi, District Balaghat, Madhya Pradesh state.
It is proposed to excavate approximately 2658 TPA of Manganese Ore by Open-cast mechanized method. The lease area is 3.238 Ha which is govt. land & Private land and total mineable reserves are 12490 MT. The expected life of the mine will be 5 years.
As per EIA Notification dated 14th September 2006 & subsequent amendments on 1st December 2009 and 4th April 2011; the proposed mining project falls under Activity (1a), namely Mining of Minerals. Such activities are further divided into category “A” and “B”. The said project is for mining Manganese ore in an area of 3.238 Ha such projects are listed as category “B” under the said notification, as per O.M No. J- 13012/12/2013-IA-II dated 24th December 2013 & as per latest amendment in EIA notification S.O 141 (E) dated 15th January 2016, this project is categorized as ‘B’ category project as the total lease area is 3.238. This project comes in to B1 Category due to Major Mineral. Thus this project requiring prior environmental clearance from SEIAA Madhya Pradesh In this Case.
The studies were undertaken by The Consultant namely, Overseas Min-Tech Consultants (‘OMTC’). OMTC is a National Accreditation Board for Education and Training (NABET) Accredited Consultant Organization (ACO) and is qualified to prepare EIA reports for Project / Activity 1(a) (Mining of Minerals), a mandatory requirement for agencies submitting such studies to regulators for the purpose of seeking EC.
The EIA study report has been based upon the following :-
Field data collection on different aspects of environment including air, water, land, meteorology, noise, flora, fauna, agriculture and socio-economy in the study area of 10 km radius with mine as its center. Study of opencast mining methodology, water requirement, source of pollutants and pollution control strategy. Ecological Prospective and Green Belt Development.
The EIA study evaluates the impact on the present environmental scenario and check out the environmental management plan incorporating further step
1 SH. SUNIL KUMAR KALWANI DRAFT EIA REPORT EIA/EMP REPORT FOR MANGANESE ORE MINING AT ARJUNI VILLAGE, TEHSIL KATANGI, BALAGHAT DISTRICT OF MADHYA PRADESH EXECUTIVE SUMMARY
to mitigate the adverse impacts of air, noise, water, land pollution on environment.
1.2 Location and Communication
The mining lease area is situated at a distance of 31.0 km NEE from Balaghat, the district headquarter. The lease area is connected to tar village road of ~ 0.50 Km, which is further connected to Katangi –Waraseoni Road of~3.0 Km NNW and the Katangi – Waraseoni connected to State Highway 54. SH 54 is ~9.50 km west from the lease area. The area is also connected by road to District headquarter Balaghat having an aerial distance of 31.0Km in NEE direction from mining lease. The nearest railway station is Katangi at a distance of 9.0 km towards NW from the mine site. Nearest Airport is Nagpur at a distance of 115.0 km in SW direction from mine site.
1.3 Project Chronology till Date
1. Sh. Sunil Kumar Kalwani submitted relevant documents, namely Form-1 (as per the EIA Notification 2006, as amended till date) along with a Pre-feasibility Report and proposed Terms of References (ToR) for carrying environmental studies, to the State Level Expert Appraisal Committee. 2. A presentation to the SEAC Madhya Pradesh, to finalize the ToR for the EIA study before EAC (M) was held on 49 meeting. The SEAC, prescribed ToR in the 49 meeting Dated 19.9.2016. 3. OMTC undertook the study during the Post Monsoon season (October, November, December) 2016, and presented the preliminary study findings in its draft EIA report.
1.4 Project Description
1.4.1 Study Area at a Glance
The study area includes the village of Katangi Tehsil within 10 km. radius from the mine as center.
Latitude : 21°45’09.6”N to 21°45’07.3”N Longitude : 79°53’08.8”E to 79°53’07.0”E Study area (10 Km. radius) : 32936.79 Hect. Population : 105939 Tehsil : Katangi District H.Q. : Balaghat
Mining will be developed by opencast mechanized method which will include excavation, loading, transport and dispatch of minerals.
2 SH. SUNIL KUMAR KALWANI DRAFT EIA REPORT EIA/EMP REPORT FOR MANGANESE ORE MINING AT ARJUNI VILLAGE, TEHSIL KATANGI, BALAGHAT DISTRICT OF MADHYA PRADESH EXECUTIVE SUMMARY
The height of the bench will be maintained at 3 meter and width of the bench will be maintained at more than 3 meter. The Manganese Ore mine will be developed by open cast mechanized mining which includes drilling, blasting, loading, transport and dispatch of mineral to end users 2658 TPA production is proposed from Manganese Ore mine. Total project cost is Rs. 0.50 Crore. Mining will commence after obtaining environmental clearance and other statutory clearance such as Consent to Establish (CTE) and Consent to Operate (CTO).
1.4.2 Utilities
Water Requirement : Around 0.30 KLD water will be used for domestic purpose, 2.3 KLD water will be used for green belt development and about 1.9 KLD for dust suppression. Thus, total requirement is 4.5 KLD. Man Power : At the time of full-fledged mining operation, the total employment will be around 31 persons.
1.5 Topography, Drainage and Regional Geology
Topographically the lease area is part of small mound, the northern part has 325m elevation while the southern part 321m thus total elevation difference is of 4m.The majority of the area has been developed with pit and dump management only the southern part have few huts. .Eastern side pit has been developed with 311mrl.The drainage of the area is towards the southern to eastern side. The lease area is connected from northern direction
1.5.1 Regional Geology
The geological sequence worked out by G.S.I. is given as under in Table 1-1.
Table 1-1: Regional Geology Age Group Formation Lithounits Amarkantak Linga formation Laterite with bauxite Four non Cainozoic Group Pipardehi Formation porphyritic blast flows Three Cretaceous - Mandla Formation simple and one compound Palaeogene unclassified basaltic flow Basalt flows Lameta Group Cherty iron ore, Feldspathic Intrusive sandstone, gritty sandstone Kotima formation Basic intrusive Khairagarh Gogra formation Quartz vein or reet/Pegmatite Group Mangikhuta formation vein Karutola formation Pink MAnganese Ore and Cretaceous Sitagota formation LeucoMAnganese Ore Bortalao Formation Andesitic Basalt Ortho quartzite Basic volcanic with tuff Conglomerate, sandstone
3 SH. SUNIL KUMAR KALWANI DRAFT EIA REPORT EIA/EMP REPORT FOR MANGANESE ORE MINING AT ARJUNI VILLAGE, TEHSIL KATANGI, BALAGHAT DISTRICT OF MADHYA PRADESH EXECUTIVE SUMMARY
Age Group Formation Lithounits Chilpi Group Bichua formation Junewani formation Slaty shale phyllites and quartize Chorbaili formation Calc – granulite, crystalline Mansar formation ironore& dolomite Muscovite – biotite schist, Sausar Group quartz –biotiteMAnganese Ore, quartz biotite – sillimanite Gneiss, quartz – biotite
schist/biotite schist and gneiss
MesoProteozoic Crystalline ironore, calc- Lohangi formation gneissess& black mangiferous
marble with some manganese ore Quartz –muscovites, feldspar- muscovite schist, quart grit, conglomerate, siltstone & pebble bed DongargarhMAnganese Sitasaongi formation Ore/Malanjkhandgranitiod
Meta –rhyolite ( Bijli ) Manganese Ore gneiss with Paalaeo Nandgaon enclaves of metasedimentries Proterozoic pink and grey gneisses and Group Amgaon Gneissic Archaen to migmatiite,greystromatic Complex/Tirodi Palaeo gneiss with anclaves of high Gneissic Complex Proterozoic grade Metamorphites& streaky gneiss Orthogenesis Enclave of metasedimentries Granulite
1.6 Mineable Reserve
Mine Life = Reserve (122) / Average production
12490 / 2658 t = 4.69 say 5 years
1.7 Mining Method
The mining will be done by open - cast semi-mechanized method of mining. It is proposed to work the deposit by open - cast semi - mechanized method of mining by forming benches of 3.0 m height and width of more than 3.0 meter. The ultimate depth of the mine workings is estimated to reach up to 15 m from surface level.
4 SH. SUNIL KUMAR KALWANI DRAFT EIA REPORT EIA/EMP REPORT FOR MANGANESE ORE MINING AT ARJUNI VILLAGE, TEHSIL KATANGI, BALAGHAT DISTRICT OF MADHYA PRADESH EXECUTIVE SUMMARY
1.8 Meteorology
1.8.1 Long Term Meteorology
Temperature
The period from March to May is one of continuous increase in temperatures. May is generally the hottest month with a mean daily maximum temperature of about 40.4°C and mean daily minimum of about 25.9°C. The weather is intensely hot in summer and on some days the day temperature may reach up to 45.2°C. The highest temperature recorded at Seoni is 45.2°C on 29th May 1988. From November, both day and night temperatures begin to decrease rapidly. January is generally the coldest month with the mean daily maximum temperature at about 26.4°C and mean daily minimum at about 12.4°C. Minimum temperature sometimes drops down to subzero temperatures and the lowest temperature recorded at Seoni is -2.8°C on 07th January 1937.
Wind
Winds were observed to be flowing from North at daytime and during evenings in summer season; during winter the predominant winds were found to be North during day and North and North East during night time.
Rainfall
As per IMD station at Seoni the rainfall in region is observed to be 1253.1 mm, bulk of rainfall is received in monsoon months from June to September. Maximum cloud cover is observed in the months of June to September.
Relative Humidity
Most humid conditions are found in the monsoons, followed by post-monsoons, winter and summer in that order.
1.8.2 Site Specific Meteorology
Site specific meteorological data has been collected during Post Monsoon season of 2016, meteorological data is collected for wind speed, wind direction, temperature, rainfall and cloud cover. Average temperature recorded during the study period was 38.2°C, average wind speed recorded was 3.2 m/sec, and rainfall is not recorded during the study period.
5 SH. SUNIL KUMAR KALWANI DRAFT EIA REPORT EIA/EMP REPORT FOR MANGANESE ORE MINING AT ARJUNI VILLAGE, TEHSIL KATANGI, BALAGHAT DISTRICT OF MADHYA PRADESH EXECUTIVE SUMMARY
1.9 Existing Environment Scenario
1.9.1 Land Use
Land Use of Mine Lease Area
At present out of the total lease area 3.238 ha 0.8825ha is excavated pit and 1.1355 ha area is undisturbed.
Land Use of the Study Area
The land use land cover map of the study area has been prepared using recent Lansat satellite image, area and distance calculations have been carried out using GIS software after geo- referencing and interpretation. Agricultural land covers an area of 24117.9739 ha out of 32936.7913 ha which is 73.22 % of the total area, water bodies cover 2.27% of the total land, Waste land constitutes about 8.58% of the total land, hill area covers 12.39%, Habitation 3.30% of total area.
1.9.2 Soil Quality
The soil sample were collected from 7 locations, the soils of the region is classified as clay loam, the samples collected for soil sampling also show the soil texture as sandy loam. Water holding capacity of the soil samples were found to vary from a low of 23.57 % to a high of 54.62%.
1.9.3 Ambient Air Quality
The major contribution to the air pollution is dust and other pollutant
present in the air are SO2 and NO2. To assess the pre mining condition ambient air monitoring was carried out.
The regional PM10 level at the proposed mining site ranges from 46.10 to 64.84
ug/m3, PM2.5 ranges from 23.50 to 36.77 ug/m3, SO2 ranges from 7.25 to 11.92 3 3 ug/m and NO2 ranges from 15.24 to 16.45 ug/m . The PM10, PM2.5, SO2 and
NO2 are within the permissible limit in the study area.
1.9.4 Noise
Ambient noise samples were collected from 7 locations in the study area; samples were collected from residential as well as industrial area (Mine site). The noise levels were found to be varying between 51.0 to56.4 dB (A) during the day time and 39.50 to 49.33 dB (A) during night time in the residential area which is well within the CPCB limits.
Noise level measured at mine site were 56.4 dB (A) during day time and 49.33 (A) during night time which are well within the CPCB limits for industrial area.
6 SH. SUNIL KUMAR KALWANI DRAFT EIA REPORT EIA/EMP REPORT FOR MANGANESE ORE MINING AT ARJUNI VILLAGE, TEHSIL KATANGI, BALAGHAT DISTRICT OF MADHYA PRADESH EXECUTIVE SUMMARY
1.9.5 Water Environment
Groundwater Resources
The ground water level in the area surrounding the lease varies from 25-30 m. The ultimate depth of the mine workings is estimated to reach up to 15 m from surface level.
Groundwater Quality
Groundwater samples were collected from 6 locations in the study area, pH for the ground water of the study area ranges from 6.53 to 7.32. The TDS (Total Dissolved Solids) were found to be in the range 468 mg/L to 1108 mg/ L which is higher than the desired limit of 500mg/L. Total Hardness was also found on the higher side (390 – 540 mg/L compared to desired limit of 200 mg/L. Alkalinity is also on 70 mg/L is higher side. All other parameters were found to be within the permissible limits of drinking water standard as per IS: 10500 (2012).
Surface Water Resources
Two Surface water sample will be taken SW1 is Pond Nr. Mine Site and SW2 is chandan river sample.
Surface Water Quality
Baseline survey was conducted during Post Monsoon season 2016. As surface water bodies present within the study area & surface water samples were collected from 2 locations for analysis.
1.9.6 Biological Environment
Ecological study is essential to understand the impact of industrialization and urbanization on existing flora and fauna of the study area. Authentication of List of flora and fauna by forest department is under-process.
There is no wildlife sanctuary, National park, Biosphere reserve, Wildlife corridors, Tiger/ Elephant reserve within 10 km radius of the mining lease.
Flora of the Study Area
Floral study was carried out during Post Monsoon season 2016; some species of plant observed during the survey are Cynodon dactylon, Tridex procumbens, Terminalia elliptica. etc, shrubs observed are Cassia fistula., Casearia tomentosa, Anogeissus latifolia etc., herbs found are Acacia nilotica, Diospyros melanoxylon, Lannea coromandelica etc.
7 SH. SUNIL KUMAR KALWANI DRAFT EIA REPORT EIA/EMP REPORT FOR MANGANESE ORE MINING AT ARJUNI VILLAGE, TEHSIL KATANGI, BALAGHAT DISTRICT OF MADHYA PRADESH EXECUTIVE SUMMARY
Fauna of the Study Area
A general faunal survey was also conducted during the Post Monsoon season 2016, No endangered/Threatened or endemic species of fauna were found in the study area. Cropping Pattern
The climatic conditions of a region affect the agriculture cropping pattern of that area. Wheat, Gram, Maize, Mustard, Bajara, Ground nut, and Jowar are major crops grown in the study area.
1.9.7 Socio Economic Status
The study area includes 59 villages within the 10 km. radius with a total population 105939 forming 25361 household as per census 2011. In the study area about 70.86 % of the total population is literates. As per census 2011, about 28.16 % of the total are main workers, 0.080 % are marginal workers & 44.63 % of the total population are non – workers.
1.10 Anticipated Environmental Impact and Mitigation Measure
1.10.1 Topography
Topography of the surrounding area will remain unchanged while that of the mining lease area will change due to mining, excavation, dumping etc.
1.10.2 Drainage
No impact on drainage pattern within or outside the lease area due to mining project.
1.10.3 Impact on Air Environment
The modeling results show that all the pollutants will remain well within the limits of National Ambient Air Quality Standards after the commencement of mining.
1.10.4 Impact on Noise Environment
The expected noise levels in the working environment are compared with standards prescribed by occupational safety and health administration (OSHA- USA) & CPCB-NEW DELHI, the noise levels are expected to be in the acceptable range.
1.10.5 Impact on Water Environment
Impact on Surface Water Quantity
No surface water will be affected due to mining activity.
8 SH. SUNIL KUMAR KALWANI DRAFT EIA REPORT EIA/EMP REPORT FOR MANGANESE ORE MINING AT ARJUNI VILLAGE, TEHSIL KATANGI, BALAGHAT DISTRICT OF MADHYA PRADESH EXECUTIVE SUMMARY
Impact on Surface Water Quality
The opencast mining operation may cause water pollution. The sources of pollution generally are:
Wash off from dumps Pumping of mine water into surface water bodies Soil Erosion
Mitigation Measures
Lessee will construct garland drain to prevent the surface runoff from mine polluting the nearby surface water body. Water filled in the pit during rainy season will be used for dust suppression and green belt development.
Impact on Groundwater Quantity
Groundwater will be used for mining activities, only 6.5 KLD water will be used during mining operation.
Impact on Groundwater Quality
Ground Water will remain unaffected due to above mining activities, as mineral or soil does not contain any harmful ingredients that could leach down to the water table and also mining activity will not intersect the ground water table. Thus, the mine workings shall not affect the ground water quality.
Mitigation Measures of Groundwater
Mining will be carried out as per the approved mining plan, mining will not intersect groundwater table as mining will be carried out above the water table.
1.10.6 Impact on Flora and Fauna
As the mining activities will be confined to core zone only, no adverse impact is foreseen on the flora & fauna in the core zone. To prevent the entry of wildlife animals from entering the lease area proper fencing will be done all around the lease area.
1.10.7 Impact on Top Soil
The soil is present in a patch of very thin layer of 0.1 m. The soil removed from the mining area has been utilized for plantation in surrounding area. Since, soil removal is a regular activity; the excess soil is stacked separately for future use. Therefore, impact on soil in the lease area will be negligible.
9 SH. SUNIL KUMAR KALWANI DRAFT EIA REPORT EIA/EMP REPORT FOR MANGANESE ORE MINING AT ARJUNI VILLAGE, TEHSIL KATANGI, BALAGHAT DISTRICT OF MADHYA PRADESH EXECUTIVE SUMMARY
Mitigation Measures for Top Soil
Top soil will be stacked properly and used for back filling and after backfilling the part of lease area will be used for plantation.
1.10.8 Impact on Socio Economic Status
There is no inhabitation within the lease area. The only employment is based on agriculture, which is seasonal. The mining operations are providing employment to 14 local persons. So, due to the above mining project there will be social upliftment in the area.
1.11 Environment Monitoring Program
The monitoring of pollutant in mine will be carried out for air, water, soil and noise. It takes care of all monitoring needs of the mine. Additionally ambient air and work zone monitoring in mine will be conducted in every season near mining operation, loading and transportation (haul road) areas by Government approved private agency. The analysis results of air monitoring will be properly recorded and submitted to the statutory authorities from time to time. Noise measurement of mine equipment will be done once in a year, ambient air monitoring will be done once in one season at three locations (1 in upwind, 1in downwind, 1 in lease area. Ambient noise monitoring will be carried out at 3 locations, 1 within the lease area, and 2 locations of nearest habitation to the lease. Water quality monitoring will be done once in season at two locations & soil quality monitoring will be done once in a year at 2 locations within the study area.
1.12 Additional Studies
1.12.1 Risk Assessment and Disaster Management Plan
The following natural /industrial problems may be encountered during the mining operation are
Inundation-filling of the mine pit due to excessive rains. Slope failures at the mine faces or stacks. Accident due to fire.
Water table will not be encountered during proposed working. No high risk accidents like landslides, subsidence flood etc. have been apprehended. But possibility of accidental disaster is also not ruled out. Therefore, all the statutory precautions will be taken for quick evacuation as per the Mines Act 1952, the Mines Rules 1955, Rule of MMR- 1961 and the Rules of MCDR-1988.
10 SH. SUNIL KUMAR KALWANI DRAFT EIA REPORT EIA/EMP REPORT FOR MANGANESE ORE MINING AT ARJUNI VILLAGE, TEHSIL KATANGI, BALAGHAT DISTRICT OF MADHYA PRADESH EXECUTIVE SUMMARY
1.13 Environment Management Plan
The environment management plan is prepared with a view to facilitate effective environmental management of the project. Apart from having an Environmental Management Plan, environment management cell consisting of mines manager, safety officer and environmental officer is constituted. A total of INR 2,51,750/- would be spent on environment management activities every year.
1.14 Project Benefits
The surrounding inhabitants around the mine lease area are mainly agricultural oriented. Opportunities for jobs activities will be created and mining will serve as a source of permanent livelihood. The mine will create employment directly or indirectly. Additional, certain works like transportation will be outsourced on contract. So, overall effect of mining is expected to be positive.
11
