Electrochemical Cells

Total Page：16

File Type：pdf, Size：1020Kb

Download full-text PDF Read full-text

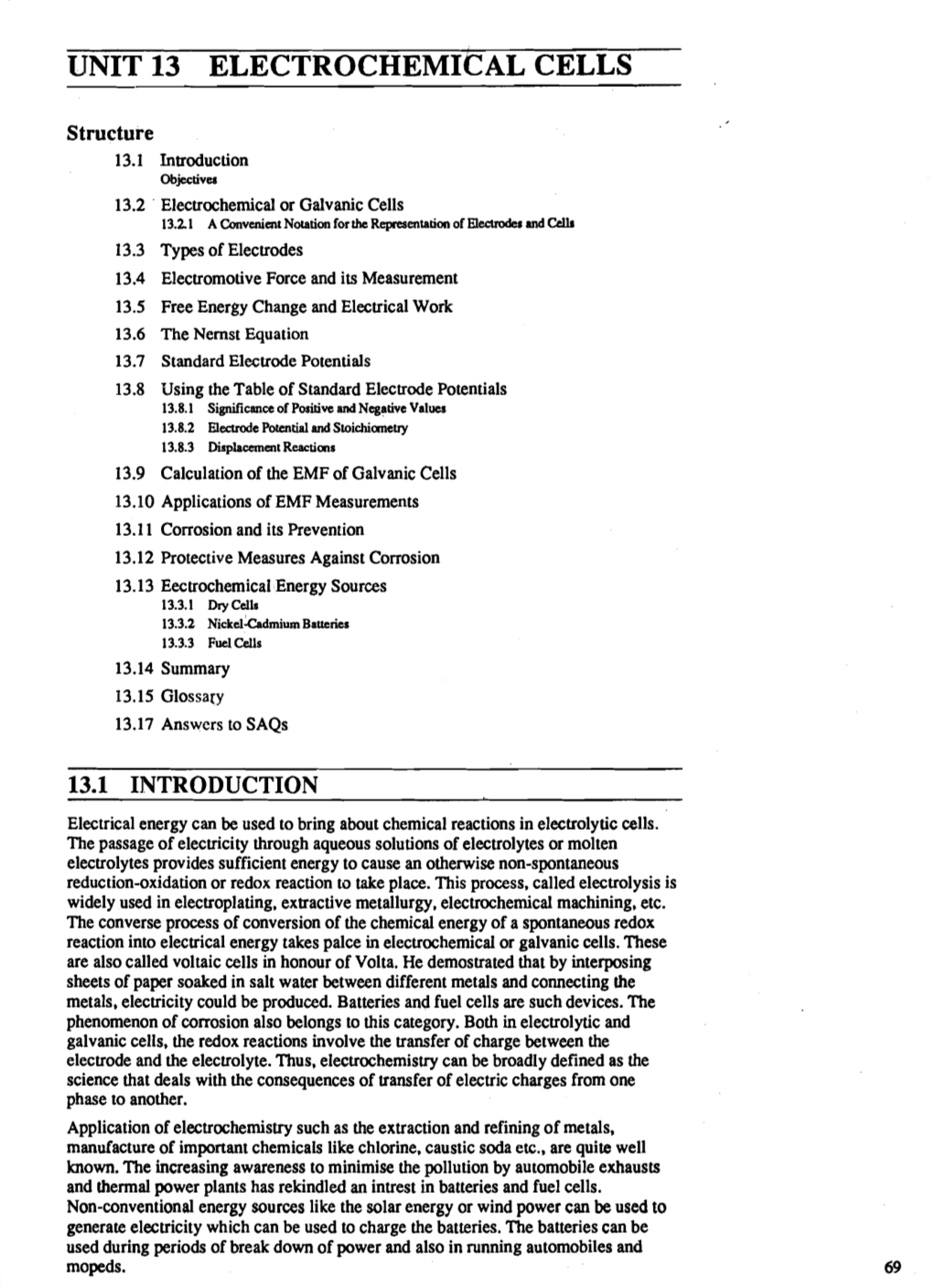

Electrochemical Cells ELECTROCHEMICAL CELLS Structure 13.1 Introduction Objective8 13.2 Electrochemical or Galvanic Cells 13.2 1 A Convenient Notation for UIC Representation of El& and Ceb 13.3 Types of Electrodes 13.4 Electromotive Force and its Measurement 13.5 Free Energy Change and Electrical Work 13.6 The Nernst Equation 13.7 Standard Electrode Potentials 13.8 Using the Table of Standard Electrode Potentials 13.8.1 SigniT~canceof Positive and Negative Values 13.8.2 Elearode Potential and Stoichimetry 13.8.3 Displacement Reacriom 13.9 Calculation of the EMF of Galvanic Cells 13.10 Applications of EMF Measurements 13.1 1 Corrosion and its Prevention 13.12 Protective Measures Against Corrosion 13.13 Eec trochemical Energy Sources 13.3.1 Dry Cells 13.3.2 Nickel-CadmiumBatteries 13.3.3 Fuel Cells 13.14 Summary 13.15 Glossary 13.17 Answers to SAQs 13.1 INTRODUCTION Electrical energy can be used to bring about chemical reactions in electrolytic cells. The passage of electricity through aqueous solutions of electrolytes or molten electrolytes provides sufficient energy to cause an otherwise non-spontaneous reduction-oxidation or redox reaction to take place. This process, called electrolysis is widely used in electroplating, extractive metallurgy, electrochemical machining, etc. The converse process of conversion of the chemical energy of a spontaneous redox reaction into electrical energy takes palce in electrochemical or galvanic cells. These are also called voltaic cells in honour of Volta. He demostrated that by interposing sheets of paper soaked in salt water between different metals and connecting the metals, electricity could be produced. Batteries and fuel cells are such devices. The phenomenon of corrosion also belongs to this category. Both in electrolytic and galvanic cells, the redox reactions involve the transfer of charge between the electrode and the electrolyte. Thus, electrochemisuy can be broadly defined as the science that deals with the consequences of transfer of electric charges from one phase to another. Application of electrochemistry such as the extraction and refining of metals, manufacture of important chemicals like chlorine, caustic soda etc., are quite well known. The increasing awareness to minimise the pollution by automobile exhausts and thermal power plants has rekindled an intrest in batteries and fuel cells. Non-conventional energy sources like the solar energy or wind power can be used to generate electricity which can be used to charge the batteries. The batteries can be used during periods of break down of power and also in running automobiles and mopeds. 0 bjectives After studying this unit, you should be able to : * understand how a redox reaction can be made to produce electric current in a galvanic cell, * represent such a galvanic cell and to explain by means of electrode reactions how the cell produces an electric current, * identify the anode, cathode, psitive electrode and negative electrode of a' galvanic cell, * know how the standard electrode potentials are determined and how to use these to calculate the standard E.M.F. of a cell, * know how to use the relationship between free energy change and E.M.F. and to calculate the equilibrium constant from the standard E.M.F. of a cell, * use Nernst equation to calculate the electrode potential of half cells or the E.M.F. of cells in which the reactants and products are not in their standard states. * Explain the working of a pH meter and use EMF measurements for measuring pH and solubility products, * appreciate the usefulness of potentiometric titrations, * Analyse the advantages and limitations of various electrochemical energy sources, and * explain what galvanic corrosion is and how it may be minimized. These are devices in which the free energy change accompanying a redox reaction is converted into electrical energy. If a zinc rod is dipped into a solution of copper sulphate, a brownish-red deposit of copjgr is formed on the surface of zinc and the bluish-green colour of the copper sulphate solution disappears. The redox reactions that occur can be represented as oxidation : ~n(s)-2e+~x?+(aq) (13.1) reduction : cu2+(aq)+2e+Cu(s) (13.2) The overall reaction is represented as (13.3) Zn(s) +C$+(aq) +~x?+(aq) +Cu(s) (13.3) In reaction (13.3), only the active constituents taking part in the reaction are indicated. The sulphate ions do not take part in the reaction. At 298 K and 101.3 kPa (i.e., lam) the standard free energy change ( AGO ) corresponding to this spontaneous reaction is -212.9 kJ. Though AGO is a measure of the electrical work that can be derived from this reaction i.e., Eq.(13.3), the electron transfer from zinc to Cu2+( aq ) can be demonstrated only when the oxidation and reduction reaction are allowed to take place separately as in the Daniel1 cell, which is a Galvanic cell. [Figure 13.11. This cell consists of a zinc rod (electrode) dipping into a solution of zinc sulphate (one can use an aqueous solution of sodium chloride also) and a copper rod (a platinum electrode can also be used ) dipping into a solution Of capper sulphate. A porous barrier prevents the mixing of the two electrolytes [ Figurel3.l(a)] but allows the passage of the ions. The two electrolytes may also be kept in separate beakers and a salt bridge enables the passage of ions from one compartment to another [Figure 13.1(b)]. When the two electrodes are connected by means ~f a wire (electronic conductor), oxidation (reaction-1) takes palce at the zinc electrode. The zinc ions dissolve in the Elwetron flow EMr~&emlerlCdls Porous borrlrr !(a) Solutlow equated by a porous bad= so$- - (b) Sdutlons separated by a salt brldge Flpre 13.1 :Laboratory Verdons of the Daniell Cell electrolyte and the electrons left behind on the electrode push other electrons via the connecting wire to the copper electrode. These electrons are used by cu2+ions in solution and reduction (reaction-2) occurs. The electron flow from the zinc electrode to the copper electrode provides a source of electricity. The direction of the current flow, as measured by a current measuring device, is opposite to that of electron flow. Sirice oxidation takes place at the zinc electrode it is called the anode. In this galvanic cell, this electrode, being a source of a negative charge, is the negative electrode. The copper electrode at which reduction occurs is the cathode and since it is a sink for electrons (accepts electrons), it is the positive electrode. As the cell continues to produce current, the zn2+ions entering the electrically neutral solution make the solution positively charged. The zinc electrode acquires a nagative charge with respect to the solution. As a result of the build up of charges, an electrical double layer is established at the electrode-electrolyte interface. The resultant potential difference between the electrode and electrolyte is called the electrode potential. The negative electrode potential on the zinc electrode will prevent the zinc ions from the metal lattice leaving the electrode. At the other electrode, the cuZ+ions in solution are used up in the reduction (reaction-2). The remaining sulphate ions tend to make the solution Acquire a negative charge. Since electrons are removed from the copper electrode it acquires a positive potential and so prevents the approach of cu2+ions to the electrode (cathode). A continuous flow of current can be maintained if electrical neutrality is maintained at both the compartments A and C. The excess of sulphate ions from C move through the barrier into A so as to neutralize the excess positive charge of the solution in A. The sulphate ions do not undergo any chemical change. Instead of a porous partition, a salt bridge is often used. This consists of a glass tube containing a concentrated solution of KC1 or NH,NO, gelled by adding gelatin or Equilibria & Electroehmlstry agar. The gel confines the electrolyte to the tube, prevents the mixing of the electrolytes and allows the passage of ions. Here, K+or Neions move to C and the anions ( Cl- or NO; ) to A so as to maintain electrical neutrality. The high concentration ensures that most of the current is carried by the ions of the electrolyte used in the salt bridge. These ions also carry equal shares of the current and do not undergo any reaction with the electrode. 13.2.1 A Convenient Notation for the Representation of Electrodes and Cells Any electrochemical cell like the Daniell cell consists of two electrodeelectrolyte assemblies and each of these is called a half cell or simply an electrode. Oxidation occurs at one half cell and reduction at the other. The cell reaction is simply the sum of the two half cell or electrode reactions. A convenient notation is generally followed to represent on paper the electrodes and cells. A single vertical line denotes the boundary between two phases. In the case of aqueous solutions, the concentrations of the ionic species are indicated in parenthesis. The Daniell cell [Fig.13.1] can be represented on paper as ~n 1 w+(1.0~1 II cu2+( 1.0~) I cu The double vertical line between the electrolyte solutions indicates that a barrier [Figure 13.l(a)] or a salt bridge [Figure 13.1 (b)] has been used. The half cell or electrode at which oxidation occurs, i.e., anode, is written on the left hand side, and the cathode on the right hand side. An easy way of remembering all that has been said about galvanic cells is given below, using the Daniell cell as an example. L H S electrode B H S electrode Qxidation occurs Reduction occurs Anode Cathode Uega tive Electrode Positive Electrode It is simpler to remember the letters "LOAN" which summarizes the conventions.
Load more

Recommended publications
  • Quantum Mechanics Electromotive Force
    Quantum Mechanics_Electromotive force . Electromotive force, also called emf[1] (denoted and measured in volts), is the voltage developed by any source of electrical energy such as a batteryor dynamo.[2] The word "force" in this case is not used to mean mechanical force, measured in newtons, but a potential, or energy per unit of charge, measured involts. In electromagnetic induction, emf can be defined around a closed loop as the electromagnetic workthat would be transferred to a unit of charge if it travels once around that loop.[3] (While the charge travels around the loop, it can simultaneously lose the energy via resistance into thermal energy.) For a time-varying magnetic flux impinging a loop, theElectric potential scalar field is not defined due to circulating electric vector field, but nevertheless an emf does work that can be measured as a virtual electric potential around that loop.[4] In a two-terminal device (such as an electrochemical cell or electromagnetic generator), the emf can be measured as the open-circuit potential difference across the two terminals. The potential difference thus created drives current flow if an external circuit is attached to the source of emf. When current flows, however, the potential difference across the terminals is no longer equal to the emf, but will be smaller because of the voltage drop within the device due to its internal resistance. Devices that can provide emf includeelectrochemical cells, thermoelectric devices, solar cells and photodiodes, electrical generators,transformers, and even Van de Graaff generators.[4][5] In nature, emf is generated whenever magnetic field fluctuations occur through a surface.
    [Show full text]
  • On the First Electromagnetic Measurement of the Velocity of Light by Wilhelm Weber and Rudolf Kohlrausch
    Andre Koch Torres Assis On the First Electromagnetic Measurement of the Velocity of Light by Wilhelm Weber and Rudolf Kohlrausch Abstract The electrostatic, electrodynamic and electromagnetic systems of units utilized during last century by Ampère, Gauss, Weber, Maxwell and all the others are analyzed. It is shown how the constant c was introduced in physics by Weber's force of 1846. It is shown that it has the unit of velocity and is the ratio of the electromagnetic and electrostatic units of charge. Weber and Kohlrausch's experiment of 1855 to determine c is quoted, emphasizing that they were the first to measure this quantity and obtained the same value as that of light velocity in vacuum. It is shown how Kirchhoff in 1857 and Weber (1857-64) independently of one another obtained the fact that an electromagnetic signal propagates at light velocity along a thin wire of negligible resistivity. They obtained the telegraphy equation utilizing Weber’s action at a distance force. This was accomplished before the development of Maxwell’s electromagnetic theory of light and before Heaviside’s work. 1. Introduction In this work the introduction of the constant c in electromagnetism by Wilhelm Weber in 1846 is analyzed. It is the ratio of electromagnetic and electrostatic units of charge, one of the most fundamental constants of nature. The meaning of this constant is discussed, the first measurement performed by Weber and Kohlrausch in 1855, and the derivation of the telegraphy equation by Kirchhoff and Weber in 1857. Initially the basic systems of units utilized during last century for describing electromagnetic quantities is presented, along with a short review of Weber’s electrodynamics.
    [Show full text]
  • Electromotive Force
    Voltage - Electromotive Force Electrical current flow is the movement of electrons through conductors. But why would the electrons want to move? Electrons move because they get pushed by some external force. There are several energy sources that can force electrons to move. Chemical: Battery Magnetic: Generator Light (Photons): Solar Cell Mechanical: Phonograph pickup, crystal microphone, antiknock sensor Heat: Thermocouple Voltage is the amount of push or pressure that is being applied to the electrons. It is analogous to water pressure. With higher water pressure, more water is forced through a pipe in a given time. With higher voltage, more electrons are pushed through a wire in a given time. If a hose is connected between two faucets with the same pressure, no water flows. For water to flow through the hose, it is necessary to have a difference in water pressure (measured in psi) between the two ends. In the same way, For electrical current to flow in a wire, it is necessary to have a difference in electrical potential (measured in volts) between the two ends of the wire. A battery is an energy source that provides an electrical difference of potential that is capable of forcing electrons through an electrical circuit. We can measure the potential between its two terminals with a voltmeter. Water Tank High Pressure _ e r u e s g s a e t r l Pump p o + v = = t h g i e h No Pressure Figure 1: A Voltage Source Water Analogy. In any case, electrostatic force actually moves the electrons.
    [Show full text]
  • Alessandro Volta
    Alessandro Volta Alessandro Volta was born in Como, Lombardy, Italy, on February 18, 1745 and died in 1827. He was known for his most famous invention the battery. He was a physicist, chemist and a pioneer of electrical science. He came from a noble family. Until the age of four, Alessandro showed no signs of talking, and his family feared he was not very intelligent. Fortunately, they were wrong as he grew to be very intelligent. Although as a child he was slow to start speaking, he left school being fluent in Latin, French, English, and German. His language talents helped him in later life when he travelled and discussed science with others around the world. In 1775 he devised the electrophorus - a device that produced a static electric charge. He studied gas chemistry and discovered methane. He created experiments such as the ignition of gases by an electric spark. In 1800 he developed the votaic pile, which was the forerunner of the electric battery which produced a steady electric current. He didn’t intend to invent the battery, but to instead perform science experiments to prove another Italian scientist, Luigi Galvani, was incorrect in his scientific ideas. Alessandro set out to prove Galvani’s idea that animal electricity was the same as static electricity was an incorrect theory. In 1792 Volta performed experiments on dead and disembodied frogs legs. He found out that the key to getting them to move is by contacting two different types of metals; if you use the same type of metal the electricity did not pass through the frog.
    [Show full text]
  • Weberˇs Planetary Model of the Atom
    Weber’s Planetary Model of the Atom Bearbeitet von Andre Koch Torres Assis, Gudrun Wolfschmidt, Karl Heinrich Wiederkehr 1. Auflage 2011. Taschenbuch. 184 S. Paperback ISBN 978 3 8424 0241 6 Format (B x L): 17 x 22 cm Weitere Fachgebiete > Physik, Astronomie > Physik Allgemein schnell und portofrei erhältlich bei Die Online-Fachbuchhandlung beck-shop.de ist spezialisiert auf Fachbücher, insbesondere Recht, Steuern und Wirtschaft. Im Sortiment finden Sie alle Medien (Bücher, Zeitschriften, CDs, eBooks, etc.) aller Verlage. Ergänzt wird das Programm durch Services wie Neuerscheinungsdienst oder Zusammenstellungen von Büchern zu Sonderpreisen. Der Shop führt mehr als 8 Millionen Produkte. Weber’s Planetary Model of the Atom Figure 0.1: Wilhelm Eduard Weber (1804–1891) Foto: Gudrun Wolfschmidt in der Sternwarte in Göttingen 2 Nuncius Hamburgensis Beiträge zur Geschichte der Naturwissenschaften Band 19 Andre Koch Torres Assis, Karl Heinrich Wiederkehr and Gudrun Wolfschmidt Weber’s Planetary Model of the Atom Ed. by Gudrun Wolfschmidt Hamburg: tredition science 2011 Nuncius Hamburgensis Beiträge zur Geschichte der Naturwissenschaften Hg. von Gudrun Wolfschmidt, Geschichte der Naturwissenschaften, Mathematik und Technik, Universität Hamburg – ISSN 1610-6164 Diese Reihe „Nuncius Hamburgensis“ wird gefördert von der Hans Schimank-Gedächtnisstiftung. Dieser Titel wurde inspiriert von „Sidereus Nuncius“ und von „Wandsbeker Bote“. Andre Koch Torres Assis, Karl Heinrich Wiederkehr and Gudrun Wolfschmidt: Weber’s Planetary Model of the Atom. Ed. by Gudrun Wolfschmidt. Nuncius Hamburgensis – Beiträge zur Geschichte der Naturwissenschaften, Band 19. Hamburg: tredition science 2011. Abbildung auf dem Cover vorne und Titelblatt: Wilhelm Weber (Kohlrausch, F. (Oswalds Klassiker Nr. 142) 1904, Frontispiz) Frontispiz: Wilhelm Weber (1804–1891) (Feyerabend 1933, nach S.
    [Show full text]
  • Electrochemistry of Fuel Cell - Kouichi Takizawa
    ENERGY CARRIERS AND CONVERSION SYSTEMS – Vol. II - Electrochemistry of Fuel Cell - Kouichi Takizawa ELECTROCHEMISTRY OF FUEL CELL Kouichi Takizawa Tokyo Electric Power Company, Tokyo, Japan Keywords : electrochemistry, fuel cell, electrochemical reaction, chemical energy, anode, cathode, electrolyte, Nernst equation, hydrogen-oxygen fuel cell, electromotive force Contents 1. Introduction 2. Principle of Electricity Generation by Fuel Cells 3. Electricity Generation Characteristics of Fuel Cells 4. Fuel Cell Efficiency Glossary Bibliography Biographical Sketch Summary Fuel cells are devices that utilize electrochemical reactions to generate electric power. They are believed to give a significant impact on the future energy system. In particular, when hydrogen can be generated from renewable energy resources, it is certain that the fuel cell should play a significant role. Even today, some types of fuel cells have been already used in practical applications such as combined heat and power generation applications and space vehicle applications. Though research and development activities are still required, the fuel cell technology is one of the most important technologies that allow us to draw the environment friendly society in the twenty-first century. This section describes the general introduction of fuel cell technology with a brief overview of the principle of fuel cells and their historical background. 1. Introduction A fuel cellUNESCO is a system of electric power – generation,EOLSS which utilizes electrochemical reactions. It can produce electric power by inducing both a reaction to oxidize hydrogen obtained by reforming natural gas or other fuels, and a reaction to reduce oxygen in the air, each occurringSAMPLE at separate electrodes conne CHAPTERScted to an external circuit.
    [Show full text]
  • Electrochemistry –An Oxidizing Agent Is a Species That Oxidizes Another Species; It Is Itself Reduced
    Oxidation-Reduction Reactions Chapter 17 • Describing Oxidation-Reduction Reactions Electrochemistry –An oxidizing agent is a species that oxidizes another species; it is itself reduced. –A reducing agent is a species that reduces another species; it is itself oxidized. Loss of 2 e-1 oxidation reducing agent +2 +2 Fe( s) + Cu (aq) → Fe (aq) + Cu( s) oxidizing agent Gain of 2 e-1 reduction Skeleton Oxidation-Reduction Equations Electrochemistry ! Identify what species is being oxidized (this will be the “reducing agent”) ! Identify what species is being •The study of the interchange of reduced (this will be the “oxidizing agent”) chemical and electrical energy. ! What species result from the oxidation and reduction? ! Does the reaction occur in acidic or basic solution? 2+ - 3+ 2+ Fe (aq) + MnO4 (aq) 6 Fe (aq) + Mn (aq) Steps in Balancing Oxidation-Reduction Review of Terms Equations in Acidic solutions 1. Assign oxidation numbers to • oxidation-reduction (redox) each atom so that you know reaction: involves a transfer of what is oxidized and what is electrons from the reducing agent to reduced 2. Split the skeleton equation into the oxidizing agent. two half-reactions-one for the oxidation reaction (element • oxidation: loss of electrons increases in oxidation number) and one for the reduction (element decreases in oxidation • reduction: gain of electrons number) 2+ 3+ - 2+ Fe (aq) º Fe (aq) MnO4 (aq) º Mn (aq) 1 3. Complete and balance each half reaction Galvanic Cell a. Balance all atoms except O and H 2+ 3+ - 2+ (Voltaic Cell) Fe (aq) º Fe (aq) MnO4 (aq) º Mn (aq) b.
    [Show full text]
  • A HISTORICAL OVERVIEW of BASIC ELECTRICAL CONCEPTS for FIELD MEASUREMENT TECHNICIANS Part 1 – Basic Electrical Concepts
    A HISTORICAL OVERVIEW OF BASIC ELECTRICAL CONCEPTS FOR FIELD MEASUREMENT TECHNICIANS Part 1 – Basic Electrical Concepts Gerry Pickens Atmos Energy 810 Crescent Centre Drive Franklin, TN 37067 The efficient operation and maintenance of electrical and metal. Later, he was able to cause muscular contraction electronic systems utilized in the natural gas industry is by touching the nerve with different metal probes without substantially determined by the technician’s skill in electrical charge. He concluded that the animal tissue applying the basic concepts of electrical circuitry. This contained an innate vital force, which he termed “animal paper will discuss the basic electrical laws, electrical electricity”. In fact, it was Volta’s disagreement with terms and control signals as they apply to natural gas Galvani’s theory of animal electricity that led Volta, in measurement systems. 1800, to build the voltaic pile to prove that electricity did not come from animal tissue but was generated by contact There are four basic electrical laws that will be discussed. of different metals in a moist environment. This process They are: is now known as a galvanic reaction. Ohm’s Law Recently there is a growing dispute over the invention of Kirchhoff’s Voltage Law the battery. It has been suggested that the Bagdad Kirchhoff’s Current Law Battery discovered in 1938 near Bagdad was the first Watts Law battery. The Bagdad battery may have been used by Persians over 2000 years ago for electroplating. To better understand these laws a clear knowledge of the electrical terms referred to by the laws is necessary. Voltage can be referred to as the amount of electrical These terms are: pressure in a circuit.
    [Show full text]
  • Current, Resistance, and Electromotive Force
    Current, Resistance, and Electromotive Force Physics 231 Lecture 5-1 Fall 2008 Current Current is the motion of any charge, positive or negative, from one point to another Current is defined to be the amount of charge that passes a given point in a given amount of time dQ I = dt 1Coulomb Current has units of Ampere = 1sec Physics 231 Lecture 5-2 Fall 2008 Drift Velocity Assume that an external electric field E has been established within a conductor Then any free charged particle in the r r conductor will experience a force given by F = qE The charged particle will experience frequent collisions, into random directions, with the particles compromising the bulk of the material There will however be a net overall motion Physics 231 Lecture 5-3 Fall 2008 Drift Velocity There is net displacement given by vd∆t where vd is known as the drift velocity Physics 231 Lecture 5-4 Fall 2008 Drift Velocity Consider a conducting wire of cross sectional area A having n free charge-carrying particles per unit volume with each particle having a charge q with particle moving at vd The total charge moving past a given point is then given by dQ = nqvd Adt the current is then given by dQ I = = nqv A dt d Physics 231 Lecture 5-5 Fall 2008 Current Density dQ This equation I = = nqv A dt d is still arbitrary because of the area still being in the equation We define the current density J to be I J = = nqv A d Physics 231 Lecture 5-6 Fall 2008 Current Density Current density can also be defined to be a vector r r J = nqvd Note that this vector definition gives
    [Show full text]
  • Physics, Chapter 32: Electromagnetic Induction
    University of Nebraska - Lincoln DigitalCommons@University of Nebraska - Lincoln Robert Katz Publications Research Papers in Physics and Astronomy 1-1958 Physics, Chapter 32: Electromagnetic Induction Henry Semat City College of New York Robert Katz University of Nebraska-Lincoln, [email protected] Follow this and additional works at: https://digitalcommons.unl.edu/physicskatz Part of the Physics Commons Semat, Henry and Katz, Robert, "Physics, Chapter 32: Electromagnetic Induction" (1958). Robert Katz Publications. 186. https://digitalcommons.unl.edu/physicskatz/186 This Article is brought to you for free and open access by the Research Papers in Physics and Astronomy at DigitalCommons@University of Nebraska - Lincoln. It has been accepted for inclusion in Robert Katz Publications by an authorized administrator of DigitalCommons@University of Nebraska - Lincoln. 32 Electromagnetic Induction 32-1 Motion of a Wire in a Magnetic Field When a wire moves through a uniform magnetic field of induction B, in a direction at right angles to the field and to the wire itself, the electric charges within the conductor experience forces due to their motion through this magnetic field. The positive charges are held in place in the conductor by the action of interatomic forces, but the free electrons, usually one or two per atom, are caused to drift to one side of the conductor, thus setting up an electric field E within the conductor which opposes the further drift of electrons. The magnitude of this electric field E may be calculated by equating the force it exerts on a charge q, to the force on this charge due to its motion through the magnetic field of induction B; thus Eq = Bqv, from which E = Bv.
    [Show full text]
  • CURRENT, RESISTANCE and ELECTROMOTIVE FORCE Electric Current
    EMF 2005 Handout 6: Current, Resistance and Electromotive Force 1 CURRENT, RESISTANCE AND ELECTROMOTIVE FORCE Electric current Up to now, we have considered charges at rest (ELECTROSTATICS) But E exerts a force ⇒ charges move if they are free to do so. dQ Definition: ELECTRIC CURRENT is the rate of flow of charge: I = dt Units of current: 1 Ampere (A) ≡ 1 C s-1 (Coulombs/second) Convention: Current flows in the direction of E (i.e., it is taken to be carried by positive charges – this is usually not so) Conductivity and Resistivity The effect of E is to give the electrons in the conductor a small DRIFT VELOCITY, vd , superimposed on their random thermal motion. Typically, -1 vd is very small around 0.1 mm s . Clearly, the current is proportional to drift velocity I ∝ vd For many materials, including metals, vd ∝ E So I ∝ E E Consider a section of a conductor with cross sectional area A and I length L. Area A L Let a potential difference ∆V be applied between the two ends, so ∆V E = L Current: I ∝ E and I ∝ A (the larger the area, the easier it is for current to flow) EMF 2005 Handout 6: Current, Resistance and Electromotive Force 2 ∆V So I = (Cons tan t)(A) L The constant of proportionality is called the CONDUCTIVITY, σ A I = σ ∆V L 1 RESISTIVITY, ρ, is defined by ρ = σ Resistance and Ohm’s Law The resistivity is a property of the substance. For a particular piece of the substance, the RESISTANCE, R, is defined by ∆V R = where ∆V is the potential difference across the I material and I is the current flowing through it.
    [Show full text]
  • Electromagnetic Induction
    Chapter 25: Electromagnetic Induction Electromagnetic Induction The discovery that an electric current in a wire produced magnetic fields was a turning point in physics and the technology that followed. The question now was: If an electric current could produce a magnetic field, then… Could a magnetic field produce electric current? In 1831, Michael Faraday in England and Joseph Henry in the U.S. independently discovered that the answer was… Yes… actually a changing magnetic field produces a current. Faraday and Henry both discovered that electric current could be produced simply by moving a magnet in or out of a wire coil. No voltage (emf) or other battery source was needed—only the motion of a magnet in a coil (or a single wire loop). They discovered that voltage was induced by the relative motion between a wire and a magnetic field! emf = “Electromotive Force” Voltage is sometimes also referred to as the electromotive force, or emf. Inside the battery, there is a chemical reaction which is transferring electrons from one terminal to the other (the positive terminal is losing electrons and those electrons are moving through the battery to the negative terminal, gaining electrons). Because of the positive and negative charges on the battery terminals, an electric potential difference exists between them. This electric potential does work on each charge moving through the battery and ultimately, through the circuit. The Electromotive Force is doing the work. The maximum potential difference is specifically called the “Electromotive Force” (emf) of the battery. Specifically, if a battery is rated at 12 Volts, we say that it has a voltage of 12 volts, but does it always delivers 12 volts or 12 Joules/Coulomb? Basically, you can think of emf as voltage.
    [Show full text]
