Welcome to the Nikon D700 Digital Field Guide. This guide is a handy reference book to get you started using your new camera and help you understand the different features and functions that this amazing camera offers.

It is aimed at a wide variety of readers, from beginners to advanced amateurs. Some of you are familiar with many of the concepts, while others of you may be new to digital photogra- phy with a digital single lens refl ex (dSLR) or new to photography altogether. You’ll fi nd sections to help you, regardless of your level.

With its many different buttons and features, the D700 can be daunting. My goal is to explain these settings and features as clearly as possible as you learn the layout of the D700 and how to use the features out in the fi eld.

About the D700 The D700 is the little brother to the D3, which came on the market August 2007. The D3 was Nikon’s fi rst camera with a 24 × 36mm full-frame sensor (which Nikon dubs FX). Unfortunately the $5,000 price tag was a bit beyond what most casual photographers could afford. Nikon addressed the need for a more affordable FX camera with a more compact body, and announced the D700 on July 1, 2008. The D700 is essentially a D3 within the body of a D300.

The D700’s FX sensor is identical to the D3’s 12.1 megapixel CMOS sensor. One of the advantages of having a larger FX sensor is that you have larger pixels that collect light more effectively; this enables you to use higher ISO settings without digital noise.

Another advantage is that the D700’s FX sensor allows you to use your lenses without wor- rying about the pesky “” that plagues the DX camera lines. Indeed, a 28mm lens is once again a wide-angle lens on the D700. For those of you who started with a DX cam- era and purchased DX-only lenses such as Nikon’s AF-S 17-55mm f/2.8, no worries. Nikon has built in a feature that allows the D700 to crop down to a DX-sized image; this way you can use your DX lenses effectively on the D700 camera body, albeit the sensor resolution is reduced from 12.1 megapixels to 5.1 megapixels. The D700 is compatible with almost all the Nikon lenses ever made. Nikon lenses are world renowned for their quality and durabil- ity. You can use hundreds of different lenses on the D700, and any new lens Nikon releases will be compatible.

03_413203-flast.indd xix 11/14/08 9:23:44 PM xx Introduction

The D700 is also compatible with Nikon’s proprietary Creative Lighting System. The D700 has a built-in fl ash with a wireless commander mode so, unlike the D3 without a pop-up fl ash, the D700 can control a number of off-camera Speedlights wirelessly for the ultimate control of your lighting. You can use the D700 with a number of Nikon’s Speedlights, from the new fl agship fl ash, the SB-900, on down to the SB-800, SB-600, SB-400, or the macro lighting kit, the R1C1.

As with all Nikon professional , the D700 boasts a sturdy magnesium-framed body that is augmented by weather-sealing gaskets made to keep dust, dirt, and moisture from getting inside the camera body and damaging the internal components. The D700’s rugged yet compact camera body can withstand the abuse of any demanding photographer and should last for years to come.

Although the D700 is relatively affordable, Nikon hasn’t stripped down any of its features as some other camera manufacturers are known to do. The D700 sports the same impressive Multi-CAM 3500FX 51-point autofocus (AF) system as the D3, the D3’s EXPEED imaging processor, and a 14-bit analog-to-digital converter, as well as 16-bit image processing. Like the D3 and the D300, the D700 is also equipped with the versatile Live View function, which allows you to compose your images on the amazing high-resolution, 922,000-, 3-inch LCD screen — a handy feature for framing subjects that may be diffi cult when you’re looking through the viewfi nder.

All in all, as you’ve gathered by now, the D700 is an impressive, durable camera in a com- pact body that offers many features you previously could only fi nd in the substantially more expensive D3, and that will be sure to last for many years to come.

03_413203-flast.indd xx 11/14/08 9:23:44 PM Using the PART Nikon D700 II

✦ ✦ ✦ ✦

In This Part

Chapter 1 Exploring the Nikon D700

Chapter 2 Nikon D700 Essentials

Chapter 3 Setting Up the Nikon D700

✦ ✦ ✦ ✦

04_413203-pp01.indd 1 11/14/08 9:23:58 PM 04_413203-pp01.indd 2 11/14/08 9:23:58 PM Exploring the CHAPTER Nikon D700 11 ✦ ✦ ✦ ✦

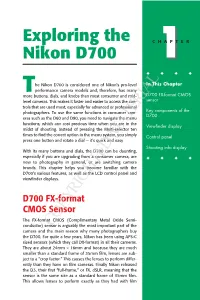

he Nikon D700 is considered one of Nikon’s pro-level In This Chapter performance camera models and, therefore, has many T D700 FX-format CMOS more buttons, dials, and knobs than most consumer and mid- level cameras. This makes it faster and easier to access the con- sensor trols that are used most, especially for advanced or professional photographers. To use the same functions in consumer cam- Key components of the D700 eras such as the D60 and D90, you need to navigate the menu functions, which can cost precious time when you are in the Viewfi nder display midst of shooting. Instead of pressing the Multi-selector ten times to fi nd the correct option in the menu system, you simply Control panel press one button and rotate a dial — it’s quick and easy Shooting info display With its many buttons and dials, the D700 can be daunting, especially if you are upgrading from a consumer camera, are ✦ ✦ ✦ ✦ new to photography in general, or are switching camera brands. This chapter helps you become familiar with the D700’s various features, as well as the LCD control panel and viewfi nder displays.

D700 FX-format CMOS Sensor The FX-format CMOS (Complimentary Metal Oxide Semi- conductor) sensor is arguably the most important part of the camera and the main reason why many photographers buy the D700. For quite a few years, Nikon has been using APS-C sized sensors (which they call DX-format) in all their cameras. They are about 24mm × 16mm and because they are much smaller than a standard frame of 35mm fi lm, lenses are sub- ject to a “crop factor.” This causes the lenses to perform differ- ently than they have on fi lm cameras. Finally Nikon released the D3, their fi rst “full-frame,” or FX, dSLR, meaning that the sensor is the same size as a standard frame of 35mm fi lm. This allows lenses to perform exactly as they had with fi lm

05_413203-ch01.indd 3 11/14/08 9:24:33 PM 4 Part I ✦ Using the Nikon D700

cameras, giving you the same angle of view. consumer level D90. Although CMOS and Unfortunately, the D3 was a bit expensive, CCD sensors do the same job, they do it dif- out of the price range for most amateurs. ferently and each type of sensor has its own Surprisingly, not long after the launch of the strengths and weaknesses. D3, Nikon released a dSLR that is essentially a D3 in a D300-sized body at nearly half the CCD price. This amazing 36 × 24mm, 12 mega- The name Charge Coupled Device refers to pixel CMOS sensor gives almost no noise, how the sensor moves the electrical charges even at ISO settings up to 6400. created by the photons that the pixels have For more information on DX sen- collected. The CCD sensor moves these sors and lenses, see Chapter 4. electrical charges from the fi rst row of pixels to a shift register (a digital circuit that allows the charges to be shifted down the line) and From analog to digital from there, the signal is amplifi ed so the A/D converter can read it. The sensor then Believe it or not, digital image sensors are repeats the processes with each row of pix- actually analog devices that capture light els until every row of pixels on the sensor just like emulsion on a piece of fi lm. When has been processed. This is a pretty precise the shutter is opened, light from the scene method of transfer, but in digital terms it’s that you’re photographing, whether it be quite slow. It requires a large amount of sunlight or fl ash, travels through the lens power, relatively speaking, so it uses more and is projected (hopefully in focus) onto of the camera battery, which equals fewer the sensor. Each sensor has millions of pix- shots per charge. CCD sensors have a higher els, which act as a receptacle that collects signal to noise ratio; which makes them less individual photons of light. A photon is a prone to high ISO noise than CMOS sensors quantum particle of light, which is a form of and enables them to provide a higher image electromagnetic radiation. The more pho- quality. tons the pixel collects, the brighter the area is; conversely, if the pixel doesn’t collect a lot of photons, the area is dark. CMOS Just like a CCD sensor, a CMOS sensor has Each pixel has a photodiode that converts millions of pixels and photodiodes. The these photons into minute electrical charges main difference between the CMOS and that the Analog/Digital (A/D) converter CCD sensor is that each pixel has its own reads. The A/D converter renders this ana- amplifi er and it converts the charge to volt- log data into digital data that can be utilized age on the spot. It’s much more effi cient to by Nikon’s EXPEED imaging processor. transfer voltage than it is to transfer a charge; therefore, CMOS sensors use less power than CCDs. Multiple channels of sensor data CMOS versus CCD can also be sent out at the same time, so About half of Nikon’s dSLRs use Charge the CMOS sensor can send the data to the Coupled Device (CCD) sensors, although A/D converter much faster. CMOS chips are Nikon appears to be moving away from this also cheaper to manufacture than CCDs. technology by putting a CMOS sensor in the

05_413203-ch01.indd 4 11/14/08 9:24:33 PM Chapter 1 ✦ Exploring the Nikon D700 5

Pixels pattern. (Dr. Bryce Bayer was a scientist at who developed this pattern.) The The more pixels the sensor has, the higher Bayer pattern lays the fi lters out in an array the resolution of the sensor. However, pack- that consists of 50 percent green, 25 per- ing more pixels onto a sensor means that cent blue, and 25 percent red. The green although the resolution is higher, each pixel fi lters are luminance (brightness) sensitive becomes less effective at gathering light elements and the red and blue fi lters are because its much smaller. A larger pixel is chrominance (color) sensitive elements. more effective at gathering photons; there- Twice as many green fi lters are used to sim- fore you get a wider dynamic range and a ulate human eyesight given our eyes are better signal-to-noise ratio, which means more sensitive to green than to red or blue. less inherent noise and the ability to achieve a higher ISO sensitivity. The camera determines the colors in the image by a process called demosaicing. In One of the reasons that Nikon chose to use demosaicing, the camera interpolates the a lower resolution sensor on their full-frame red, green, and blue data for each pixel by sensor than their competitors do is to keep using information from adjacent pixels. the pixel size larger, thereby allowing better Interpolation is a mathematical process in low-light capability. The D700 and D3 sen- which sets of known data are used to deter- sor has a pixel size of 8.5 microns, which is mine new data points. (I like to call it an the largest pixel pitch of any digital sensor educated guess.) on the market at this time.

Micro-lenses In addition to having larger pixels to gather Key Components more light, camera manufacturers place of the D700 micro-lenses over the pixels. These micro- lenses collect the light and focus them onto If you’ve used a Nikon dSLR before, you the photodiode much the same way the should be pretty familiar with the basic but- focuses the image onto the tons and switches that you need to do the sensor. By making the micro-lenses larger, basic settings. In this section, I cover the Nikon has decreased the gaps between the camera from all sides and break down the pixels, increasing the effective light gather- layout so that you know what everything on ing ability of each one. the surface of the camera does.

Interpreting color Although you can access many features with just the push of a button, oftentimes you The light-sensitive pixels on the sensor only can change the same setting using menu measure the brightness in relation to how options. The great thing about the buttons, many photons it has gathered, so the basic however, is that they give you speedy access image captured is, in effect, black and white. to important settings — settings you will use To determine color information, the pixels often. Missing shots because you are search- are covered with red, green, or blue colored ing through the menu options can get irritat- fi lters. These fi lters are arranged in a Bayer ing fast, which is one of the key reasons

05_413203-ch01.indd 5 11/14/08 9:24:33 PM 6 Part I ✦ Using the Nikon D700

most people upgrade from a consumer is turned on. When you push the model camera to a professional-grade cam- spring-loaded switch all the way to era like the D700. the right, the top-panel LCD illumi- nator turns on. This enables you to For information about specifi c view your settings when in a dimly menus and their functions, see lit environment. The LCD illumina- Chapter 3. tor turns off automatically after a few seconds or when the shutter is released. In Custom Settings menu Top of the camera (CSM) f1, you can also specify that The most important buttons are on the top this switch be used to display the of the D700. This is where you’ll fi nd the Shooting info display on the rear buttons for the settings you’ll tend to change LCD screen. most frequently. I’ve also included is a brief ✦ Exposure mode button. This but- description of some of the features you will ton is used in conjunction with the fi nd on the top of the lens in this section. Main Command dial and allows Although your lens may vary, most of the you to change among the different features are quite similar from lens to lens. exposure modes. You can choose Programmed Auto (P), Shutter ✦ Shutter Release button. In my Priority (S), Aperture Priority (A), opinion, this is the most important or Manual (M) modes. This button button on the camera. Halfway also doubles as a format button pressing this button activates the when you press it down in con- camera’s autofocusing and light junction with the Delete button. meter. When you fully depress this Pressing and holding down these button, the shutter is released and two buttons simultaneously allows a photograph is taken. When the you to format your CompactFlash camera is set to CL or Ch, pressing (CF) card without entering the and holding this button takes a Setup menu. sequence of photos. When the ✦ Exposure Compensation button. camera has been idle and has Pressing this button in conjunction “gone to sleep,” lightly pressing the with spinning the Main Command Shutter Release button wakes the dial allows you to modify the expo- camera up. When the image review sure that is set by the D700’s light is on, lightly pressing the Shutter meter or the exposure you set in Release button turns off the LCD Manual exposure mode. Turning the control panel and prepares the Main Command dial to the right camera for another shot. decreases exposure, while turning ✦ On/Off switch/LCD illuminator. the dial to the left increases the This switch turns on the camera. exposure. This button also doubles It’s concentric with the Shutter as the camera reset button when Release button. You push the used in conjunction with the Quality switch all the way to the left to turn button. Pressing these buttons at the camera off. When the switch is the same time restores the camera in the center position, the camera to the factory default settings.

05_413203-ch01.indd 6 11/14/08 9:24:33 PM Chapter 1 ✦ Exploring the Nikon D700 7

✦ LCD control panel. This displays quality of the JPEG if you are shoot- many of the main camera settings. ing that format. You can choose I cover this panel in detail later in from RAW, TIFF, JPEG, or RAW + this chapter. JPEG. Your JPEGs are saved at Fine, Normal, or Basic quality. Rotating ✦ Focal plane mark. The focal plane the Sub-command dial while press- mark shows you where the plane ing this button allows you to change of the CMOS image sensor is inside the size of the image when the the camera. The sensor isn’t exactly camera is set to save in TIFF, JPEG, where the mark is; the sensor is or RAW + JPEG. Rotating the Sub- directly behind the lens opening. command dial when the camera is When doing certain types of pho- set to save RAW fi les has no effect. tography, particularly macro pho- tography using a bellows lens, you For more information on image need to measure the length of the quality and size settings, see bellows from the front element of Chapter 2. the lens to the focal plane. This is where the focal plane mark comes ✦ ISO button. Press this button and in handy. rotate the Main Command dial to change the ISO sensitivity. The ✦ Hot shoe. You attach an accessory higher the ISO setting, the less light fl ash to the camera body here. The needed to make an exposure. The hot shoe has an electronic contact ISO value is displayed on the LCD that tells the fl ash to fi re when the control panel while the ISO button shutter is released. There are also a is pressed. The ISO value is also dis- number of other electronic contacts played in the viewfi nder. To learn that allow the camera to communi- more about ISO, see Chapter 2. cate with the fl ash to enable the automated features of a dedicated ✦ White Balance button. Press fl ash unit such as the SB-600. this button and rotate the Main Command dial to choose from one ✦ Release Mode dial. Rotating this of the predefi ned white balance dial changes the release mode of (WB) settings such as Daylight, the camera. You can choose from Incandescent, or Fluorescent. You Single shot, Continuous Low mode, can also choose to set your own Continuous High mode, Live View, WB (PRE) or choose a specifi c color Self-timer, and Mirror up. To rotate temperature (K). White balance the dial, you must press the is used to compensate for the Release Mode dial lock release. effect that different colored light ✦ Release Mode dial lock release. sources have on your photos. This button locks the Release Mode Adjusting the WB gives your images dial to prevent it from accidentally a natural look. When the D700 is being changed. set to a predefi ned WB, holding ✦ Quality button. Press this button the button and rotating the Sub- and rotate the Main Command dial command dial allows you to adjust to change the fi le format that your the WB by making it cooler (right) camera is saving in as well as the or warmer (left). For more on white balance settings, see Chapter 2.
