2.1 Gravity and the Gravity Field of the Earth

Total Page：16

File Type：pdf, Size：1020Kb

Download full-text PDF Read full-text
2.1 Gravity and the Gravity Field of the Earth 2.1 Gravity and the gravity field of the Earth Fundamentals The mass and shape of the Earth The Geoid Satellite measurements of gravity GRACE - Gravity Recovery and Climate Experiment Fundamentals The force that attracts all matter to the Earth is the gravity field; an example of the general phenomenon of attraction between any masses. Newton's Law describes the force of attraction between two point masses, M1 and M2 separated by r: MM12 FG 2 r (2.1.1) The force per unit mass, F/M2 defines the vector gravity field or the gravitational acceleration, g when M1 is the Earth (Me) and r is the radius of the Earth, Re. So F M = g = G e r M R2 1 e (2.1.2) [Note that vectors are denoted either in boldface text or with an overlying arrow, e.g. r .] The gravitational constant G has been determined experimentally and is: -1- 6.67259 x 10-11 m3 kg-1 s-2 ( SI units ) or 6.67259 x 10-8 cm3 g-1 s-2 with an uncertainty of 100 parts per million (ppm). The gravitational acceleration is also measured experimentally and at the equator is about 9.8 meters/sec/sec (m s-2) or 980 cm s-2. (In almost all gravity surveys results are presented in c.g.s units rather than SI units. In c.g.s the unit acceleration, 1.0 cm s-2, is called the gal (short for Gallileo). A convenient subunit for surveys is the milligal, mgal, 10-3cm s-2. Another unit that has been used is the gravity unit, gu, which is defined as 10-6 m s-2 or 0.1 mgal.) Some properties of the gravitational force field are required for explaining the variations in g that are observed on and above the Earth's surface and for interpreting these variations in terms of the desired distributions of densities in the subsurface. A test mass M gains potential energy U in being moved a distance S in the gravitational force field F according to: BB U F dl M g dl (2.1.3) AA Figure 2.1.1 -2- For example, moving a test mass vertically along the radius for uniform spherical earth the difference in potential energy is: RRR2F 2 2 1 GM GM dr g dr GM dr ee RRR e 2 1MRR 1 1 r 21 GM the function U e is the potential of that point in space. All points in space R that have the same potential define an equipotential surface. By definition the force field is everywhere perpendicular to the equipotential surface. Potentials cannot be measured directly, only their force fields. Potential fields are conservative meaning that the work done in moving from A to B in Figure 2.1.1 is independent of the path taken. It is obvious from the simple example of the force between two masses that the force Mg is simply the derivative of the potential in the direction between the masses. In general, for any conservative field; gU (2.1.4) Potentials are additive so that for any point P external to a volume V of matter: Gdm r d3 r U r' G (2.1.5) P VVr'' r r r -3- Figure 2.1.2 This is the basic formula used to calculate the potential of any subsurface density distribution. [Note that this integral has the form of a convolution of the density (the source function) and the mathematical form of the fall off with distance of the field from a source point (the Green’s function). This concept will be used later to derive a fast and efficient method to calculate the gravity anomalies from subsurface bodies.] Another property of this conservative force field is that the integral of the normal component of the gravitational acceleration over the surface S of the volume containing mass M satisfies Gauss's law: g n dS 44 G dm G dV (2.1.6) VV -4- This relationship is easy to verify for a sphere of uniform density, but Equation 2.1.6 is more general, and applies to any volume with arbitrary density. We will use this integral later in the section on interpretation to determine the excess mass of any finite body in the subsurface. The divergence theorem states that: g ×n ds = Ñ× g dV (2.1.7) òS òV and gU so, U 4 G dV V or 2U4 G dV vV In any region where no matter is present, for example in the space above the earth, this leads to: 2U 0 Laplace’s equation (2.1.8) The mass and shape of the Earth The mass of the earth can be estimated through Gauss’ law: -5- g n dS 44 G dV GM (2.1.9) e V The radius of the earth Re was determined remarkably accurately by Eratosthenes in the third century B.C. using the observations shown in the sketch of Figure 2.1.3. This was arguably the first geophysical measurement. Figure 2.1.3 It is now known even more accurately through geodetic measurements. Assuming a spherical earth with a mean value of observed g, the experimental measurements of -6- 2 G, and the radius, the mass of the Earth is found from g4 Ree GM to be 5.976 × 1024 kg. If there were a perfect sphere of uniform density the gravity field measured on its surface would be the simple Newtonian field of a point mass at the center of the earth plus the radial acceleration term caused by the rotation of the earth as shown in Figure 2.1.4. Figure 2.1.4 The Earth is not a perfect sphere and it is very close to the shape that a spinning fluid would have. Because of the rotation the Earth is flattened as shown in Figure 2.1.5 and to first order the shape is that of an oblate spheroid or ellipsoid. -7- Figure 2.1.5 Any section through the axis of rotation is an ellipse in which the minor axis is the polar diameter and the major axis is the equatorial diameter. The flattening is described by the flattening parameter: RRep f (2.1.10) Re Early measurements of f were made geodetically, that is by measuring the varying length on the surface of a degree of latitude. More accurate measurements are now made using satellites. The orbit of an earth satellite over a spherical earth of uniform radial density distribution is a stationary ellipse. Because of the bulge associated with the flattening the extra ring of mass exerts a pull or torque on any orbit that is inclined to the equatorial plane. Accurate measurement of the resulting rotation of -8- the plane of the satellite orbit, known as the precession, leads directly to an estimate of the flattening [See the classic text by Kaula (1960)]. The Geoid Because the Earth is rotating the observed gravity field has an added component due to the centrifugal acceleration. At point A on the surface at latitude and radius r, Figure 2.1.4, the centrifugal acceleration, grot, in the direction normal to the surface is given by: 2 2 2 grot Rcos cos R cos where is the angular frequency of rotation. This centrifugal grot is in the opposite direction to the gravitational g so the observed g is given by: 22 gobs g z r cos The value of gz on the oblate spheroid is not a simple calculation and the credit for the solution, including the rotation term, is due to Clairaut. Clairaut solved the problem for the gravitational potential on the surface of the oblate spheroid. This surface is in fact an equipotential surface; the gravitational acceleration vector is everywhere perpendicular to this surface. The actual surface of this equipotential is defined as the geoid. The ideal surface derived from the symmetric ellipsoid is called the reference ellipsoid and it does not coincide exactly with the actual geoid because the Earth is not homogeneous in density and there are deformations in the actual geoid caused by subsurface inhomogeneities that invalidate the fluid earth hypothesis. -9- The mathematical description of the gravitational acceleration on the reference ellipsoid incorporates the flattening information from satellite orbits, the angular frequency, the equatorial value of g, and the equatorial radius in a closed form expression for the value of g as a function of latitude on the reference spheroid. A reference field, World Geodetic System 1984 (WGS84), is given by: 1 0.00193185138639sin2 g 9.7803267714 0 2 1 0.00669437999013sin (2.1.11) For this reference spheroid: The equatorial radius, Re, is 6378.137 km The flattening parameter, f, is 1/298.257 -2 Acceleration at the equator, ge, is 9.7803267714 ms This reference field is used to remove the first order variations due to latitude that are observed in gravity surveys. While not corresponding to the actual shape of the earth the equipotential ellipsoid is in a way a mathematical construct that is used by geodesists as a reference shape for surface elevation mapping and satellite positioning. The gravity field of this reference ellipsoid fulfills the same role for geophysicists interested in perturbations of the gravity field caused by subsurface density variations. The actual equipotential surface, the geoid, is usually described in terms of its departure from the reference ellipsoid. Alternatively the values of g on the geoid can be described with respect to the values of g for the reference ellipsoid. The actual geoid is found to be a very complex shape with undulations in its surface with a wide range of length scales.
Load more

Recommended publications
  • The Evolution of Earth Gravitational Models Used in Astrodynamics
    JEROME R. VETTER THE EVOLUTION OF EARTH GRAVITATIONAL MODELS USED IN ASTRODYNAMICS Earth gravitational models derived from the earliest ground-based tracking systems used for Sputnik and the Transit Navy Navigation Satellite System have evolved to models that use data from the Joint United States-French Ocean Topography Experiment Satellite (Topex/Poseidon) and the Global Positioning System of satellites. This article summarizes the history of the tracking and instrumentation systems used, discusses the limitations and constraints of these systems, and reviews past and current techniques for estimating gravity and processing large batches of diverse data types. Current models continue to be improved; the latest model improvements and plans for future systems are discussed. Contemporary gravitational models used within the astrodynamics community are described, and their performance is compared numerically. The use of these models for solid Earth geophysics, space geophysics, oceanography, geology, and related Earth science disciplines becomes particularly attractive as the statistical confidence of the models improves and as the models are validated over certain spatial resolutions of the geodetic spectrum. INTRODUCTION Before the development of satellite technology, the Earth orbit. Of these, five were still orbiting the Earth techniques used to observe the Earth's gravitational field when the satellites of the Transit Navy Navigational Sat­ were restricted to terrestrial gravimetry. Measurements of ellite System (NNSS) were launched starting in 1960. The gravity were adequate only over sparse areas of the Sputniks were all launched into near-critical orbit incli­ world. Moreover, because gravity profiles over the nations of about 65°. (The critical inclination is defined oceans were inadequate, the gravity field could not be as that inclination, 1= 63 °26', where gravitational pertur­ meaningfully estimated.
    [Show full text]
  • Student Academic Learning Services Pounds Mass and Pounds Force
    Student Academic Learning Services Page 1 of 3 Pounds Mass and Pounds Force One of the greatest sources of confusion in the Imperial (or U.S. Customary) system of measurement is that both mass and force are measured using the same unit, the pound. The differentiate between the two, we call one type of pound the pound-mass (lbm) and the other the pound-force (lbf). Distinguishing between the two, and knowing how to use them in calculations is very important in using and understanding the Imperial system. Definition of Mass The concept of mass is a little difficult to pin down, but basically you can think of the mass of an object as the amount of matter contain within it. In the S.I., mass is measured in kilograms. The kilogram is a fundamental unit of measure that does not come from any other unit of measure.1 Definition of the Pound-mass The pound mass (abbreviated as lbm or just lb) is also a fundamental unit within the Imperial system. It is equal to exactly 0.45359237 kilograms by definition. 1 lbm 0.45359237 kg Definition of Force≡ Force is an action exerted upon an object that causes it to accelerate. In the S.I., force is measured using Newtons. A Newton is defined as the force required to accelerate a 1 kg object at a rate of 1 m/s2. 1 N 1 kg m/s2 Definition of ≡the Pound∙ -force The pound-force (lbf) is defined a bit differently than the Newton. One pound-force is defined as the force required to accelerate an object with a mass of 1 pound-mass at a rate of 32.174 ft/s2.
    [Show full text]
  • What Is Fluid Mechanics?
    What is Fluid Mechanics? A fluid is either a liquid or a gas. A fluid is a substance which deforms continuously under the application of a shear stress. A stress is defined as a force per unit area Next, what is mechanics? Mechanics is essentially the application of the laws of force and motion. Fluid statics or hydrostatics is the study of fluids at rest. The main equation required for this is Newton's second law for non-accelerating bodies, i.e. ∑ F = 0 . Fluid dynamics is the study of fluids in motion. The main equation required for this is Newton's second law for accelerating bodies, i.e. ∑ F = ma . Mass Density, ρ, is defined as the mass of substance per unit volume. ρ = mass/volume Specific Weight γ, is defined as the weight per unit volume γ = ρ g = weight/volume Relative Density or Specific Gravity (S.g or Gs) S.g (Gs) = ρsubstance / ρwater at 4oC Dynamic Viscosity, µ µ = τ / (du/dy) = (Force /Area)/ (Velocity/Distance) Kinematic Viscosity, v v = µ/ ρ Primary Dimensions In fluid mechanics there are only four primary dimensions from which all other dimensions can be derived: mass, length, time, and temperature. All other variables in fluid mechanics can be expressed in terms of {M}, {L}, {T} Quantity SI Unit Dimension Area m2 m2 L2 Volume m3 m3 L3 Velocity m/s ms-1 LT-1 Acceleration m/s2 ms-2 LT-2 -Angular velocity s-1 s-1 T-1 -Rotational speed N Force kg m/s2 kg ms-2 M LT-2 Joule J energy (or work) N m, kg m2/s2 kg m2s-2 ML2T-2 Watt W Power N m/s Nms-1 kg m2/s3 kg m2s-3 ML2T-3 Pascal P, pressure (or stress) N/m2, Nm-2 kg/m/s2 kg m-1s-2 ML-1T-2 Density kg/m3 kg m-3 ML-3 N/m3 Specific weight kg/m2/s2 kg m-2s-2 ML-2T-2 a ratio Relative density .
    [Show full text]
  • Department of the Interior U.S. Geological Survey Two FORTRAN
    Department of the Interior U.S. Geological Survey Two FORTRAN programs for the reduction of atmospheric data collected by aircraft along EDM survey lines by Elliot T. Endol Gene Y. Iwatsubo Lyn J. Topinka Open-File Report 85-279 This report is preliminary and has not been edited or reviewed for conformity with Geological Survey standards and nomenclature. Any use of trade names and trade marks in this publication is for descriptive purposes only and does not constitute endorsement by the U.S. Geological Survey. David A. Johnston Cascades Volcano Observatory 5400 MacArthur Blvd. Vancouver, Washington 98661 1985 Abstract The Cascades Volcano Observatory had a requirement for a computer program to reduce atmospheric data collected for electronic distance measurement surveys. Existing programs could not be easily adapted for this simple need. The program AVEINDEX.FOR described in this report fills this requirement. AVEINDEX.FOR, written in FORTRAN-77 standards, is modular in structure. The modular structure allows easy program modification. Twelve supporting subroutines and functions for AVEINDEX.FOR and one data entry program are also described. Program comments accompany each program and most subroutines. TABLE OF CONTENTS Page INTRODUCTION................................................... 1 PRIMARY ASSUMPTIONS OR APPROXIMATIONS.......................... 2 SPECIFIC EQUATIONS USED FOR CALCULATIONS....................... 4 MAIN PROGRAMS.................................................. 7 LISTING OF MAIN PROGRAMS AND SUBROUTINES......................
    [Show full text]
  • Preparation of Papers for AIAA Technical Conferences
    Gravity Modeling for Variable Fidelity Environments Michael M. Madden* NASA, Hampton, VA, 23681 Aerospace simulations can model worlds, such as the Earth, with differing levels of fidel- ity. The simulation may represent the world as a plane, a sphere, an ellipsoid, or a high- order closed surface. The world may or may not rotate. The user may select lower fidelity models based on computational limits, a need for simplified analysis, or comparison to other data. However, the user will also wish to retain a close semblance of behavior to the real world. The effects of gravity on objects are an important component of modeling real-world behavior. Engineers generally equate the term gravity with the observed free-fall accelera- tion. However, free-fall acceleration is not equal to all observers. To observers on the sur- face of a rotating world, free-fall acceleration is the sum of gravitational attraction and the centrifugal acceleration due to the world’s rotation. On the other hand, free-fall accelera- tion equals gravitational attraction to an observer in inertial space. Surface-observed simu- lations (e.g. aircraft), which use non-rotating world models, may choose to model observed free fall acceleration as the “gravity” term; such a model actually combines gravitational at- traction with centrifugal acceleration due to the Earth’s rotation. However, this modeling choice invites confusion as one evolves the simulation to higher fidelity world models or adds inertial observers. Care must be taken to model gravity in concert with the world model to avoid denigrating the fidelity of modeling observed free fall.
    [Show full text]
  • Mass Properties Measurement Handbook
    SAWE PAPER No.2444 Index Category No. 3.0 Mass Properties Measurement Handbook By Richard Boynton and Kurt Wiener Space Electronics, Inc. 81 Fuller Way Berlin, Connecticut 06037 For presentation at the Annual Conference of the Society of Allied Weight Engineers Wichita, KS 18-20 May 1998 Permission to publish this paper, in full or in part, with full credit to author may be obtained by request to: S.A.W.E. Inc. The society is not responsible for statements or opinions in papers or discussions Table of Contents 1.0 Abstract .................................................................. 2 2.0 Stepsin Making a Mass Properties measurement .................................. 2 2.1 Definethe particularmass properties you need to measure and the required measurementaccuracy .............................................. 2 2.2 Choose the correcttype ofmeasuring instrument ............................ 2 2.3 Definethe coordinate system on the object to be used as the mass properties reference axes ............................................................ 2 2.4 Definethe position ofthe objecton themass properties measuring machine ....... 2 2.5 Determine the dimensional accuracy of theobject being measured .............. 2 2.6 Designthe fixturerequired to mount the object at a precise location relativeto the measuring instrument .............................................. 3 2.7 Verifythe position of theobject on the instrument. .......................... 3 2.8 Make the mass properties measurement ................................... 3 2.9
    [Show full text]
  • General Disclaimer One Or More of the Following Statements May Affect
    General Disclaimer One or more of the Following Statements may affect this Document This document has been reproduced from the best copy furnished by the organizational source. It is being released in the interest of making available as much information as possible. This document may contain data, which exceeds the sheet parameters. It was furnished in this condition by the organizational source and is the best copy available. This document may contain tone-on-tone or color graphs, charts and/or pictures, which have been reproduced in black and white. This document is paginated as submitted by the original source. Portions of this document are not fully legible due to the historical nature of some of the material. However, it is the best reproduction available from the original submission. Produced by the NASA Center for Aerospace Information (CASI) ^I NASA Technical Paper 2147 0 The NASA Geodynamics Program: An Overview Geoud ynamics Program Office Office of Space Science and Applications I Washington, DC 20546 1983 Scientific and Technical Information Branch -11 - ---- -- r NASA Technical Paper 2147 The NASA Ge odynamics Program: An Overview %, N&SA — TY — A 14 1) Ttit bA.'-A G?.QjlMARICs L, BCGhltl: Ab GVjhV14w ( NdtiO Ual AQr0GdUtlCIj 41A U 5j;dC#j AdsiaistLatjC&j) UC AU7/Mf AUI CSCL 06G uncIds 1/46 L 44119 W Geodynamics Program Office nary 1983 - Nala-al k,fo ulcs and SP re a ^I FOREWORD The study of the solid earth and its gravity and magnetic fields has advancd significantly in the past 20 years. This advancement has been greatly assisted by the emergence of methods which use space and space- derived technology for observations of the earth unattainable bit other means.
    [Show full text]
  • Gravity Measurements and the Standards Laboratory
    L..,.lldlU!> NBS TECHNICAL NOTE 491 Gravity Measurements II And the Standards Laboratory T 0F /*t* U.S. DEPARTMENT OF COMMERCE ,2.7/ Z ^ National Bureau of Standards Q \ *"»fAU 0» ' - NATIONAL BUREAU OF STANDARDS The National Bureau of Standards ' was established by an act of Congress March 3, 1901. Today, in addition to serving as the Nation's central measurement laboratory, the Bureau is a principal focal point in the Federal Government for assuring maximum application of the physical and engineering sciences to the advancement of technology in industry and commerce. To this end the Bureau conducts research and provides central national services in four broad program areas. These are: (1) basic measurements and standards, (2) materials measurements and standards, (3) technological measurements and standards, and (4) transfer of technology. The Bureau comprises the Institute for Basic Standards, the Institute for Materials Research, the Institute for Applied Technology, the Center for Radiation Research, the Center for Computer Sciences and Technology, and the Office for Information Programs. THE INSTITUTE FOR BASIC STANDARDS provides the central basis within the United States of a complete and consistent system of physical measurement; coordinates that system with measurement systems of other nations; and furnishes essential services leading to accurate and uniform physical measurements throughout the Nation's scientific community, industry, and com- merce. The Institute consists of an Office of Measurement Services and the following
    [Show full text]
  • A Subtlety of Earth's Gravity and Its Rotation
    A Subtlety of Earth’s Gravity and its Rotation David Alexander Lillis, 9 March 2019 This article provides an elementary introduction to the effect of Earth’s non-spherical shape (oblateness) and the centrifugal force on Earth’s gravity for non-Earth scientists, students and other interested readers. In this article I describe a simple model of the gravitational acceleration on Earth’s surface, taking into account both the gravitation of the Earth itself and the effect of centrifugal forces acting on bodies located on Earth’s surface. This model was developed purely for instructional purposes and is not intended to supplant more accurate and much more complex models already available in the relevant literature. Software written in the R language can be provided for those who wish to reproduce the calculations and graphs presented here. Part 1: Weight involves a combination of Gravity and Centrifugal Effect As is well known, Earth is not a perfect sphere. Because of its rotation the centrifugal effect makes it bulge slightly at the equator and slightly squashed at the poles, to produce what we refer to as an ‘oblate spheroid’. In fact, its observed diameter is approximately 43 km greater at the equator than at the poles, leading to slightly stronger gravitation at the poles than at the equator. However, the centrifugal effect also applies to a body on the Earth’s surface as it rotates about Earth’s rotation axis. This force appears to modify the effect of pure gravity and tends to reduce the quantity we call ‘weight’. Figure 1 shows both the gravitational force and the centrifugal force acting on a body at Earth’s surface at different latitudes, and their resultants (the vector sums of the gravitational forces and the centrifugal forces).
    [Show full text]
  • Typical Spacecraft Contents

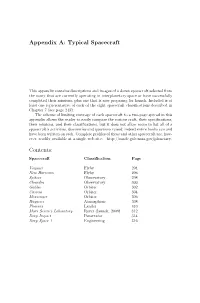

    Appendix A: Typical Spacecraft This appendix contains descriptions and images of a dozen spacecraft selected from the many that are currently operating in interplanetary space or have successfully completed their missions, plus one that is now preparing for launch. Included is at least one representative of each of the eight spacecraft classifications described in Chapter 7 (see page 243). The scheme of limiting coverage of each spacecraft to a two-page spread in this appendix allows the reader to easily compare the various craft, their specifications, their missions, and their classifications, but it does not allow room to list all of a spacecraft’s activities, discoveries and questions raised; indeed entire books can and have been written on each. Complete profiles of these and other spacecraft are, how- ever, readily available at a single web site: http://nssdc.gsfc.nasa.gov/planetary. Contents: Spacecraft Classification Page Voyager Flyby 294 New Horizons Flyby 296 Spitzer Observatory 298 Chandra Observatory 300 Galileo Orbiter 302 Cassini Orbiter 304 Messenger Orbiter 306 Huygens Atmospheric 308 Phoenix Lander 310 Mars Science Laboratory Rover (launch: 2009) 312 Deep Impact Penetrator 314 Deep Space 1 Engineering 316 294 Appendix A: Typical Spacecraft The Voyager Spacecraft Fig. A.1. Each Voyager spacecraft measures about 8.5 meters from the end of the science boom across the spacecraft to the end of the RTG boom. The magnetometer boom is 13 meters long. Courtesy NASA/JPL. Classification: Flyby spacecraft Mission: Encounter giant outer planets and explore heliosphere Named: For their journeys Summary: The two similar spacecraft flew by Jupiter and Saturn.
