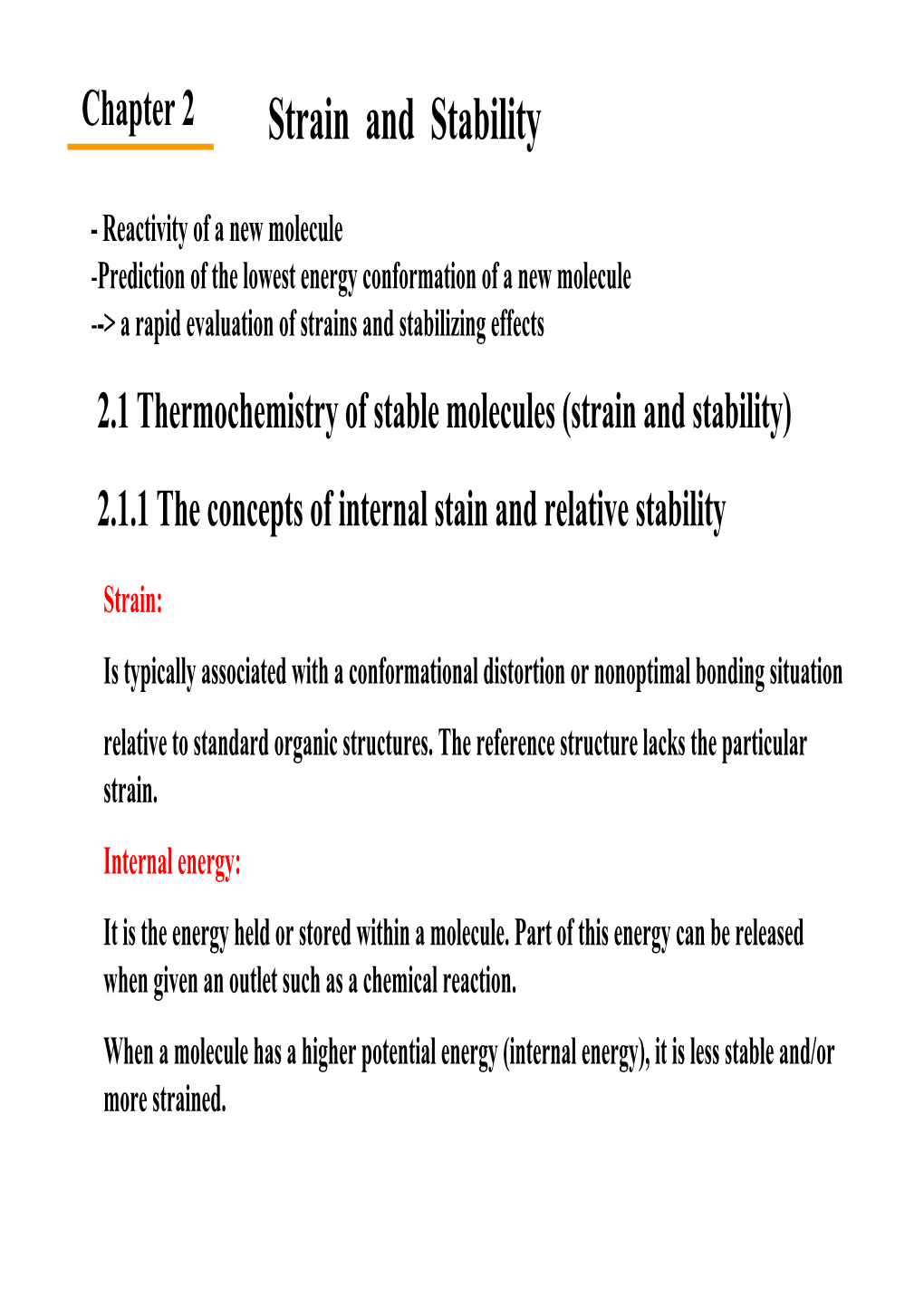

Chapter 2 Strain and Stability
- Reactivity of a new molecule -Prediction of the lowest energy conformation of a new molecule --> a rapid evaluation of strains and stabilizing effects 2.1 Thermochemistry of stable molecules (strain and stability) 2.1.1 The concepts of internal stain and relative stability
Strain: Is typically associated with a conformational distortion or nonoptimal bonding situation relative to standard organic structures. The reference structure lacks the particular strain. Internal energy: It is the energy held or stored within a molecule. Part of this energy can be released when given an outlet such as a chemical reaction. When a molecule has a higher potential energy (internal energy), it is less stable and/or more strained. 2.1.2 Types of energy Gibbs free energy (ΔGo): It is change in ΔGo between two different chemical states that determines the position of equilibrium between these states.
A ← → B
R = 4.184 kJ/mol ΔHo : enthalpy (kcal/mol) ΔSo : entropy (cal/mol·K)
Keq is influenced by temperature
Exergonic, when the Gibbs free energy of B is lower than A, spontaneous conversion Endergonic, when the Gibbs free energy of B is higher than A Enthalpy (ΔHo): The change in enthalpy is defined as the change in heat between two different compositions of an ensemble of molecules at constant pressure if no work is done. Exothermic, negative ΔHo Endotherimic, positive ΔHo
Entropy (ΔSo): is a measure of the disorder of the system. -> degrees of freedom the more degrees of freedom, the greater the entropy. There are three different kinds of degrees of freedom: translational, rotational and vibrational. Translational and rotational refer to the translation of the molecule throughout space and tumbling of the molecule, respectively. Vibrational refers to every kind of internal motion of the molecule, such as bond stretches, bond rotations and various forms of bond angle vibrations. While entropy is certainly important for significant changes in chemical structure (such as cyclization), often when comparing two similar structures, the difference in entropies will be fairly small. Thus, ΔHo is mainly considered in reactions.
2.1.3 Bond dissociation energies
Is defined as ΔHo. (bond strength)
Homolytic cleavage
A larger BDE implies a less stable radical. 1. F > OH > NH2, the larger the electronegativity difference, the stronger the bond. 2. Shorter bonds are stronger bonds; O-H > N-H> C-H 3. F > Cl > Br > I; move down the periodic table, the valence orbitals of X get progressively larger. The larger orbital size leads to a size mismatch with the carbon valence orbitals, and this weakens the bond by decreasing orbital overlap. 4. Hybridization C(sp)-H > C(sp2)-H > C(sp3)-H, more s character in a hybrid orbital makes the group more electronegative and decreases the bond length. 5. Resonance
PhCH2-H (88 kcal/mol) and CH2=CH-CH2-H (86 kcal/mol) 6. O-O bonds of peroxides: generally very weak 2.1.4 An introduction to potential functions and surfaces: bond stretches
Vibrational energy states
X. + Y.
Anharmonic oscillator X-Y
E = (n + ½)hv (n=0, ZPE) frequency = v = 1/(2π) √ k/μ k = force constant
μ = reduced mass, (m1 +m2)/m1m2 Infrared spectroscopy k v = 1/(2π) √ k/μ k = force constant m1 m2 μ = reduced mass, (m1 +m2)/m1m2 Hooke’s law v = 1/(2π) √ k/μ frequency v = 1/λ = v/c= 1/(2πc)√k/μ Wavenumber(cm-1)
1) C-C C=C C≡C 450-500 cm-1 1617-1640 cm-1 2100-2260 cm-1
2) C=C-C=O C=O 1690 cm-1 1730 cm-1 O O- + less double character 3) O O O
Cl R MeO R Me R
O- O- + MeO R +Cl R wavenumber the largest the lowest middle 2.2 Thermochemistry of reactive intermediates 2.2.1 Stability vs persistence 1. stable; thermodynamic notion <-> unstable 2. persistent; kinetic notion (kinetically inert) <-> labile (reactive) 참조
1,3-butadiene ethylene more stable less stable <- extra orbital interaction between C2 and C3 more labile less labile HOMO energy (butadiene) > HOMO energy (ethylene) LUMO energy (butadiene) < LUMO energy (ethylene)
ψ 4 Π* ψ3 ψ 2 Π ψ1 1,3-butadiene ethylene
Stability: determined by the energies of all the filled orbitals Lability (reactivity): must consider the energy of HOMO or LUMO 2.2.2 Radicals
1. BDE; methane > ethane > propane > isobutane <- radical stability 3o > 2o > 1o > methyl 2. Allyl and benzyl radicals -> substantially stabilized (resonance effect)
Allylic radical rotation barrier ~ 15.7 kcal/mol (resonance structure) In many cases, radical species are unstable but in some cases there are stable radical species.
Commercially available 2.2.3 Carbocations
Hydride ion affinity (HIA), ΔHo
A larger HIA implies a less stable carbocation. 1. Heteroatom effects
+ + + stability: NH2CH2 > HOCH2 > FCH2 .. + + X-CH2 X=CH2 Consider both inductive and resonance effects 2. Hybridization effects stability: sp3 > sp2 > sp Consider electronegativity
vinyl cation and phenyl cation: ~287 kcal/mol HIA verse Ethyl cation ~ 273 kcal/mol, propyl cation ~266 kcal/mol HIA propargyl cation ~270 kcal/mol verse allyl cation ~256 kcal/mol
3. Aromaticity and antiaromaticity
stability: >>
HIA 201 212 258 aromaticnon-aromatic antiaromatic resonance effect 4. Planarity and pyramidalization Carbocation: planar
Ring constraints prevent Planar but 2o cation the ion from achieving Planarity. But 3o cation
relatively small difference in HIVs (9 kcal/mol)
In solution
Carbocations are formed in solution by SbF5 (Olah, 1994, Nobel Prize)
Lifetimes of carbocations
3o carbocations: 10-10 s in water 2o carbocations: 10-12 s in water 2.2.4 Carbanions
Stability of carbanions is related to pKa values. The smaller pKa value implies a stronger acid.
aromatic
anti-aromatic 2.3 Relationships between structure and energetics -basic conformational analysis 2.3.1 Acyclic systems-torsional potential surfaces
rotation barrier: 3kcal/mol ethane butane t1/2 = ln2/k Barrier height
Similar; consider size and bond length
Lower than C-C, lone pair < C-H
Allylic (A1,3) strain 2.3.2 Basic cyclic systems
Cyclic propane
Bent bonds (sp4~sp5)
115o larger than H-C-H (106o) (sp~sp2)
C-C-C, more p character to reduce bond angle (sp 180o, sp2 120o, sp3 109.5o) -> C-H more s character -> more acidic than alkane C-H
Strain energy of cyclopropane: 27.5 kcal/mol (results from deviation of bond angles from normal values and eclipsing C-H interactions) Cyclobutane and cyclopentane
very small barrier (1.45 kcal/mol)
Strain energy: 26.5 kcal/mol puckered conformations
Strain energy: 6.2 kcal/mol
Two forms are very nearly equal in energy and they interconvert very rapidly (the barrier is < 2 kcal/mol) 5’ 3’
4’ 1’ 2’
O
N NH
HO 5' N N NH2 O 3' 2' 1' 4' OH H (OH) Cyclohexane
Newman projection A value: ΔGo of two structures (axial and equatorial)
Not much difference similar R R consider size and bond length H
R H R Conformational interconversion of cyclohexane Larger rings
~ 3 kcal/mol more stable cyclodecane Bicyclic ring systems
spiro: a molecule has two rings and two share only one carbon in common Strain energy 2.4 Electronic effects
2.4.1 interactions involving π systems
Substitution on alkenes:
The more substitution, the more stable; interaction of a filled π(CH3) orbital with the π* orbital.
π* - H H+ π(CH ) H H 3 H H H Hyperconjugation: no-bond resonance
trans-alkenes are more stable than cis-ones.
Stability, CH2=CH2 < CH2=CHMe < cis-CHMe=CHMe < trans-CHMe=CHMe
< CMe2=CMe2 < CHMe=CMe2 steric effect Conformations of substituted alkenes: Eclipsed conformers are more stable than staggered ones.
2 kcal/mol more stable although there is steric hindrance.
Repulsive interactions filled π filled π
filled π(CH3) H H filled π(CH3) eclipsed staggered Repulsive interactions between filled π(CH ) and filled π Attractive interaction 3 π∗ C1 C2-C3: strengthened filled π(CH ) C2 3 C1-C2:weakened C3 H Allylic (A1,3) strain
eclipsed; more stable A1,3 strain H C R H3C R 3 R = CH ; ~90% 3 H CH3 R = TMS; ~98% OH HO CH3 H the most stable conformer
H3C R OH H H3C H C R H3C R 3 H3C R VO(acac)3 O O + H H H tBu-OOH CH CH3 HO 3 HO CH3 hydroxyl group directing HO epoxidation 90% 10% R = H acac: acetoacetate Carbonyl compounds
1 kcal/mol more stable
1-methylallyl cation Conjugation
preferred steric effect
Diels-Alder rxn
5 kcal/mol more stable Aromaticity Planar, cyclic, fully conjugated π systems Homoaromatic (4n+2)π electrons: aromatic, 4nπ e-: antiaromatic
Ha Hb Ha Hb
Homoaromatic: systems in which a stabilized cyclic conjugated system is formed by bypassing a saturated atom.
- 6π e- 6π e
μ = 0.8 D (HBr; 0.828 D) Aromatic compounds: ring current, downfield shift at 1H NMR spectra
H downfield (~7 ppm)
H H H H
H H H H H 6H: -3 ppm H H 12H: 9.3 ppm H H H
H H H H Antiaromaticity Planar, cyclic, fully conjugated π systems 4nπ e-
Cyclobutadiene: antiaromatic
not square but rectangular structure
Cyclooctatetraene: non-aromatic nonplanar Cl SbCl 5 - + SbCl6 aromatic
SbCl5 Cl
extremely slow antiaromatic
H pKa = 16
aromatic Ph Ph
Ph Ph pKa = 50 Ph Ph antiaromatic 2.4.2 Effects of multiple heteroatoms Bond length effects
The more substitution, the more stable; interaction of a filled π(CH3) orbital with the π* orbital.
C-O and C-N are shorter than C-C, leading to increased steric strain. C-S is significantly longer than C-C.
O O 2-position 5-position R no 1,3-diaxial interaction Orbital effects
.. + DC DC - A A D: donors lone pair > bonding pairs, F < O < N A: acceptors F > O > N antiperiplanar
σ* CH2FNH2 n n -> σ* interaction CH3OCH2Cl
H3C O Cl O Cl H3C H H one antiperiplanar H H two antiperiplanar interactions -> more stable conformer Anomeric effect Pyranose sugars substituted with an electron-withdrawing group such as halogen or alkoxy at C-1 are often more stable when substituent has an axial orientation rather than an equatorial one.
antiperiplanar
axial
n -> σ* interaction
axial O OR equatorial Example)
