Trinitron Color TV

Total Page：16

File Type：pdf, Size：1020Kb

Download full-text PDF Read full-text

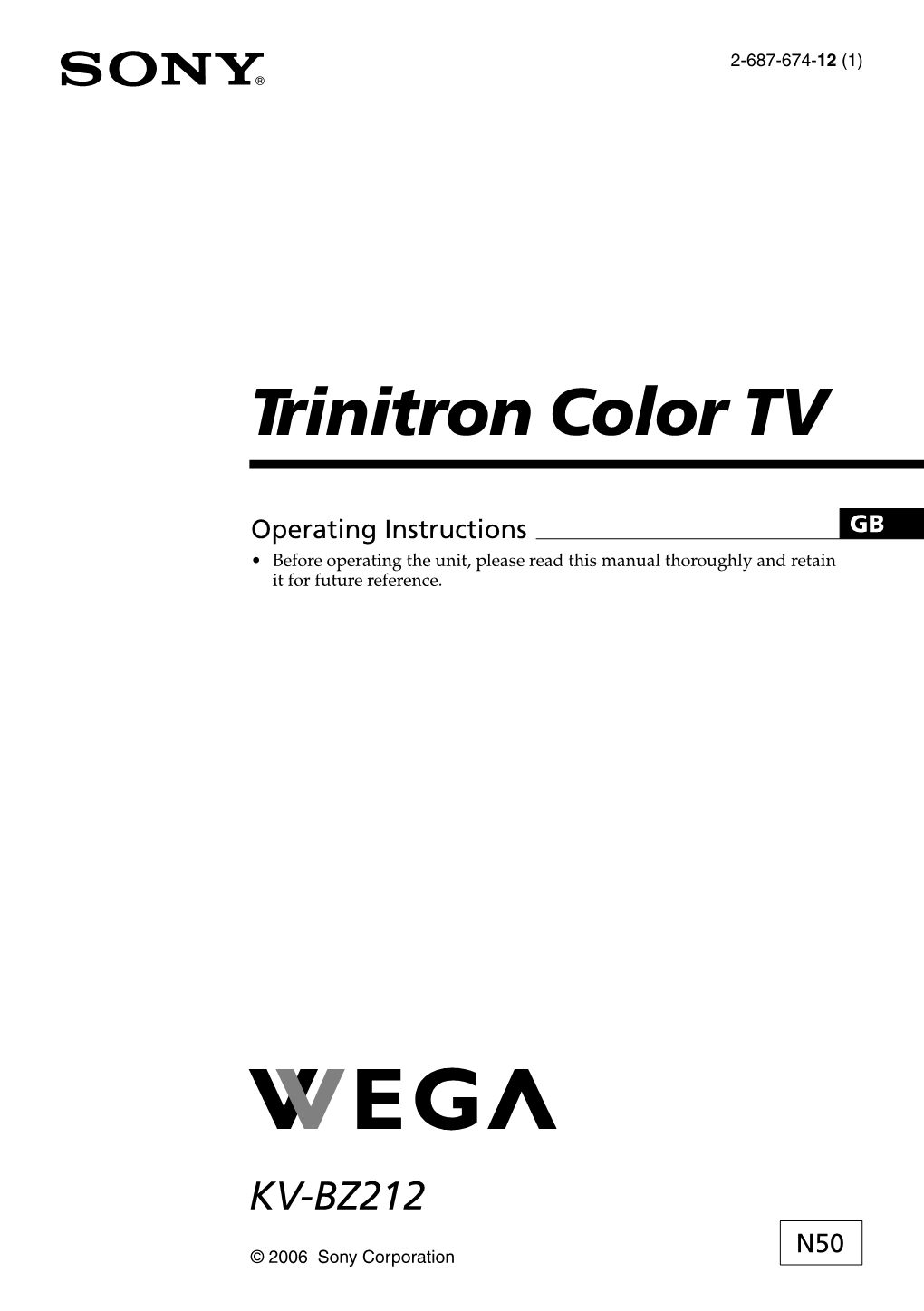

Trinitron Color TV 2-687-674-12 (1) Tr initron Color TV Operating Instructions GB • Before operating the unit, please read this manual thoroughly and retain it for future reference. KV-BZ212 © 2006 Sony Corporation N50 01GB01COV-SOEMPhi.p651 19/12/06, 9:38 am Black Sony KV-BZ212N50 Group B10 (GB)_2-687-674-12 (1) A Specifications KV-BZ212N50 Note Power requirements 110-240 V AC, 50/60 Hz Power consumption (W) Indicated on the rear of the TV Television system M Color system NTSC3.58, PAL*, PAL 60*, SECAM*, NTSC 4.43* * AV IN only Channel coverage VHF : 2 to 13 /UHF : 14 to 69 /CATV : 1 to 125 8 (Antenna) 75-ohm external terminal Audio output (Speaker) 3 W + 3 W Number of terminal (Video) Input: 2 Phono jacks; 1 Vp-p, 75 ohms (Audio) Input: 2 Phono jacks; 500 mVrms Picture tube 21 in. Tube size 545 mm Measured diagonally Viewing screen size 507 mm Measured diagonally Dimensions (w/h/d) 497 × 468 × 494 mm Mass 23 kg Design and specifications are subject to change without notice. 01GB02WAR-SOEMPhi.p652 19/12/06, 9:39 am Black Sony KV-BZ212N50 Group B10 (GB)_2-687-674-12 (1) B WARNING • Dangerously high voltages are present inside the TV. • TV operating voltage: 110 – 240 V AC. • Do not plug in the power cord until you have completed making all other connections; otherwise a minimum leakage current might flow through the antenna and other terminals to ground. •To avoid battery leakage and damage to the remote, remove the batteries from the remote if you are not going to use it for several days. If any liquid leaks from the batteries and touches your skin, immediately wash it away with water. For your own safety, do not touch For children’s safety, do not leave To prevent fire or shock hazard, do any part of the TV, the power cord children alone with the TV. Do not not expose the TV to rain or and the antenna cable during allow children to climb onto it. moisture. lightning storms. Do not place any objects on the TV. Do not operate the TV if any liquid Install the TV on a stable TV stand The apparatus shall not be or solid object falls into it. Have it and floor which can support the exposed to dripping or splashing checked immediately by qualified TV set weight. Ensure that the TV and that no objects filled with personnel only. stand surface is flat and its area is liquids, such as vases, shall be larger than the bottom area of the placed on the apparatus. TV. Do not block the ventilation Your TV is recommended for Do not plug in too many openings of the TV. Do not install home use only. Do not use the TV appliances to the same power the TV in a confined space, such in any vehicle or where it may be socket. Do not damage the power as a bookcase or built-in cabinet. subject to excessive dust, heat, cord. moisture or vibrations. Do not open the cabinet and the Clean the TV with a dry and soft Pull the power cord out by the rear cover of the TV as high cloth. Do not use benzine, thinner, plug. Do not pull the power cord voltages and other hazards are or any other chemicals to clean the itself. Even if your TV is turned present inside the TV. Refer TV. Do not attach anything (e.g., off, it is still connected to the AC servicing and disposal of the TV adhesive tape, cellophane tape, power source (mains) as long as to qualified personnel. glue) on the painted cabinet of the the power cord is plugged in. TV. Do not scratch the picture Unplug the TV before moving it tube. or if you are not going to use it for several days. 01GB02WAR-SOEMPhi.p653 19/12/06, 9:39 am Black Sony KV-BZ212N50 Group B10 (GB)_2-687-674-12 (1) C Getting Started Step 1 Insert the batteries (supplied) into the remote. Note •Do not use old or different types of batteries together. Step 2 Connect the antenna cable (not supplied) to 8 (antenna input) at the rear of the TV. Tip •You can also connect your TV to other optional components (see F). Step 3 Plug in the power cord, then press ! on the TV to turn it on. b Note •The 1 (standby) indicator flashes green for a few seconds when turning on the TV. This does not indicate a malfunction. Step 4 Set up the TV by following the instructions of the “Initial Setup” menu (see D). Select Confirm End 01GB02WAR-SOEMPhi.p654 19/12/06, 9:39 am Black Sony KV-BZ212N50 Group B10 (GB)_2-687-674-12 (1) D Setting up your TV (“Initial Setup”) When you turn on your TV for the first time, the “Initial Setup” menu will appear. You may change the menu language, preset the TV channels automatically, edit the channels and adjust the picture position using the buttons on the remote control or TV top control panel. Press V or v to select the desired menu 1 language, then press . The selected menu language appears. Select Confirm End Press V or v to select “Yes”, then press to 2 preset the channels automatically. The screen will indicate automatic presetting is in progress. Select Confirm End After all available channels have been tuned and stored, the “Program Edit” menu appears automatically on the screen. Program: 1 To skip automatic channel presetting, select Searching... “No”, then press . End If the message “No channel found. Please connect cable/antenna” appears, check your TV connections, then press . The “Program Edit” menu enables you to 3 edit the channels. a) If you wish to keep the channels in the current Program Edit PROG Label Skip condition, press WEGA GATE to exit. 1 Off 2 Off b) Press V or v to select the program 3 Off 4 Off number with the channel you wish to Edit: change. The selected channel will appear Select Confirm Exit on the screen. c) If you wish to edit the channels, press to enter edit mode. Press b until the mode that you wish to edit is highlighted: Label, Skip, (block symbol). Then press . Select Confirm Exit 1) To label, press V or v to select the alphanumeric characters for the label. Then press . 01GB02WAR-SOEMPhi.p655 19/12/06, 9:39 am Black Sony KV-BZ212N50 Group B10 (GB)_2-687-674-12 (1) Setting up your TV (“Initial Setup”) (continued) 2) To skip the program number, press V or v to select “On”. Then press . You can skip this program number when using PROG +/–. Select Confirm Exit 3) To block unwanted program number, press V or v to select . Then press . d) Repeat step b) to c) if you wish to change other channels. Select Confirm Exit Press WEGA GATE to go to the next menu. Press B or b to adjust the bars on the top 4 and bottom of the menu if they are slanted, then press . Select Confirm End If no adjustment is necessary, then press . To prevent this “Initial Setup” menu from 5 appearing again when you turn on the TV by pressing !, press V or v to select “No”, then press . To allow this menu to appear again, select Select Confirm “Yes”, then press . Tip •You can immediately go to the end of the ”Initial Setup” menu by pressing WEGA GATE. 01GB02WAR-SOEMPhi.p656 19/12/06, 9:39 am Black Sony KV-BZ212N50 Group B10 (GB)_2-687-674-12 (1) E TV top control, front and rear panels TV top control panel WEGA GATE PROG 8 7 6 5 TV rear panel 1 (MONO) 2 L L (MONO) R R 9 TV front panel 2 0 L (MONO) R 4 3 2 1 Button/Terminal Function See 1 ! Turn off or turn on the TV. C 2 Remote control sensor. - 3 Wake Up indicator. H 3 1 Standby indicator. C 4 t2Video input terminal 2. F 5 PROG +/– Select program number. - 6 2 +/– Adjust volume. - 7 t Select TV or video input. F WEGA GATE menu operations 5,6 V,v,B,b Select and adjust items. I 7 Confirm selected items. I 8 WEGA GATE Display or cancel WEGA GATE menu. I 9 8 Antenna input terminal. F 0 t1Video input terminal 1. F 01GB03INS-SOEMPhi.p65 7 19/12/06, 9:40 am Black Sony KV-BZ212N50 Group B10 (GB)_2-687-674-12 (1) F Connecting optional components Connecting to the video input terminal ( t ) TV front panel Audio/Video cable (not supplied) L 2 R Camcorder L (MONO) R TV rear panel Antenna cable 1 (not supplied) Audio/Video cable L (MONO) L (not supplied) R VCR R DVD player 01GB03INS-SOEMPhi.p65 8 19/12/06, 9:40 am Black Sony KV-BZ212N50 Group B10 (GB)_2-687-674-12 (1) G Troubleshooting If you find any problem while viewing your TV, you can either use the “Factory Settings” function or check the Troubleshooting guide below. If the problem persists, contact your Sony dealer. “Factory Settings” function Press the WEGA GATE button. Choose “Settings” and go to “Setup” ( ) menu. From “Setup” menu, select “Factory Settings”. Then select “Yes” and press . Your TV will go blank for a few seconds, then the “Initial Setup” menu will appear. Your TV will be set to factory settings, but certain problems may be solved. Symptom Solutions Snowy picture, • Check the antenna cable and connection on the TV, VCR and at the wall noisy sound (see F).
