Ciena 5410 Service Aggregation Switch Datasheet

Total Page：16

File Type：pdf, Size：1020Kb

Download full-text PDF Read full-text

Load more

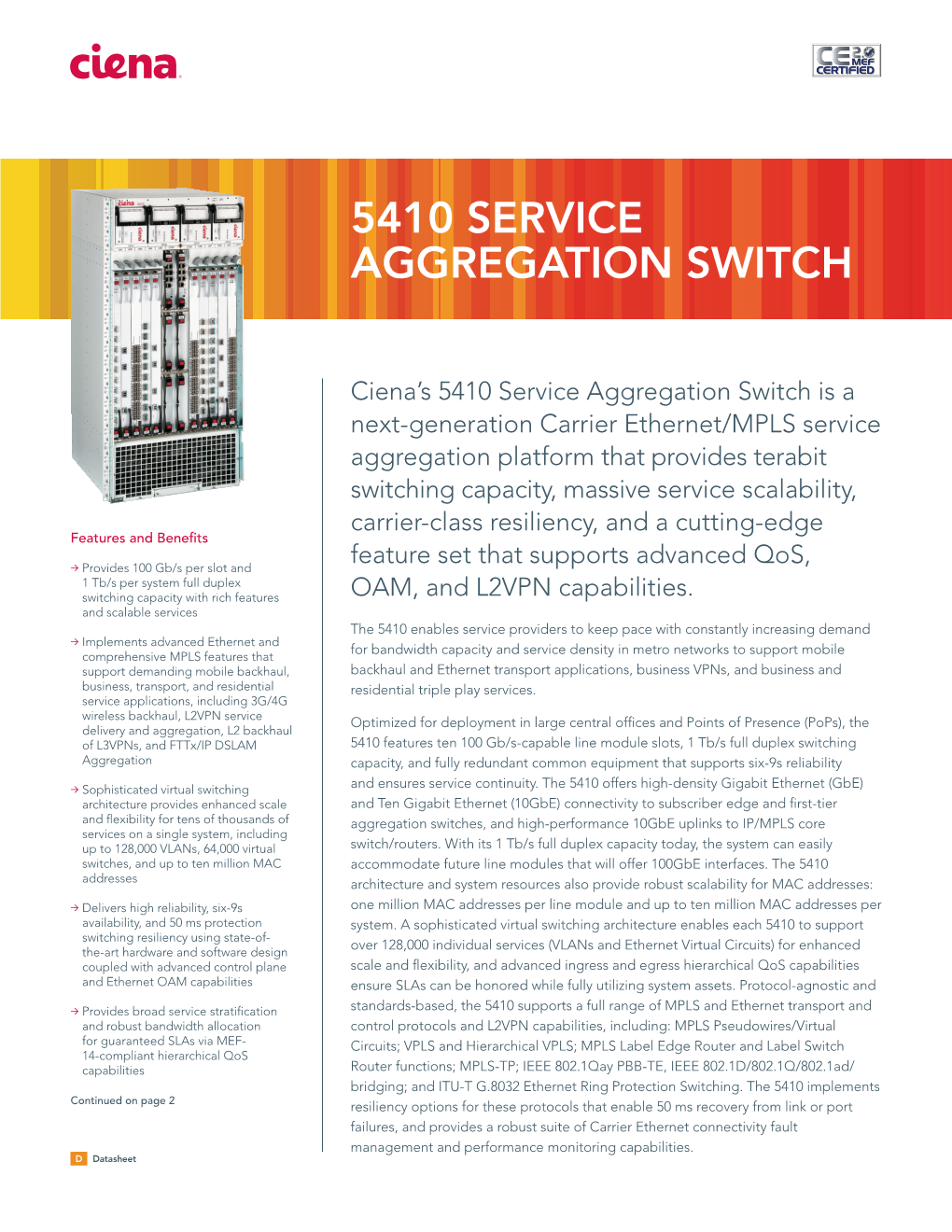

5410 SERVICE AGGREGATION SWITCH Ciena’s 5410 Service Aggregation Switch is a next-generation Carrier Ethernet/MPLS service aggregation platform that provides terabit switching capacity, massive service scalability, carrier-class resiliency, and a cutting-edge Features and Benefits feature set that supports advanced QoS, > Provides 100 Gb/s per slot and 1 Tb/s per system full duplex switching capacity with rich features OAM, and L2VPN capabilities. and scalable services The 5410 enables service providers to keep pace with constantly increasing demand > Implements advanced Ethernet and for bandwidth capacity and service density in metro networks to support mobile comprehensive MPLS features that support demanding mobile backhaul, backhaul and Ethernet transport applications, business VPNs, and business and business, transport, and residential residential triple play services. service applications, including 3G/4G wireless backhaul, L2VPN service Optimized for deployment in large central offices and Points of Presence (PoPs), the delivery and aggregation, L2 backhaul of L3VPNs, and FTTx/IP DSLAM 5410 features ten 100 Gb/s-capable line module slots, 1 Tb/s full duplex switching Aggregation capacity, and fully redundant common equipment that supports six-9s reliability > Sophisticated virtual switching and ensures service continuity. The 5410 offers high-density Gigabit Ethernet (GbE) architecture provides enhanced scale and Ten Gigabit Ethernet (10GbE) connectivity to subscriber edge and first-tier and flexibility for tens of thousands of aggregation switches, and high-performance 10GbE uplinks to IP/MPLS core services on a single system, including up to 128,000 VLANs, 64,000 virtual switch/routers. With its 1 Tb/s full duplex capacity today, the system can easily switches, and up to ten million MAC accommodate future line modules that will offer 100GbE interfaces. The 5410 addresses architecture and system resources also provide robust scalability for MAC addresses: > Delivers high reliability, six-9s one million MAC addresses per line module and up to ten million MAC addresses per availability, and 50 ms protection system. A sophisticated virtual switching architecture enables each 5410 to support switching resiliency using state-of- over 128,000 individual services (VLANs and Ethernet Virtual Circuits) for enhanced the-art hardware and software design coupled with advanced control plane scale and flexibility, and advanced ingress and egress hierarchical QoS capabilities and Ethernet OAM capabilities ensure SLAs can be honored while fully utilizing system assets. Protocol-agnostic and > Provides broad service stratification standards-based, the 5410 supports a full range of MPLS and Ethernet transport and and robust bandwidth allocation control protocols and L2VPN capabilities, including: MPLS Pseudowires/Virtual for guaranteed SLAs via MEF- Circuits; VPLS and Hierarchical VPLS; MPLS Label Edge Router and Label Switch 14-compliant hierarchical QoS capabilities Router functions; MPLS-TP; IEEE 802.1Qay PBB-TE, IEEE 802.1D/802.1Q/802.1ad/ bridging; and ITU-T G.8032 Ethernet Ring Protection Switching. The 5410 implements Continued on page 2 resiliency options for these protocols that enable 50 ms recovery from link or port failures, and provides a robust suite of Carrier Ethernet connectivity fault management and performance monitoring capabilities. D Datasheet The 5410 system hardware includes all the elements required for Synchronous Ethernet Features and Benefits (continued) allowing the 5410 to easily support Synchronous Ethernet applications, such as next- generation mobile backhaul, when software support is added in a future release. 5410 > Supports interworking between Line Modules and Control Modules include synchronization and clocking circuitry; Q-in-Q VLANs, MPLS Virtual Circuits, VPLS/H-VPLS L2VPNs, dedicated timing traces on the backplane enable precise network timing and and PBB-TE connections for synchronization signals to be delivered to and derived from all Ethernet interface ports; complete service flexibility and the system I/O module includes T1 or E1 BITS interfaces that can receive or provide and optimization of network resources BITS synchronization timing signals. These design elements will enable the delivery and distribution of transport-class timing for network-synchronized applications. > Provides operational efficiency and consistent system and service attributes with a field-proven service-aware Access Metro/Aggregation Core operating system, and supports comprehensive management for high-velocity service rollout and faster time to revenue MTU nxG, 10G (Q, P, H) G.8032 Ring 10G > Complies with IEEE/IETF/ITU/ Q-in-Q (Q) PBB-TE (P) MEF standards and features MTU Remote Terminal nxG H-VPLS (H) MEF, MPLS/VPLS, VLAN, and (Q, P) MPLS-TP PBB-TE services on every port G (Q) G.8032 National MPLS to support interoperability in 10G multivendor deployments SMB G (Q) (Q, P, H) > Facilitates implementation PoP/RT of latest standards and new SMB service capabilities through G (Q, P) G.8032 programmable hardware, ensuring future-proof 1G investment protection MTU (Q, P, H) Figure 1: 5410 Ethernet aggregation The 5410 is based on Ciena’s field-proven technology, deployed by dozens of network operators in tens of thousands of PoPs, central offices, businesses, office parks, cell sites, remote terminals, and residences. It combines the low cost and high capacity of Ethernet with the reliability, management, and service quality usually associated with SONET/SDH networking systems. The 5410 software is based on an advanced service- aware operating system—used in all Ciena service delivery and aggregation switches— which provides consistent system and service attributes and a common operator interface, provisioning, and management capabilities. These features leverage customer investment in training and operational procedures, provide significant operational cost savings, enhance service creation velocity for faster time to revenue, and deliver synergy with Ciena’s best-in-class portfolio of right-sized service aggregation and service delivery Carrier Ethernet systems. Advanced MPLS Functionality The 5410 offers a comprehensive set of MPLS, VPLS, and H-VPLS features that support resilient MPLS L2VPNs and enable service providers to offer MPLS-based connectivity 5410 chassis, front view services on metro Ethernet networks, extending the functionality and scalability of MPLS core networks. These MPLS features include: > MPLS Pseudowire Emulation Edge-to-Edge (PWE3), which supports MPLS Virtual Private Wire Services (VPWS), sometimes called MPLS Virtual Leased Lines. VPWS enables the provisioning of MPLS-based Ethernet Virtual Circuits (EVCs) and supports MPLS-based Ethernet Private Line and Ethernet Virtual Private Line services 2 > Virtual Private LAN Services (VPLS) and Hierarchical-VPLS > MPLS FRR further enhances resiliency for MPLS/VPLS services (H-VPLS) based on MPLS Label Switched Paths (LSPs) and by enabling LSPs to be restored within 50ms in case of MPLS Virtual Circuits (VCs). 5410 VPLS capabilities support physical or logical link failure Layer 2 VPNs that are based on Ethernet transport with the > MPLS OAM capabilities include LSP Ping and LSP Traceroute, benefits of an MPLS/VPLS control plane. This control plane which can be used to verify the LSP status and topology includes Label Distribution Protocol (LDP) for VPLS VC signaling; OSPF-TE and IS-IS-TE for MPLS Tunnel Routes; The 5410 incorporates the latest innovations in Ethernet and RSVP-TE for the establishment of the LSPs that switching technology and control plane protocols and utilizes constitute the VPLS high-performance programmable processors to deliver new features and functionality through simplified software > MPLS label edge router functionality, which enables the 5410 upgrades, with minimal disruption to customer traffic. to function as a VPLS/H-VPLS Provider Edge switch (PE-rs). This programmable architecture keeps capital and operating The 5410 also supports H-VPLS Dual Homing, which provides costs to a minimum and simplifies the migration to emerging resiliency by enabling spoke connections from an MTU-s to standards and services—maximizing revenue potential and two different PE Hub switches. For additional flexibility, providing superior flexibility and investment protection. H-VPLS spoke connections can be implemented using MPLS pseudowires (VCs), Q-in-Q Ethernet VLAN Virtual Circuits, The 5410 provides interworking between Q-in-Q VLANs, Ethernet Private Lines, Ethernet Virtual Private Lines and MPLS/VPLS/H-VPLS, and PBB/PBB-TE encapsulation formats. PBB-TE service instances By enabling Ethernet and MPLS/VPN and connectivity services to seamlessly traverse multiple domains and transmission > MPLS tunnel groups can be configured on the 5410 to facilities—each with its own encapsulation and transport— support LSP redundancy Ciena’s 5410 creates interworking functionality that supports complete service flexibility and maximum optimization of network resources and traffic engineering architectures. Technical Information IEEE 802.3u Fast Ethernet MEF 9 Ethernet Virtual Private Line Interfaces IEEE 802.3z GbE MEF 9 Ethernet Virtual Private LAN 10 x 10GbE XFP NNI/UNI ports per 10GbE IEEE 802.1D MAC Bridges MEF 9 Ethernet Tree Line Module IEEE 802.1Q VLANs - Including .1p Priority MEF 14 Traffic Management - 0–10 10GbE line modules per system IEEE 802.1ad Provider Bridging (Q-in-Q) - 0-100 x 10GbE ports per system VLANs with full S-VLAN range
