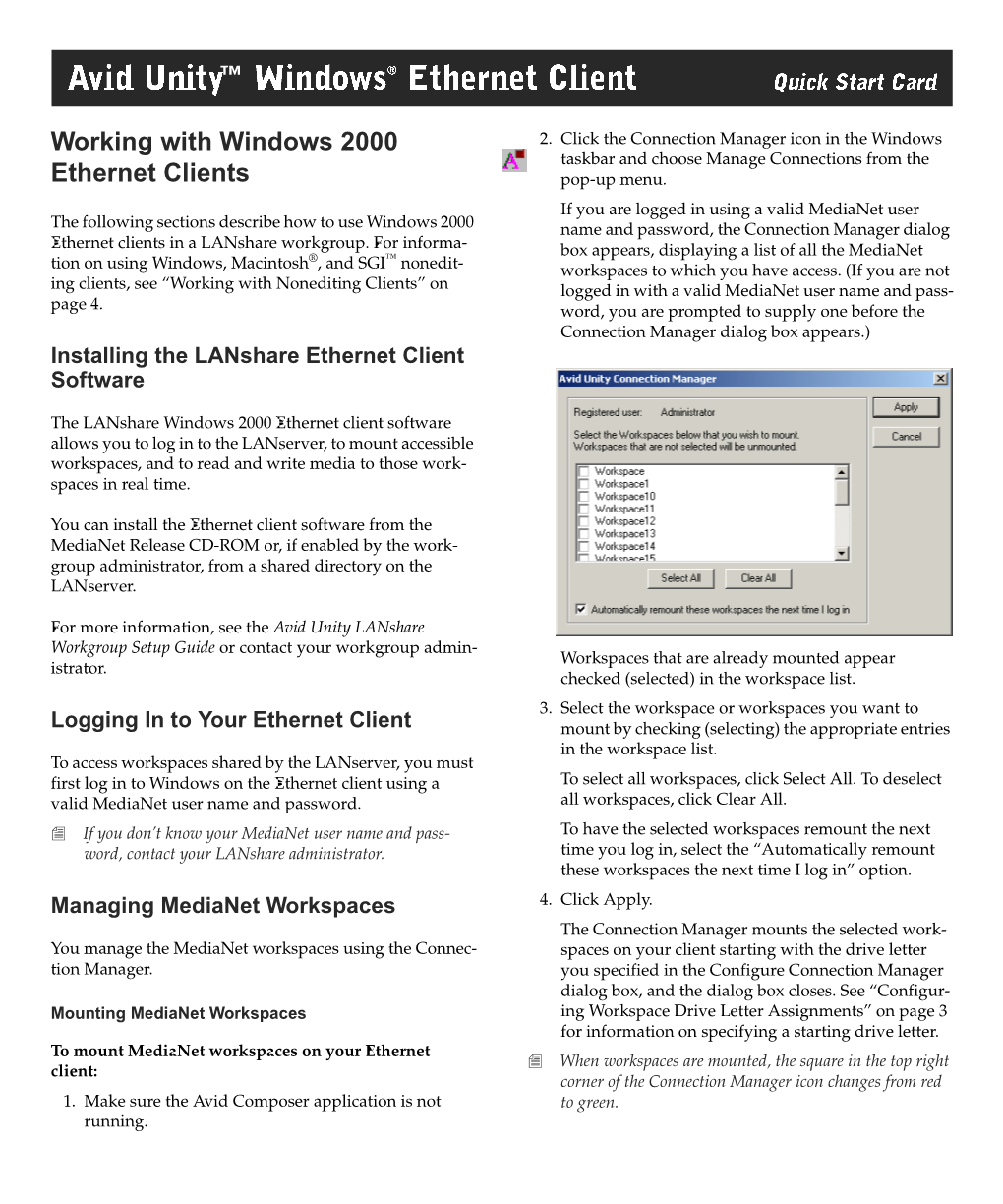

Avid Unity™ Windows® Ethernet Client Quick Start Card

Working with Windows 2000 2. Click the Connection Manager in the Windows and choose Manage Connections from the Ethernet Clients pop-up . If you are logged in using a valid MediaNet user The following sections describe how to use Windows 2000 name and password, the Connection Manager dialog Ethernet clients in a LANshare workgroup. For informa- ® ™ box appears, displaying a list of all the MediaNet tion on using Windows, Macintosh , and SGI nonedit- to which you have access. (If you are not ing clients, see “Working with Nonediting Clients” on logged in with a valid MediaNet user name and pass- page 4. word, you are prompted to supply one before the Connection Manager dialog box appears.) Installing the LANshare Ethernet Client Software

The LANshare Windows 2000 Ethernet client software allows you to log in to the LANserver, to mount accessible workspaces, and to read and write media to those work- spaces in real time.

You can install the Ethernet client software from the MediaNet Release CD-ROM or, if enabled by the work- group administrator, from a shared directory on the LANserver.

For more information, see the Avid Unity LANshare Workgroup Setup Guide or contact your workgroup admin- Workspaces that are already mounted appear istrator. checked (selected) in the list. 3. Select the workspace or workspaces you want to Logging In to Your Ethernet Client mount by checking (selecting) the appropriate entries in the workspace list. To access workspaces shared by the LANserver, you must first log in to Windows on the Ethernet client using a To select all workspaces, click Select All. To deselect valid MediaNet user name and password. all workspaces, click Clear All. n If you don’t know your MediaNet user name and pass- To have the selected workspaces remount the next word, contact your LANshare administrator. time you log in, select the “Automatically remount these workspaces the next time I log in” option. Managing MediaNet Workspaces 4. Click Apply. The Connection Manager mounts the selected work- You manage the MediaNet workspaces using the Connec- spaces on your client starting with the drive letter tion Manager. you specified in the Configure Connection Manager dialog box, and the dialog box closes. See “Configur- Mounting MediaNet Workspaces ing Workspace Drive Letter Assignments” on page 3 for information on specifying a starting drive letter. To mount MediaNet workspaces on your Ethernet n When workspaces are mounted, the square in the top right client: corner of the Connection Manager icon changes from red 1. Make sure the Avid Composer application is not to green. running. 0510201A_QS.fm Page 2 Monday, November 19, 2001 2:51 PM

n Due to operating system constraints, the LANserver can 3. Select the workspace or workspaces you want to only mount and share a maximum of 21 workspaces (the unmount by unchecking (deselecting) the appropri- number of available drive letters on the LANserver). The ate entries in the workspace list. number of workspaces a client can mount is limited by the To deselect all workspaces, click Clear All. available drive letters on the client. If a mount request exceeds either of these limits, an error dialog box appears 4. Click Apply. informing you that one or more workspaces could not be The Connection Manager unmounts the selected mounted. workspaces from your client, and the dialog box closes. Unmounting MediaNet Workspaces n When all the workspaces are unmounted, the square in the To unmount MediaNet workspaces on your Ethernet top right corner of the Connection Manager icon changes client: from green to red. 1. Make sure your Avid Composer application is not Managing Lost Workspace Connections running. 2. Click the Connection Manager icon in the Windows When you have one or more workspaces mounted and taskbar and choose Manage Connections from the the connection to the LANserver is subsequently lost, the pop-up menu. Connection Manager icon changes to indicate the connec- tion loss. If you are logged in using a valid MediaNet user name and password, the Connection Manager dialog The Connection Manager then automatically attempts to box appears, displaying a list of all the MediaNet reestablish the connection with the LANserver every 30 workspaces to which you have access. (If you are not seconds. When the connection is successfully reestab- logged in with a valid MediaNet user name and pass- lished, the Connection Manager attempts to remount the word, you are prompted to supply one before the workspaces that it previously mounted. If successful, the Connection Manager dialog box appears.) Connection Manager icon returns to the green “work- Workspaces that are already mounted appear spaces mounted” state. checked (selected) in the workspace list. Restarting the Connection Manager

The Connection Manager starts automatically at client startup. To restart the Connection Manager for any rea- son, click the Start , point to Programs, point to Startup, and then select Connection Manager.

Sharing Media Files

If you cannot see media files after digitizing on another Ethernet client: 1. Make sure you have the correct workspace mounted to your Ethernet client. 2. On the client that digitized the files, close the Digitize tool and choose Refresh Media Directories from the . 3. On each client that wants to play the media files, choose Load Media Database from the File menu. The missing media files should become available. 0510201A_QS.fm Page 3 Monday, November 19, 2001 2:51 PM

If you have shared media files that appear as MEDIA Changing the LANserver IP Address OFFLINE: 1. Choose Load Media Database from the File menu. You set the IP address for the LANserver gigabit Ethernet The missing media files should become available. adapter to which the client is connected when you installed the Windows 2000 Ethernet client software. 2. Check with other users who have access to the media files to make sure they were not deleted. If the files Normally, you should not need to change this address were deleted, you need to redigitize them. because each Ethernet client can only be connected 3. Try to locate the media files using the Media tool. directly to one LANserver using the Ethernet switch. n However, it is possible the client could be moved and Make sure you have only the necessary workspaces directly connected to another LANserver. mounted to your Ethernet client when running the Media tool. It will run very slowly if you have many workspaces To reconfigure the IP address for the LANserver to mounted to your client. which your Ethernet client is connected: 4. Quit the Avid Composer application and restart it. 1. Click the Connection Manager icon in the Windows taskbar and choose Configure from the pop-up Configuring Workspace Drive Letter menu. The Configure Connection Manager dialog Assignments box appears.

The Connection Manager allows you to configure the starting drive letter for mounting MediaNet workspaces. For instance, if you configure a starting drive letter of J:, and you mount four workspaces, they will be assigned the drive letters J:, K:, L:, and M:. This allows you to pre- vent MediaNet workspaces from being assigned drive let- ters you want reserved for other uses.

To configure the starting drive letter for mounting 2. Type the new IP address for the LANserver gigabit MediaNet workspaces: Ethernet adapter to which the client is connected in 1. Click the Connection Manager icon in the Windows the PortServer or LANserver . taskbar and choose Configure from the pop-up 3. Click OK. menu. The Configure Connection Manager dialog box appears. 4. When you are asked to confirm the change, click Yes. n If you enter an invalid IP address for the new LANserver, the Connection Manager automatically reverts to the old IP address. 5. Click the Connection Manager icon in the Windows taskbar and choose Manage Connections from the pop-up menu. 6. Select the workspace or workspaces you want to mount by checking (selecting) the appropriate entries in the workspace list. 2. Choose the starting drive letter for mounting work- spaces from the menu at the bottom of the dialog box. 3. Click OK. The dialog box closes and the change is saved. 0510201A_QS.fm Page 4 Monday, November 19, 2001 2:51 PM

Working with Nonediting Clients SGI Nonediting Clients

While editing in a LANshare workgroup is limited to SGI clients cannot connect to the LANserver without Windows 2000 and Macintosh Ethernet clients, you can installing additional software (Samba) to allow them to also perform file copy and transfer activities from see the Windows network. Samba is freeware and can be Windows 2000, Windows NT®, Macintosh, and SGI non- obtained over the Internet. Install the software onto each editing clients. The following sections provide informa- SGI system you will use as a nonediting Ethernet client. tion about working with nonediting clients. See the Samba application note on the Avid Customer Support Knowledge Center for more information. n Windows NT and SGI clients are by definition nonediting clients. Windows 2000 and Macintosh clients are consid- ered nonediting clients if they are not running the Ether- net client software.

Windows 2000 and Windows NT Nonediting Clients

On Windows 2000 and Windows NT nonediting clients, you connect to a workspace shared by a LANserver by mapping a network drive. This network drive mapping is identical to the mapping you do for any shared directory in a Windows environment. The workspaces you want to map must already be mounted and shared on the LANserver.

Macintosh Nonediting Clients

Macintosh clients cannot connect to the LANserver with- out installing additional software (DAVE™) to allow them to see the Windows network. You can purchase copies of DAVE directly from the manufacturer, Thursby Software Systems, Inc., or from most Macintosh software suppliers. Install the software onto each Macintosh system you will use as a nonediting Ethernet client. See the DAVE applica- tion note on the Avid Customer Support Knowledge Cen- ter for more information. n Each Macintosh client needs to have a separate DAVE license to use the DAVE software. If two clients use the same license, you will have conflicts between these clients when they try to connect to the LANserver.

c Shared workspaces that have more than 11 charac- ters in their name do not appear in the Chooser when using the DAVE software. These workspaces must be mounted using the Mount Manually com- Copyright © 2001 Avid Technology, Inc. and its licensors. All rights reserved. Printed in USA. mand in the DAVE software. Avid is a registered trademark and Avid Unity is a trademark of Avid Technology, Inc. DAVE is a trademark of Thursby Software Systems, Inc. Macintosh is a trademark of Apple Computer, Inc., registered in the U. S. and other countries. SGI is a trademark of Silicon Graphics, Inc. Windows and Windows NT are registered trademarks of Microsoft Corporation in the United States and/or other countries.
