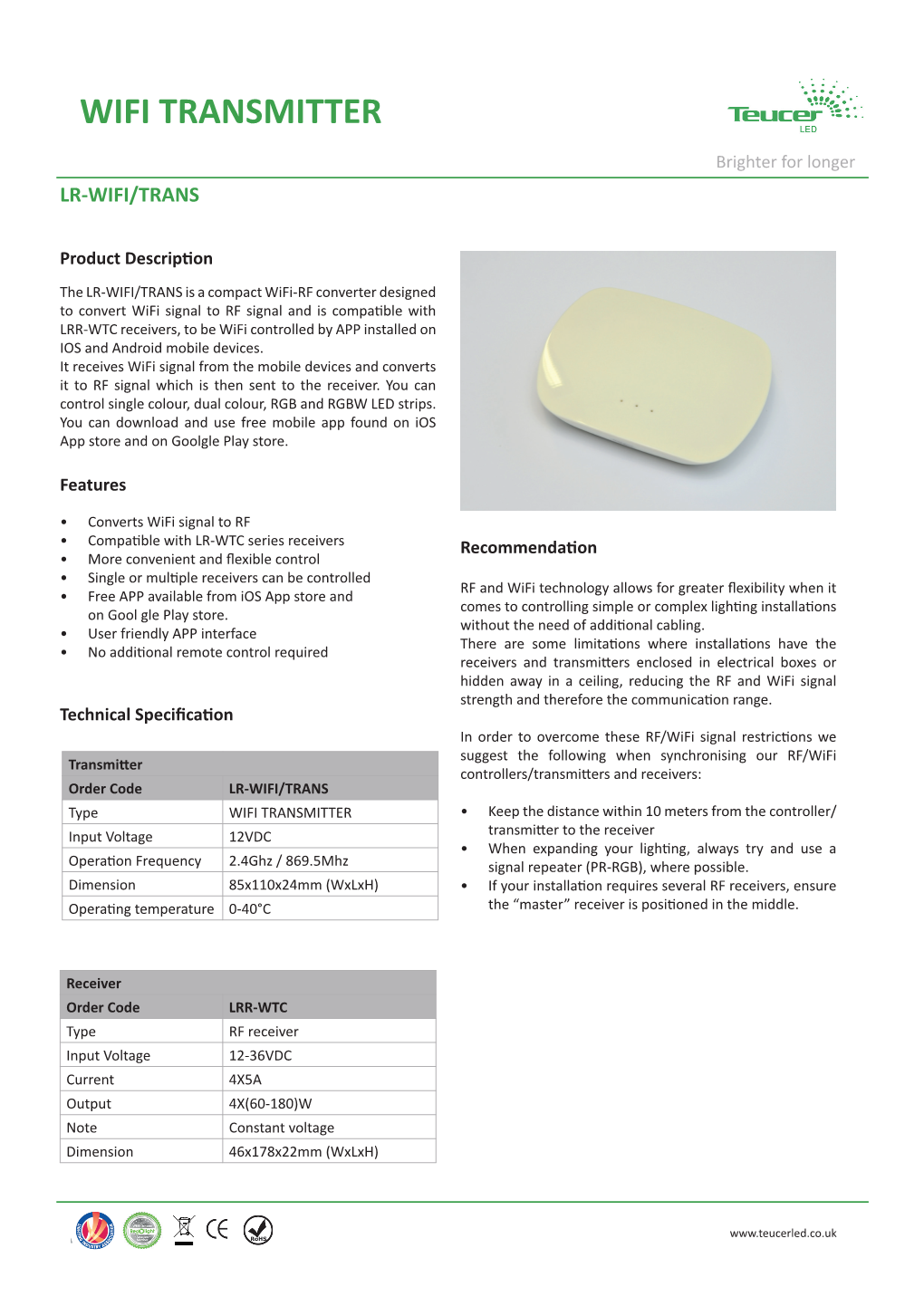

Wifi Transmitter WIFI TRANSMITTER Brighter for longer LR-WIFI/TRANS Product Description The LR-WIFI/TRANS is a compact WiFi-RF converter designed to convert WiFi signal to RF signal and is compatible with LRR-WTC receivers, to be WiFi controlled by APP installed on IOS and Android mobile devices. It receives WiFi signal from the mobile devices and converts it to RF signal which is then sent to the receiver. You can control single colour, dual colour, RGB and RGBW LED strips. You can download and use free mobile app found on iOS App store and on Goolgle Play store. Features • Converts WiFi signal to RF • Compatible with LR-WTC series receivers Recommendation • More convenient and flexible control • Single or multiple receivers can be controlled RF and WiFi technology allows for greater flexibility when it • Free APP available from iOS App store and comes to controlling simple or complex lighting installations on Gool gle Play store. without the need of additional cabling. • User friendly APP interface There are some limitations where installations have the • No additional remote control required receivers and transmitters enclosed in electrical boxes or hidden away in a ceiling, reducing the RF and WiFi signal strength and therefore the communication range. Technical Specification In order to overcome these RF/WiFi signal restrictions we suggest the following when synchronising our RF/WiFi Transmitter controllers/transmitters and receivers: Order Code LR-WIFI/TRANS Type WIFI TRANSMITTER • Keep the distance within 10 meters from the controller/ Input Voltage 12VDC transmitter to the receiver • When expanding your lighting, always try and use a Operation Frequency 2.4Ghz / 869.5Mhz signal repeater (PR-RGB), where possible. Dimension 85x110x24mm (WxLxH) • If your installation requires several RF receivers, ensure Operating temperature 0-40°C the “master” receiver is positioned in the middle. Receiver Order Code LRR-WTC Type RF receiver Input Voltage 12-36VDC Current 4X5A Output 4X(60-180)W Note Constant voltage Dimension 46x178x22mm (WxLxH) www.teucerled.co.uk WIFI TRANSMITTER Brighter for longer LR-WIFI/TRANS Transmitter layout Red LED indicator: Under control Green LED indicator: Blue LED indicator: Power normal WiFi connected Reset Reset switch: Switch reset to factory setting 12V DC power input LAN Transmitter wiring diagram Method 1: Connect your smartphone to the trasmitter via your home router Learning Key LRR-WTC LRR-WTC 12V DC power input Router Method 2: Connect your smartphone directly to the transmitter Learning Key LRR-WTC Learning Key LRR-WTC SSID: EasyHome_***** Password: 0123456789 12V DC power input WIFI TRANSMITTER Brighter for longer LR-WIFI/TRANS Receiver wiring diagram N 110V-230VAC Power Sppl L 1 LRR-WTC 2 W Learning ey 3 4 MASTER SLAVE N 110V-230VAC Power Sppl L 1 LRR-WTC 2 W Learning ey 3 4 MASTER SLAVE When wiring the receivers, it s mportant to make sure the total wattage of the LED strips does not exceed the maximum rated wattage per channel of the receiver. Each chanel is rated at 5A, so the maximum wattage per channel is 24x5A=120w. The power supply has to match the rated voltage and be superior to the total LED strip wattage by a remcommended 10%. Before setup Set the receiver LRR-WTC as a MASTER OR SLAVE. Allocating the receiver as a master or slave is important to ensure your LED strip and receiver are fully synchronised. There can be only 1 master receiver per zone. Make sure that you place the Master receiver in most central position of your configuration to be an equal distance from all the Slave receivers. 1 LRR-WTC 2 W Learning ey 3 4 MASTER SLAVE close circit for ASTR open circtit for SLAVE WIFI TRANSMITTER Brighter for longer LR-WIFI/TRANS Synchronising the mobile APP to receiver (Method 1 - Transmitter is connected to your home network router with ethernet cable) 1) Connect the transmitter with an ethernet cable to your router and then connect the 12V DC power supply. 2) Open the EasyHome APP which you downloaded from the OS App store or Goolgle Play. (Make sure your smartphone is connected to your home’s WiFi router) 3) Tap on WiFi & RF to 4) Tap on the + button to 5) Tap on the + button to 6) Select the LED strip type select device type. add the room then tap on add the receiver you wish to control. the room photo to select it. 7) Tap on the device 8) Ensure the receiver has power. Press the learning key on the receiver. button to open controls 1 LRR-WTC 2 W Learning ey 3 4 MASTER SLAVE Learning ey 9) Within 5 seconds change the colour on the RGB slider on the App. The LED strips will blink to confirm synchronisation has been successful. 10) Repeat the learning process to synchronise several receivers to the same control- ler.has been successful. 11) To clear the receiver from a selected zone, simply press and hold the learning key for 5 or more seconds. The receiver will be reset to the default factory settings WIFI TRANSMITTER Brighter for longer LR-WIFI/TRANS Synchronising the mobile APP to receiver (Method 2 - Transmitter is connected to your smartphone directly wireless and optionally to your home network router wirelessly) 1) Connect the 12V DC power supply to the transmitter. 2) Go to your wireless 3) Enter password: 4) Tap on WiFi & RF to 5) Tap on the + button to settings, find and select “0123456789” select device type. add the room then tap on EasyHome_****** device. the room photo to select it. 6) Tap on the + button to 7) Select the LED strip type 8) Tap on the device 9) Ensure the receiver has power. Press add the receiver you wish to control. button to open controls the learning key on the receiver. 1 LRR-WTC 2 W Learning ey 3 4 MASTER SLAVE Learning ey 10) Within 5 seconds change the colour on the RGB slider on the App. The LED strips will blink to confirm synchronisation has been successful. 11) Repeat the learning process to synchronise several receivers to the same controller.has been successful. 12) To clear the receiver from a selected zone, simply press and hold the learning key for 5 or more seconds. The receiver will be reset to the default factory settings WIFI TRANSMITTER Brighter for longer LR-WIFI/TRANS 13) (Optional) After you have connected your smartphone directly to the transmitter, you can connect the transmitter to your home network to operate completely wirelessly. 14) Open the settings in 15) Tap on the “Connect 16) Tap on the name of 17) Enter the password the top right corner. WiFi device to your router”. your home network. of your home network and tap Done. Turn the transmitter OFF and back ON to apply settings. Reset to factory settings To reset transmitter back to factory settings, press and hold Reset Switch for more than 5 seconds. Safety Warranty • Products must be installed and serviced by qualified Should this product fail during the 3 year warranty electrician. period it will be replaced free of charge, subject to the • Please ensure the transmitter/receiver is mounted correct installation of the original product in accordance in a water proof enclosure if installed in an outdoor with applicable and appropriate electrical codes and environment, avoiding metallic enclosures. instructions provided by Teucer, as well as subsequent • Always ensure products are mounted in areas with return of the faulty unit. Teucer does not accept adequate ventilation to avoid overheating. responsibility for any installation costs associated with • Please ensure outputs of any power suppliers used in the replacement of this product and Teucer reserves the conjuction with this product comply with its working right to alter specifications without prior notice. Teucer voltage. can offer 5 year warranty upon request. For further • Never install product whilst connected to power and information, please see our Terms and Conditions. double check connections before switching on to www.teucerled.co.uk/terms-and-conditions/ avoid short circuits. Teucer (UK) Ltd Head office Logistics Centre Bedford House, Fulham Green, Fulham High Street, Trident Court, London, SW6 3JW, UK 1 Oakcroft Road, Tel: +44 (0)20 7350 4429 Chessington, Fax: +44(0)20 7228 4647 Surrey, KT9 1BD, London, UK www.teucerled.co.uk Tel: +44(0)20 7350 4429, extension: 401 [email protected] [email protected].
