1 1. the Brocard Circle and Its Isogonal Conjugate Locus The

1. The Brocard circle and its isogonal conjugate locus The equation of the Brocard circle is b2c2x2 + c2a2y2 + a2b2z2 – a4yz – b4zx – c4xy = 0 (1.1) It is known, of course that this has OK as a diameter, where O is the circumcentre of triangle ABC and K is the symmedian point. Also, the two Brocard points W(1/b2, 1/c2, 1/a2) and W'(1/c2, 1/a2, 1/b2) lie on the circle, with the chord WW' perpendicular to OK. The isogonal conjugate locus of the Brocard circle ha equation a2y2z2 + b2z2x2 + c2x2y2 – xyz(a2x + b2y + c2z). (1.2) This contains the orthocentre H, the centroid G and again, the pair of Brocard points W and W'. 2. The six defining circles The six defining circles of the Brocard points are: BCW: – b2x2 + (c2 – b2)xy + a2yz = 0, (2.1) CAW: b2zx – c2y2 + (a2 – c2)yz = 0, (2.2) ABW: – a2z2 + c2xy + (b2 – a2)zx = 0, (2.3) BCW': – c2x2 + (b2 – c2)zx + a2yz = 0, (2.4) CAW': b2zx – a2y2 + (c2 – a2)xy = 0, (2.5) ABW': – b2z2 + c2xy + (a2 – b2)yz = 0. (2.6) 3. The Second Brocard triangle PQR The point P = CAW^ABW' has co-ordinates P(b2 + c2 – a2, b2, c2) and it is easily checked that P lies on the Brocard circle. The other two vertices of the Second Brocard triangle have co- ordinates Q(a2, c2 + a2 – b2, c2) and R(a2, b2, a2 + b2 – c2). 4. The Fourth Brocard triangle P'Q'R' The point P' = ABW^CAW' has co-ordinates P'(a2, b2 + c2 – a2, b2 + c2 – a2) and it is easily checked that P' lies on the isogonal locus of the Brocard circle. In fact, P' is the isogonal conjugate of P. The other two vertices of the Fourth Brocard triangle have co-ordinates Q'(c2 + a2 – b2, b2, c2 + a2 – b2) and R'(a2 + b2 – c2, a2 + b2 – c2, c2) and these are the isogonal conjugates of Q and R respectively. 5. The First Brocard triangle LMN 1 The equation of BW is x/a2 = z/b2, (5.1) and the equation of CW' is x/a2 = y/c2. (5.2) The point L = BW^CW' has co-ordinates L(a2, c2, b2). The other two vertices M and N of the First Brocard triangle have co-ordinates M(c2, b2, a2) and N(b2, a2, c2). 6. The Third Brocard Triangle The equation of CW is x/c2 = y/b2, (6.1) and the equation of BW' is x/b2 = z/c2. (6.2) The point L' = CW^BW' has co-ordinates L'(b2c2, b4, c4). This point lies on the isogonal locus of the Brocard circle and indeed L' is the isogonal conjugate of L. The other two vertices M' and N' of the Third Brocard triangle have co-ordinates M'(a4, a2c2, c4) and N'(a4, b4, a2b2). Flat 4, Terrill Court, 12-14, Apsley Road, BRISTOL BS8 2SP. 2 .

Copy Link

Recommended publications

Circles in Areals
Circles in areals 23 December 2015 This paper has been accepted for publication in the Mathematical Gazette, and copyright is assigned to the Mathematical Association (UK). This preprint may be read or downloaded, and used for any non-profit making educational or research purpose. Introduction August Möbiusintroduced the system of barycentric or areal co-ordinates in 1827[1, 2]. The idea is that one may attach weights to points, and that a system of weights determines a centre of mass. Given a triangle ABC, one obtains a co-ordinate system for the plane by placing weights x; y and z at the vertices (with x + y + z = 1) to describe the point which is the centre of mass. The vertices have co-ordinates A = (1; 0; 0), B = (0; 1; 0) and C = (0; 0; 1). By scaling so that triangle ABC has area [ABC] = 1, we can take the co-ordinates of P to be ([P BC]; [PCA]; [P AB]), provided that we take area to be signed. Our convention is that anticlockwise triangles have positive area. Points inside the triangle have strictly positive co-ordinates, and points outside the triangle must have at least one negative co-ordinate (we are allowed negative masses). The equation of a line looks like the equation of a plane in Cartesian co-ordinates, but note that the equation lx + ly + lz = 0 (with l 6= 0) is not satisfied by any point (x; y; z) of the Euclidean plane. We use such equations to describe the line at infinity when doing projective geometry.
[Show full text]
On a Construction of Hagge
Forum Geometricorum b Volume 7 (2007) 231–247. b b FORUM GEOM ISSN 1534-1178 On a Construction of Hagge Christopher J. Bradley and Geoff C. Smith Abstract. In 1907 Hagge constructed a circle associated with each cevian point P of triangle ABC. If P is on the circumcircle this circle degenerates to a straight line through the orthocenter which is parallel to the Wallace-Simson line of P . We give a new proof of Hagge’s result by a method based on reflections. We introduce an axis associated with the construction, and (via an areal anal- ysis) a conic which generalizes the nine-point circle. The precise locus of the orthocenter in a Brocard porism is identified by using Hagge’s theorem as a tool. Other natural loci associated with Hagge’s construction are discussed. 1. Introduction One hundred years ago, Karl Hagge wrote an article in Zeitschrift fur¨ Mathema- tischen und Naturwissenschaftliche Unterricht entitled (in loose translation) “The Fuhrmann and Brocard circles as special cases of a general circle construction” [5]. In this paper he managed to find an elegant extension of the Wallace-Simson theorem when the generating point is not on the circumcircle. Instead of creating a line, one makes a circle through seven important points. In 2 we give a new proof of the correctness of Hagge’s construction, extend and appl§ y the idea in various ways. As a tribute to Hagge’s beautiful insight, we present this work as a cente- nary celebration. Note that the name Hagge is also associated with other circles [6], but here we refer only to the construction just described.
[Show full text]
The Radii by R, Ra, Rb,Rc

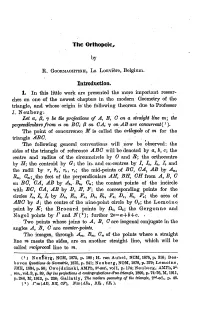

The Orthopole, by R. GOORMAGHTIGH,La Louviero, Belgium. Introduction. 1. In this little work are presented the more important resear- ches on one of the newest chapters in the modern Geometry of the triangle, and whose origin is, the following theorem due to. Professor J. Neuberg: Let ƒ¿, ƒÀ, y be the projections of A, B, C on a straight line m; the perpendiculars from a on BC, ƒÀ on CA, ƒÁ on ABare concurrent(1). The point of concurrence. M is called the orthopole of m for the triangle ABC. The following general conventions will now be observed : the sides of the triangle of reference ABC will be denoted by a, b, c; the centre and radius of the circumcircle by 0 and R; the orthocentre by H; the centroid by G; the in- and ex-centresby I, Ia 1b, Ic and the radii by r, ra, rb,rc;the mid-points of BC, CA, AB by Am, Bm, Cm;the feet of the perpendiculars AH, BH, OH from A, B, C on BO, CA, AB by An,Bn, Cn; the contact points of the incircle with BC, CA, AB by D, E, F; the corresponding points for the circles Ia, Ib, Ic, by Da, Ea,Fa, Dc, Eb, F0, Dc, Ec, Fc; the area of ABC by 4; the centre of the nine-point circle by 0g; the Lemoine . point by K; the Brocard points by theGergonne and Nagel points by and N(2); further 2s=a+b+c. Two points whose joins to A, B, C are isogonal conjugate in the angles A, B, C are counterpoints.
