Testing Validity Using Venn's Diagrams

Total Page：16

File Type：pdf, Size：1020Kb

Download full-text PDF Read full-text
Testing Validity Using Venn's Diagrams TESTING VALIDITY USING VENN'S DIAGRAMS To test the validity of a categorical syllogism, one can use the method of Venn diagrams. Since a categorical syllogism has three terms, we need a Venn diagram using three intersecting circles, one representing each of the three terms in a categorical syllogism. A three term diagram has eight regions (the number of regions being 2n where n is the number of terms). The following chart gives the extension of the predicates in the various regions of the diagram. Region S (Minor Term) P (Major Term) M (Middle Term) 1 yes no no 2 yes yes no 3 no yes no 4 yes no yes 5 yes yes yes 6 no yes yes 7 no no yes 8 no no no In order to use a Venn diagram to test a syllogism, the diagram must be filled in to reflect the contents of the premises. Remember, shading an area means that that area is empty, the term represented has no extension in that area. What one is looking for in a Venn diagram test for validity is an accurate diagram of the conclusion of the argument that logically follows from a diagram of the premises. Since each of the premises of a categorical syllogism is a categorical proposition, diagram the premise sentences independently and then see whether the conclusion has already been diagramed. If so, the argument is valid. If not, then it is not. Remember, one definition of validity is that the propositional (informational) content of the conclusion is already expressed in the premises. Venn diagram validity tests provide a graphic tool for using this approach to testing for validity. A categorical syllogism is valid if, but only if, a diagram of its premises produces a diagram that expresses the propositional content of its conclusion. Begin the process by preparing a three term Venn diagram. As a convention, organize the diagram as above, 2 circles at the top of the diagram, one centered at the bottom. The upper left hand circle should represent the minor term (designated S as this term is the subject of the conclusion). The upper right hand circle should represent the major term (designated P as this term is the predicate of the conclusion). The lower circle should represent the middle term (designated M). Your diagram should look like this: Consider the following argument: All Greeks are mortal. (All M are P) All Athenians are Greek. (All S are M) So, all Athenians are mortal. (All S are P) Next, diagram each of the premises. When doing this, act as if there are only 2 relevant circles. Begin with the first premise (frequently the premise involving the major term, sometimes called the major premise). In our example you need to diagram the proposition "All M are P". Ignoring for a moment the circle representing the minor term, your diagram sho8uld look like this: Following the standard conventions we get: Next, diagram the second premise--"All S are M"-- to get: Now, if we overlap the diagrams of the premises we get a diagram of the argument, and we are ready to determine whether the argument is valid or not: Does this diagram express the informational content of the conclusion of the argument? Yes, all of the S's that remain are in region 5, and everything in region 5 is an S, an M, and a P. Since all the S's are in region 5, all the S's are P's and the argument is VALID. Consider another argument: All mathematicians are rational. (All P are M) All philosophers are rational. (All S are M) SO, all philosophers are mathematicians. (All S are P) Beginning with the first premise we get: Adding the second premise we get: Does this diagram express the informational content of the conclusion "All S are P"? NO. Region 4 of the diagram is not shaded (not empty) so it is possible that there is an S that is not a P. Accordingly, the argument is NOT VALID. NOTE: Whenever a diagram of the premises of an argument produces exactly three shaded regions, the argument is not valid. Exactly three shaded regions indicates that there is a fallacy of distribution. Similarly, if a diagram of the premises indicates 2 or more populated regions, then the argument is not valid. Consider the argument: All philosophers are logical. Some physicists are logical. So, some philosophers are physicists. In the following diagram, the bar that crosses from region 5 into region 6 indicates that the argument is NOT VALID. All that we can be certain of is that there is either an SPM (region 5) or a PM non-S (region 6), but we don't know which. Since we don't know which, the conclusion does not follow logically from the premises. If we modify the previous argument just a little, we see an important distinction. Consider the argument: Some physicists are logical. (Some S are M) No philosophers are logical. (No P are M) So, some physicists are not philosophers. (Some S are not P) In our new argument, a diagram of the first premise produces: The second premise, however, rules out the possibility that the S that is M is also a P, because the second premise guarantees that no P's are M's. Our diagram looks like this: Does this diagram express the informational content of the conclusion "Some S are not P"? Yes, the S that is an M in region 4 is a non-P. So the argument is valid. As useful as Venn's methods are, there are some severe limitations to their usefulness. First, while it is possible to construct a 16 region Venn-type diagram for a 4 term argument, and even a 32 region diagram for a 5 term argument, those diagrams are almost impossible to read or use. What is more, it is impossible to construct a 64 region diagram for a 6 term argument--there is no way to get exactly the right 64 regions in a 2 dimensional diagram, More significantly, though, is that Venn's diagrams cannot capture the logic of quantified sentences that are more complex than simple categorical propositions. Fortunately, we have at our disposal an even more powerful analytical tool--modern predicate logic. Return to Tutorials Index Go on to Predicate Logic.
Load more

Recommended publications
  • Categorize" a Person, Place, Time, Thing, Or Situation Is to Characterize It As a Member of a Class of Similar Things
    CHAPTER 2 CATEGORICAL PROPOSITIONS A. The Structure of Categorical Propositions To "categorize" a person, place, time, thing, or situation is to characterize it as a member of a class of similar things. One does not consider the thing in question from its purely individual point of view, that is, in terms of the qualities it has without relationship to any other things. Upon being categorized, an individual thing is known by properties that it has by virtue of its being a member of the class of things referred to by that category. All propositions expressed in the Aristotelian system of logic are called categorical propositions because they are constructed using two categories of things: the subject category (or class) and the predicate category (or class). The copula, or connector between the subject and predicate, of a categorical proposition indicates how its subject category is related to its predicate category. The copula specifies whether members of the subject category are also members of the predicate category or whether members of the subject category are not members of the predicate category. Illustration: Subject Copula Predicate Quality of Copula (1) Strawberries are red. Affirmative (2) Strawberries are not red. Negative However, this is not enough. (1) declares that members of the class of strawberries are also members of the class of red things, but (1) is ambiguous because it does not specify the quantity of the subject class that is included in the predicate class. Thus, Ms. A might take (1) to mean “all strawberries are red,” while Mr. B might take (1) to mean “some strawberries are red.” Ms.
    [Show full text]
  • 1 UNIT 4 PROPOSITIONS Contents 4.0 Objectives 4.1 Introduction 4.2
    UNIT 4 PROPOSITIONS Contents 4.0 Objectives 4.1 Introduction 4.2 History of Logic and Proposition 4.3 Propositions and Sentences 4.4 Propositions and Judgments 4.5 Types of Proposition 4.6 Quality and Quantity 4.7 Let Us Sum Up 4.8 Key Words 4.9 Further Readings and References 4.10 Answers to Check Your Progress 4.0 OBJECTIVES As we know inference is the main subject matter of logic. The term refers to the argument in which a proposition is arrived at and affirmed or denied on the basis of one or more other propositions accepted as the starting point of the process. To determine whether or not an inference is correct the logician examines the propositions that are the initial and end points of that argument and the relationships between them. This clearly denotes the significance of propositions in the study of logic. In this unit you are expected to study: • the nature • the definition • the types and forms of propositions • the difference between propositions and sentences and judgments • the description of various types of propositions viewed from different standpoints like, composition, generality, relation, quantity, quality, and modality. 4.1 INTRODUCTION Classical logic concerns itself with forms and classifications of propositions. We shall begin with the standard definition of proposition. A proposition is a declarative sentence which is either true or false but not both. Also a proposition cannot be neither true nor false. A proposition is always expressed with the help of a sentence. For example - the same proposition “It is raining” can be expressed in English, Hindi, and Sanskrit and so on.
    [Show full text]
  • Immediate Inference
    Immediate Inference Dr Desh Raj Sirswal, Assistant Professor (Philosophy) P.G. Govt. College for Girls, Sector-11, Chandigarh http://drsirswal.webs.com . Inference Inference is the act or process of deriving a conclusion based solely on what one already knows. Inference has two types: Deductive Inference and Inductive Inference. They are deductive, when we move from the general to the particular and inductive where the conclusion is wider in extent than the premises. Immediate Inference Deductive inference may be further classified as (i) Immediate Inference (ii) Mediate Inference. In immediate inference there is one and only one premise and from this sole premise conclusion is drawn. Immediate inference has two types mentioned below: Square of Opposition Eduction Here we will know about Eduction in details. Eduction The second form of Immediate Inference is Eduction. It has three types – Conversion, Obversion and Contraposition. These are not part of the square of opposition. They involve certain changes in their subject and predicate terms. The main concern is to converse logical equivalence. Details are given below: Conversion An inference formed by interchanging the subject and predicate terms of a categorical proposition. Not all conversions are valid. Conversion grounds an immediate inference for both E and I propositions That is, the converse of any E or I proposition is true if and only if the original proposition was true. Thus, in each of the pairs noted as examples either both propositions are true or both are false. Steps for Conversion Reversing the subject and the predicate terms in the premise. Valid Conversions Convertend Converse A: All S is P.
    [Show full text]
  • The Peripatetic Program in Categorical Logic: Leibniz on Propositional Terms
    THE REVIEW OF SYMBOLIC LOGIC, Page 1 of 65 THE PERIPATETIC PROGRAM IN CATEGORICAL LOGIC: LEIBNIZ ON PROPOSITIONAL TERMS MARKO MALINK Department of Philosophy, New York University and ANUBAV VASUDEVAN Department of Philosophy, University of Chicago Abstract. Greek antiquity saw the development of two distinct systems of logic: Aristotle’s theory of the categorical syllogism and the Stoic theory of the hypothetical syllogism. Some ancient logicians argued that hypothetical syllogistic is more fundamental than categorical syllogistic on the grounds that the latter relies on modes of propositional reasoning such as reductio ad absurdum. Peripatetic logicians, by contrast, sought to establish the priority of categorical over hypothetical syllogistic by reducing various modes of propositional reasoning to categorical form. In the 17th century, this Peripatetic program of reducing hypothetical to categorical logic was championed by Gottfried Wilhelm Leibniz. In an essay titled Specimina calculi rationalis, Leibniz develops a theory of propositional terms that allows him to derive the rule of reductio ad absurdum in a purely categor- ical calculus in which every proposition is of the form AisB. We reconstruct Leibniz’s categorical calculus and show that it is strong enough to establish not only the rule of reductio ad absurdum,but all the laws of classical propositional logic. Moreover, we show that the propositional logic generated by the nonmonotonic variant of Leibniz’s categorical calculus is a natural system of relevance logic ¬ known as RMI→ . From its beginnings in antiquity up until the late 19th century, the study of formal logic was shaped by two distinct approaches to the subject. The first approach was primarily concerned with simple propositions expressing predicative relations between terms.
    [Show full text]
  • 5.8 Symbolism and Diagrams for Categorical Propositions 215
    M05_COPI1396_13_SE_C05.QXD 10/12/07 9:00 PM Page 215 5.8 Symbolism and Diagrams for Categorical Propositions 215 C. (1) No acrobat is one who can lift himself by his own bootstraps; therefore, (2) No one who can lift himself by his own bootstraps is an acrobat; therefore, (3) Someone who can lift himself by his own bootstraps is not an acrobat. (From which it follows that there is at least one being who can lift himself by his own bootstraps.) D. (1) It is true that: No unicorns are animals found in the Bronx Zoo; therefore, (2) It is false that: All unicorns are animals found in the Bronx Zoo; therefore (3) It is true that: Some unicorns are not animals found in the Bronx Zoo. (From which it follows that there ex- ists at least one unicorn.) *E. (1) It is false that: Some mermaids are members of college sororities; therefore (2) It is true that: Some mermaids are not members of col- lege sororities. (From which it follows that there exists at least one mermaid.) 5.8 Symbolism and Diagrams for Categorical Propositions Because the Boolean interpretation of categorical propositions depends heav- ily on the notion of an empty class, it is convenient to have a special symbol to represent it. The zero symbol, 0, is used for this purpose. To say that the class designated by the term S has no members, we write an equals sign between S and 0. Thus the equation S ϭ 0 says that there are no S’s, or that S has no members.
    [Show full text]
  • Venn Diagrams Part 1
    4.3 Venn Diagrams, part 1 1. Aristotle vs. Boole: Before moving on, it will be helpful to gain some understanding of what “existential import” is. Existential Import: A statement has existential import if it implies that something exists. For instance, consider the two sorts of “particular” categorical propositions: “Some pizza has pepperoni on it.” (Some S are P) “Some cookies do not have chocolate chips.” (Some S are not P) The first statement implies that pizza exists (there IS some pizza somewhere, and it has pepperoni on it). The second implies that cookies exist (there ARE some cookies somewhere, and they don’t have chocolate chips in them). Because these propositions imply something about what exists, we say that they have “existential import”. But, now consider the two sorts of “universal” categorical propositions: “All oceans are salty.” (All S are P) “No rocks are alive.” (No S are P) Do these imply that there ARE some oceans and rocks in existence? There is some disagreement about this. Aristotle (~350 B.C.) thought the answer was clearly yes, while George Boole (~1850 A.D.) thought the answer was no. Boole: Universal propositions do not imply existence: To understand why Boole thought universal categorical propositions did NOT have existential import, consider these two statements: “All unicorns are magical.” (All S are P) “No hobbits are very tall.” (No S are P) Do these statements imply that there ARE some unicorns and hobbits? Surely not! This fact led Boole to conclude that universal categorical propositions NEVER imply anything about existence. If I tell you that “All oceans are salty”, this does not ENTAIL that there ARE any oceans.
    [Show full text]
  • MGF1121 Course Outline
    MGF1121 Course Outline Introduction to Logic............................................................................................................. (3) (P) Description: This course is a study of both the formal and informal nature of human thought. It includes an examination of informal fallacies, sentential symbolic logic and deductive proofs, categorical propositions, syllogistic arguments and sorites. General Education Learning Outcome: The primary General Education Learning Outcome (GELO) for this course is Quantitative Reasoning, which is to understand and apply mathematical concepts and reasoning, and analyze and interpret various types of data. The GELO will be assessed through targeted questions on either the comprehensive final or an outside assignment. Prerequisite: MFG1100, MAT1033, or MAT1034 with a grade of “C” or better, OR the equivalent. Rationale: In order to function effectively and productively in an increasingly complex democratic society, students must be able to think for themselves to make the best possible decisions in the many and varied situations that will confront them. Knowledge of the basic concepts of logical reasoning, as offered in this course, will give students a firm foundation on which to base their decision-making processes. Students wishing to major in computer science, philosophy, mathematics, engineering and most natural sciences are required to have a working knowledge of symbolic logic and its applications. Impact Assessment: Introduction to Logic provides students with critical insight
    [Show full text]
  • The Operations of Conversion, Obversion and Contraposition Are Applied to Categorical Propositions to Yield New Categorical Propositions
    4.4 CONVERSION, OBVERSION AND CONTRAPOSITION The operations of conversion, obversion and contraposition are applied to categorical propositions to yield new categorical propositions. Conversion consists of simply switching the subject term with the predicate term while leaving the quality and quantity of the proposition unaltered. The result of applying conversion to a categorical proposition is called the converse of the proposition. Thus, for example, the converse of “All dogs are mammals” is “All mammals are dogs.” The converses of E and I propositions are logically equivalent to them (that is, they necessarily have the same truth values.) The converse of A and O propositions are not, in general, logically equivalent to them. Similarly, if we form an argument whose premise is a categorical proposition and whose conclusion is the converse of it, then the argument is valid if the premise is an E and I proposition and, in general, is invalid if the premise is an A or an O proposition. Obversion consists of both (1) changing the quality of the proposition (leaving the quantity the same), and (2) complementing the predicate term. To complement the predicate term, one typically attaches the prefix “non-“ to it. The result of obversion is called obverse of the proposition to which it is applied. The obverse of any categorical proposition, A, E, I or O, is logically equivalent to it. Any argument whose premise is a categorical proposition and whose conclusion is its obverse is a valid argument. Contraposition consist of both (1) switching the subject with the predicate term (while leaving the quality and quantity of the proposition unaltered), and (2) complementing both terms.
    [Show full text]
  • Baronett, Logic (4Th Ed.) Chapter Guide Chapter 5: Categorical
    Baronett, Logic (4th ed.) Chapter Guide Chapter 5: Categorical Propositions The study of categorical propositions includes the logical structure of individual categorical propositions (how the subject and predicate classes relate to each other), as well as how correct reasoning proceeds from one categorical proposition to another. A. Categorical Propositions Categorical propositions are statements about classes of things. A class is a group of objects. There are two class terms in each categorical proposition, a subject class (S) and a predicate class (P). There are four types of categorical proposition: A-proposition: Asserts that the entire subject class is included in the predicate class. o Standard-form of the A-proposition: All S are P. o This is the universal affirmative proposition. I-proposition: Asserts that at least one member of the subject class is included in the predicate class. o Standard-form of the I-proposition: Some S are P. o This is the particular affirmative proposition. E-proposition: Asserts that the entire subject class is excluded from the predicate class. o Standard-form of the E-proposition: No S are P. o This is the universal negative proposition. O-proposition: Asserts that at least one member of the subject class is excluded from the predicate class. o Standard-form of the O-proposition: Some S are not P. o This is the particular negative proposition. B. Quantity, Quality, and Distribution Categorical propositions can be viewed in terms of quantity (universal or particular), quality (affirmative or negative) and whether or not a class is distributed. If a categorical proposition asserts something about every member of a class, then the term designating that class is said to be distributed.
    [Show full text]
  • A History of Quantification
    A History of Quantification Daniel Bonevac September 15, 2011 Aristotle (384–322 BC), the founder of the discipline of logic, also founded the study of quantification. Normally, Aristotle begins a topic by reviewing the common opinions, including the opinions of his chief predecessors. In logic, however, he could not adopt the same strategy; before him, he reports, “there was nothing at all” (Sophistical Refu- tations 183b34–36). Aristotle’s theory dominated logical approaches to quantification until the nineteenth century. That is not to say that others did not make important contributions. Medieval lo- gicians elaborated Aristotle’s theory, structuring it in the form familiar to us today. They also contemplated a series of problems the theory generated, devising increas- ingly complex theories of semantic relations to account for them. Textbook treatments of quantification in the seventeenth and nineteenth centuries made important contribu- tions while also advancing some peculiar theories based on medieval contributions. Modern quantification theory emerged from mathematical insights in the middle and late nineteenth century, displacing Aristotelian logic as the dominant theory of quantifiers for roughly a century. It has become common to see the history of logic as little more than a prelude to what we now call classical first-order logic, the logic of Frege, Peirce, and their successors. Aristotle’s theory of quantification is nevertheless in some respects more powerful than its modern replacement. Aristotle’s theory com- bines a relational conception of quantifiers with a monadic conception of terms. The modern theory combines a monadic conception of quantifiers with a relational theory of terms.
    [Show full text]
  • Prof. C. Byrne Dept. of Philosophy SYLLOGISTIC LOGIC Syllogistic
    Prof. C. Byrne Dept. of Philosophy SYLLOGISTIC LOGIC Syllogistic logic is the original form in which formal logic was developed; hence it is sometimes also referred to as Aristotelian logic after Aristotle, one of the founders of this branch of formal logic. Before we can examine the logical structure of any argument to see whether it is valid or invalid, we must first examine the logical structure of the propositions out of which it is com- posed. In the case of syllogistic logic, this requires an examination of categorical propositions because all syllogistic arguments, or syllogisms, are composed of categorical propositions. CATEGORICAL PROPOSITIONS A categorical proposition claims that a certain relation holds between two classes, groups, or general kinds of things (a.k.a. categories). In particular, every categorical proposition claims that one class of things either includes or excludes, either in whole or in part, another class of things. As a result, every categorical proposition has a quality, either affirmative or negative, and a quantity, either universal or particular. Taken together, this means that there are four different types of categorical propositions, which appear below. Note as well that every categorical proposition is made out of exactly four components, which must appear in the following order if the proposition is to be in standard categorical form: 1) the quantifier; 2) the subject term (S); 3) the copula; and 4) the predicate term (P). 1. Universal affirmative (A) All S’s are P’s. 2. Universal negative (E) No S’s are P’s. 3. Particular affirmative (I) Some S’s are P’s.
    [Show full text]

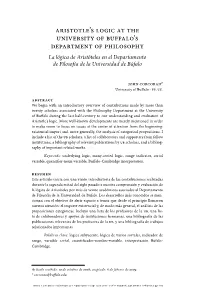

  • Aristotle's Logic at the University of Buffalo's Department of Philosophy
