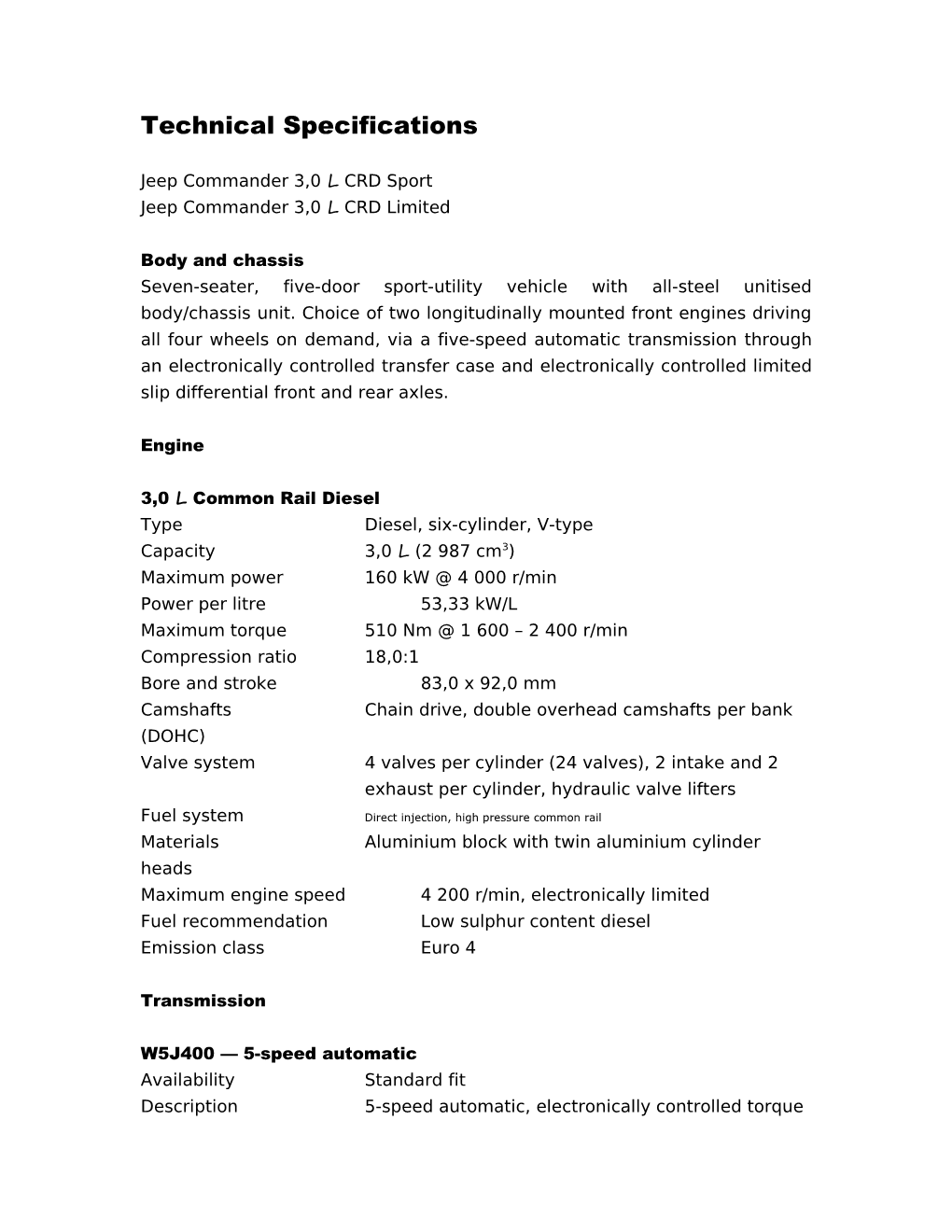

Technical Specifications

Jeep Commander 3,0 L CRD Sport Jeep Commander 3,0 L CRD Limited

Body and chassis Seven-seater, five-door sport-utility vehicle with all-steel unitised body/chassis unit. Choice of two longitudinally mounted front engines driving all four wheels on demand, via a five-speed automatic transmission through an electronically controlled transfer case and electronically controlled limited slip differential front and rear axles.

Engine

3,0 L Common Rail Diesel Type Diesel, six-cylinder, V-type 3 Capacity 3,0 L (2 987 cm ) Maximum power 160 kW @ 4 000 r/min Power per litre 53,33 kW/L Maximum torque 510 Nm @ 1 600 – 2 400 r/min Compression ratio 18,0:1 Bore and stroke 83,0 x 92,0 mm Camshafts Chain drive, double overhead camshafts per bank (DOHC) Valve system 4 valves per cylinder (24 valves), 2 intake and 2 exhaust per cylinder, hydraulic valve lifters

Fuel system Direct injection, high pressure common rail Materials Aluminium block with twin aluminium cylinder heads Maximum engine speed 4 200 r/min, electronically limited Fuel recommendation Low sulphur content diesel Emission class Euro 4

Transmission

W5J400 — 5-speed automatic Availability Standard fit Description 5-speed automatic, electronically controlled torque speed automatic, electronically controlled torque Gear ratios 1st gear 3.59:1 2nd gear 2.19:1 3rd gear 1.41:1 4th gear 1.00:1 5th gear 0.83:1 Reverse gear 3.16:1 Final Drive 2.95:1

Driveline

Transfer case Description NV245 Active full-time four-wheel drive with electronically controlled clutch pack

Axles Front: 200 mm Rear: 213 mm

Four-wheel drive systems

Quadra-Drive II® Type Active full-time system with two speeds and neutral, electronically controlled clutch pack coupling in centre of differential with industry - exclusive front and rear Electronic Limited Slip Differentials (ELSD) Operating ranges 4WD on demand, 4WD low Low range ratio 2,72:1 Torque split Variable up to 100% with 48/52 front/rear default split

Suspension and damping Front Short/long are (SLA) independent configuration with gas charged twin-tube coil-over shock absorbers and stabiliser bar Rear Live solid axle and five link suspension (twin upper and lower trailing tubular linking arms plus lateral track bar, coil springs, twin monotube shock absorbers, coil springs and stabiliser bars).

Steering Type Power rack-and-pinion Overall ratio Variable ratio 17.4:1, 15.45:1 (at full lock) Gearing 3,14 turns lock-to-lock Turning circle 11,8 m curb-to-curb

Brakes

Front Discs 328 mm x 30 mm ventilated Callipers 48 mm diameter dual-piston sliding callipers Swept area 1 757 cm2

Rear Discs 320 mm x 14 mm solid Callipers 48 mm diameter single-piston sliding callipers Swept area 1 650 cm2

Systems Power assistance yes ABS yes Traction control yes EBD yes

Wheels and tyres

Commander 3,0 L Wheel type ‘Wrench”, Cast aluminum alloy 17 inch, 5-spoke, machined face, painted sparkle silver pockets Tyres, front and rear P245/65R17 Spare tyre Full-size

Dimensions Dimensions are in millimetres Exterior Overall length 4 787 Overall width 2 260,9 with mirrors / 1 899 without mirrors Overall height (to middle of roof) 1 826 (to top of roof rack)1 919 Wheelbase 2 780 Overhang, front 867 Overhang, rear 1 139 Ground clearance, front axle 213,6 Ground clearance, rear axle 217,9 Track, front 1 590 Track, rear 1 590 Approach angle 34 degrees Departure angle min. 27 degrees Breakover angle min. 21 degrees

Interior

Front Head room 1 070 Leg room 1 058 Shoulder room 1 498 Hip room 1 412 Seat travel – driver 267 Seat travel – passenger 250

Second row Head room 1 023 Leg room 916 Shoulder room 1 486 Hip room 1 373

Third Row Head room 908 Leg room 734 Shoulder room 1 286 Hip room 1 459

Cargo All Seats in Place 215 L 3rd Row Folded 1 027 L 2nd and 3rd Row Folded 1 939 L Cargo volume in SAE measurement standard

Weights 3,0 L Curb weight 2 280 – 2 375 kg. Gross vehicle weight 2 920 kg.

Capacities 3,0 L Max. towing 3 500 kg (Inc. tongue load) Max. load — front axle 1 338 kg. Max. load — rear axle 1 656 kg. Max. tongue load Up to 10 % of trailer weight Max. roof load 69 kg. Fuel tank 78 L Oil (with new filter) 9,0 L Coolant 14,6 L

Fuel Consumption (L/100 km, EU standard) 3,0 L Combined cycle 10,8 Urban cycle 13,5 Ex-urban cycle 9,2 CO2 (g/km) 284

Performance 3,0 L Acceleration (0-100 km/h) 9,0 sec. Top speed (kph) 190 Service Intervals 3,0 L Oil change intervals 20 000 km Oil change intervals 10 000 km Service intervals 20 000 km Service intervals 10 000 km

Warranty duration 3-year/100 000 km
