Visual Performance Theoretical Limit of Resolution

Total Page：16

File Type：pdf, Size：1020Kb

Download full-text PDF Read full-text
Visual Performance Theoretical Limit of Resolution Visual Performance Aspects Conditions • Resolution Limit • Illumination • Pattern Detection • Monocular vs. Binocular • Pattern Recognition • Distance • Contrast Level • On-axis vs. Off-axis • Color • Single or multiple targets • Temporal Response • Literacy & Verbal ability Theoretical Limit of Resolution θ Rayleigh Criterion 1.22λ θ = radians D For λ = 587.6 nm D ranges from 2 – 8 mm 0.090 ≤θ≤0.358 mrad 0.3 ≤θ≤1.23 minutes of arc 1 Rayleigh Criteria 1 1.6 mm Pupil 0.75 Contrast 14% Airy #1 0.5 Airy #2 Sum Relative Irradiance 0.25 Photorecptor Photorecptor Photorecptor 0 -15 -10 -5 0 5 10 15 20 25 Position (microns) Visual Acuity Visual Acuity is a measure of the smallest detail that can be resolved by the visual system. There are different types of acuity measures. Point Acuity – “Binary Star” test – typically 1 arcmin resolution Vernier Acuity – Two lines slightly offset from each other. Finds smallest detectable offset – typically 10 seconds of arc θ 2 Visual Acuity Grating Acuity – Sinusoidal or Square wave gratings are used to determine the smallest separation between peaks that can be resolved. Typically 2 arcmin. θ Visual Acuity Letter Acuity – Different Letters or Symbols need to be recognized Typically 5 arcmin. E θ F P T O Z L P E D ETDRS Landolt C Tumbling Es Lea 3 Visual Acuity & Pupil Size Visual Acuity Charts 5’ N Visual Acuity Charts are designed so the 20/20 line subtends 5 arcmin. 20/40 subtends 10 arcmin 20/10 subtends 2.5 arcmin 4 Stereo Acuity Given one object slightly closer than the other, find the smallest separation that is resolvable. Typically - 5 seconds of arc θ Modulation Transfer Function (MTF) The MTF measures the loss in contrast in the image of a sinusoidal target. It is the ratio of the object contrast and the image contrast. m=100% m=55% Lens 055. MTF ==055. 100. 5 Contrast Intensity I − I Contrast C = max min Imax Imax + Imin Contrast Sensitivity CS is the reciprocal of the Imin minimum value of C that is detectable. 1 CS = Cmin Contrast Sensitivity m=98% m=85% m=70% m=55% m=40% m=25% m=10% 6 Spatial Frequency 7.5 cycles Lens 1o Spatial frequency is the number of cycles (1 black bar plus 1 white bar equals 1 cycle) subtending 1 degree. Arden Grating 7 Spatial Frequency 20/20 Letter 1 cycle ⎛1000 μm ⎞ cycles ⎜ ⎟ =100 (on retina) 5 arcmin10 μm ⎝ 1 mm ⎠ mm or 1 cycle ⎛ 60 arcmin ⎞ cycles 25 μm ⎜ ⎟ = 30 2 arcmin ⎝ 1 deg ⎠ deg Aberrations & Contrast Sensitivity m=98% m=85% m=70% m=55% m=40% m=25% m=10% 8 Point Spread Function The Point Spread Function (PSF) is the image of a point source of light formed on the retina. It has a finite size due to aberrations and diffraction. Optical Transfer Function (OTF) The OTF is a complex function that measures the loss in contrast in the image of a sinusoidal target, as well as any phase shifts. The MTF is the amplitude (i.e. MTF = |OTF|) and the Phase Transfer Function (PTF) is the phase portion of the OTF. Lens 9 Fourier Theory Convolution = Object PSF Image Padding FT FT FT Object Multiplication = OTF Image Spectrum Spectrum |FT{P(x,y)exp(i2π(Wavefront Error)}|2 = PSF FT{PSF} = OTF Effects of Refractive Surgery No Surgery -2.75 D PRK -7.00 D PRK 10 Retinal Image Quality • Ideally, if the optics of the eye are known, then we can determine the quality of the image falling onto the retina. • Need to measure the aberrations of the eye. • Would like to measure wavefront error directly, but this has only recently become feasible. • Early researchers settled for MTF (no phase information). • More recently, the PSF was measured directly. Campbell & Green Experiment • Campbell & Green, “Optical and Retinal Factors Affecting Visual Resolution,” J Physiology, vol 181, p.576-593 (1965). • First, perform contrast sensitivity • Second, perform contrast sensitivity when bypassing the optics of the eye. Coherent Incoherent Coherent 11 Campbell and Green Experiment 1000 100 Retinal CSF External CSF 10 Contrast Sensitivity Contrast 1 0204060 Spatial Frequency (cyc/deg) MTF & Contrast Sensitivity Cext Cret Lens C C MTF = ret ⇒ ret min Cext Cext min 1 CSext CS = MTF = ext C ext min CSret 1 Define CSret = Cret min 12 Campbell and Green Experiment 1 0.9 0.8 0.7 0.6 0.5 0.4 Modulation 0.3 0.2 0.1 0 0 1020304050 Spatial Frequency (cyc/deg) Improving Vision CS MTF = ext CSret ΔMTF = [Cret min ]ΔCSext Changes to Visual Performance Changes to Modulation Threshold Optical System Under a given illumination, this is fixed by the retina & brain 13 Van Nes & Bouman Experiment • Van Nes & Bouman, J Opt Soc Am, vol. 57, p. 401-406 (1967). • Measured Modulation Threshold for different illumination levels. 100 900 td Troland 90 td 2 10 td = 0.0035 lm/m 9 td 0.9 td 0.09 td 1 0.009 td 0.0009 td 0.1 0.1 1 10 100 Higher contrast objects are needed for darker conditions High spatial frequencies cannot be seen under dark conditions Mitchell et al. Experiment • Mitchell, Freeman & Westheimer, J Opt Soc Am, vol. 57, p. 246-249 (1966). • Found modulation threshold is lowest for horizontal and vertical gratings and highest for gratings at ±45° These gratings are easier than these gratings to see… 14 Grating Acuity 1 0.9 0.8 Increased 0.7 0.6 Aberrations MTF 0.5 0.4 Modulation Threshold Modulation 0.3 0.2 0.1 0 0204060 Decreased Illumination Grating Acuity Spatial Frequency (cyc/deg) Square Wave Gratings 4.5 4 Sine Wave 3.5 3 1st & 3rd Harmonics 2.5 2 1st, 3rd, 5th 1.5 Harmonics 1 Square Wave 0.5 0 02468 4a ⎡ 1 1 ⎤ a o + ⎢sin x + sin 3x + sin 5x +K⎥ π ⎣ 3 5 ⎦ 15 Square Wave Response Square 4a ⎡ 1 1 ⎤ Wave a o + ⎢sin x + sin 3x + sin 5x +K⎥ π ⎣ 3 5 ⎦ If a square wave pattern is used for Sine Wave contrast sensitivity testing in place of a sine wave, the sensitivity is higher. For spatial frequencies higher than 1 cyc/deg, the fundamental frequency is detected. For lower spatial frequencies, the harmonics are seen. 16.
Load more

Recommended publications
  • Precise and Fast Spatial-Frequency Analysis Using the Iterative Local Fourier Transform
    Vol. 24, No. 19 | 19 Sep 2016 | OPTICS EXPRESS 22110 Precise and fast spatial-frequency analysis using the iterative local Fourier transform 1 2 2,* SUKMOCK LEE, HEEJOO CHOI, AND DAE WOOK KIM 1Department of Physics, Inha University, Incheon, 402-751, South Korea 2College of Optical Sciences, University of Arizona, 1630 East University Boulevard, Tucson, Arizona 85721, USA *[email protected] Abstract: The use of the discrete Fourier transform has decreased since the introduction of the fast Fourier transform (fFT), which is a numerically efficient computing process. This paper presents the iterative local Fourier transform (ilFT), a set of new processing algorithms that iteratively apply the discrete Fourier transform within a local and optimal frequency domain. The new technique achieves 210 times higher frequency resolution than the fFT within a comparable computation time. The method’s superb computing efficiency, high resolution, spectrum zoom-in capability, and overall performance are evaluated and compared to other advanced high-resolution Fourier transform techniques, such as the fFT combined with several fitting methods. The effectiveness of the ilFT is demonstrated through the data analysis of a set of Talbot self-images (1280 × 1024 pixels) obtained with an experimental setup using grating in a diverging beam produced by a coherent point source. ©2016 Optical Society of America OCIS codes: (300.6300) Spectroscopy, Fourier transforms; (070.4790) Spectrum analysis; (070.6760) Talbot and self-imaging effects. References and links 1. L. M. Sanchez-Brea, F. J. Torcal-Milla, J. M. Herrera-Fernandez, T. Morlanes, and E. Bernabeu, “Self-imaging technique for beam collimation,” Opt. Lett. 39(19), 5764–5767 (2014).
    [Show full text]
  • Fourier Optics
    Fourier Optics 1 Background Ray optics is a convenient tool to determine imaging characteristics such as the location of the image and the image magni¯cation. A complete description of the imaging system, however, requires the wave properties of light and associated processes like di®raction to be included. It is these processes that determine the resolution of optical devices, the image contrast, and the e®ect of spatial ¯lters. One possible wave-optical treatment considers the Fourier spectrum (space of spatial frequencies) of the object and the transmission of the spectral components through the optical system. This is referred to as Fourier Optics. A perfect imaging system transmits all spectral frequencies equally. Due to the ¯nite size of apertures (for example the ¯nite diameter of the lens aperture) certain spectral components are attenuated resulting in a distortion of the image. Specially designed ¯lters on the other hand can be inserted to modify the spectrum in a prede¯ned manner to change certain image features. In this lab you will learn the principles of spatial ¯ltering to (i) improve the quality of laser beams, and to (ii) remove undesired structures from images. To prepare for the lab, you should review the wave-optical treatment of the imaging process (see [1], Chapters 6.3, 6.4, and 7.3). 2 Theory 2.1 Spatial Fourier Transform Consider a two-dimensional object{ a slide, for instance that has a ¯eld transmission function f(x; y). This transmission function carries the information of the object. A (mathematically) equivalent description of this object in the Fourier space is based on the object's amplitude spectrum ZZ 1 F (u; v) = f(x; y)ei2¼ux+i2¼vydxdy; (1) (2¼)2 where the Fourier coordinates (u; v) have units of inverse length and are called spatial frequencies.
    [Show full text]
  • The Representation of Complex Images in Spatial Frequency Domains of Primary Visual Cortex
    9310 • The Journal of Neuroscience, August 29, 2007 • 27(35):9310–9318 Behavioral/Systems/Cognitive The Representation of Complex Images in Spatial Frequency Domains of Primary Visual Cortex Jing X. Zhang,1 Ari Rosenberg,2 Atul K. Mallik,3 T. Robert Husson,2 and Naoum P. Issa4 1Department of Biomedical Engineering, Illinois Institute of Technology, Chicago, Illinois 60616, and 2Committee on Computational Neuroscience, 3Committee on Neurobiology, and 4Department of Neurobiology, University of Chicago, Chicago, Illinois 60637 The organization of cat primary visual cortex has been well mapped using simple stimuli such as sinusoidal gratings, revealing superim- posed maps of orientation and spatial frequency preferences. However, it is not yet understood how complex images are represented across these maps. In this study, we ask whether a linear filter model can explain how cortical spatial frequency domains are activated by complex images. The model assumes that the response to a stimulus at any point on the cortical surface can be predicted by its individual orientation, spatial frequency, and temporal frequency tuning curves. To test this model, we imaged the pattern of activity within cat area 17 in response to stimuli composed of multiple spatial frequencies. Consistent with the predictions of the model, the stimuli activated low and high spatial frequency domains differently: at low stimulus drift speeds, both domains were strongly activated, but activity fell off in high spatial frequency domains as drift speed increased. To determine whether the filter model quantitatively predicted the activity patterns, we measured the spatiotemporal tuning properties of the functional domains in vivo and calculated expected response ampli- tudes from the model.
    [Show full text]
  • Vision: from Eye to Brain (Chap 3, Part B)
    Vision: From Eye to Brain (Chap 3, Part B) Lecture 7 Jonathan Pillow Sensation & Perception (PSY 345 / NEU 325) Princeton University, Spring 2015 1 more “channels”: spatial frequency channels spatial frequency: the number of cycles of a grating per unit of visual angle (usually specified in degrees) • think of it as: # of bars per unit length low frequency intermediate high frequency 2 Why sine gratings? • Provide useful decomposition of images Technical term: Fourier decomposition 3 Fourier decomposition • mathematical decomposition of an image (or sound) into sine waves. reconstruction: “image” 1 sine wave 2 sine waves 3 sine waves 4 sine waves 4 “Fourier Decomposition” theory of V1 claim: role of V1 is to do “Fourier decomposition”, i.e., break images down into a sum of sine waves • Summation of two spatial sine waves • any pattern can be broken down into a sum of sine waves 5 Fourier decomposition • mathematical decomposition of an image (or sound) into sine waves. Original image High Frequencies Low Frequencies 6 original low medium high 7 Retinal Ganglion Cells: tuned to spatial frequency Response of a ganglion cell to sine gratings of different frequencies 8 The contrast sensitivity function Human contrast sensitivity illustration of this sensitivity 9 Image Illustrating Spatial Frequency Channels 10 Image Illustrating Spatial Frequency Channels 11 If it is hard to tell who this famous person is, try squinting or defocusing “Lincoln illusion” Harmon & Jules 1973 12 “Gala Contemplating the Mediterranean Sea, which at 30 meters becomes
    [Show full text]
  • Psychophysical Aspects of Contrast Sensitivity*
    S Afr Optom 2013 72(2) 76-85 Psychophysical aspects of contrast sensitivity* Anusha Y Sukhaa and Alan Rubinb a, b Department of Optometry, University of Johannesburg, PO Box 524, Auckland Park, 2006 South Africa a<[email protected]> b<[email protected]> Received 23 November 2012; revised version accepted 9 June 2013 Abstract demonstrate stereo-pair representation of contrast visual acuities in the context of diabetic eyes. This paper reviews the psychophysical aspects The doctoral research of the first author (AYS) of contrast sensitivity which concerns components that applies similar idea to understanding both of visual stimuli and the behavioural responses inter- and intra-ocular variation of contrast visual and methods used in contrast sensitivity testing. acuities. Some discussion is included of the different types of contrast sensitivity charts available as well Key words: contrast, contrast sensitivity, as a brief background on the different types of contrast visual acuity, vision science, vision graphical representations of contrast sensitivity psychophysics, stereo-pair scatter plots, and contrast visual acuities. Two illustrations also multivariate statistics Introduction (namely spatial frequency, contrast, spatial phase, and orientation) by means of Fourier analysis. Fourier Psychophysics is a scientific discipline designed analysis is an analytical method that calculates to measure internal sensory and perceptual responses simple sine-wave components whose linear sum to external stimuli1. Sensory stimuli and behavioural forms a given complex image2, 3. The visual stimuli responses are the defining or crucial concepts in typically used in contrast sensitivity testing consist of determining contrast thresholds (for example, visual sine-wave or square-wave gratings whose luminance stimuli are used in chart-based contrast sensitivity perpendicular to the bars is modulated in sinusoidal measurements).
    [Show full text]
  • A Tutorial Essay on Spatial Filtering and Spatial Vision
    Spatial Filters/Meese/Nov 2000 A Tutorial Essay on Spatial Filtering and Spatial Vision Tim S Meese Neurosciences School of Life and Health Sciences Aston University Feb 2009: minor stylistic and modifications and technical corrections March 2009: referencing tidied up To follow: Final round-up sections and detailed references added. -1- Spatial Filters/Meese/Nov 2000 1. Introduction To the layperson, vision is all about ‘seeing’—we open our eyes and effortlessly we see the world ‘out there’. We can recognize objects and people, we can interact with them in sensible and useful ways and we can navigate our way about the environment, rarely bumping into things. Of course, the only information that we are really able to act upon is that which is encoded as neural activity by our nervous system. These visual codes, the essence of all of our perceptions, are constructed from information arriving from each of two directions. Image data arrives ‘bottom-up’ from our sensory apparatus, and knowledge-based rules and inferences arrive ‘top-down’ from memory. These two routes to visual perception achieve very different jobs. The first route is well suited to providing a descriptive account of the retinal image while the second route allows these descriptions to be elaborated and interpreted. This chapter focuses primarily on one aspect of the first of these routes, the processing and encoding of spatial information in the two-dimensional retinal image. One of the major success stories in understanding the human brain has been the exploration of the bottom-up processes used in vision, sometimes referred to as early vision.
    [Show full text]
  • Session 2. (1) Spatial Frequency and Fourier Transformation
    2005 Autumn semester Pattern Information Processing Topic 1. Sampling and digital processing of images Session 2. (1) Spatial frequency and Fourier transformation Organization of digital images is explained in this Diffraction of light and imaging and the next sessions. Although an image is natu- We start from the optical phenomenon of imaging. rally a continuous distribution of brightness, it has to The imaging is defined as a collection of diverged be converted into a discrete set of integers for com- light spread from a point of object into one point by puter processing. The conversion into discrete pixels a lens. This phenomenon can be observed from the is called sampling, and the conversion into integers following point of view: The light has the property of is called quantization. The sampling period is quite diffraction. The diffraction of wave is a phenomenon important issue, and it is evaluated by the concept of that the wave reaches beyond an opaque object ob- spatial frequency. The concept of spatial frequency stracting its path. For example, even if the progress and Fourier transformation are explained in this ses- of wave on a water surface is obstructed by a board, sion. it reaches beyond the board. Since the light is a kind of electromagnetic wave, the light has this property. The radio wave reaches beyond obstructing objects from the broadcasting station by diffraction. wavefronts reach beyond divergence of light the obstruction collection of light Opaque object wavefronts Fig. 2: Diffraction. Fig. 1: Imaging. If the light passes through a diffraction grating, of first order, is obtained in this direction.
    [Show full text]

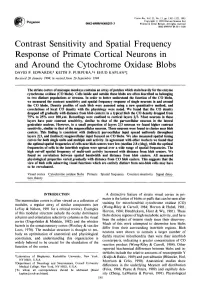

  • Contrast Sensitivity and Spatial Frequency Response of Primate Cortical Neurons in and Around the Cytochrome Oxidase Blobs DAVID P
