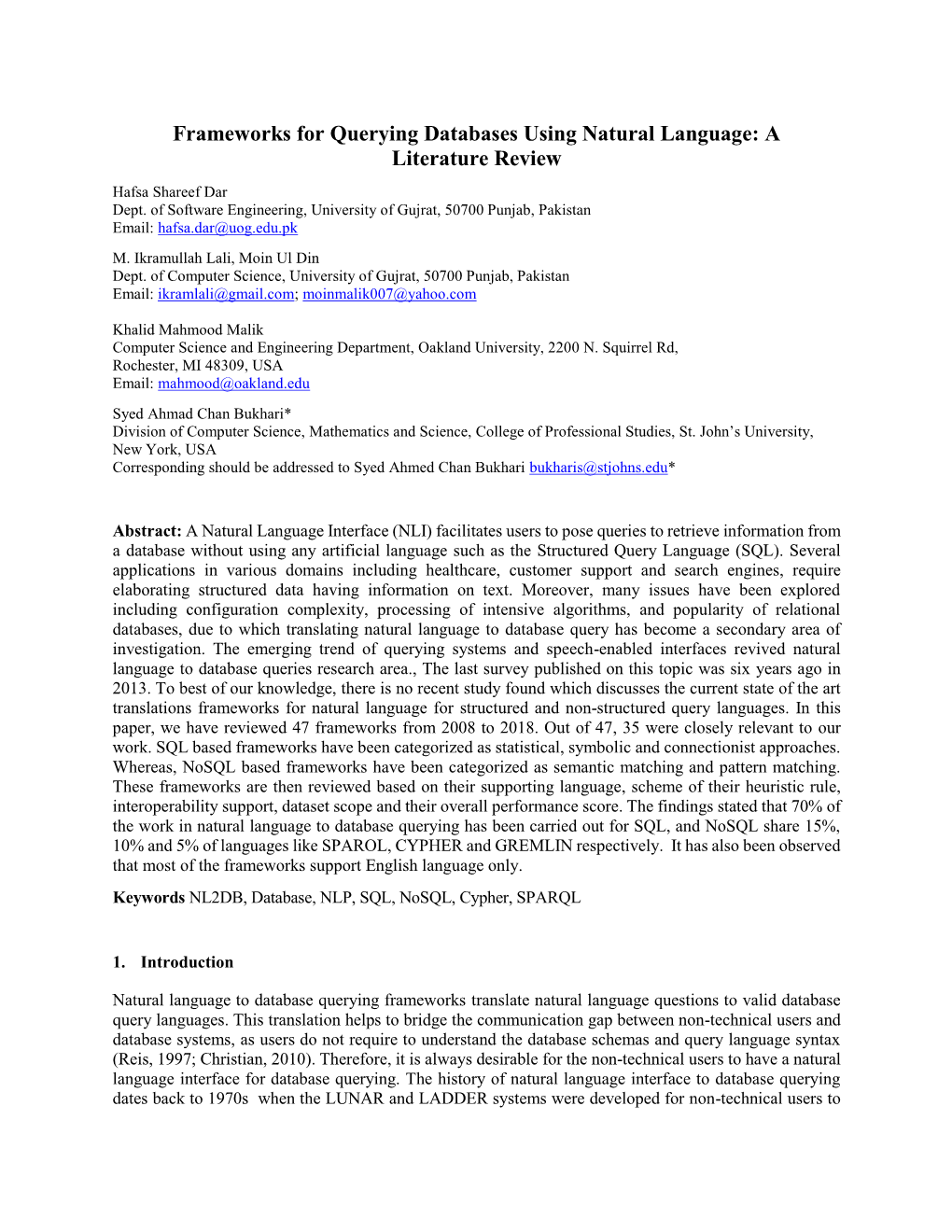

Frameworks for Querying Databases Using Natural Language: a Literature Review Hafsa Shareef Dar Dept

Home , Information extraction, Query language

Frameworks for Querying Databases Using Natural Language: A Literature Review Hafsa Shareef Dar Dept. of Software Engineering, University of Gujrat, 50700 Punjab, Pakistan Email: [email protected] M. Ikramullah Lali, Moin Ul Din Dept. of Computer Science, University of Gujrat, 50700 Punjab, Pakistan Email: [email protected]; [email protected]

Khalid Mahmood Malik Computer Science and Engineering Department, Oakland University, 2200 N. Squirrel Rd, Rochester, MI 48309, USA Email: [email protected] Syed Ahmad Chan Bukhari* Division of Computer Science, Mathematics and Science, College of Professional Studies, St. John’s University, New York, USA Corresponding should be addressed to Syed Ahmed Chan Bukhari [email protected]*

Abstract: A Natural Language Interface (NLI) facilitates users to pose queries to retrieve information from a database without using any artificial language such as the Structured Query Language (SQL). Several applications in various domains including healthcare, customer support and search engines, require elaborating structured data having information on text. Moreover, many issues have been explored including configuration complexity, processing of intensive algorithms, and popularity of relational databases, due to which translating natural language to database query has become a secondary area of investigation. The emerging trend of querying systems and speech-enabled interfaces revived natural language to database queries research area., The last survey published on this topic was six years ago in 2013. To best of our knowledge, there is no recent study found which discusses the current state of the art translations frameworks for natural language for structured and non-structured query languages. In this paper, we have reviewed 47 frameworks from 2008 to 2018. Out of 47, 35 were closely relevant to our work. SQL based frameworks have been categorized as statistical, symbolic and connectionist approaches. Whereas, NoSQL based frameworks have been categorized as semantic matching and pattern matching. These frameworks are then reviewed based on their supporting language, scheme of their heuristic rule, interoperability support, dataset scope and their overall performance score. The findings stated that 70% of the work in natural language to database querying has been carried out for SQL, and NoSQL share 15%, 10% and 5% of languages like SPAROL, CYPHER and GREMLIN respectively. It has also been observed that most of the frameworks support English language only. Keywords NL2DB, Database, NLP, SQL, NoSQL, Cypher, SPARQL

1. Introduction

Natural language to database querying frameworks translate natural language questions to valid database query languages. This translation helps to bridge the communication gap between non-technical users and database systems, as users do not require to understand the database schemas and query language syntax (Reis, 1997; Christian, 2010). Therefore, it is always desirable for the non-technical users to have a natural language interface for database querying. The history of natural language interface to database querying dates back to 1970s when the LUNAR and LADDER systems were developed for non-technical users to pose natural language questions about the moon rock samples and US naval ships respectively (Woods, 1972). The rapid evolution of computer hardware and software in the last five decades have influenced databases in such a way that the database systems which were developed in 1970s are not even compatible with the current definition of a database (Bercich 2003; Frank 2018). Since then, several natural languages to database querying frameworks have been developed to fulfill the industry needs. By studying the development timeline of such systems, we have identified interesting research trends in translating natural language to database queries domain. The CHAT-80 was the leading natural language to database query system which was developed in 1980 (Warren, and Pereira, 1982). Early developed system had poor retrieval time, less support for the language portability, and had complex configuration processes. These factors contributed towards less adaptation of such systems for the commercial purposes.

Translating a natural language question into various database query languages such as SQL, Simple Protocol and RDF Query Language (SPARQL) is not a trivial task, as the current databases are diverse, gigantic in size and follow sophisticated data storage mechanisms (Nadkarni, 2011). Storage engines often store data in a variety of ways such as in structured format (tabular), No SQL or graph (text) or in hybrid format. Therefore, underlying storage engines require different query languages to retrieve the stored data. This heterogeneity of data storage mechanisms increases the complexity of natural language to database query translation. With the advancement of machine learning techniques, various frameworks have been developed and are able to efficiently translate natural language questions (from simple to complex questions) into database specific queries (SQL, NoSQL) (Yossi Shani, 2016) (Elías Andrawos, 2013).

The last review paper about natural language to database framework was published in 2013 (Sripad and n.d. 2013) which has classified the natural language querying framework for SQL only. Available review paper on this topic (Androutsopoulos, Ritchie and Thanisch, 1995) have mainly covered natural language to SQL database and highlighted the usage of developed systems so far. In this survey paper, we have reviewed Natural language to database querying frameworks developed for both the structured (SQL) and non-structured database query languages (NoSQL, GraphDB). Using Google Scholar, we have found thirty- five relevant frameworks published from 2008 to 2018. This review excludes papers which describe proposed approaches without corresponding evaluation i.e. precision and accuracy, on any benchmark. We have sub-divided the developed frameworks into two main categories (SQL and NoSQL) and provided a comprehensive review of each section (Figure 1). Moreover, for each category, a feature comparison among the developed frameworks documenting their salient features and highlighting their shortcomings has also been provided. The comparison has been conducted on different factors including language and approach supported, performance evaluation and others. NL2DB

NoSQL SQL

Knowledge Rule Based & Syntactic Pattern Machine Learning Based/External Syntax Analysis Resources

Semantic Statistical Matching Approach

Symbolic Pattern Matching Approach

Connectionist Approach

Figure. 1 Classification of natural language to database querying frameworks. SQL and non-SQL categories can be further divided into rule based and syntax analysis, syntactic pattern, machine learning and knowledge based/external resources. Furthermore, these sub-categories have been reviewed for different approaches including semantic matching, pattern matching, supervised and unsupervised learning and statistical approach. Statistical approaches use large text corpora and perform analysis based on text characteristics without considering significant linguistic knowledge. Similarly, symbolic approach is widely used as a learning measures to different machine learning techniques. Connectionist approach proves to be an efficient model of learning tasks, therefore, the combination of connectionist with statistical or symbolic approach is an important area in natural language processing (Stefan, Ellen and Gabriele, 1996). Next section covers materials and methods used in conduction of this study. 1.1 Material and Methods The most crucial part of this study was availability of relevant material. The articles were searched using authentic scientific databases including SPRINGER Link, IEEE, ACM Digital Library, Google Scholar, Emerald, Science Direct and Elsevier. Furthermore, some other databases were also explored but due to accessibility restrictions, they were not included. Search strategy was also designed based on different keywords like ‘querying databases’, ‘natural language databases’, ‘frameworks for NLDB’, ‘natural language interfaces’, ‘SQL-based frameworks’, and ‘NoSQL frameworks’. Figure 2 further explains the selection procedure and keywords searching designed for this study.

Keywords Applied Filter I Applied Filter II After Excluded Searching Articles N=70 and After Filter I After Filter II Frameworks=47 N=749 N=425 Relevant Frameworks

F=35

Filter

Articles Articles N=1247

Initial Screening Initial Screening of

Abstracts Abstracts Reviewed

Selected Scientific Selected Scientific DB Full Full Text Articles Final

Figure 2 Selection procedure and keyword search Figure 2 shows the selection procedure of articles and keywords searching applied in this study. For selection of articles, scientific databases were selected at first. This step helped to design search strategy for extracting more relevant material. In step two, initial screening was performed based on step one and 1247 articles were gathered. The articles were selected based on their titles and filtering was performed. After first filter, 749 articles seemed to be relevant. In step three, abstracts of the selected articles were studied, filtered and 425 articles were selected. After reviewing full text articles, 70 were selected because these articles have discussed 35 frameworks that are relevant to our work.

2. Background This section presents a comprehensive review of the frameworks, shown in figure 1, that are developed for the natural language querying of structured (SQL) and unstructured (NoSQL) databases. A brief overview of these frameworks along with comparison of their features have been presented in this section. 2.1 Translation of the Natural Language to the Structured Query Language (SQL) Frameworks These frameworks have been categorized into three different approaches namely statistical, symbolic and connectionist in machine learning and knowledge based/external resources. 2.1.1 Machine Learning Several studies have proposed approaches based on supervised and unsupervised learning. In (Bunschus et al. 2008) ontology generation approaches were discussed based on supervised learning whereas, Codo et al. (2007) worked on training a classifier for top 50 ambiguities from a mayo clinic, performed on clinical corpus. One of the drawbacks of using supervised learning methods is the requirement of huge training data with manually done labeling which ultimately increases time, cost and labor (Poesio et al., 2008). Unsupervised learning creates cluster to construct different hierarchies (Del et al., 2016). A study (Missisikoff et al., 2002) presented that unsupervised approach combined linguistic and statistics methods for performing ontology generation tasks for text but at the same time, it is followed by the drawback of dependency on statistical data without knowing the significance of the context. 2.1.1.1 SQL Based Frameworks using Statistical Approach The frameworks discussed here are SQL based using statistical approach. Different factors have been considered while comparing these frameworks, including testing and performance measures of the data. Wolfram Alpha, a famous search engine was developed by a team of researchers in Wolfram Research in 2009. It takes queries and requests submitted by users in the form of text fields and then performs computations and visualizations from structured data of knowledge base coming from different books and sites. At the end it displays results and interpretation of an input (Jonas, 2017). An effort has been made by researchers to develop a framework which transforms English language input to SQL for the sake of relevant information retrieval from relational databases (Rao et al. 2010). The proposed framework provides the natural language to database queries translating infrastructure. However, the translation scope was limited to a user defined data dictionary containing most of the words to be used by the system. This framework allows users to extend by adding new translating grammar rules and data dictionary. For example, it has employed linguistic understanding with parse tree, and further maps the proximity of the patterns for the certain database concepts. The shortcoming of this system is that it does not support dialogue-style querying. Ganti et al. presented a framework “Keyword++” to improve the existing tools to translate a keyword query to SQL statement (Ganti,2010). Proposed framework maps the query keyword to predicate and generate differential query pair (DQP) against the keyword, then measures the correlation between DQP and the predicates. Keywords to predicates mapping is further improved by aggregating the correlations which are measured on multiple query pairs extracted from a query log. A materialized mapping has been performed on the generated DQP from query log to translate query keywords to equivalent SQL statements. Proposed system has been tested on an entity table comprised of 8,000 laptops. Overall 0.1 million web search queries were extracted and trimmed to 500 queries as sample test set. Approximately, 2,000 keywords were extracted where each keyword had 41 DQP and took 1.61 seconds to compute the mapping. Experiments conducted on Keyword++ framework show that the effectiveness of the system is more the 80% compared to existing approaches. Data sharing among various organizations could help to facilitate the evidence-based treatment by incorporating evidences from heterogeneous hospitals datasets Healthcare researchers and clinicians require tools to extract relevant information from clinical information system’s data (Malik, 2018). These distributed databases contain different data design models e.g., Entity Relationship and Entity Attribute Value. Safari et al. proposed an algorithm to translate Restricted Natural Language Query (RNLQ) to SQL (Safari,2014). Generic algorithms have been used for mapping and translation. In the first step query terms are mapped to RNLQ via CliniDAL (Clinical Data Analytic Language) interface. Next temporal expression of the query is interpreted via a 2-layer rule based technique. Translation from RNLQ to SQL is performed via Top-K algorithm on the base of similarity that is further utilized by CliniDAL for the mapping process. The implemented prototype was tested on four categories of queries and it achieved 84% of accuracy. Li et al. presented an approach which deals with complex input queries of multiple domains to translate them into SQL queries in a generic way (Li and Jagadish, 2014). The resulting SQL statements include query nesting, query joins, and query aggregation. A system has been developed based on the proposed approach named as NaLIR (Natural Language Interface for Relational databases), which incorporate these characteristics. The system reuses previous SQL statements from the query log to save query computation time. TiQi, a natural language interface, allows to pose speech and text based queries in natural language (Lin, 2015). It is a web based tool and especially designed to access project’s data. TiQi accepts user query and generates Traceability Information Model (TIM) which displays underlying object classes and attributes. TIM is stored in a centralized location to map unique nodes to access and specify data demanded by input query. In order to produce an up-to-date SQL output, H2, the JAVA SQL database, has been designed. This database engine provides support for data sources ranging from Jira to Excel Spreadsheet. Palakurthi et al. presented a framework which classifies explicitly defined attributes present in a natural language query to convert them into various SQL clauses (Palakurthi, 2015). A statistical classifier CRF (Conditional Random Field) implemented to classify these attributes. The system has been tested on three domains (Academic, Restaurant, and Geo-query) and it has achieved accuracy of 70% and an F-measure of 85%. Sujatha et al. has developed a system using the EFFCN algorithm, which used both semantic and syntactic knowledge to build an accurate match of input query to corresponding SQL query (Sujatha and Raju, 2016). It was tested on CPVbase with the precision and recall ranging 84%. Ontology merging and enhanced parsing process helps the system to prune the query for the sake of desired information. The authors suggested that future growth of NLIDB systems will be achieved via neural networks, machine learning and statistical parsing techniques, tackling abbreviated queries and dealing with temporal logic based complex natural language queries. Mvumbi et al. proposed a system “NALI” to translate NL queries to SQL queries. It has been especially designed to address the portability issue of NLIDB (Natural Language Interface to Database) from one domain to another without customizing the tool manually and automatically generating the configuration model for the new domain (Mvumbi, 2016). The proposed approach reduced the manual workload to customized NLIDB. They introduced two authoring schemes (Top-down and Bottom-up) for customization in order to evaluate the best. Top-down approach, pre-harvests key lexical terms by using un-annotated sample NL queries. Furthermore, it includes semantics for negative form of verbs, comparative and superlative form of adjectives to reduce configuration workload. While the Bottom-up approach utilized database schema and data dictionary to generate configuration model automatically. The proposed system has been tested on Geoquery corpus, and revealed that top-down authoring approach results are much better compared to bottom-up for customizing a NLIDB system. Sukthankar, et al. has presented a system to deal with simple as well as complex queries (Sukthankar, et al 2017). The proposed work focused on aggregate function, WHERE clause conditions and advanced clauses such as ‘Having’ and ‘Order by’. The proposed system works well for single input query. The authors suggested to enhance the system by accepting multiple sentence queries and translate them into one resulting SQL query.

Seq2SQL framework inefficiencies (generalized to unseen schema and serializbility) and its Seq-to-Seq model has been improved with the help of new approach i.e. sequence-to-set based model proposed by Xiaojun (Xu,2017). The model has been implemented in “SQLnet” tool using Seq2SQL as baseline framework but eliminates reinforcement learning. Similar to SQLizer, a sketch based scheme has been implemented to parse the NL query, but each sketch has a dependency graph to predict the new sketch via using previous prediction of sketch. This new model improves the Seq2SQL results from 9% to 13% on various metrics. Table 1 shows feature-based comparison of frameworks using statistical approach.

Table 1 Features Comparison of SQL-based Frameworks Using Statistical Approach

System Language Heuristic Interoperabil Usability Correct Support Performance Evaluation Name Support Rule ity Reported ed Complex Support Report Queryin ed g Wolfram English to Yes No Good Good Yes Symbolic Computation, Alpha Wolfram Knowledge Base, Ontology 2009 Query Similar to SQL Keyword+ English to Yes No Good Good Yes Tested on 500 web queries +, 2010 SQL and achieved >80% precision and recall RNLQ- ClinDal Yes Yes Good Good Yes Tested on RPAH-ICU SQL, 2014 Queries to Corpus, Accuracy 84% SQL NaLIR, English to Yes Yes Good Good Yes Microsoft Academia 2014 SQL Search(MAS) dataset, Good Recall and Precision TiQi, NL Trace Yes Yes Good Good Yes Tested on Isolate and Easy 2015 Query to Clinic datasets, Accuracy of SQL supported and unsupported queries are respectively 92.6 %, 82.9 % Ashish, English to No Yes Fair Fair No Statistical classifier CRF 2015 SQL trained on manually prepared data, and compare to Academic, Restaurant, Geo query, 70 % EFFCN, English to No No Good Good Yes Tested on CPVBase, 2016 SQL Precision & Recall 84% NALI, English to Yes Yes Good Good Yes Tested on Geo query 2016 SQL corpus, Customization, auto generation of configuration model nQuery, English to Yes No Fair Fair Yes Intelligent Table & attribute 2017 SQL mapping, clause tagging aggregate function, group by and having clause SQLnet, English to No Yes Good Good Yes Improve Seq2SQL results 2017 SQL from 9% to 13% on various metrics SQLizer, English to Yes No Good Good Yes Tested on MAS, IMDB and 2017 SQL YELP databases, Accuracy 90%

2.1.1.2 SQL Based Frameworks using Symbolic Approach Alessendra and Alessendro (2012) proposed a framework and tested with 800 questing datasets about geo queries. They combined the through rules with weighing scheme that provides a ranking list of all selected candidates queries in SQL. Natural Language web Interface for Database (NLWIDB) is another commercial framework available to explore different databases (Rukshan et al., 2013). A hybrid approach has been proposed to build a framework “NLKBIDB” using the methodology of NLIDB (Natural Language Interface to Databases) and KBIDB (Keyword Based Interfaces to Databases) by (Axita,2013). The author has explained various system agents that first accepts the NL query and passes it to various analyzers such as lexical, syntax, and semantic. If the query syntax is valid, the analyzed input further passed to the next agent is in the form of a tree structure. Tokens are mapped to generated knowledge base, if tokens are found in the knowledge base then a pointer is sent to the SQL generator, otherwise, the user is notified to reform query. This framework utilized the logical and conceptual schema of a database as the knowledge base. It is derived from the metadata of the database and knowledge experts help to update it. It has been tested on an agriculture survey database and reports 53 % accuracy against syntactically incorrect queries. Another commercial framework, developed in 2014, NQL which is widely used in organizations like university’s databases. The purpose of NQL is querying database in natural language (Hessa and Emad, 2016). It parses English language queries and converts them into SQL. Furthermore, NQL algorithm was used in its implementation. In 2015, another commercial framework for natural language to SQL was developed named as TR Discover (Dezhao et al., 2015). TR Discover is mainly use in domains like Life Sciences and law. It provides suggestions for construction of questions that belongs to natural language. TR Discover inherits SPAROL and SQL characteristics, that is the reason it uses feature based grammar and translation along with parsing. Table 2 displays the feature-based comparison of frameworks using symbolic approach.

Table 2 Features Comparison of SQL-based Frameworks Using Symbolic Approach

System Language Heuristic Interoperability Usability Corrected Support Performance Name Support Rule Support Reported Reported Complex Evaluation Querying Alessandra, English to Yes No Good Good Yes Tested on 2012 SQL GEOQuery Corpus 800 questions, Recall 88 % Accuracy 81% NLKBIDB, English to Yes No Fair Fair No Tested on 2013 SQL Railway, college domain dataset, Solved 53% of syntactically incorrect queries % NLWIDB Language Yes No Fair Good Yes Language 2013 Processin Processing g

NQL NQL Yes No Good Fair Yes NQL algorithm 2014 algorithm

TR Feature Yes No Good Fair Yes Feature based Discover based Grammar. 2015 Grammar. Parsing, FOL Parsing, translation FOL translation

2.1.1.3 SQL Based Frameworks using Connectionist Approach Gulwani presented an auto synthesizing programming system “NLyze” to extract information from spreadsheet data without interacting with spreadsheet programming (Gulwani ,2014). The proposed system includes a Domain Specific Language (DSL) to deal with algebra of map, filter, and join etc. Compositional and Typed nature of DSL effectively translates the NL query and provides appropriate abstraction to the unskilled user. Translation of the NL query to spreadsheet programming is performed by a dynamic programming based algorithm, which converts the NL query into a ranked set of likely programs. The proposed algorithm combined two ideas- keyword programming and semantic parsing. Keyword programming approach has high recall but low precision, while semantic parsing has low recall and high precision. NLyze is specific to domain, purely based on typed synthesis, and targets only spreadsheets. In contrast, SQLizer, a similar tool to NLyze, provides domain independency by auto generating configuration model for new domain and target relational databases. An intelligent agent based framework for databases to transform simple text to equivalent SQL query has been developed and presented in (Hessa et al., 2016). The authors have focused on parsing of extracted keywords via syntactic and semantic parser. Rules have also been designed for parser to learn the knowledge hidden in the natural language query. They used tools including Sphinx for speech recognition, MySQL as RDBMS, Stanford parts of speech (POS) tagger as syntax parser, Stanford named entity recognizer (NER) as semantic parser and for parsing complex queries ClearNLP. These tools are integrated in Intelligent Agent (IA) system which is implemented in Java. This system reported 80% accuracy in their test suite. Inherent ambiguity of the NL query bound the underlying synthesizer of NLIDB system to automatically generate SQL representation. The scope of NLIDB is also limited by database agnostic (configuration required for every new database). A novel technique has been introduced by Yaghmazadeh et al. to automatically synthesize SQL queries and auto-generate a configuration model for new databases (Yaghmazadeh, 2017). Two ideas (typed-directed synthesis from NLP and repair technique from programming language) have been merged in this technique. At first stage semantic parser used to translate an NL query into a skeleton (a query sketch) which only represents the shape of query instead of full content. It does not generate SQL query by training the NL query on a specific database during semantic parsing. Initial sketch further needs to be refined because it does not capture the desired structure of input query, therefore it has been repaired via fault localization and database of repair tactics. Skeleton contained holes which are overcome by type-directed approach and converted to a complete SQL query and on each completion a confidence score assigned to query on the base of schema and contents of database. An intelligent user interface minimizes the communication gap between user and the system. Adding an intelligent layer into the system eases the process of transforming the NL query to SQL statements. Singh et al. presented an intelligent NLIDB system named as “NLTSQLC” User, it is purely based on metadata and semantics sets for attributes and tables (Singh, 2016). This system takes input as the NL query, which is further processed for lower case conversion, tokenization, escape word removal, and part of speech tagging. System further classifies tagged tokens into relation, attributes and clauses. Finally, the system removes ambiguous attributes with the same name to generate the final SQL representation. Another framework, NLP Interchange Format (NIF) presented by Sebastian et al., (2012) works in the domain of semantic web. One of the major advantage of using NIF is, it provides interoperability that is actually global between different NLP tools. Kueri 2013, constructs query in faster manner. It facilitates user on a single click by getting their queries by simply typing search box (Yossi, 2016). Zhong et al. proposed “Seq2SQL”, a neural network-based framework for making an interpretation of natural language queries to relating SQL (Structured Query Language) representation (Zhong, Xiong, and Socher 2017). The proposed system reduces resulted query space and improves the execution accuracy of a system. This framework has utilized Reinforcement Learning (RL) rewards and cross entropy loss iteratively on query execution over the database to take in an approach to create unordered parts of the question, which are less reasonable for advancement by means of cross entropy misfortune. They released WikiSQL, a dataset of 87673 hand-explained cases of inquiries and SQL questions distributed over 26521 tables from Wikipedia. By applying strategy-based reinforcement learning (RL) with an inquiry execution condition to WikiSQL, Seq2SQL beats the best in class semantic parser by Dong and Lapata (2016). Utilizing the structure of SQL queries allows Seq2SQL to further reduce the output space of SQL queries, which leads to higher performance than Seq2Seq and the pointer model. Limiting the output space leads to more accurate conditions. Augmented pointer model generates higher quality WHERE clause conditions. Incorporating structure reduces invalid queries from 7.9% to 4.8%. Arimo was founded in 2012 with the purpose to support business intelligence and data science domain. Its user interface is inclined towards natural language processing that learns behavior patterns from big data. Similarly, Quepy 2012, allowed implementation of NLIDB systems using python language. It deals with complex queries and generate accuracy representation of data because it is based on NLTK framework (Jonas, 2017). In 2017, a natural language domain framework named as in2SQL was developed to deal with any natural language (Jeremy and Shashank, 2017). Similarly, Easy Query Building (EQB) 2017 is freely available that allows user queries in friendly way. All user requests can be described visually in natural language (EasyQuery, 2017). To address the shortcomings of the NaLIR systems, such as tackling paraphrasing and various linguistic variations, another framework namely “DBPal” was presented in (Basik, 2018). To translate queries, it uses a novel translation model along with a feedback-based learning and auto-completion model to assist users in paraphrasing the partial query while formulating the database query. This system has shown significant accuracy improvement to build the complex queries. There are many commercial frameworks that uses connectionist approach to develop. Some of them are listed here. In 2011, The Needle framework was introduced. It was developed as website API for ecommerce websites and largely facilitates in shallow text analysis. It is also recognized as one of the fast search ecommerce API. Thoughtspot 2012, is available for data science and business domains. It has different significant features including ease of use, fast execution, minimal backlog maintenance and others (Ryan, 2018). Table 3 has summarized all the features comparison of connectionist approach used in different frameworks.

Table 3 Features Comparison of SQL-based Frameworks Using Connectionist Approach

System Name Language Heuristic Interoperability Usability Corrected Support Performance Support Rule Reported Reported Complex Evaluation Support Querying The English to Yes Yes Good Good Yes API for shallow NEEDLE filter text analysis, 2011 for SQL Fast search Ecommerce API, Thoughtspot English to Yes Yes Good Good Yes Easy to Use, 2012 SQL Faster execution, Reduce backlog, maintenance, Zero optimization to tune performance Arimo English to Yes Yes Fair Good Yes learn behavior 2012 SQL patterns from Big Data Quepy English to Yes Yes Good Fair Yes deal with 2012 SQL, complex queries MQL, and SPARQL generate accurate representation, open source, better for domain specific database NLP NLP tools Yes Yes Fair Good Yes Global Interchange out- interoperability Format (NIF) put to RDF between different 2012 Natural language processing tools Kueri English to Yes Yes Good Fair Yes Faster 2013 SQL, construction of and JSON for query, efficient NoSQL spelling checker, efficient data ambiguity handler, auto- completion of query NLyze, 2014 English to Yes Yes Good Good Yes Test on four SQL different spreadsheet and achieved 98.2% accuracy and precision INLIDB, English to Yes No Good Good Yes Accuracy 80 % 2016 SQL

NLQTSQLC, English to Yes No Good Good No Tested on 2016 SQL Manually prepared Dataset of questions, Accuracy 86%, Recall 80%, Precision 89% Seq2SQL, English to No No Fair Fair Yes Tested on 2017 SQL WikiSQL Dataset, Execution Accuracy 59.4% and Logical form accuracy 48.3% % ln2sql SQL No No Fair Fair No It can deal with 2017 any natural language Easy Query English to No No Good Fair No Visual Builder SQL representation of (EQB) output 2017 DBpal, English to No No Good Fair No Tested on 2018 SQL geographical data sets of United States

2.1.2 Knowledge Based/ External Resources In recent studies knowledge based approaches have been proposed to automate the ontology construction. A study presented by Harris et al. (2015) combines NLP and knowledge base for raw text ontologies. The approach was based on predefined dictionary of disorder type concepts that are expected to occur in the text. The drawback of this approach was increased labor cost for dictionary construction, the dependency of domain and limitations of patterns. Another work, presented by Cahyani et al. (2017) also focused on utilizing knowledge based on controlled vocabulary and data linked with corpus. Text2Onto tool was also used in this study for filtration on dictionary methods. For understanding of final concepts and candidate’s relations, the work was also linked with pattern mapping of data. The limitation of this approach was it requires predefined relations to the domain and it semantic meaning is also not considered. Qawasmeh et al. (2018) proposed a work containing bootstrapping which was semi-automated involving preprocessing of manual text with extraction of concept. But the drawback involved in this approach was domain dependency on experts and involvement of labor in the process of development. Bhatia et al. (2018) another researcher focused on automating ontology generation of web pages that are retrieved. An et al. (2018) developed another approach that helped to transform database schema into automatically generated ontology. This was done with the help of crafted rules but like other approached, this approach has some serious problems. It required a predefined databased schema.

2.2 Translating Natural Language to Non Structured Query Language (NoSQL) Frameworks In section 2.2 Natural Language to NoSQL frameworks have been presented based on two different matching approaches namely pattern matching and semantic matching, in context of rule based and syntax analysis, and syntactic pattern. 2.2.1 Rule Based & Syntax Analysis Rule based and syntax analysis is a manual approach to set of rules that are formed for the representation of knowledge. This representation involves the decision to conclude various scenarios. A study presented by Abacha et al. (2011) shows that medical entities and the relationship of medical text and rule based syntactic pattern are basically semi automatically built according to the criteria of semantics from a corpus. Similarly, Ono et al. (2001) defined an approach for extraction of protein interaction information from the literature presented in dictionary named rule-based and syntax based analysis. In the said approach protein to protein interaction was presented. 2.2.1.1 NoSQL frameworks Using Semantic Matching Semantic web contained a large number of linked open data repositories. Due to the complex nature of SPARQL queries, it is difficult to formulate these by a naive user or even by an expert. Bretonnel et al. developed a prototype system Linked Open Data Question Answering (LODQA) to transform plain text queries into corresponding SPARQL statements (Kim and Cohen 2013). Techniques used to implement the prototype version included parsed via Enju, pattern based matching using chunks of base noun, targeting performed via pattern matching, shortest path find via Dijkstras algorithm, ontology searching performed via OntoFinder, and to determine and selection of a predicate as default. Some modules of the proposed system do not perform as desired, so these are configured, and an integration testing is performed for all modules in future. To explore data from these domains, Karim has developed an efficient tool “Sem-QAS” (Karim et al. 2013). The main function of this tool is to convert natural language questioning into corresponding SPARQL query through identification of unique atomic constraint and their relation present in the input question. This tool generates and combines triple patterns to output complex SPARQL queries for atomic constraint. Recall and precision of the system mainly measured for association operators and scope modifiers processing. It is tested on Mooney Job corpus for correctness and efficiency (Karim et al. 2013). To convert natural language queries to non-SQL database, there is a need to develop systems that can interpret non-English languages. In this regard, a system for Arabic language named as “AR2SPARQL” has been developed by (Al Agha and Abu-Taha, 2015) to enable non-technical users to query RDF graphs. Query ambiguity is resolved via linguistic as well as semantic approach. System has been tested on two corpora and showed good performance statistics for precision and recall. Another article which uses Arabic language as a case study for Natural Language Interface for Relational Database is presented in (Hammo, Abu-Salem and Lytinen, 2002). Exploring graph databases via natural language query also has strong potential. There has been a little amount of inter pattern technique and translating them into corresponding SPARQL query. A framework for real life application related to organic farming will be the target in the upcoming work. A large amount of work has been carried on querying ontologies and RDF data via English language queries. A natural language to SPARQL querying framework has been introduced by (Sæbu, 2015). The proposed system does not demand background knowledge to build a query. The C-system analyzes an input information request and generates a SPARQL query against it to explore required information from databases. Job searching is a common task for unemployed persons. Data available on job search domains is annotated semantically. Information requested by user in his own words can be expressed without confining to point, click, scroll or search to choose correct class and features. To ease the task of GraphAware NLP is one of those available tools, which have been presented by (albertodelazzari et al. 2014). Developed as a plugin for Neo4j graph database, GraphAware NLP provides a group of tools in form of procedures, APIs and background process. Accurately converting a plain text question into corresponding database statement is the main goal of NLIDB domain. There has been an effort to develop a system named as MANTRA QA by (Oro and Ruffolo, 2015). It transforms a plain text query into SPARQL and Cypher statement. It is a mixture of grammar and logic-based concepts to accurately find out the concepts and relations in specific knowledge domains. Primarily, it has been tested on tourism and finance domains benchmarks.

Table 4 shows NoSQL and graph databases frameworks using semantic matching.

Table 4 Features Comparison of NoSQL-based Frameworks Using Semantic Matching

System Name Language Datasets Supported Domain Performance Evaluation Support Supported

LODQA, English to SNOMED CT Life Sciences Not Available 2013 SPARQL

SemQAS, English to Mooney Job Job Search Precision 100% and recall 99 % 2013 SPARQL AR2SPARQL, Arabic to OWL ontology Question Test on geography data set 2015 SPARQL based on United answering and achieved precision 88%, Recall 61% , State Geography system for F-Measure 0.72 while for disease data set data Quran 82%, 62% and 0.71 OptiqueNLQF, English to NPD Ontology Petroleum Not Available 2015 SPARQL companies

MANTRA English to Manually Prepared Tourism Not Available QA, 2015 SPARQL & questions Cypher

2.2.1.2 NoSQL frameworks Using Pattern Matching Semantic Web Interface Using Pattern (SWIP) has been presented by Camille et al. (2013). In this framework French ecology and agriculture is mainly focused. Furthermore, SWIP uses English language to SPAROL and dataset named QALD-3 supports this framework. Table 5 represents NoSQL and graph databases frameworks using pattern matching.

Table 5 Features Comparison of NoSQL-based Frameworks Using Pattern Matching

System Name Language Datasets Supported Domain Performance Evaluation Support Supported

SWIP, 2013 English to QALD-3 French Tested on Music brains SPARQL ecology and dataset achieve 51% precision, recall, and agriculture F-measure

2.2.2 Syntactic Pattern Syntactic pattern is a well-known approach in the area of natural language processing especially ontology engineering and extraction from data (Maynerd et al., 2009). Unlike other approaches, this approach consists of huge amount of crafted syntactic patterns therefore, it has high recall and low precision. And this makes it domain dependent also (Reiss et al., 2008).

Hearst in 1992 extracted hyponymy lexical relations from text based hand written patterns and parts-of- speech were used as tags in it. In another study by Downey et al. (2004), the approach was used to learn the patterns from text and extract information from them. Text2Onto as previously discusses, combines other approaches like machine learning with basic linguistic approaches and used in POS tagging. The drawback of syntactic pattern is the limit number of available patterns and dependency of domain. There are also some major issues of scalability, domain knowledge and labor.

Tiddi et al. (2012) presented an approach. The purpose of the approach was to generate web content via syntactic patterns for the relations that exist in linked open data. Furthermore, it was used to extract new entities from web and ontology construction. It has also some limitations like its limit to RDF scheme only and need of domain of interest for input.

3. Discussion The aim of this survey is to explore the state of the art natural language querying frameworks for databases. These natural languages to database querying frameworks have a four-decade long history and several efforts have been made to facilitate end users. Initial tools were designed to deal with databases on the small scale and those systems were not scalable for commercial use. With advancement in technology, new commercial natural language to database querying frameworks were developed supporting multiple databases. In the literature, related studies and surveys have been found which focus particularly on the natural language to database querying frameworks and most of the available surveys are outdated. We have included frameworks developed around 2008 to 2018 and found 47 frameworks related to our topic. Out of 47, we have selected 35 frameworks closely relevant to our targeted topic for survey. A feature comparison table has been compiled for those tools which are available for commercial purposes. Initial frameworks which were developed for translation do not fulfill the definition of current databases due to the heterogeneous nature of data, and these tools were only designed to deal with small scale databases. These frameworks have been categorized according to structured and unstructured databases. Multiple query languages are used to retrieve information from databases, but we focused only on the popular query languages of today. Furthermore, we have presented reviews of frameworks which translate natural language query to SQL, MQL, SPARQL, RDF, CYPHER, and GREMLIN for both structured and unstructured databases. Lastly, we have found that 70% of the work in the natural language to database querying is carried out for SQL. The share for NoSQL languages such as for SPARQL, CYPHER, and GREMLIN are 15%, 10% and 5% respectively. With the increasing popularity of NoSQL especially graph databases, we urge researchers to focus on developing new natural language to database frameworks for CYPHER and other graph languages. It has also been observed that most of the available natural language to database querying frameworks support English language only. Few efforts have been reported where researchers have worked on Portuguese and French. Multi-language support or dedicated systems in international languages are desirable to make the overall data-driven process easy.

References AlAgha, I., & Abu-Taha, A. (2015). AR2SPARQL: an arabic natural language interface for the semantic web. International Journal of Computer Applications, 125(6). Alawwad, H., & Khan, E (2016). An Intelligent Database System using Natural Language Processing. International Journal of Computers, https://www.iaras.org/iaras/journals/ijc Albertodelazzari, Bachmanm, Ikwattro, and Inserpio. (2014) "GraphAware Knowledge Platform." GitHub. https://graphaware.com/. Androutsopoulos, I., Ritchie, G. D., & Thanisch, P. (1995). Natural language interfaces to databases–an introduction. Natural language engineering, 1(1), 29-81. Alessendra Giordani, Alessendro Moschitti. (2012). “Translating Questions to SQL Queries with Generative Parsers Discriminatively Reranked”, Proceedings of the Coling, pp. 401-410 Ben Abacha, P. Zweigenbaum, (2011). Automatic extraction of semantic relations between medical entities: A rule based approach, J. Biomed. Semantics. doi:10.1186/2041-1480-2-S5-S4. Coden, G. Savova, J. Buntrock, I. Sominsky, P. Ogren, C. Chute, P. de Groen, . (2007). Text Analysis Integration into a Medical Information Retrieval System: Challenges Related to Word Sense Disambiguation, Medinfo 2007 Proc. 12th World Congr. Heal. Informatics; Build. Sustain. Heal. Syst Basik, F., Hättasch, B., Ilkhechi, A., Usta, A., Ramaswamy, S., Utama, P., & Cetintemel, U. (2018, May). DBPal: A Learned NL-Interface for Databases. In Proceedings of the 2018 International Conference on Management of Data (pp. 1765-1768). ACM. Bercich, N. H. (2003). The Evolution of the Computerized Database. arXiv preprint cs/0305038. Christian B., David A., Yingjie Y., (2010). “Natural Language Processing: A Prolog Perspective”. Artificial Intelligence Review, Springer, vol. 33, pp. 151-173 Cahyani, Denis Eka, and Ito Wasito. (2015) "Automatic Ontology Construction Using Text Corpora and Ontology Design Patterns (ODPs) in Alzheimer’s Disease." Jurnal Ilmu Komputer dan Informasi 10, no. 2: 59-66.

Dezhao Song, Frank Schilder, et al., (2015). “TR Discover: A Natural Langugae Interface for Querying and Analyzing Interlinked Datasets”, Springer International Publishing, LNCS 9376, pp. 21-37, DOI 10.1007/978-3-319-25010-6 2 D. Maynard, A. Funk, W. Peters, (2009) Using lexico-syntactic ontology design patterns for ontology creation and population, in: CEUR Workshop Proc.

D. Downey, O. Etzioni, S. Soderland, D.S. Weld, (2014) Learning Text Patterns for Web Information Extraction and Assessment, Artif. Intell.

Doing-Harris, Kristina, Yarden Livnat, and Stephane Meystre. (2015). "Automated concept and relationship extraction for the semi-automated ontology management (SEAM) system." Journal of biomedical semantics 6, no. 1:15.

Elías Andrawos, García Gonzalo Berrotarán, and Rafael Carrascosa. (2013, September). "Quepy" A Python Framework to Transform Natural Language Questions to Queries. http://quepy.machinalis.com/. EasyQuery. (2017). “Easy Query Builder: SQL Query Builder that doesn’t make you Learn SQL”, web accessed easyquerybuilder.com Ferré, S. (2012, August). Squall: A controlled natural language for querying and updating rdf graphs. In International Workshop on Controlled Natural Language (pp. 11-25). Springer, Berlin, Heidelberg. Fluree. (2017). "Blockchain, Meet Database." Fluree Blockchain Database and Decentralized Apps. https://flur.ee/. Frank Z., Erik C., Roy E., (2018). “Natural Language Based Financial Forcasting: A Survey”. Artificial Intelligence Review, Springer, Vol. 50, pp. 49-73

F. Reiss, S. Raghavan, R. Krishnamurthy, H. Zim, S. Vaithyanathan, (2008) An algebraic approach to rule- based information extraction, in: Proc. - Int. Conf. Data Eng., oi:10.1109/ICDE.2008.4497502.

Ganti, V., He, Y., & Xin, D. (2010). Keyword++: A framework to improve keyword search over entity databases. Proceedings of the VLDB Endowment, 3(1-2), 711-722. Gulwani, S., & Marron, M. (2014, June). Nlyze: Interactive programming by natural language for spreadsheet data analysis and manipulation. In Proceedings of the 2014 ACM SIGMOD international conference on Management of data(pp. 803-814). ACM. Hammo, B., Abu-Salem, H., & Lytinen, S. (2002, July). QARAB: A question answering system to support the Arabic language. In Proceedings of the ACL-02 workshop on Computational approaches to semitic languages (pp. 1-11). Association for Computational Linguistics. Tiddi, N.B. Mustapha, Y. Vanrompay, M.-A. Aufaure, (2012) Ontology learning from open linked data and web snippets, Confed. Int. Work. Move to Meaningful Internet Syst. OTM 2012 OTM Acad. Ind. Case Stud. Program, EI2N 2012, INBAST 2012, META4eS 2012, OnToContent 2012, ORM 2012, SeDeS 2012, SINCOM 2012, SOMOCO 2012. doi:10.1007/978-3-642-33618-8_59. Jan Steemann, Michael Hackstein Hackstein, and Max Neunhoffer. (2017, July) "Highly Available Multi- model NoSQL Database." ArangoDB. https://www.arangodb.com/. Jeremy Ferrero, Shashank Khare. (2017). “ln2sql”, web accessed https://pypi.org/project/ln2sql/ Jonas Chapuis. (2017). “Natural Language Interfaces to Databses (NLIDB)”, web accessed https://www.nexthink.com/blog/natural-language-interfaces-to-databases-nlidb/

J. An, Y.B. Park, (2018) Methodology for Automatic Ontology Generation Using Database Schema Information, Mob. Inf. Syst. (2018) 1–13. doi:10.1155/2018/1359174.

Karim, N., Latif, K., Ahmed, N., Fatima, M., & Mumtaz, A. (2013, September). Mapping natural language questions to SPARQL queries for job search. In Semantic Computing (ICSC), 2013 IEEE Seventh International Conference on (pp. 150-153). IEEE. Kim, J. D., & Cohen, K. B. (2013). Natural language query processing for SPARQL generation: A prototype system for SNOMED CT. In Proceedings of biolink (pp. 32-38). Leavitt, N. (2010). Will NoSQL databases live up to their promise. Computer, 43(2). Li, Fei, and H V Jagadish. 2014. “Constructing an interactive natural language interface for relational databases.” Proceedings of the VLDB Endowment 8 (1): 73–84. Li, X., & Boucher, M. (2013). Under the hood: The natural language interface of graph search. URL: https://www. facebook. com/notes/facebookengineering/under-the-hood-the-natural-languageinterface-of- graph-search/10151432733048920 [Online]. Lin, J., Liu, Y., Guo, J., Cleland-Huang, J., Goss, W., Liu, W., ... & Rasin, A. (2017, October). TiQi: A natural language interface for querying software project data. In Automated Software Engineering (ASE), 2017 32nd IEEE/ACM International Conference on (pp. 973-977). IEEE. Malik K., Hisham Kanaan, Vian Sabeeh, Ghaus Malik (2018). “Autonomous, Decentralized and Privacy- Enabled Data Preparation for Evidence-based Medicine with Brain Aneurysm as a Phenotype”, IEICE Transactions on Communications, E101-B(8),115-126. Messina, A., Augello, A., Pilato, G., & Rizzo, R. (2017, July). BioGraphBot: A Conversational Assistant for Bioinformatics Graph Databases. In International Conference on Innovative Mobile and Internet Services in Ubiquitous Computing (pp. 135-146). Springer, Cham. Mvumbi, T. (2016). Natural language interface to relational database: a simplified customization approach (Doctoral dissertation, University of Cape Town).

M.A. Hearst, (1992) Automatic Acquisition of Hyponyms from Large Text Corpora, in: Proc. 14th Int. Conf. Comput. Linguist., doi:10.1.1.36.701 M. Bundschus, M. Dejori, M. Stetter, V. Tresp, H.P. Kriegel, (2008). Extraction of semantic biomedical relations from text using conditional random fields, BMC Bioinformatics. doi:10.1186/1471-2105-9-207

M. Poesio, E. Barbu, C. Giuliano, L. Romano, (2008). Supervised relation extraction for ontology learning from text based on a cognitively plausible model of relations, ECAI 2008 3rd Work. Ontol. Learn. Popul.

M. del Carmen Legaz-García, J.A. Miñarro-Giménez, M. Menárguez-Tortosa, J.T. Fernández-Breis, (2016). Generation of open biomedical datasets through ontology-driven transformation and integration processes, J. Biomed. Semantics. doi:10.1186/s13326-016-0075-z.

M. Missikoff, R. Navigli, P. Velardi, (2002). Integrated approach to Web ontology learning and engineering, Computer (Long. Beach. Calif). doi:10.1109/MC.2002.1046976.

Manvi, K.K. Bhatia, A. Dixit, (2018) Automatic generation of ontology for extracting hidden web pages, in: Adv. Intell. Syst. Comput.,. doi:10.1007/978-981-10-6620-7_14.

Nadkarni, P. M., Ohno-Machado, L., & Chapman, W. W. (2011). Natural language processing: an introduction. Journal of the American Medical Informatics Association, 18(5), 544-551. Neo Technology. (2007, April) "The Neo4j Graph Platform – The #1 Platform for Connected Data." Neo4j Graph Database Platform. https://neo4j.com/. Oro, E., & Ruffolo, M. (2015, November). A Natural Language Interface for Querying RDF and Graph Databases. https://intranet.icar.cnr.it/wp-content/uploads/2016/11/RT-ICAR-CS-15-05.pdf Ontotext. (2018, January)"GraphDB." GraphDB Downloads and Resources. http://graphdb.ontotext.com/. OrientDB Ltd. (2010, April)"Graph Database | Multi-Model Database | OrientDB." Home · OrientDB Manual. https://orientdb.com/. Palakurthi, A., Ruthu, S. M., Akula, A., & Mamidi, R. (2015). Classification of attributes in a natural language query into different sql clauses. In Proceedings of the International Conference Recent Advances in Natural Language Processing (pp. 497-506). Pradel, C., Haemmerlé, O., & Hernandez, N. (2013, October). Natural language query interpretation into SPARQL using patterns. In Fourth International Workshop on Consuming Linked Data-COLD 2013 (pp. pp-1). Qawasmeh, Omar, Maxime Lefrançois, Antoine Zimmermann, and Pierre Maret. (2018) "Improved Categorization of Computer-assisted Ontology Construction Systems: focus on Bootstrapping capabilities." In Extended Semantic Web Conference (ESWC2018).

Reis, P., Matias, J., & Mamede, N. (1997). Edite-A Natural Language Interface to Databases A new dimension for an old approach. In Information and Communication Technologies in Tourism 1997 (pp. 317-326). Springer, Vienna. Rao, G., Agarwal, C., Chaudhry, S., Kulkarni, N., & Patil, D. S. (2010). Natural language query processing using semantic grammar. International journal on computer science and engineering, 2(2), 219-223. Ryan Mattison. (2018). “ThoughtSpot”, web accessed https://www.thoughtspot.com/thoughtspot- announces-searchiq-new-voice-driven-analytics-enterprise Rukshan Alexendar, Prashanthi Rukshan, Sinnathamby Mahesan. (2013). “Natural Language Web Interface for Database (NLWIDB)”, Proceedings of the third International Symposium, IEEE Sæbu, T. S. (2015). OptiqueNLQF: A natural language query formulation system based on Semantic Technologies(Master's thesis). Safari, L., & Patrick, J. D. (2014). Restricted natural language based querying of clinical databases. Journal of biomedical Informatics, 52, 338-353. Sherman, Monroe. (2012). Cypher. Retrieved from https://www.w3.org/wiki/Cypher Singh, G., & Solanki, A. (2016). An algorithm to transform natural language into sql queries for relational databases. Selforganizology, 3(3), 100-116. Sripad, Joshi, and Laxmaiah E. n.d. 2013. Survey Of Natural Language Interface To Databases. Sujatha, B., & Raju, S. V. (2016). Natural Language Query Processing for Relational Database using EFFCN Algorithm. International Journal of Computer Sciences and Engineering, 4, 49-53. Sukthankar, N., Maharnawar, S., Deshmukh, P., Haribhakta, Y., & Kamble, V. (2017). nQuery-A Natural Language Statement to SQL Query Generator. In Proceedings of ACL 2017, Student Research Workshop (pp. 17-23). Stefan W., Ellen R., Gabriele S., (1996). Connectionist, Statistical and Symbolic Approaches to Learning for Natural Language Processing, Springer.

T. Ono, H. Hishigaki, A. Tanigami, T. Takagi, (2001), Automated extraction of information on protein- protein interactions from the biological literature, Bioinformatics. doi:10.1093/bioinformatics/17.2.155.

Warren, D. H., & Pereira, F. C. (1982). An efficient easily adaptable system for interpreting natural language queries. Computational Linguistics, 8(3-4), 110-122. Woods, William A, Ronald M Kaplan, and Bonnie Nash-Webber. (1972) The lunar sciences natural language information system. Bolt, Beranek and Newman, Incorporated. Xu, X., Liu, C., & Song, D. (2017). Sqlnet: Generating structured queries from natural language without reinforcement learning. arXiv preprint arXiv:1711.04436. Yossi Shani, Tal Cohen, and Yossi Vainshtein. (2016) "Natural Language Interface for Databases." KUERI.ME. 2016. http://kueri.me/. Yaghmazadeh, N., Wang, Y., Dillig, I., & Dillig, T. (2017). Sqlizer: Query synthesis from natural language. Proceedings of the ACM on Programming Languages, 1(OOPSLA), 63. Zhong, V., Xiong, C., & Socher, R. (2017). Seq2SQL: Generating Structured Queries from Natural Language using Reinforcement Learning. arXiv preprint arXiv:1709.00103.
