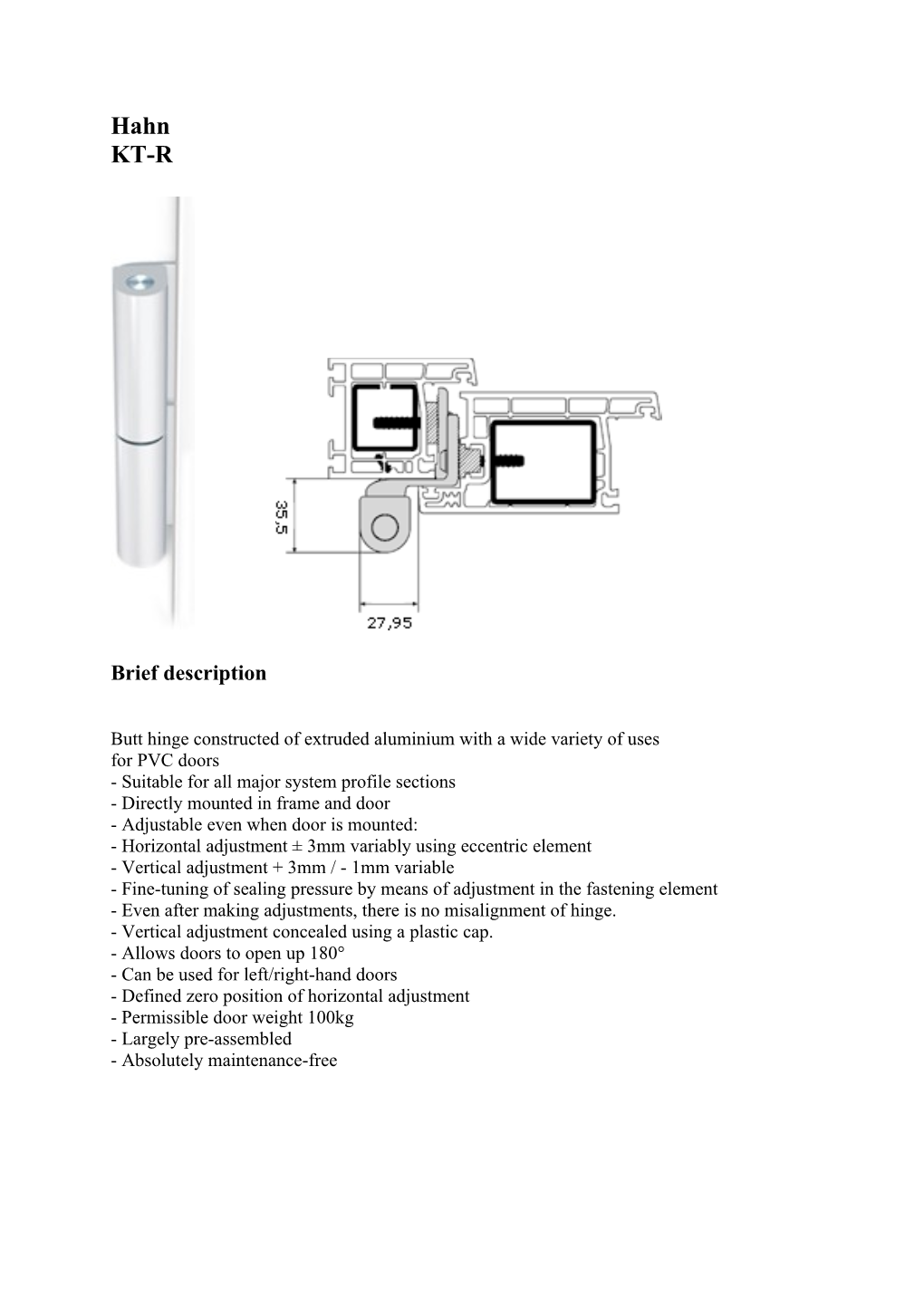

Hahn KT-R
Brief description
Butt hinge constructed of extruded aluminium with a wide variety of uses for PVC doors - Suitable for all major system profile sections - Directly mounted in frame and door - Adjustable even when door is mounted: - Horizontal adjustment ± 3mm variably using eccentric element - Vertical adjustment + 3mm / - 1mm variable - Fine-tuning of sealing pressure by means of adjustment in the fastening element - Even after making adjustments, there is no misalignment of hinge. - Vertical adjustment concealed using a plastic cap. - Allows doors to open up 180° - Can be used for left/right-hand doors - Defined zero position of horizontal adjustment - Permissible door weight 100kg - Largely pre-assembled - Absolutely maintenance-free
