Nanopores: Graphene Opens up To news & views NANOPORES Graphene opens up to DNA It might be possible to sequence DNA by passing the molecule through a small hole in a sheet of graphene. Zuzanna S. Siwy and Matthew Davenport he nanopores that are found in the ab c membranes of cells have an important Trole in biology and, along with artificial nanopores fabricated in materials such as silicon nitride, they have also been used to detect single molecules and, in some cases, extract more detailed information such as the size and shape of the molecules1. The capabilities of these systems are influenced by the diameter of the nanopore and also by the thickness of the membrane 5 nm 10 nm 10 nm that contains it. In general, however, these membranes are too thick to be able to probe the local structure of a molecule as it Figure 1 | Images of nanopores sculpted in graphene by the electron beam of a transmission electron passes through the nanopore. To read the microscope and used in the work of a, Golovchenko and colleagues6, b, Dekker and colleagues7 and sequence of nucleotides in a DNA molecule, c, Drndić and colleagues8. The rings surrounding the pore in (c) are indicative of the number of graphene for example, a membrane of sub-nanometre layers that form the membrane. Parts b and c reproduced with permission from: b, ref. 7, © 2010 ACS; thickness is required. c, ref. 8, © 2010 ACS. Graphene is a two-dimensional sheet of carbon atoms arranged in a honeycomb lattice. The material has remarkable The three teams — led by Jene be viable for DNA detection8. Furthermore, mechanical, electronic and optical properties Golovchenko of Harvard, Cees Dekker of the nanopores could differentiate between and, as a result, is at present being investigated Delft and Marija Drndić of UPenn — all DNA that passed through the pore in an for a variety of applications, including flexible address the issue of DNA detection using extended form and that which passed touch-screen devices2–4. This mechanical graphene nanopores. DNA is a long, through in a folded form (Fig. 2c). stability also means that it is possible to use spaghetti-like molecule made up of repeating Despite these exciting developments, an electron beam to sculpt a nanopore in a units called nucleotides. Each nucleotide is the central question remains: is single- suspended sheet of graphene5. Writing in composed of one of four bases — adenine base resolution with a graphene nanopore Nature and Nano Letters, three independent (A), cytosine (C), guanine (G) or thymine feasible? All three groups found that the groups based at Harvard University and (T) — attached to a backbone of sugar and translocation events are too fast to be Massachusetts Institute of Technology6, Delft phosphate groups. Only one nucleotide can resolved by the existing detection electronics. University of Technology7, and the University reside in the ultrathin graphene pore at a However, the Harvard–MIT team went a of Pennsylvania8 now report using graphene time, so it should be possible to sequence by step further and quantified the resolution membranes as nanopore sensors. observing the translocation of consecutive obtainable with a graphene nanopore using The basis of nanopore detection is the nucleotides through the nanopore. numerical simulations6. Golovchenko and resistive pulse technique, or Coulter-counter The Harvard–MIT team used graphene colleagues considered the translocation method, in which a membrane containing a membranes 1 or 2 layers thick6, the Delft of a cylindrical molecule whose diameter single nanopore is sandwiched between two team membranes 1–8 layers thick7 and changed discontinuously from 2.2 nm to reservoirs of electrolytic solution, such as the UPenn team membranes 3–15 layers 2.0 nm (diameters that are consistent with aqueous potassium chloride. Ions are driven thick8, and all report initial DNA detection the dimensions of base pairs in double- through the pore by applying an electric experiments that are an important step stranded DNA). Using a membrane potential difference across the membrane, towards DNA sequencing (Fig. 1). The thickness derived from experiment (0.6 nm), resulting in an ionic current that can be membranes (prepared by chemical vapour as well as a more conservative estimate measured. When the electrolyte contains deposition6,8 or exfoliation from graphite7) of thickness (1.5 nm), they showed that larger charged molecules, such as DNA or each contain single pores with diameters graphene nanopores should inherently proteins, these are also driven through the of 5–25 nm drilled in the graphene sheet possess sub-nanometre resolution. In the pore, causing a transient dip in the ionic with an electron beam. All groups presented case of the 0.6-nm membrane, the resolution current. Thus, each current dip represents a membranes that could detect double- was determined to be 0.35 nm — nearly passage, or translocation, of a biomolecule, stranded DNA molecules with lengths that identical to the length of a single base pair. with the magnitude and duration of the varied from 400 to 48,000 base pairs (Fig. 2). On a more fundamental level, the pulse being indicative of the molecule’s Even membranes with significant variability electrolyte/graphene interface presents an radius and length, respectively. in the baseline current levels were found to intriguing physical system. The Harvard– NATURE NANOTECHNOLOGY | VOL 5 | OCTOBER 2010 | www.nature.com/naturenanotechnology 697 © 2010 Macmillan Publishers Limited. All rights reserved nnano_N&V_OCT10.indd 697 24/9/10 16:21:54 news & views abThis work on graphene nanopores is Add DNA certain to be the precursor to further studies in a variety of fields. Within the scope of nanopore sensing, there are numerous 1 ns avenues to explore using the graphene 0.2 s itself as an electrode to control the local electric potential and translocation rates, or c to monitor the transverse conductance of individual nucleotides as they pass through a pore9. Previous theoretical work suggests that the latter technique, if used in the proper geometry, could provide DNA sequencing 10 1 ns with a 0% error rate . Combined with recent 2 ms advances in the production of large-area high-quality graphene (sheets with up to a ++ + 30-inch diagonal)4, the results open the door ––– to a host of interesting explorations including the development of new membrane systems Figure 2 | Translocation of DNA through a graphene nanopore. a, Double-stranded DNA threading a for biosensing. ❐ graphene nanopore. Each coloured segment represents a different nucleotide. The software VMD 1.8.7, PyMOL1.2r1, and TubeGen 3.3 was used in preparation of the image. b, Characteristic conductance versus Zuzanna S. Siwy and Matthew Davenport are in the time signals of a graphene nanopore before and after the addition of DNA. c, The conductance signature Department of Physics and Astronomy, University of (top) of various DNA conformations (bottom) as they translocate through a graphene nanopore. Parts b California, Irvine, California 92697, USA. and c reproduced with permission from ref. 7, © 2010 ACS. e-mail: [email protected] References 1. Dekker, C. Nature Nanotech. 2, 209–215 (2007). MIT team observed that although the understood if an ionic-current-based DNA 2. Novoselov, K. S. et al. Science 306, 666–669 (2004). 3. Neto, A. H. C., Guinea, F., Peres, N. M. R., Novoselov, K. S. & ion permeability of an intact graphene sequencing algorithm is to be employed. Geim, A. K. Rev. Mod. Phys. 81, 109–162 (2009). membrane was negligible compared with Perhaps the most striking question 4. Bae, S. et al. Nature Nanotech. 5, 574–578 (2010). that of a membrane that contained a that arises from these reports relates to the 5. Fischbein, M. D. & Drndić, M. Appl. Phys. Lett. nanopore, it was not zero and it was different dimensionality of the graphene pore: the 93, 113107 (2008). 6. Garaj, S. et al. Nature 467, 190–193 (2010). for different cations, which indicates that pore was seen to behave as both a cylinder 7. Schneider, G. F. et al. Nano Lett. electrolyte–graphene interactions need to of finite length (with its conductance being 10, 3163–3167 (2010). be taken into account6. Evidence of DNA– proportional to the square of the diameter)7 8. Merchant, C. A. et al. Nano Lett. 6–8 10, 2915–2921 (2010). graphene interactions was also observed . and as an infinitesimally thin circular aperture 9. Zwolak, M. & Di Ventra, M. Rev. Mod. Phys. 80, 141–165 (2008). These interactions will need to be carefully (with conductance proportional to diameter)6. 10. Postma, H. W. Ch. Nano Lett. 10, 420–425 (2010). NANOELECTRONICS Nanoribbons on the edge Arrays of graphene nanoribbons are fabricated on structured silicon carbide substrates using self-organized growth, without lithography and with well-controlled widths. John A. Rogers raphene is attractive for electronics better switching capabilities, but they are large enough to allow efficient transistor because of its exceptional properties difficult to manufacture owing to the very switching3. However, practical circuits Gand the relative ease with which it can small widths that are required. Writing in require very narrow widths (less than be integrated into transistors and circuits. In Nature Nanotechnology, Michael Sprinkle, ~10 nm), with exceptional uniformity in the the form of large-area planar sheets, it can be Walter de Heer and colleagues at the Georgia lateral dimension, and well-ordered edges. processed using straightforward adaptations Institute of Technology and the Institut Recent reports suggest that such ribbons of methods that are already in widespread Néel in Grenoble report a clever growth can be achieved by ultrasonic tearing and use by the semiconductor industry. However, technique that yields organized, aligned exfoliation of larger sheets4, chemical graphene in its native single-layer form has arrays of narrow ribbons of graphene on ‘unzipping’ of carbon nanotubes5 and zero electronic bandgap, which prevents structured substrates of silicon carbide covalent linking of assemblies of molecular transistor devices made with it from being (SiC), with the potential to enable switching building blocks6.
Load more

Recommended publications
  • LNCMI Annual Report 2014
    2014 PUBLICATIONS List of Publications 2014 [1] B. Albertazzi, A. Ciardi, M. Nakatsutsumi, T. Vinci, J. B´eard,R. Bonito, J. Billette, M. Borghesi, Z. Burkley, S. N. Chen, T. E. Cowan, T. Herrmannsd¨orfer,D. P. Higginson, F. Kroll, S. A. Pikuz, K. Naughton, L. Romagnani, C. Riconda, G. Revet, R. Riquier, H.-P. Schlenvoigt, I. Yu. Skobelev, A.Ya. Faenov, A. Soloviev, M. Huarte- Espinosa, A. Frank, O. Portugall, H. P´epin, and J. Fuchs, \Laboratory formation of a scaled protostellar jet by coaligned poloidal magnetic field,” Science 346, 325{328 (2014). [2] Jack A. Alexander-Webber, Clement Faugeras, Piotr Kossacki, Marek Potemski, Xu Wang, Hee Dae Kim, Samuel D. Stranks, Robert A. Taylor, and Robin J. Nicholas, \Hyperspectral Imaging of Exciton Photoluminescence in Individual Carbon Nanotubes Controlled by High Magnetic Fields," Nano Letters 14, 5194{5200 (2014). [3] Rami Al-Oweini, Bassem S. Bassil, Jochen Friedl, Veronika Kottisch, Masooma Ibrahim, Marie Asano, Bineta Keita, Ghenadie Novitchi, Yanhua Lan, Annie Powell, Ulrich Stimming, and Ulrich Kortz, \Synthesis and Characterization of Multinuclear Manganese-Containing Tungstosilicates," Inorganic Chemistry 53, 5663{5673 (2014). [4] K. Andersson, M. Hammerstad, A. B. Tomter, H. Hersleth, A. K. Rohr, G. Zoppellaro, N. H. Andersen, G. K. Sandvik, G. E. Nilsson, A. Anne-Laure Barra, M. Hogbom, and A. Graslund, \Studies of the tyrosyl radicals and metal clusters in R2 of class la and lb ribonucleotide reductase," Journal Of Biological Inorganic Chemistry 19, S266 (2014). [5] A. Audouard, L. Drigo, F. Duc, X. Fabreges, L. Bosseaux, and P. Toulemonde, \Tunnel diode oscillator mea- surements of the upper critical magnetic field of FeTe0:5Se0:5," Journal of Physics-Condensed Matter 26, 185701 (2014).
    [Show full text]
  • Nanoelectronics: Nanoribbons on the Edge
    news & views abThis work on graphene nanopores is Add DNA certain to be the precursor to further studies in a variety of fields. Within the scope of nanopore sensing, there are numerous 1 ns avenues to explore using the graphene 0.2 s itself as an electrode to control the local electric potential and translocation rates, or c to monitor the transverse conductance of individual nucleotides as they pass through a pore9. Previous theoretical work suggests that the latter technique, if used in the proper geometry, could provide DNA sequencing 10 1 ns with a 0% error rate . Combined with recent 2 ms advances in the production of large-area high-quality graphene (sheets with up to a ++ + 30-inch diagonal)4, the results open the door ––– to a host of interesting explorations including the development of new membrane systems Figure 2 | Translocation of DNA through a graphene nanopore. a, Double-stranded DNA threading a for biosensing. ❐ graphene nanopore. Each coloured segment represents a different nucleotide. The software VMD 1.8.7, PyMOL1.2r1, and TubeGen 3.3 was used in preparation of the image. b, Characteristic conductance versus Zuzanna S. Siwy and Matthew Davenport are in the time signals of a graphene nanopore before and after the addition of DNA. c, The conductance signature Department of Physics and Astronomy, University of (top) of various DNA conformations (bottom) as they translocate through a graphene nanopore. Parts b California, Irvine, California 92697, USA. and c reproduced with permission from ref. 7, © 2010 ACS. e-mail: [email protected] References 1. Dekker, C.
    [Show full text]
  • Local Solid-State Modification of Nanopore Surface Charges
    Local solid-state modification of nanopore surface charges Local solid-state modification of nanopore surface charges Ronald Kox1,2,5, Stella Deheryan1, Chang Chen1,3, Nima Arjmandi1, Liesbet Lagae1,4, and Gustaaf Borghs1,4 Imec, Kapeldreef 75, 3001, Leuven, Belgium Department of Electrical Engineering, Katholieke Universiteit Leuven, Kasteelpark Arenberg 10, 3001, Leuven, Belgium Department of Chemistry, Katholieke Universiteit Leuven, Celestijnenlaan 200 F, Leuven, 3001, Leuven, Belgium Department of Physics, Katholieke Universiteit Leuven, Celestijnenlaan 200 D, Leuven, 3001, Leuven, Belgium Abstract: The last decade, nanopores have emerged as a new and interesting tool for the study of biological macromolecules like proteins and DNA. While biological pores, especially alpha-hemolysin, have been promising for the detection of DNA, their poor chemical stability limits their use. For this reason, researchers are trying to mimic their behaviour using more stable, solid-state nanopores. The most successful tools to fabricate such nanopores use high energy electron or ions beams to drill or reshape holes in very thin membranes. While the resolution of these methods can be very good, they require tools that are not commonly available and tend to damage and charge the nanopore surface. In this work, we show nanopores that have been fabricated using standard micromachning techniques together with EBID, and present a simple model that is used to estimate the surface charge. The results show that EBID with a silicon oxide precursor can be used to tune the nanopore surface and that the surface charge is stable over a wide range of concentrations. PACS: 81.07.-b Nanoscale materials and structures: fabrication and characterization, 81.15.Ef Vacuum deposition 1 Introduction Examples of nanopores are abundant in biological systems, usually in the form of transmembrane protein channels in lipid bilayer membranes.
    [Show full text]
  • [Thesis Title Goes Here]
    ATOMIC SCALE PROPERTIES OF EPITAXIAL GRAPHENE GROWN ON SIC(0001) A Thesis Presented to The Academic Faculty by Gregory Michael Rutter In Partial Fulfillment of the Requirements for the Degree Doctor of Philosophy in the School of Physics Georgia Institute of Technology December 2008 ATOMIC SCALE PROPERTIES OF EPITAXIAL GRAPHENE GROWN ON SIC(0001) Approved by: Dr. Phillip N. First, Advisor Dr. Edward H. Conrad School of Physics School of Physics Georgia Institute of Technology Georgia Institute of Technology Dr. Joseph A. Stroscio Dr. Zhigang Jiang Center for Nanoscale Science and School of Physics Technology Georgia Institute of Technology National Institute of Standards and Technology Dr. Mei-Yin Chou School of Physics Georgia Institute of Technology Date Approved: November 11, 2008 To my wife, Natasha ACKNOWLEDGEMENTS Firstly, I would like to thank my Ph. D. advisor at Georgia Tech, Phillip First. Phil was a wonderful advisor in that he would always keep one intellectually honest and on his toes. It was Phil’s foresight that gave me the unique opportunity to come to NIST to finish my graduate work. His understanding for interesting and exciting physics allowed me to stay at NIST for over 2 years. In these 2 years the work in this thesis could not have been possible without the help and guidance of Joseph Stroscio, my NIST sponsor. Joe was my day to day advisor during my time at NIST, and I would like to thank him for his infinite wisdom and patience. I would also like to thank my undergraduate advisor at Bradley University, Kevin Kimberlin, who always believed in me, even when I was an immature freshman.
    [Show full text]
  • Detection and Mapping of 5-Methylcytosine and 5-Hydroxymethylcytosine with Nanopore Mspa
    Detection and mapping of 5-methylcytosine and 5-hydroxymethylcytosine with nanopore MspA Andrew H. Laszloa, Ian M. Derringtona, Henry Brinkerhoffa, Kyle W. Langforda, Ian C. Novaa, Jenny Mae Samsona, Joshua J. Bartletta, Mikhail Pavlenokb, and Jens H. Gundlacha,1 aDepartment of Physics, University of Washington, Seattle, WA 98195-1560; and bDepartment of Microbiology, University of Alabama at Birmingham, Birmingham, AL 35294 Edited* by Daniel Branton, Harvard University, Cambridge, MA, and approved September 26, 2013 (received for review June 5, 2013) Precise and efficient mapping of epigenetic markers on DNA may remain unchanged. Conditions required to bring this conversion become an important clinical tool for prediction and identification close to 100% completion cause DNA damage by fragmentation of ailments. Methylated CpG sites are involved in gene expression (14). Conventional bisulfite sequencing cannot differentiate and are biomarkers for diseases such as cancer. Here, we use the between mC and hC (15). Oxidative bisulfite sequencing (16, 17) engineered biological protein pore Mycobacterium smegmatis porin can distinguish between mCandhC; however, this assay has sig- A (MspA) to detect and map 5-methylcytosine and 5-hydroxymethyl- nificant sample losses with only 0.5% of the original DNA frag- cytosine within single strands of DNA. In this unique single-molecule ments remaining intact (16). In methylation-specificenzyme tool, a phi29 DNA polymerase draws ssDNA through the pore in restriction, proteins recognize and cut DNA strands at mCs, and single-nucleotide steps, and the ion current through the pore is subsequent sequencing and alignment of the strands to the known recorded. Comparing current levels generated with DNA containing genomic sequence reveal the locations of the mCs (18, 19).
    [Show full text]
  • Nanopore Fabrication and Characterization by Helium Ion Microscopy
    Nanopore fabrication and characterization by helium ion microscopy D. Emmrich1, A. Beyer1, A. Nadzeyka2, S. Bauerdick2, J. C. Meyer3, J. Kotakoski3, A. Gölzhäuser1 1Physics of Supramolecular Systems and Surfaces, Bielefeld University, 33615 Bielefeld, Germany 2Raith GmbH, Konrad-Adenauer-Allee 8, 44263 Dortmund, Germany 3Faculty of Physics, University of Vienna, 1090 Vienna, Austria Abstract: The Helium Ion Microscope (HIM) has the capability to image small features with a resolution down to 0.35 nm due to its highly focused gas field ionization source and its small beam-sample interaction volume. In this work, the focused helium ion beam of a HIM is utilized to create nanopores with diameters down to 1.3 nm. It will be demonstrated that nanopores can be milled into silicon nitride, carbon nanomembranes (CNMs) and graphene with well-defined aspect ratio. To image and characterize the produced nanopores, helium ion microscopy and high resolution scanning transmission electron microscopy were used. The analysis of the nanopores’ growth behavior, allows inferring on the profile of the helium ion beam. Nanopores in atomically thin membranes can be used for biomolecule analysis,1 electrochemical storage,2 as well as for the separation of gases and liquids.3 All of these applications require a precise control of the size and shape of the nanopores. It was shown that the focused beam of a transmission electron microscope (TEM) is able to create nanopores in membranes of silicon nitride and graphene with diameters down to 2 nm.4,5 Pores can be further shrunk in a TEM by areal electron impact.6 However, the preparation of such nanopores in a TEM is time-consuming and is limited to small samples (~3 mm diameter) that fit into the microscope.
    [Show full text]
  • De Novo Sequencing and Variant Calling with Nanopores Using Poreseq
    De novo Sequencing and Variant Calling with Nanopores using PoreSeq Tamas Szalay1 & Jene A. Golovchenko1,2* 1School of Engineering and Applied Sciences, Harvard University, Cambridge, Massachusetts 02138 USA 2Department of Physics, Harvard University, Cambridge, Massachusetts 02138 USA *Corresponding author, email: [email protected] 1 1 The single-molecule accuracy of nanopore sequencing has been an area of rapid academic 2 and commercial advancement, but remains challenging for the de novo analysis of genomes. 3 We introduce here a novel algorithm for the error correction of nanopore data, utilizing 4 statistical models of the physical system in order to obtain high accuracy de novo sequences 5 at a range of coverage depths. We demonstrate the technique by sequencing M13 6 bacteriophage DNA to 99% accuracy at moderate coverage as well as its use in an assembly 7 pipeline by sequencing E. coli and ࣅ DNA at a range of coverages. We also show the 8 algorithm’s ability to accurately classify sequence variants at far lower coverage than 9 existing methods. 10 DNA sequencing has proven to be an indispensable technique in biology and medicine, 11 greatly accelerated by the technological developments that led to multiple generations of low 12 cost and high throughput tools1,2. Despite these advances, however, most existing sequencing-by- 13 synthesis techniques remain limited to short reads using expensive devices with complex sample 14 preparation procedures3. 15 Initially proposed two decades ago by Branton, Deamer, and Church4, nanopore 16 sequencing has recently emerged as a serious contender in the crowded field of DNA 17 sequencing.
    [Show full text]
  • Trapping DNA Near a Solid-State Nanopore
    352 Biophysical Journal Volume 103 July 2012 352–356 Trapping DNA near a Solid-State Nanopore Dimitar M. Vlassarev† and Jene A. Golovchenko†‡* † ‡ Department of Physics and School of Engineering and Applied Sciences, Harvard University, Cambridge, Massachusetts ABSTRACT We demonstrate that voltage-biased solid-state nanopores can transiently localize DNA in an electrolyte solution. A double-stranded DNA (dsDNA) molecule is trapped when the electric field near the nanopore attracts and immobilizes a non- end segment of the molecule across the nanopore orifice without inducing a folded molecule translocation. In this demonstration of the phenomenon, the ionic current through the nanopore decreases when the dsDNA molecule is trapped by the nanopore. By contrast, a translocating dsDNA molecule under the same conditions causes an ionic current increase. We also present finite- element modeling results that predict this behavior for the conditions of the experiment. INTRODUCTION It is now well established that single molecules of DNA can nanopore conductivity can be made remarkably different be induced to pass (translocate) through a voltage-biased for a molecule trapped across a nanopore compared to nanopore in a thin insulating membrane, and detected elec- when it is translocating through it. In fact, we shall show tronically. Detection is achieved by monitoring the changes that the trapped molecule can decrease the conductivity in the nanopore ionic conductivity induced by the mole- under conditions where the translocating molecule increases cule’s transient presence inside the nanopore. This effect it. We anticipate that this new nanopore-trapping phe- has been observed in protein nanopores embedded in lipid nomenon will be relevant to a number of single-molecule membranes (1), and in solid-state nanopores fashioned in applications.
    [Show full text]
  • Nanopore Formation Via Tip-Controlled Local Breakdown Using an Atomic Force Microscope
    FULL PAPER Solid State Nanopores www.small-methods.com Nanopore Formation via Tip-Controlled Local Breakdown Using an Atomic Force Microscope Yuning Zhang,* Yoichi Miyahara,* Nassim Derriche, Wayne Yang, Khadija Yazda, Xavier Capaldi, Zezhou Liu, Peter Grutter,* and Walter Reisner* possess enhanced micro/nanofluidic inte- The dielectric breakdown approach for forming nanopores has greatly accelerated gration potential[3] and could potentially the pace of research in solid-state nanopore sensing, enabling inexpensive increase sensing resolution.[2] Yet, despite formation of nanopores via a bench top setup. Here the potential of tip-controlled the great interest in solid-state pore devices, local breakdown (TCLB) to fabricate pores 100× faster, with high scalability and approaches for fabricating solid-state pores, especially with diameters below 10 nm, nanometer positioning precision using an atomic force microscope (AFM) is are limited, with the main challenge demonstrated. A conductive AFM tip is brought into contact with a silicon nitride being a lack of scalable processes permit- membrane positioned above an electrolyte reservoir. Application of a voltage ting integration of single solid-state pores pulse at the tip leads to the formation of a single nanoscale pore. Pores are with other nanoscale elements required formed precisely at the tip position with a complete suppression of multiple pore for solid-sate sequencing schemes, such as transverse nanoelectrodes,[4,5] surface formation. In addition, the approach greatly accelerates the electric breakdown plasmonic structures,[6–10] and micro/nano- process, leading to an average pore fabrication time on the order of 10 ms, channels.[11–14] The main pore production at least two orders of magnitude shorter than achieved by classic dielectric approaches, such as milling via electron breakdown approaches.
    [Show full text]
  • Resolution AFM Imaging and Conductance Measurements Laura S
    This is an open access article published under an ACS AuthorChoice License, which permits copying and redistribution of the article or any adaptations for non-commercial purposes. Research Article www.acsami.org Graphene Nanopore Support System for Simultaneous High- Resolution AFM Imaging and Conductance Measurements Laura S. Connelly,†,§,⊥ Brian Meckes,‡,⊥ Joseph Larkin,∥ Alan L. Gillman,‡ Meni Wanunu,∥ and Ratnesh Lal*,†,‡,§ † ‡ § Materials Science and Engineering Program, Department of Bioengineering, and Department of Mechanical and Aerospace Engineering, University of California−San Diego, 9500 Gilman Drive, La Jolla, California 92093, United States ∥ Department of Physics, Northeastern University, 110 Forsyth Street, Boston, Massachusetts 02115, United States ABSTRACT: Accurately defining the nanoporous structure and sensing the ionic flow across nanoscale pores in thin films and membranes has a wide range of applications, including characterization of biological ion channels and receptors, DNA sequencing, molecule separation by nanoparticle films, sensing by block co-polymers films, and catalysis through metal−organic frameworks. Ionic conductance through nanopores is often regulated by their 3D structures, a relationship that can be accurately determined only by their simultaneous measurements. However, defining their structure−function relationships directly by any existing techniques is still not possible. Atomic force microscopy (AFM) can image the structures of these pores at high resolution in an aqueous environment, and electrophysiological techniques can measure ion flow through individual nanoscale pores. Combining these techniques is limited by the lack of nanoscale interfaces. We have designed a graphene-based single-nanopore support (∼5 nm thick with ∼20 nm pore diameter) and have integrated AFM imaging and ionic conductance recording using our newly designed double-chamber recording system to study an overlaid thin film.
    [Show full text]
  • Fukushima Disaster Alters Dialogue at Nuclear Session

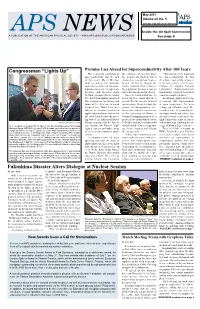

    May 2011 Volume 20, No. 5 TM www.aps.org/publications/apsnews APS NEWS Inside the Oil Spill Commission A PublicAtion of the AmericAn PhysicAl society • www.APs.org/PublicAtions/APsnews See page 8 Promise Lies Ahead for Superconductivity After 100 Years Congressman “Lights Up” The centennial celebration of the resistance of mercury when “Materials are very important superconductivity was the talk his instruments showed that it for superconductivity. In fact of this year’s March Meeting. dropped to zero at four degrees they drove most of the advances Both researchers and historians Kelvin. At first he thought the in the last century,” said George took time to reflect on the seren- results stemmed from a short in Crabtree of Argonne National dipitous discovery of supercon- his equipment because it was an Laboratory. “Superconductivity ductivity, and speculate about effect that no one had predicted. has in many ways led the field of its future promise for the world. Once he realized that his ex- condensed matter physics.” The Kavli Foundation sponsored periments were sound, this unex- An ultimate goal is to develop two sessions on the history and pected effect became the focus of a material that superconducts future of the effect, one of which intense study. From the start, the at room temperature. It’s been featured five Nobel Laureates. promise of dissipationless elec- a long and difficult search. Re- Dozens of sessions focused on tricity was evident. Laura Greene searchers have been pushing the applications and basic research in of the University of Illinois at envelope slowly but surely.
