DOCSLIB.ORG

Pickling and Passivation

Total Page：16

File Type：pdf, Size：1020Kb

Download full-text PDF Read full-text

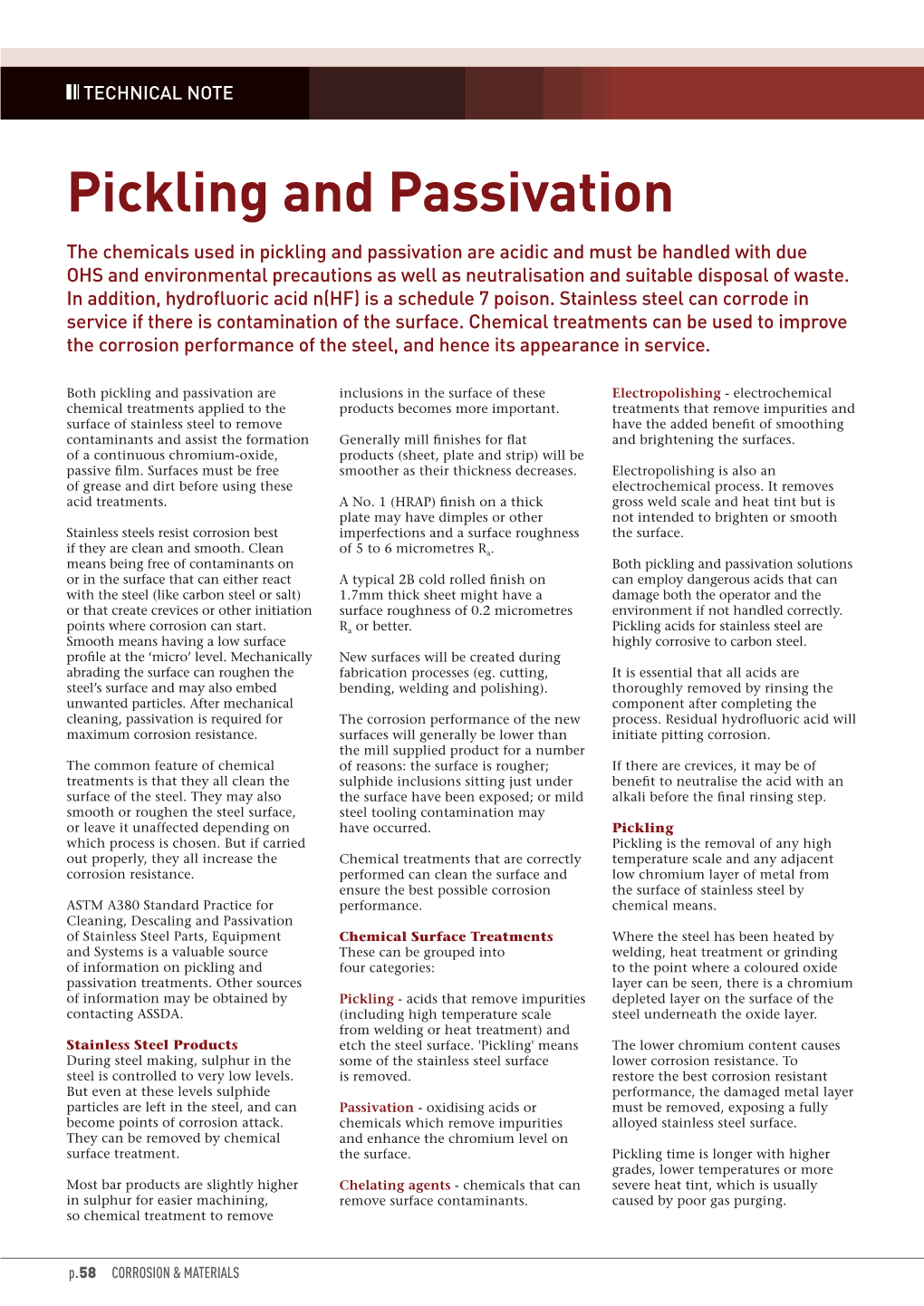

Pickling and Passivation TECHNICAL NOTE Pickling and Passivation The chemicals used in pickling and passivation are acidic and must be handled with due OHS and environmental precautions as well as neutralisation and suitable disposal of waste. In addition, hydrofluoric acid n(HF) is a schedule 7 poison. Stainless steel can corrode in service if there is contamination of the surface. Chemical treatments can be used to improve the corrosion performance of the steel, and hence its appearance in service. Both pickling and passivation are inclusions in the surface of these Electropolishing - electrochemical chemical treatments applied to the products becomes more important. treatments that remove impurities and surface of stainless steel to remove have the added benefit of smoothing contaminants and assist the formation Generally mill finishes for flat and brightening the surfaces. of a continuous chromium-oxide, products (sheet, plate and strip) will be passive film. Surfaces must be free smoother as their thickness decreases. Electropolishing is also an of grease and dirt before using these electrochemical process. It removes acid treatments. A No. 1 (HRAP) finish on a thick gross weld scale and heat tint but is plate may have dimples or other not intended to brighten or smooth Stainless steels resist corrosion best imperfections and a surface roughness the surface. if they are clean and smooth. Clean of 5 to 6 micrometres Ra. means being free of contaminants on Both pickling and passivation solutions or in the surface that can either react A typical 2B cold rolled finish on can employ dangerous acids that can with the steel (like carbon steel or salt) 1.7mm thick sheet might have a damage both the operator and the or that create crevices or other initiation surface roughness of 0.2 micrometres environment if not handled correctly. points where corrosion can start. Ra or better. Pickling acids for stainless steel are Smooth means having a low surface highly corrosive to carbon steel. profile at the ‘micro’ level. Mechanically New surfaces will be created during abrading the surface can roughen the fabrication processes (eg. cutting, It is essential that all acids are steel’s surface and may also embed bending, welding and polishing). thoroughly removed by rinsing the unwanted particles. After mechanical component after completing the cleaning, passivation is required for The corrosion performance of the new process. Residual hydrofluoric acid will maximum corrosion resistance. surfaces will generally be lower than initiate pitting corrosion. the mill supplied product for a number The common feature of chemical of reasons: the surface is rougher; If there are crevices, it may be of treatments is that they all clean the sulphide inclusions sitting just under benefit to neutralise the acid with an surface of the steel. They may also the surface have been exposed; or mild alkali before the final rinsing step. smooth or roughen the steel surface, steel tooling contamination may or leave it unaffected depending on have occurred. Pickling which process is chosen. But if carried Pickling is the removal of any high out properly, they all increase the Chemical treatments that are correctly temperature scale and any adjacent corrosion resistance. performed can clean the surface and low chromium layer of metal from ensure the best possible corrosion the surface of stainless steel by ASTM A380 Standard Practice for performance. chemical means. Cleaning, Descaling and Passivation of Stainless Steel Parts, Equipment Chemical Surface Treatments Where the steel has been heated by and Systems is a valuable source These can be grouped into welding, heat treatment or grinding of information on pickling and four categories: to the point where a coloured oxide passivation treatments. Other sources layer can be seen, there is a chromium of information may be obtained by Pickling - acids that remove impurities depleted layer on the surface of the contacting ASSDA. (including high temperature scale steel underneath the oxide layer. from welding or heat treatment) and Stainless Steel Products etch the steel surface. 'Pickling' means The lower chromium content causes During steel making, sulphur in the some of the stainless steel surface lower corrosion resistance. To steel is controlled to very low levels. is removed. restore the best corrosion resistant But even at these levels sulphide performance, the damaged metal layer particles are left in the steel, and can Passivation - oxidising acids or must be removed, exposing a fully become points of corrosion attack. chemicals which remove impurities alloyed stainless steel surface. They can be removed by chemical and enhance the chromium level on surface treatment. the surface. Pickling time is longer with higher grades, lower temperatures or more Most bar products are slightly higher Chelating agents - chemicals that can severe heat tint, which is usually in sulphur for easier machining, remove surface contaminants. caused by poor gas purging. so chemical treatment to remove p.58 CORROSION & MATERIALS TECHNICAL NOTE Mechanical removal alone may leave abrasive or other particles embedded (interfering with corrosion performance) or may be impractical. If mechanical means are used, chemical passivation will be required for maximum corrosion resistance. Procedures incorporating pickling solutions, such as a mixture of hydrofluoric (HF) and nitric (HNO3) acids, remove the scale and the underlying chromium depleted layer and restore the corrosion resistance. Mixtures of HF and HNO3 are the most common and are generally the most effective. Acids are available as a bath, a gel or a paste. Commercially available mixtures contain up to about 25% HNO3 and 8% HF. These chemicals etch the stainless steel which can roughen and dull the surface. Pickling solutions also remove embedded contaminants such as carbon steel and ferrous and ferric oxide particles. Pickling solutions other than mixtures of HNO3 and HF acids exist and can be used for specialised applications. They tend to be slower. Pickling pastes, where the solution is mixed with an inert carrier, are commonly used to treat selected areas such as welds. Pickling involves metal removal and a change or dulling in the visual brightness of the metal. Procedures involving electropolishing are a useful alternative or additional treatment following pickling. Metal removal is achieved and usually results in a bright, smooth and more highly corrosion resistant finish. Passivation Passivation is the treatment of the surface of stainless steels, often with acid solutions (or gels), to remove contaminants and promote the formation of the passive film on a surface that was freshly created, eg. through grinding, machining or mechanical damage. Passivation works by dissolving any carbon steel contamination from the surface of the stainless steel, and by dissolving out sulphide inclusions breaking the surface. Nitric acid (HNO3) may also enrich the proportion of chromium at the surface. Some chelants also claim to do this. Example of a good post-weld practice. August 2016 www.corrosion.com.au p.59 TECHNICAL NOTE Common passivation treatments Chelants resistance. Note that a pickled or include HNO3 solutions or pastes Chelants have chemical 'claws' designed passivated rough, matt 36 grit finish which will clean the steel surface free to selectively clean the surface. could have better corrosion resistance of iron contaminants. than an untreated 220 grit finish. The The carboxylic acid group -COOH is study reported by G.Coates (Materials Formulations contain up to about the basis for many chelants which are Performance, August 1990) showed 30% HNO3 and may also contain used in cleaners, water softening and the effect of mechanical and chemical other oxidisers such as sodium lubricants. The pH and temperature treatments of furnace generated heat dichromate. When used correctly, an must be correct for the chelant to do its tint on a high molybdenum grade HNO3 treatment should not affect the job. Chemicals containing these COOH of 316. appearance of the steel. 'claws' include citric and oxalic acids and EDTA. Citric based formulators are Electropolishing Passivation does not usually result in most used as they are not toxic. Electropolishing of stainless steel is a a marked change in appearance of the method of imparting brilliance to its steel surface, although mirror polished Turbulent rinsing of pipes and vessels surface by removal of a thin surface surfaces should be tested first. afterwards is important. layer, especially the peaks. The corrosion resistance of the Cleaning by chelating agents tends to Studies have also shown that stainless steel is affected by the be based on proprietary knowledge and electropolishing benefits corrosion roughness of the surface after systems, and is less standardised than resistance. The work to be polished is polishing, with a marked decrease in the other methods described. the anode in an electrochemical cell the corrosion resistance as the surface The successful use of these systems containing a suitable electrolyte. roughness increases above a Ra value needs to be established on a case-by- of about 0.5 micrometres. This roughly case basis. The process may be considered the corresponds to the surface produced opposite of electroplating and is an by grinding with 320 grit abrasives as Chemical vs Mechanical important production tool in the discussed below. Treatment fabrication of the stainless steels, along with mechanical polishing processes. Either passivation or electropolishing The figure below shows the relative can be used to improve the corrosion importance of the surface smoothness Generally speaking, electropolishing resistance of polished surfaces. and chemical treatment on corrosion supplements the mechanical polishing Effect of chemical and mechanical treatments on corrosion resistance 5 Belt Ground Chemical 36 grit Treatment s 4 36 grit + pickled / 80 grit metre passivated o r c 3 , mi a Wire brushed R 120 grit ess, 220 grit + 2 pickled / Sand blasted 220 grit passivated Roughn e c Other As heat treated, a 1 f r Mechanical pickled Su 360 grit 0 ???? ???? ??? ??? ??? ??? Corrosion resistance improves as you go to the right of this graph.
Load more

Recommended publications
  • Treatise on Combined Metalworking Techniques: Forged Elements and Chased Raised Shapes Bonnie Gallagher
    Rochester Institute of Technology RIT Scholar Works Theses Thesis/Dissertation Collections 1972 Treatise on combined metalworking techniques: forged elements and chased raised shapes Bonnie Gallagher Follow this and additional works at: http://scholarworks.rit.edu/theses Recommended Citation Gallagher, Bonnie, "Treatise on combined metalworking techniques: forged elements and chased raised shapes" (1972). Thesis. Rochester Institute of Technology. Accessed from This Thesis is brought to you for free and open access by the Thesis/Dissertation Collections at RIT Scholar Works. It has been accepted for inclusion in Theses by an authorized administrator of RIT Scholar Works. For more information, please contact [email protected]. TREATISE ON COMBINED METALWORKING TECHNIQUES i FORGED ELEMENTS AND CHASED RAISED SHAPES TREATISE ON. COMBINED METALWORKING TECHNIQUES t FORGED ELEMENTS AND CHASED RAISED SHAPES BONNIE JEANNE GALLAGHER CANDIDATE FOR THE MASTER OF FINE ARTS IN THE COLLEGE OF FINE AND APPLIED ARTS OF THE ROCHESTER INSTITUTE OF TECHNOLOGY AUGUST ( 1972 ADVISOR: HANS CHRISTENSEN t " ^ <bV DEDICATION FORM MUST GIVE FORTH THE SPIRIT FORM IS THE MANNER IN WHICH THE SPIRIT IS EXPRESSED ELIEL SAARINAN IN MEMORY OF MY FATHER, WHO LONGED FOR HIS CHILDREN TO HAVE THE OPPORTUNITY TO HAVE THE EDUCATION HE NEVER HAD THE FORTUNE TO OBTAIN. vi PREFACE Although the processes of raising, forging, and chasing of metal have been covered in most technical books, to date there is no major source which deals with the functional and aesthetic requirements
    [Show full text]
  • Pickling & Acid Dipping
    Shop Talk: Practical Information for Finishers Pickling & Acid Dipping By Dr. James H. Lindsay, Jr., AESF Fellow, Contributing Technical Editor This is the seventh in a series of re- views looking back on the 25 year- old series,“AES Update,” begun by the late Dr. Donald Swalheim, and continued by others. These excerpts remind us how much has gone on before and how relevant it still re- mains. Though much has changed in the metal finishing industry, a large part of the old stuff is still rel- evant. As always, I may occasion- ally add my own words or com- ments in brackets [ ], just to put things in perspective. The primary goal is to remain faithful to the original article. This issue, you are looking at an article written by Lawrence J. Durney, on the subject of scale and oxide removal from metals by pick- ling and acid dipping. The prepara- tory steps in plating are the ones that are taken for granted, but if we mess up here, the rest of the process remove residues such as silicates, tion (3) is preferred, with the oxide might as well be forgotten. As which emanate from a foregoing op- being removed. However, direct reac- Durney showed, it is critical to do eration such as cleaning. tion with the metal (2) inevitably oc- things right the first time ... and at “Acid dip baths consist of weak-to- curs at local areas where there is no the very beginning. moderate acids which are used chiefly scale or where scale is removed first. to adjust pH before using acid plating The accompanying table shows the “On the subject of scale and oxide re- solutions.
    [Show full text]
  • What Is Passivation Vs. Pickling?
    What is Passivation vs. Pickling? December 22, 2020 White Paper - Volume 12 Headquarters Address: E-mail: 300 E-Business Way, Suite 300 [email protected] Cincinnati OH 45241 Phone: 513-201-3100 Website: Fax: 513-201-3190 www.bsiengr.com CONTENT 2 Abstract 2 Metal Finishing 3 Pickling 4 Passivation 5 Advantages & Disadvantages 5 Summary What is Passivation vs. Pickling? 1 ABSTRACT Pickling and passivation are two forms of chemical metal finishing that provide protective properties to metal especially against rust. Or in other terms, pickling and passivation are the name of the two processes where the metal is submerged in a bathing liquid that removes imperfections and rust from the surface of metal. Both types of metal finishing have great advantages for metal products. The processes remove impurities that are left from the metal being manufactured, protect the metal from pollutants getting into the metal and causing rusting and damage in the future. They leave the surface of the metal smooth and with no imperfections. This increases the durability of the metals. METAL FINISHING Stainless steel forms its own layer of iron-chromium stainless steel. In a perfect world, this natural reaction oxide as a deterrent against corrosion. This layer would form a new bond with the same protection. protects the metal. However, harsh chemicals, salt-laden Because some environments are filled with contaminants, environments such as constant exposure to saltwater, the result is far from perfect. These contaminants settle and damage to the surface by a mechanical action such in areas where the original iron-chromium oxide was as cutting will create openings in the layer.
    [Show full text]
  • Pickling and Passivation (Stainless Steel)
    PICKLING AND PASSIVATION (STAINLESS STEEL) PIKLING AND PASSIVATING STAINLESS STEEL The corrosion resistance of stainless steel is due to “passive” , chromium –rich complex, oxide film that forms naturally on the surface of the steel. This is the normal condition for stainless steel surfaces and is Known as the “passive state” or ‘passive condition’. Stainless steels will naturally self - passivate whenever a clean surface is exposed to an environment that can provide enough oxygen to from the chromium-rich oxide surface layer. This occurs automatically and instantaneously, provided there is sufficient oxygen available at the surface of the steel. The passive layer does however increase in thickness for some time after its initial formation. Naturally occurring conditions such as contact with air or aerated water will create and maintain the corrosion resisting passive surface condition. In this way stainless steels can keep their corrosion resistance, even where mechanical damage (e.g.scratching or machining)occurs and so have an in –built self-repairing corrosion protection system. The chromium in stainless steels is primarily responsible for the self- passivation mechanism. In contrast to carbon or low alloy steels, stainless steels must have a minimum chromium content of 10.5% (by weight) of chromium (and maximum of 1.2% carbon). This is the definition of stainless steels given in EN 10088-1. The corrosion resistance of these chromium – steels can be enhanced with addition of other alloying elements such as nickel, molybdenum, nitrogen and titanium (o niobium). This provides a range of steels with corrosion resistances over a wide range of service conditions as well as enhancing other useful properties such as formability, strength and heat (fire) resistance.
    [Show full text]
  • Steel Pickling: a Profile
    December 1993 Steel Pickling: A Profile Draft Report Prepared for John Robson U.S. Environmental Protection Agency Office of Air Quality Planning and Standards Cost and Economic Impact Section Research Triangle Park, NC 27711 EPA Contract Number 68-D1-0143 RTI Project Number 35U-5681-58 DR EPA Contract Number RTI Project Number 68-D1-0143 35U-5681-58 DR Steel Pickling: A Profile Draft Report December 1993 Prepared for John Robson U.S. Environmental Protection Agency Office of Air Quality Planning and Standards Cost and Economic Impact Section Research Triangle Park, NC 27711 Prepared by Tyler J. Fox Craig D. Randall David H. Gross Center for Economics Research Research Triangle Institute Research Triangle Park, NC 27709 TABLE OF CONTENTS Section Page 1 Introduction .................. 1-1 2 The Supply Side of the Industry ......... 2-1 2.1 Steel Production .............. 2-1 2.2 Steel Pickling .............. 2-3 2.2.1 Hydrochloric Acid Pickling ..... 2-5 2.2.1.1 Continuous Pickling .... 2-8 2.2.1.1.1 Coils ...... 2-8 2.2.1.1.2 Tube, Rod, and Wire ...... 2-9 2.2.1.2 Push-Pull Pickling ..... 2-10 2.2.1.3 Batch Pickling ....... 2-11 2.2.1.4 Emissions from Steel Pickling 2-11 2.2.2 Acid Regeneration of Waste Pickle Liquor .............. 2-12 2.2.2.1 Spray Roaster Regeneration Process .......... 2-13 2.3 Types of Steel .............. 2-14 2.3.1 Carbon Steels ............ 2-15 2.3.2 Alloy Steels ............ 2-15 2.3.3 Stainless Steels .......... 2-15 2.4 Costs of Production ...........
    [Show full text]
  • H2O2 Hydrogen Peroxide Passivation Procedure
    Solvaytechnical Chemicals PUBLICATION H2O2 Passivation Procedure Introduction Hydrogen peroxide is a strong chemical oxidant which decomposes into water and oxygen in the presence of a catalytic quantity of any transition metal (e.g., iron, copper, nickel, etc.). The primary concern with decomposition is the buildup of pressure which can lead to pressure Prepare for passivation by roping off the work area bursts. To prevent this from occurring, any metal surface that comes in and posting warning signs. All open lights and tools contact with hydrogen peroxide must be degreased, pickled and which may spark must be removed from the passivated, even if only used once. The degreasing and pickling steps passivation area. Smoking is prohibited within the chemically clean the metal surfaces. The passivating step oxidizes the passivation area. Prior to preparation of the chemical metal surface. The thin oxide coating, which forms on the metal surface solutions, determine how to dispose of the spent during passivation, renders the surface nonreactive to hydrogen peroxide chemicals. These chemicals must be disposed of in and prevents the metal from decomposing the peroxide. a safe and environmentally sound manner that is consistent with all applicable federal, state, and The passivation procedure consists of: local regulations. 1. Grinding to remove weld spatter and smooth out scratches. 2. Degreasing to remove oil and grease films. Application methods 3. Pickling to chemically clean the surface. The chemical solutions may be applied to the metal surfaces by the four different methods listed below. 4. Passivating with nitric acid to form an oxide film. • The metal surfaces may be sprayed with the 5.
    [Show full text]
  • Zinc Flake Systems from Dörken MKS Superbly Thin High-Performance Protection
    Zinc Flake Systems from Dörken MKS Superbly thin high-performance protection ZINC FLAKE 390.156_Zinklamelle_A4_12-Seiten_E_RZ.indd 1 27.11.18 09:02 EXTREMELY LOW COATING THICKNESS AND HIGH DURABILITY With high-performance zinc flake systems, Dörken MKS offers surface protection with excellent long-term effectiveness, tried and tested over many years in a wide range of sectors and applications. The special advantage: this is achieved with an ex- tremely thin coating – a system consisting of base- and topcoat with a thickness of just 8-20um protects steel parts for over 1,000 hours against base metal corrosion (red rust) in the salt spray test according to DIN EN ISO 9227. COMPLEX GEOMETRIES AND HIGH TENSILE STEELS With their high-performance capacity combined with minimal coat thickness, zinc flake coatings are used most widely for screws and fastener technology in the automotive sector – but Dörken MKS systems also have an impressive record in the coating of large construction parts of complex geometry. Furthermore, the superbly thin protective film is attractive from an ecological and economical point of view owing to its low resource input. A further advantage: As no hydrogen is produced during the coating process, there is no risk of ap- plication-related, hydrogen embrittlement. Zinc flake coatings are therefore particularly well suited for high tensile steels (> 1000 MPa). 390.156_Zinklamelle_A4_12-Seiten_E_RZ.indd 2 27.11.18 09:02 Scanning electron microscope image of a zinc flake coating WHAT IS A ZINC FLAKE COATING? The coating is a metallic „lacquer“ consisting of numerous small flakes (as per DIN EN ISO 10683 or DIN EN 13858), bound together through an inorganic matrix and providing active cathodic corrosion protection.
    [Show full text]
  • Pickling and Acid Dipping
    J PICKLING AND ACID DIPPINC by Earl C. Groshart Consultant, Seattle, WA Metals can be immersed into solutions of acids to remove metal, metal oxides, heat treat scale and foreign metals. Such treatments generally leave the surface chemically clean and ready for further processing. The g-neral process is to solvent, emulsion or alkaline clean the parts prior to acid immersion, so the acid solutions will wet and/or etch uniformly. The part should be free of water breaks after the alkaline step and should remain so throughout processing. Parts should be racked so that: 1. They can be completely immersed in the pickling solution to avoid an air/solu- tion interface where preferential etching can occur. 2. They do not strike or touch each other. 3. There is free draining and rinse water can contact all surfaces. 4. There are no solution pockets which prevent complete solution contact, but provide a solution/air interface. Assemblies containing overlapping surfaces, such as riveted joints, and assemblies containing more than one metal, such as an aluminum assembly with cadmium or stain- less steel inserts, should be avoided. Pickling of two alloys of the same material at one time should be checked to ascer- tain that galvanic effects will not cause preferential etching of one of the alloys. ALUMINUM AND ALUMINUM ALLOYS Pickling: Mild acid etching of wrought materials to remove heavy oxides, corrosion products and heat treat discoloration, can be accomplished by immersion in various combina- tions of sulfuric, nitric, hydrofluoric and chromic acids. The following solutions are typical: Make up Maintenance Nitric acid 25% v 25-30 oz/gal Hydro flu o ric acid 1% v To maintain etch rate Temperature Room Etch rate 0.001 5-0.003 inch/side/hr Maintenance of etch rate can be accomplished by addition of hydrofluoric acid or ammonium bifluoride.
    [Show full text]
  • Steel Pickling in Challenging Conditions
    Mika Maanonen Steel Pickling in Challenging Conditions Helsinki Metropolia University of Applied Sciences Bachelor of Engineering Materials Technology and Surface Engineering Thesis 21.1.2014 Abstract Author Mika Maanonen Title Steel Pickling in Challenging Conditions Number of Pages 32 pages + 3 appendices Date 21 January 2014 Degree Bachelor of Engineering Degree Programme Materials Technology and Surface Engineering Specialisation option Industrial Surface Engineering Instructors Pekka Luhtanen, Master of Science Arto Yli-Pentti, Lecturer The purpose of this thesis was to collect data on the pickling procedure and parameters especially in conditions where there are limited amount of power for heating, limited water treatment possibilities and equipment to maintain pickling processes. Information about steel pickling, alternative methods and processes before and after pickling was acquired. Data on most common chemicals for pickling were acquired and compared. Cleaning efficiency, ease of use, safety, price and availability of acids were taken into account in comparison. Information regarding especially citric acid was gathered as suitability for these conditions needed to be confirmed. Citric acid, hydrochloric acid and phosphoric acid were selected to be the best options. They were tested on carbon steel tubing at varying temperatures and concentrations. Pickling efficiency was measured by weight loss method. Weight loss - temperature figures were drawn for each tested chemical. Rinse water temperature efficiency measurement was attempted by titration of residual acid. Acid inhibitor efficiency was measured and compared between formalin, Stannine LTP, succinic acid and eucalyptus oil. Citric acid is an excellent option in cases where ease of use and safety is valued higher than short pickling time.
    [Show full text]
  • Chromate Free Surface Pre-Treatments for Aluminium Alloys Asetsdefense Dec
    Chromate free surface pre-treatments for aluminium alloys ASETSDefense Dec. 2016 ASETSDefense Martin Beneke Sonja Nixon Chromate free surface pre-treatments for aluminium alloys Chromate free surface pre-treatments for aluminium alloys ASETSDefense Dec. 2016 Drivers for chromate replacement • Airbus Environmental aims: Remove hazardous (CMR) substances from a/c and plants • Airbus ACF (Airbus Chromate Free) program started in 2002 • REACH regulation: Registration, Evaluation, Authorisation and Restriction of Chemicals CrO3, official REACH sunset date: 9/2017 CrO3 is used e.g. for CAA, CrVI CCC, Acidic Pickling processes, Hard Chrome plating, etc. CTAC: Chromium Trioxide Authorization Consortium • Aim: Use of CrO3 after the sunset date RAC and SECA recommendation for final decision of European Commission: „ “ CrO3 banned and full implementation of replacements in manufacturing and supply chain latest end 9/2024 necessary! © AIRBUS Operations GmbH. All rights reserved. Confidential and proprietary document. Chromate free surface pre-treatments for aluminium alloys ASETSDefense Dec. 2016 Surface pre-treatment of aluminium alloys Painted / Potential Chromate Paint Primer containing processes / Sealing, products Anodising unpainted Bonding Primer Degreasing Alkaline Acidic Painted / Treatments Treatments Chemical Paint Primer Conversion Coating Unpainted Wash Painted / Primer Paint Primer DPI Welding: Other LBW, FSW Topics discussed in this presentation processes Chemical milling © AIRBUS Operations GmbH. All rights reserved. Confidential and
    [Show full text]
  • Pickling and Passivating Stainless Steel
    Pickling and Passivating Stainless Steel Materials and Applications Series, Volume 4 Euro Inox Euro Inox is the European market development Full Members association for stainless steel. The members of the Euro Acerinox Inox include: www.acerinox.es • European stainless steel producers • National stainless steel development associations Outokumpu • Development associations of the alloying element www.outokumpu.com industries. ThyssenKrupp Acciai Speciali Terni The prime objectives of Euro Inox are to create awareness www.acciaiterni.com of the unique properties of stainless steels and to further ThyssenKrupp Nirosta their use in existing applications and in new markets. www.nirosta.de To achieve these objectives, Euro Inox organises UGINE & ALZ Belgium conferences and seminars, and issues guidance in UGINE & ALZ France printed and electronic form, to enable designers, Arcelor Mittal Group specifiers, fabricators and end users to become more www.ugine-alz.com familiar with the material. Euro Inox also supports technical and market research. Associate Members Acroni www.acroni.si ISBN 978-2-87997-224-4 (First Edition 2004 ISBN 2-87997-047-4) British Stainless Steel Association (BSSA) www.bssa.org.uk Czech version 978-2-87997-139-1 Cedinox Finnish version 2-87997-134-9 www.cedinox.es French version 978-2-87997-261-9 Centro Inox German version 978-2-87997-262-6 www.centroinox.it Dutch version 2-87997-131-4 Informationsstelle Edelstahl Rostfrei Polish version 2-87997-138-1 www.edelstahl-rostfrei.de Spanish version 2-87997-133-0 Institut de Développement de l’Inox (I.D.-Inox) Swedish version 2-87997-135-7 www.idinox.com Turkish version 978-2-87997-225-1 International Chromium Development Association (ICDA) www.icdachromium.com International Molybdenum Association (IMOA) www.imoa.info Nickel Institute www.nickelinstitute.org Polska Unia Dystrybutorów Stali (PUDS) www.puds.com.pl SWISS INOX www.swissinox.ch Content Pickling and Passivating Stainless Steel 1.
    [Show full text]
  • U046en Steel Sheets for Vitreous Enameling
    www.nipponsteel.com Steel Sheet Steel Sheets for Vitreous Enameling SteelSteel Sheets Sheets for for Vitreous Vitreous Enameling Enameling 2-6-1 Marunouchi, Chiyoda-ku,Tokyo 100-8071 Japan U046en_02_202004pU046en_02_202004f Tel: +81-3-6867-4111 © 2019, 2020 NIPPON STEEL CORPORATION NIPPON STEEL's Introduction Steel Sheets for Vitreous Enameling Manufacturing Processes Vitreous enamel is made by coating metal surface with glass. The compound material com- Table of Contents bines the properties of metal, such as high strength and excellent workability, with the char- Introduction acteristics of glass, such as corrosion resistance, chemical resistance, wear resistance, and Manufacturing Processes 1 visual appeal. Vitreous enamel has a long history, and the origin of industrial vitreous enamel- In addition to the high strength and excellent workability of cold-rolled steel sheets, steel sheets for vitreous enameling need to satisfy addi- ing is said to date back to the 17th century. Features 2 tional customer requirements such as higher adhesion strength of vitreous enamel, higher fishscaling resistance, and better enamel finish. Vitreous enamel is applied to not only kitchen utensils like pots, kettles and bathtubs but all- Product Performance 3 For this reason, in manufacturing steel sheets for vitreous enameling, the composition of the molten metal is controlled to an optimum level so containers used in the chemical and medical fields, sanitary wares, chemical machineries, and decarburized in the secondary refining process, and the temperature of the steel strip is precisely controlled in the hot rolling process Examples of Applications 4 building materials, and various components used in the energy field (such as heat exchanger and the continuous annealing process.
    [Show full text]
